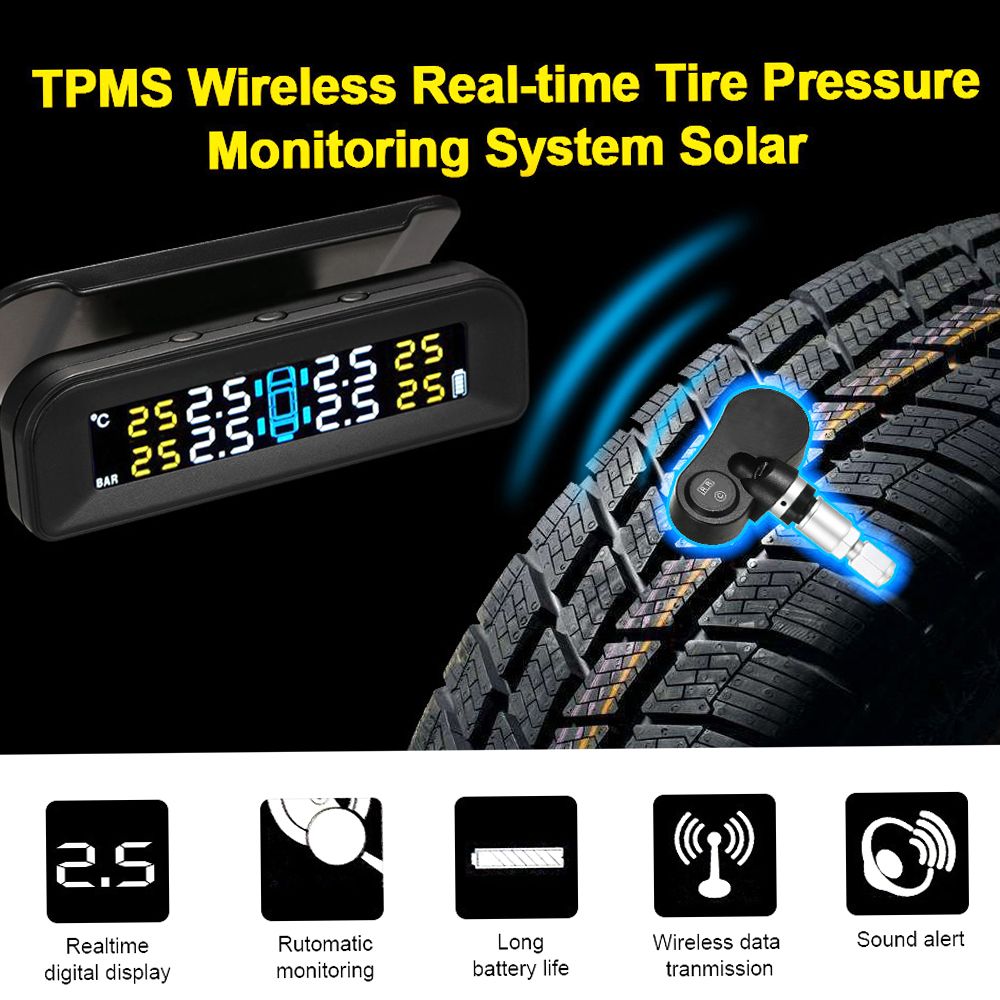

Features:*Tire Pressure Monitoring System lets you get real-time tire pressure data, temperature data and status, always keeping an eye on car performance.
*Combined with the solar energy display that is green, low carbon and renewable, enabling you to charge the device faster and conveniently.
*4 wheels' tire pressure and temperature display simultaneously, high/low tire pressure alarm, high temperature alarm and air leakage condition alarm.
*The real-time tire pressure data, reliable alarm system delivers alerts once an unusual situation occurs, very convenient and practical.
*TPMS adopts wireless transmission, and no wire connection required, easy installation, and it automatically sleep when there is no vibration.

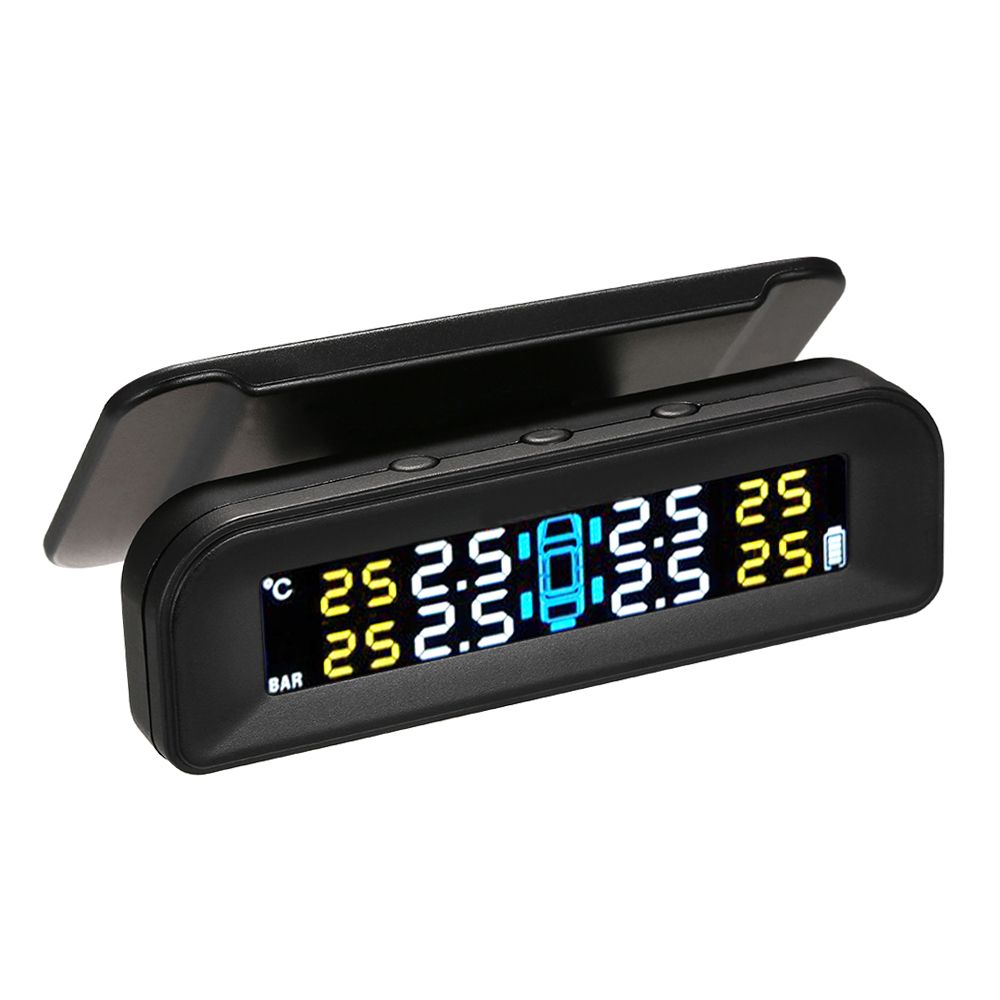

Specifications:Monitor:
Display screen: LCD
Operating temperature: -20℃ ~ 80℃
Working voltage: 3.5-4.2V
Daytime operating current/Night operating current/Standby current:＜20mA/＜4mA/＜50uA
Transmission frequency: 433.92MHZ+/-20KHZ
Transmission mode: FSK
Pressure unit: BAR/PSI
ways: Solar energy/USB(USB cable is not included)
Battery: 1 * 402040 3.7V 300mAh
Monitor size: Approx.9.5*3*1.5cm
Monitor weight (with solar panel): Approx.71g

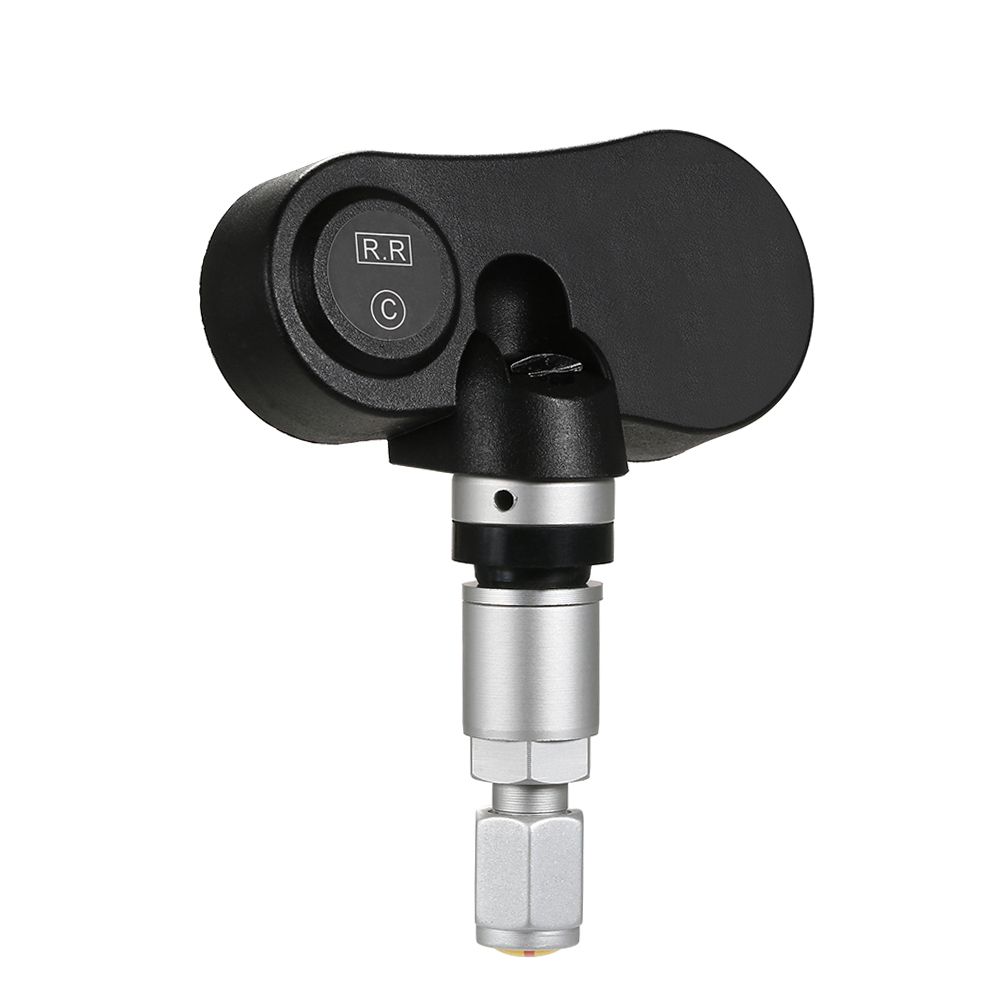

Sensor:
Operating temperature: - 40℃ ~ 125℃
Working voltage: 2-3.6V
Standby current:＜1uA
Transmission frequency: 433.92MHZ+/-20KHZ
Transmitted :＞8dBm
Open Distance:＞30M
Battery(each sensor): 1* CR2050 3V 330mAh
Sensor size(each): Approx. 6.5*3.6*1.5cm
Sensor weight(each): Approx.30g
Package Size: 21*15*6cm / 8.27*5.91*2.36in.
Package Weight: 370g / 13.05oz

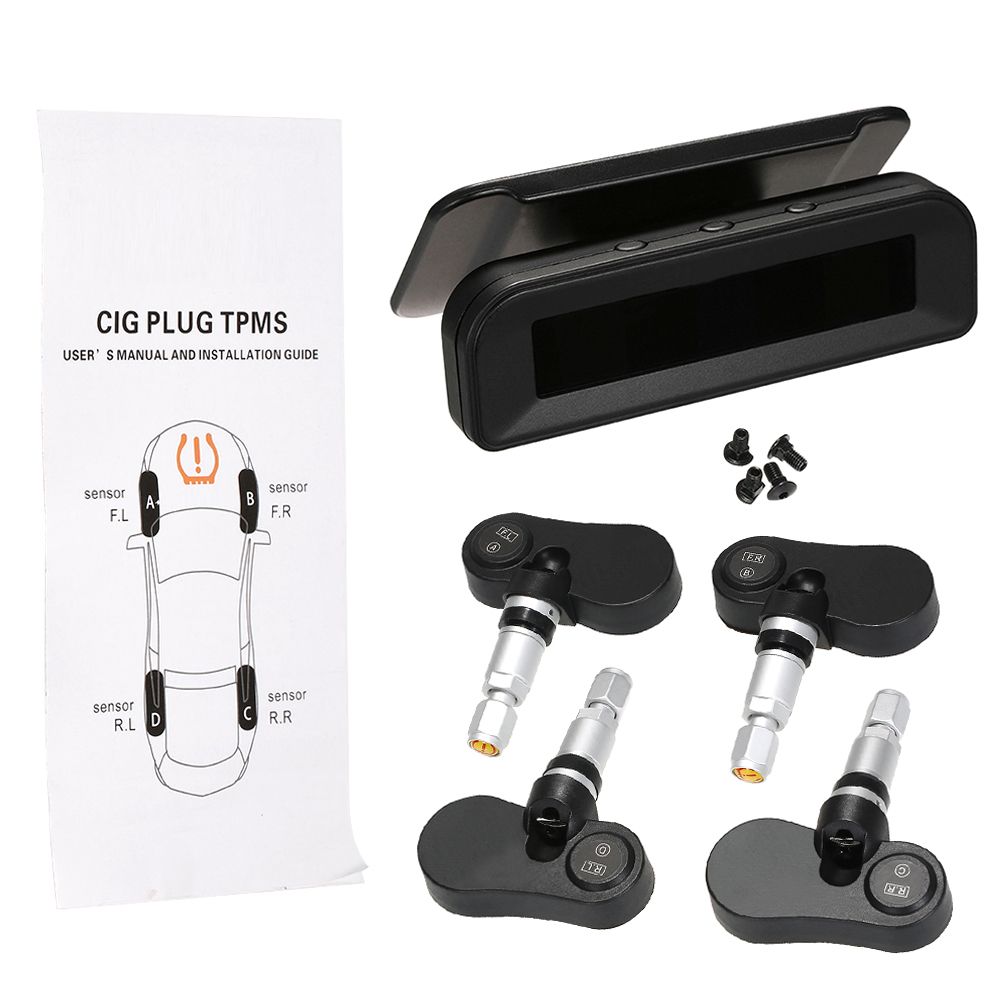

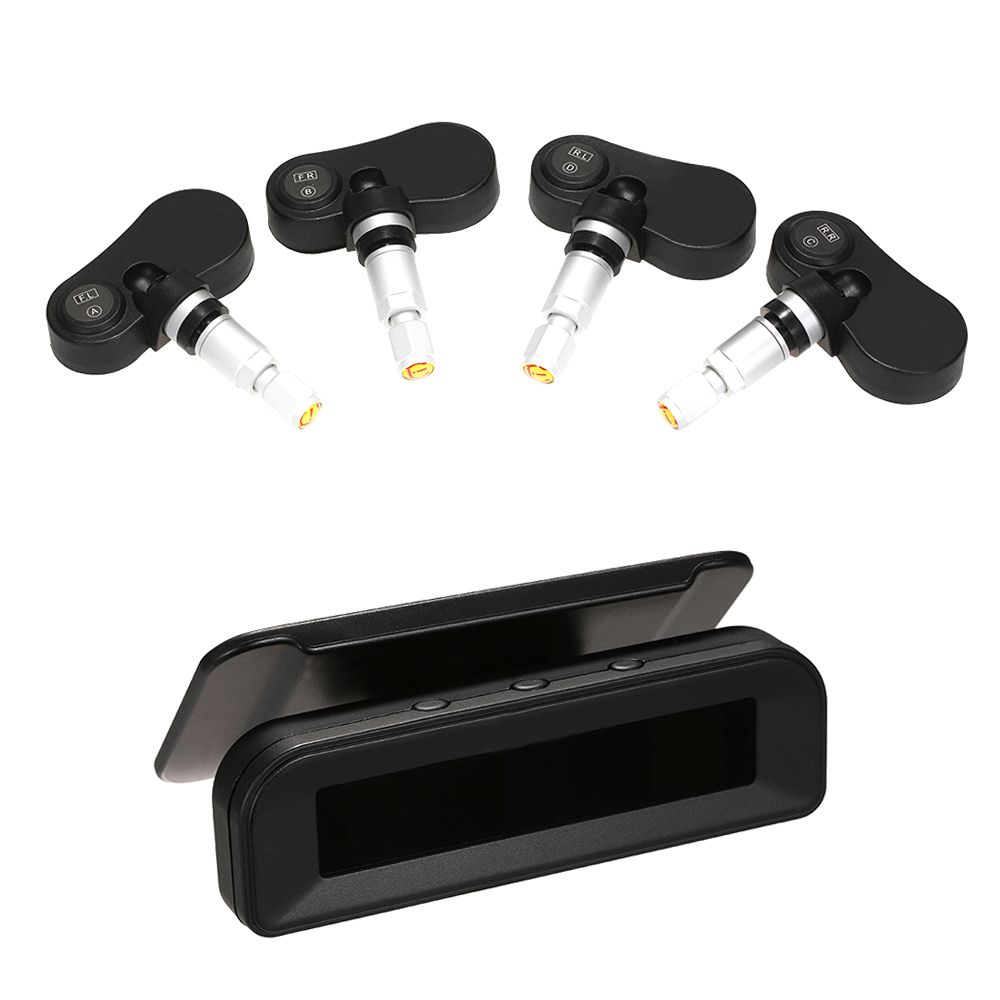

Package List:1 * Displayer
4 * Internal Sensors
4 * Cycle Valves
1 * Non-slip Mat
1 * Bag of Screws
1 * User Manual (English)
Key Features
xTire Pressure Monitoring System lets you get real-time tire pressure data, temperature data and status, always keeping an eye on car performance.
xCombined with the solar energy display that is green, low carbon and renewable, enabling you to charge the device faster and conveniently.
x4 wheels' tire pressure and temperature display simultaneously, high/low tire pressure alarm, high temperature alarm and air leakage condition alarm.
xThe real-time tire pressure data, reliable alarm system delivers alerts once an unusual situation occurs, very convenient and practical.
xTPMS adopts wireless transmission, and no wire connection required, easy installation, and it automatically sleep when there is no vibration.
xTire Pressure Monitoring System lets you get real-time tire pressure data, temperature data and status, always keeping an eye on car performance.
What's In the Box
1 x Displayer,4 x Internal Sensors,4 x Cycle Valves,1 x Non-slip Mat,1 x Bag of Screws,1 x User Manual (English)
