Description:
This meter combines with the cable tracing cable length measuring and multimeter functions The advantage of this meter is the long tracing distance clear sound signals rapid and precise cable length measurement and accurate multimeter.
The meter is good tools for laboratories factories, radio lover network installer and technician. It can real time measuring network cable length short circuit and circuit break.
The cable tracing function can quickly and efficiently find out the target cable in large number of cables This function can be used in telephone systems computer networks BNC cables and other metallic network cables.
Our digital tracing apply the newest digital noise free technology It give a good experience to users
The meter is essential equipment for computer networking telecom cabling BNC cabling and other metallic cabling projects.
Features:
- Network cable tester + multimeter(Only ET618) 2 in 1
- 400M/500M network cable length measure
- Analog/digital/POE line checking
- 60V withstand voltage anti-burning
- Noiseless vibration line tracker(Only ET618)
- Large digital display screen
- Built-in lithium battery charging
- Switch pairing and port flashing
- Flashlight
- Auto power off
Specification:

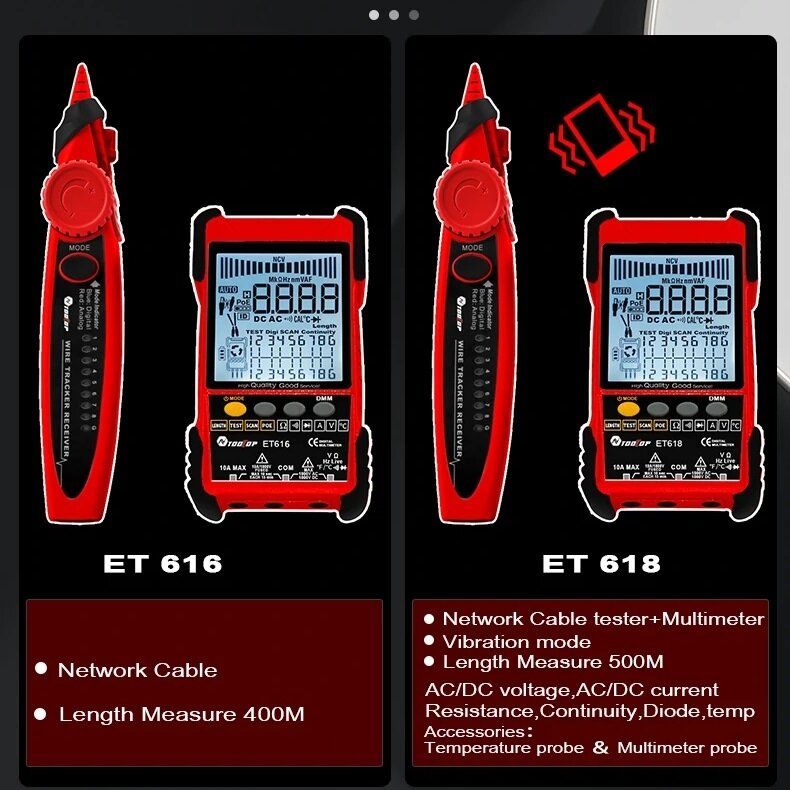

Model
ET616
ET618
Analogue Tracing
radic;
radic;
Continuity
radic;
Multimeter function
Switch Tracing w PoE
radic;
radic;
Cable Mapping
radic;
radic;
Switch indicators flashing
radic;
radic;
Noisy Free Digital Tracing
Digital
Digital /Vibration
Voltage Testing
Identify some issues on a circuit
AC DC Voltage
PoE Voltage Measuring
Voltage Polarity
Voltage Polarity
Remote ID Mapping
Optional
Optional
Analogue Bargraph
radic;
radic;
NCV Detection
radic;
radic;
Other Functions
Main Body flashlight multimeter input jack indicator LCD
display white flashlight analogue tracing sound adjustable
digital tracing sensitivity adjustable low battery indicator white backlight energy saving tracing distance 3km analogue tracing signal selectable
Difference
Multimeter Functions
/
radic;
Diode
/
radic;
DC Voltage
/
400mV ~1000V plusmn;(0.8%+3)
AC Voltage
/
4V~400V plusmn;(1.5%+5)
DC Current
/
1.0A~10.0A plusmn;(1.2%+4)
AC Current
/
1.0A ~10.0A plusmn;(2.0%+5)
Resistance
/
200 Omega; ~20M Omega; plusmn;(2%+6)
Continuity
/
lt; 50 Omega; buzzer beeps
Temperature k type
/
-20~1000 deg;C plusmn;(2.0%+15)
Network Cable Length Measure
400M
500M
BNC Cable Length Measure
radic;
radic;
Network Cable Short Open Circuit test
radic;
radic;
Powered by
Main Body Bulit-in 1250mAH rechargeable Lithium Battery/Receiver 9V Battery
