gt; gt;Please click here to download the software lt; lt;
Features:

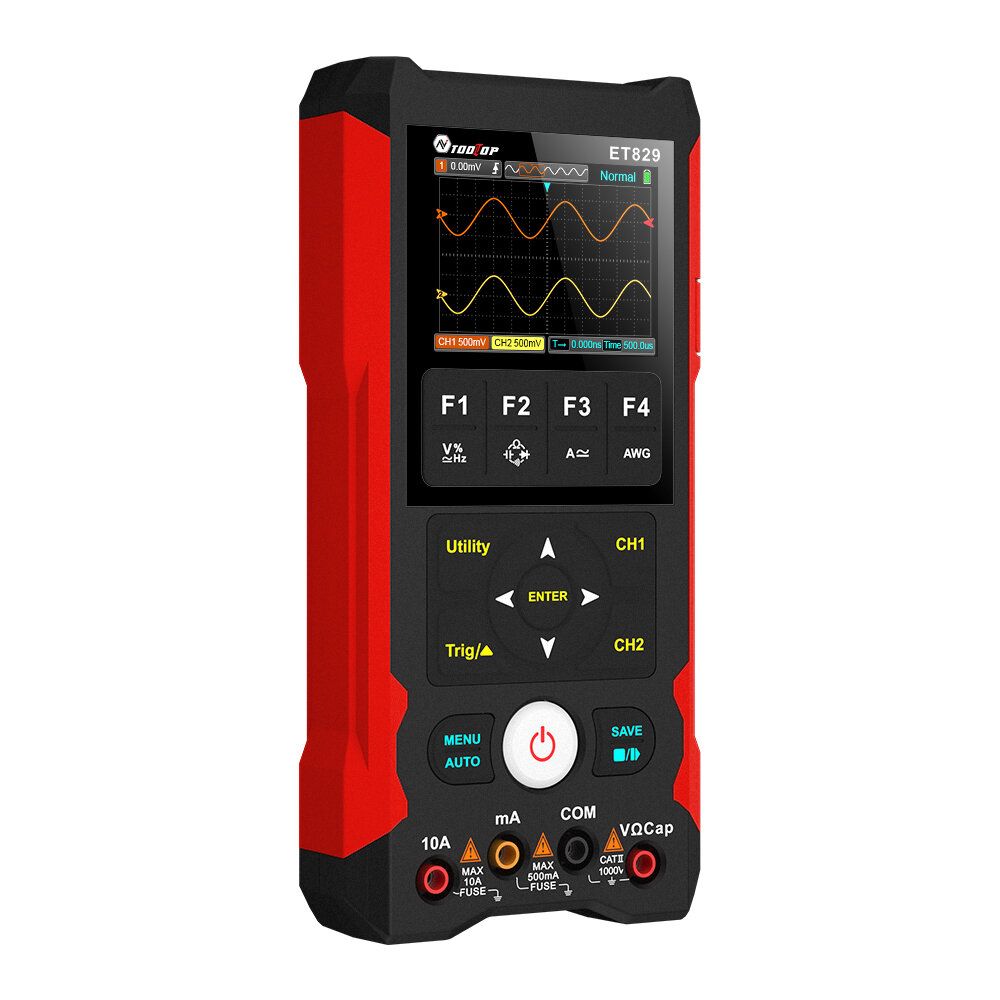

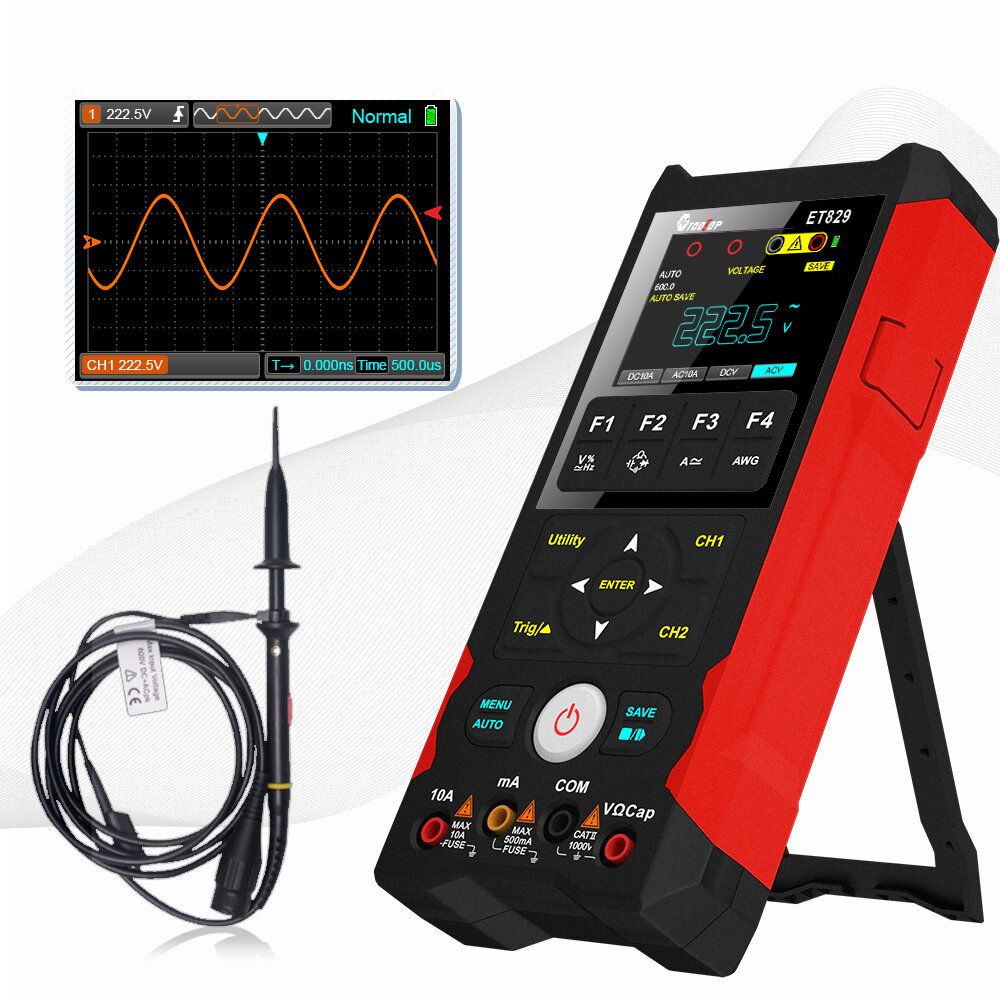

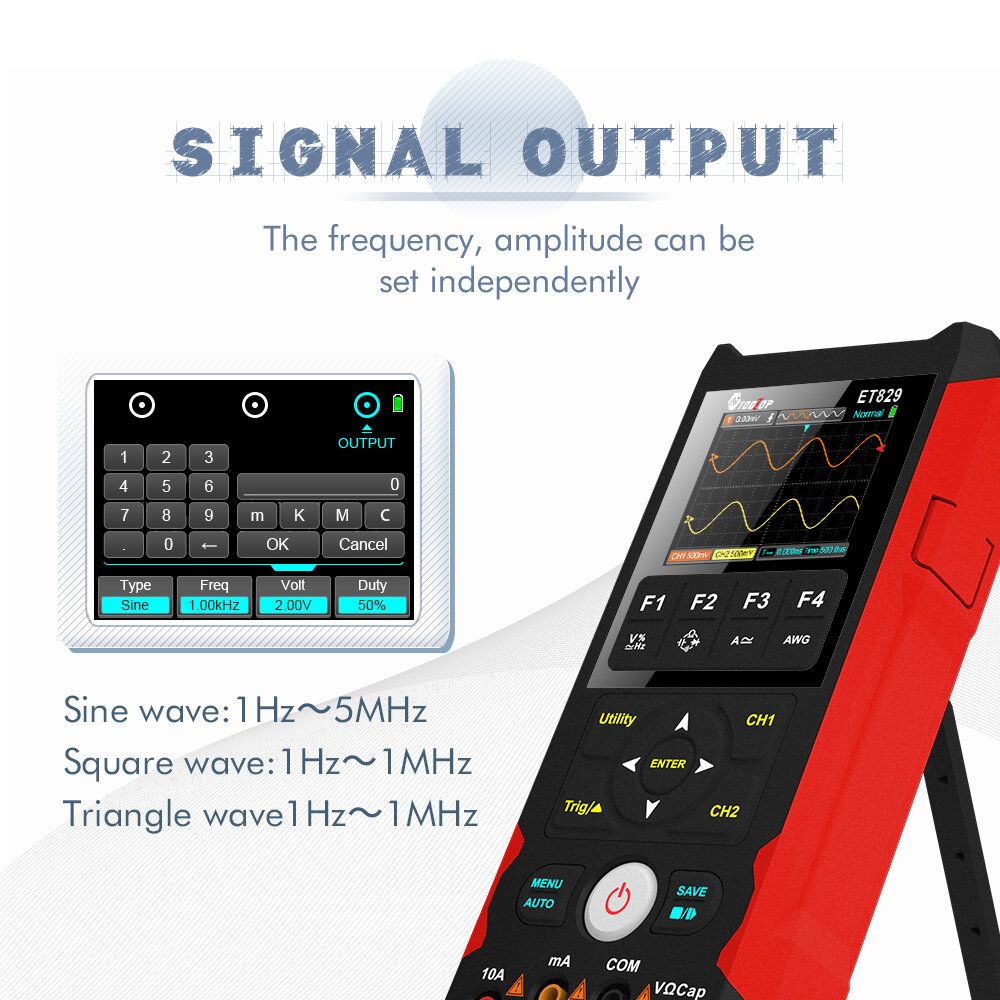

- Oscilloscope + multimeter + waveform generator 3 in 1

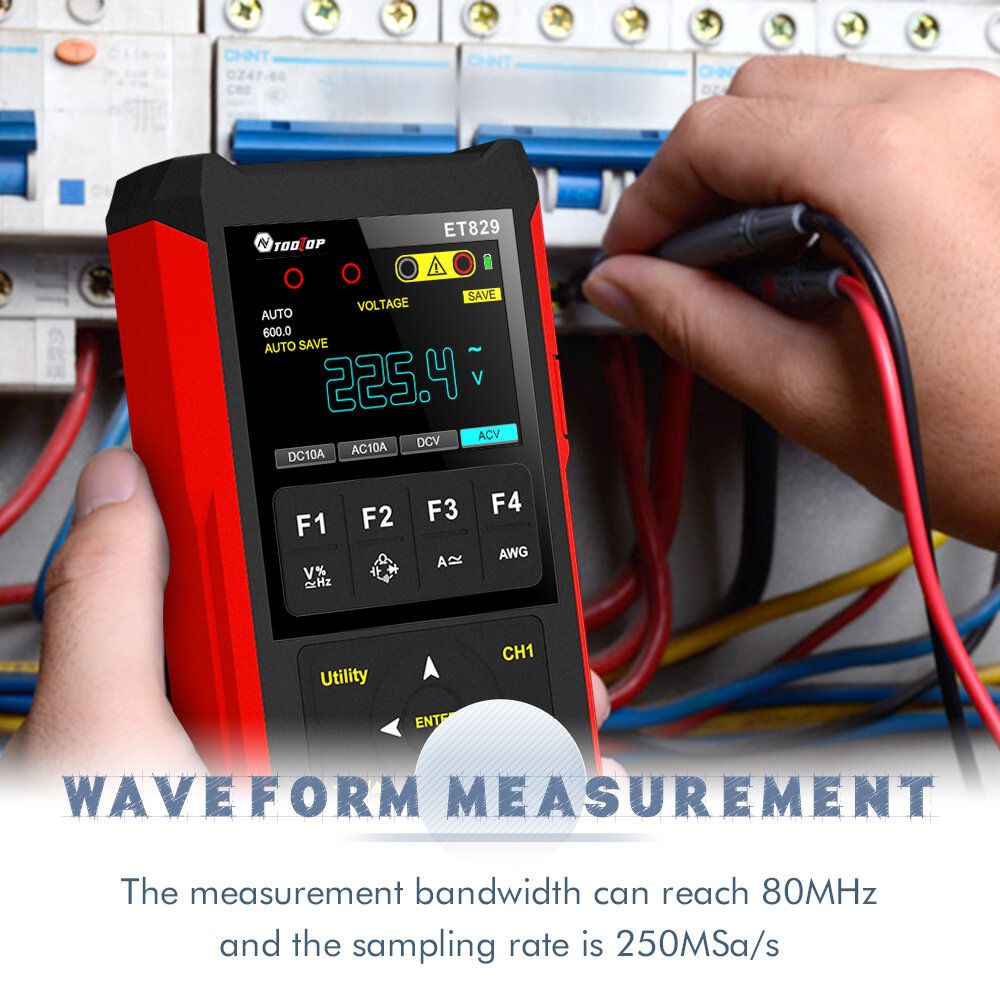

- 80MHz analog bandwidth 250MSa/s sampling rate
- Afterglow selection
- AI waveform preview
- Self-calibration function
- Support DC 15W fast charge
- Support PC software analysis
- 2.8-inch 320*240 TFT color LCD display
- 6000 counts true RMS large capacitance multimeter
- 3 trigger modes: auto mode, normal mode, single mode
Specification:
Oscilloscope
Number of channels

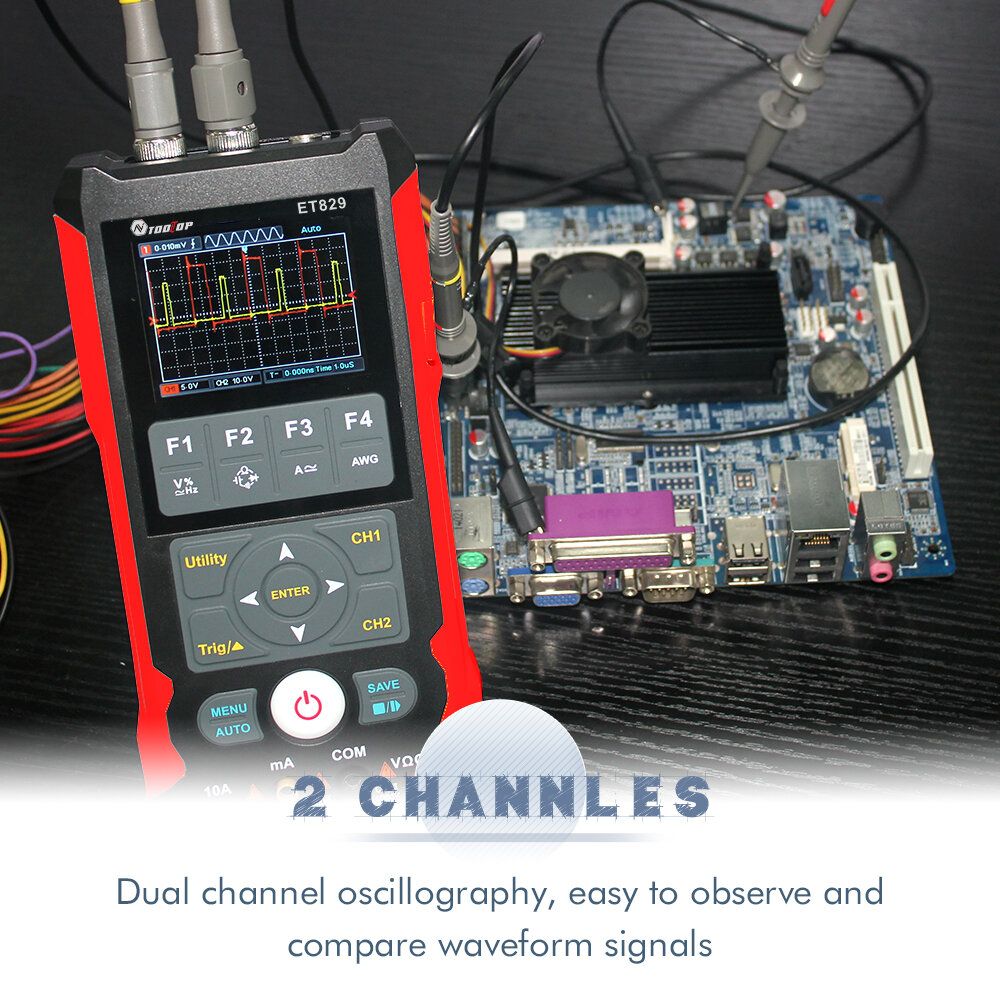

Channel CH1, Channel CH2
Analog bandwidth
80MHz (single channel), 50MHz (dual channel)
Maximum real-time sampling rate
250MSa/s (single channel)),125MSa/s (dual channel)
Waveform interpolation
(Sin x) /x
Record length
When single channel, the maximum is 6K; when dual channel, the maximum is 3K
Horizontal scale range
5nS/div?50S/div, 1 gt; 2、5steps
AD converter
8-bit resolution, simultaneous sampling of each channel
Vertical scale range
1 X: 10mV/div-10V/div; 10X: 100mV/div-100V/div
Vertical measurement range
plusmn;4 grid
Optional analog bandwidth limit
20MHz
Low Frequency Response (-3db)
le;10Hz at BNC
Vertical Gain Accuracy
plusmn;3% in \\\'Normal\\\' or \\\'Average\\\' acquisition mode
Input resistance
1M Omega;/15
Input Coupling
DC, AC, GND
Probe attenuation
1X, 10X
Suppor
