Features:
1. QUANTITIES: 20 pieces. The screws not easy to strip, strong enough to hold the wires from easily pulling out.
2. MATERIAL--Pitch: 2.54mm; Poles: 2P; Screws: M1.6, Steel, Ni plated; Pin header: Brass, Tin plated; Wire cage: Brass, Ni plated; Housing: PA66. UL94V -0
3. ELECTRICAL--Rated voltage: 150V; Rated current: 6A; Withstanding voltage: AC1250V/1Min; Wire range: 24-12 AWG
4. MECHANICAL--Temp range: -40℃-+105℃; Max soldering: + 250℃ for 5 sec.; Torque: 0.1Nm (0.88lb. in ); Strip length: 5-6mm
5. WIDELY USED in electronics, communication equipment, instruments, computers, automatic control systems, household appliances and alarm equipment, etc.
Notice:
Actual color may be slightly different from the image due to different monitor and light effect.
Please allow 1-3cm deviation due to manual measurement.
We confidently assure you'll be satisfied with what you get.However, If there's a chance that you are not satisfied with our goods or something else, please let us know before leaving us a Negative feedback. We will try our best for 100% customer satisfaction. Your 5-Star Positive Feedback is much appreciated to us, and your satisfaction is our greatest motivation to move forward.Welcome to Shop Here! Want more Items? Please come visit our SHOP.
*Shipping and Packaging All it will be double checked and well packed before sending.It will be dispatched within 5 business days after buyers pay for the order. It usually takes about 14 to 18 working days for delivering the package to the destination(for remote areas,it may take a little longer).Your satisfaction is our first priority.
*If you receive the order and it is in good condition,we would be grateful if you would leave us 5 star Positive Feedback for the transaction.
Key Features
1. QUANTITIES: 20 pieces. The screws not easy to strip, strong enough to hold the wires from easily pulling out.
2. MATERIAL--Pitch: 2.54mm; Poles: 2P; Screws: M1.6, Steel, Ni plated; Pin header: Brass, Tin plated; Wire cage: Brass, Ni plated; Housing: PA66. UL94V -0
3. ELECTRICAL--Rated voltage: 150V; Rated current: 6A; Withstanding voltage: AC1250V/1Min; Wire range: 24-12 AWG
4. MECHANICAL--Temp range: -40℃-+105℃; Max soldering: + 250℃ for 5 sec.; Torque: 0.1Nm (0.88lb. in ); Strip length: 5-6mm
5. WIDELY USED in electronics, communication equipment, instruments, computers, automatic control systems, household appliances and alarm equipment, etc.
What's In the Box

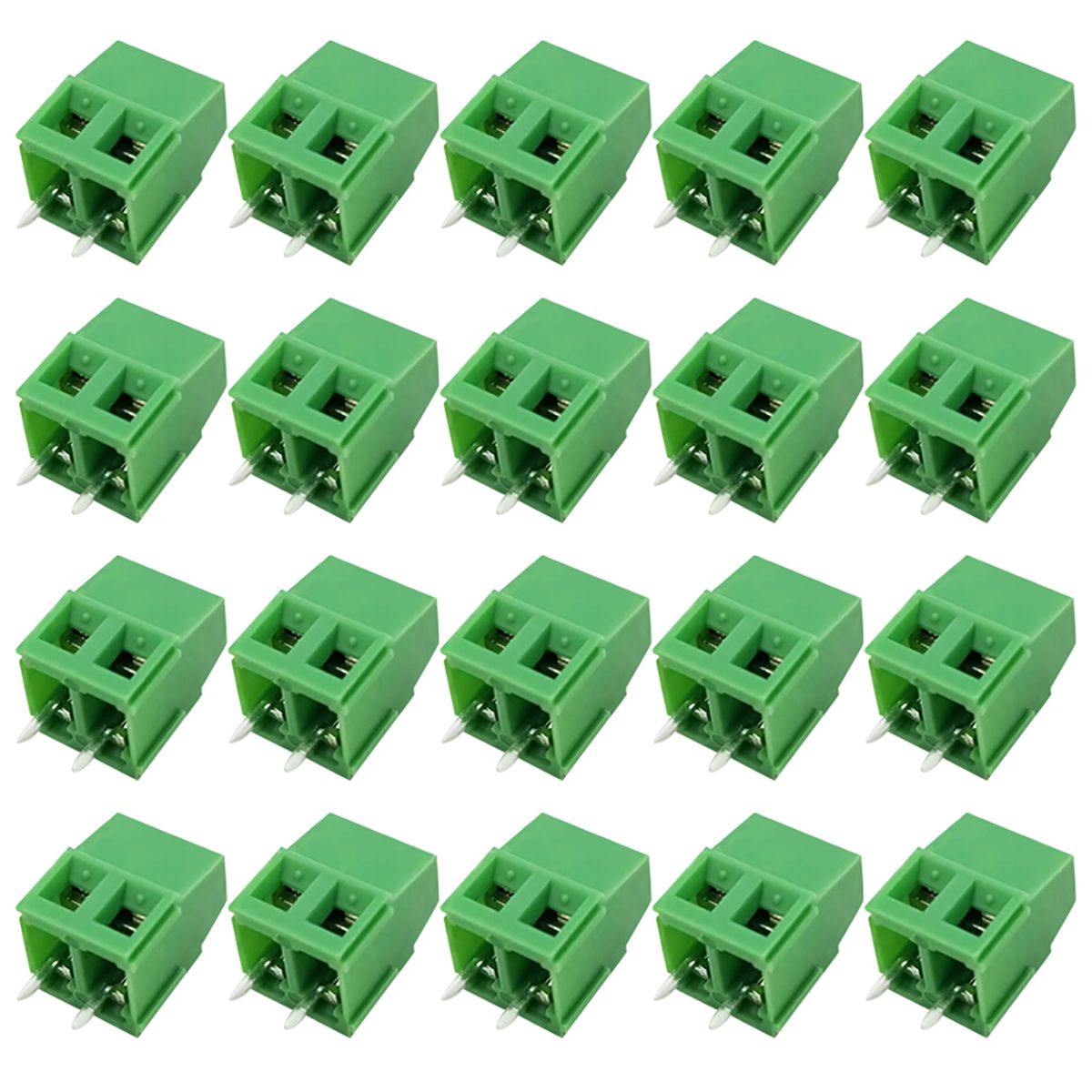

20 x Connector
