Model |
Thermal Imager |
Production Country |
China |
Size (L x W x H cm) |
8x5x3 |
Weight (kg) |
0.115 |
Color |
multicolor |
Equipped with a 200MP visible light camera In the small window Infrared refer and fusion Merge mode the resolution is 320x240 When using the WIFI function to connect to the computer when viewing the screen on the computer the user can choose different resolutions in the menu up to 200MP at this time the device can be used as a security surveillance camera

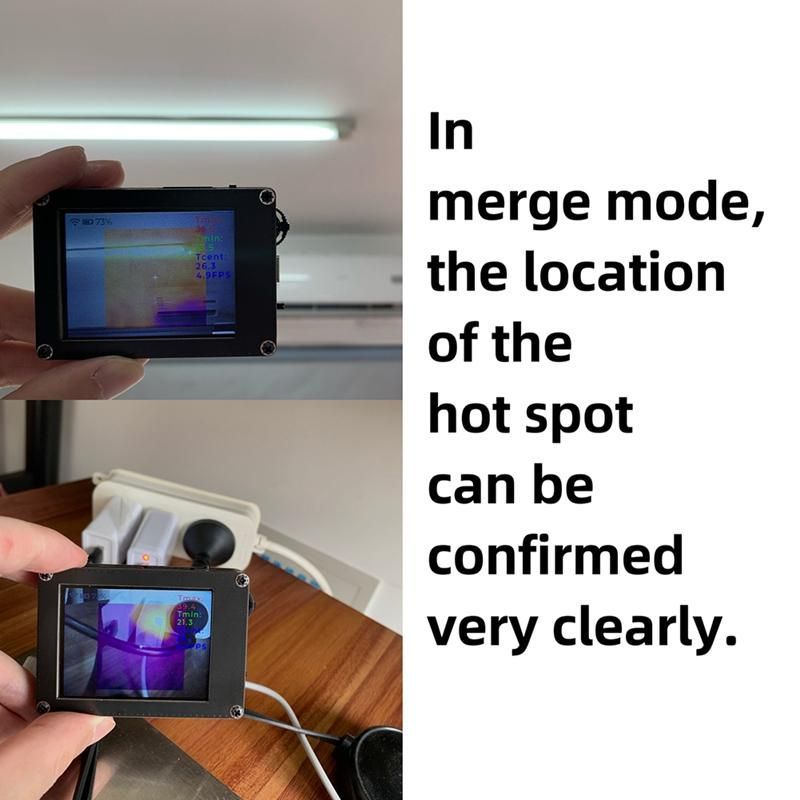

Support Dual Light thermal imaging and visible light Fusion Mode which can clearly capture every hot spot
Built-in bright LED light press and hold the wave wheel to turn on the flashlight

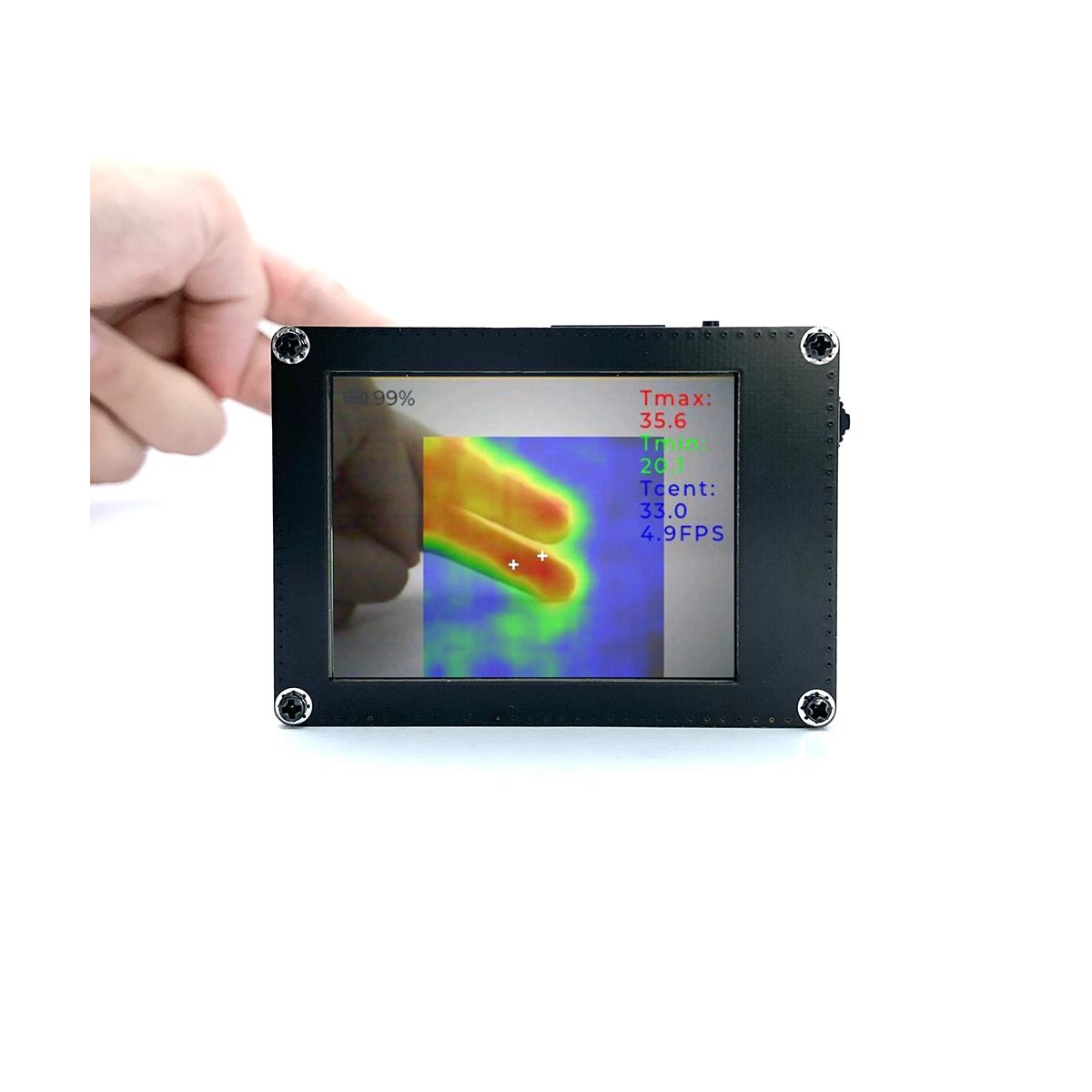

Supports four display modes Infrared only camera only Infrared refer and Merge
Support five color palettes color Palette iron red Iron oxide red rainbow Rainbow white hot blue orange blue yellow mode
Infrared resolution 32 x 32
Infrared FOV 33°x 33°
Visible light lens 200MP up to UXGA 1632x1232
Interface Type-C
Storage capacity 15M Byte can store more than 50 screenshots in JPEG format
Maximum frame rate 53FPS
Number of swatches 5
Temperature measurement accuracy ±3°C
Temperature range -20~1000
Working temperature 15-45
Storage temperature 0~60
Material plastic
colour black
Package Contents
1 x Thermal Imager
Only the above package content other products are not included
Note Light reflection and different displays may cause the color of the item in the picture a little different from the real thing The measurement allowed error is - 1-3cm
What's In the Box
1 x Thermal Imager
