Model |
3PHPS63 |
Production Country |
China |
Weight (kg) |
0.6 |
Certifications |
Eco Friendly |
Color |
Off White |
Main Material |
N/A |
From the Manufacturer |
Supower Electric Co ltd |
Care Label |
Indoor use only. Do not drop |

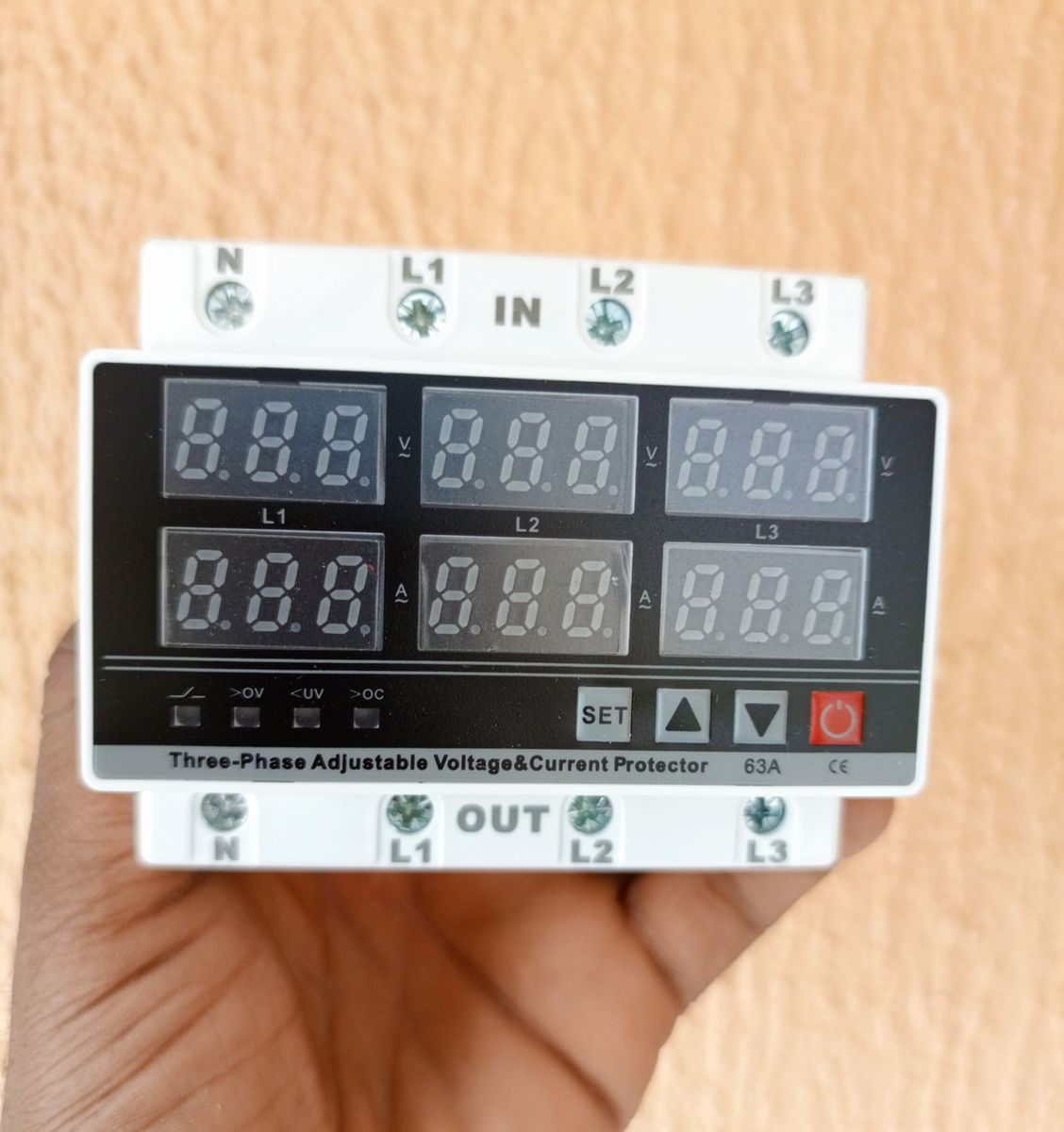

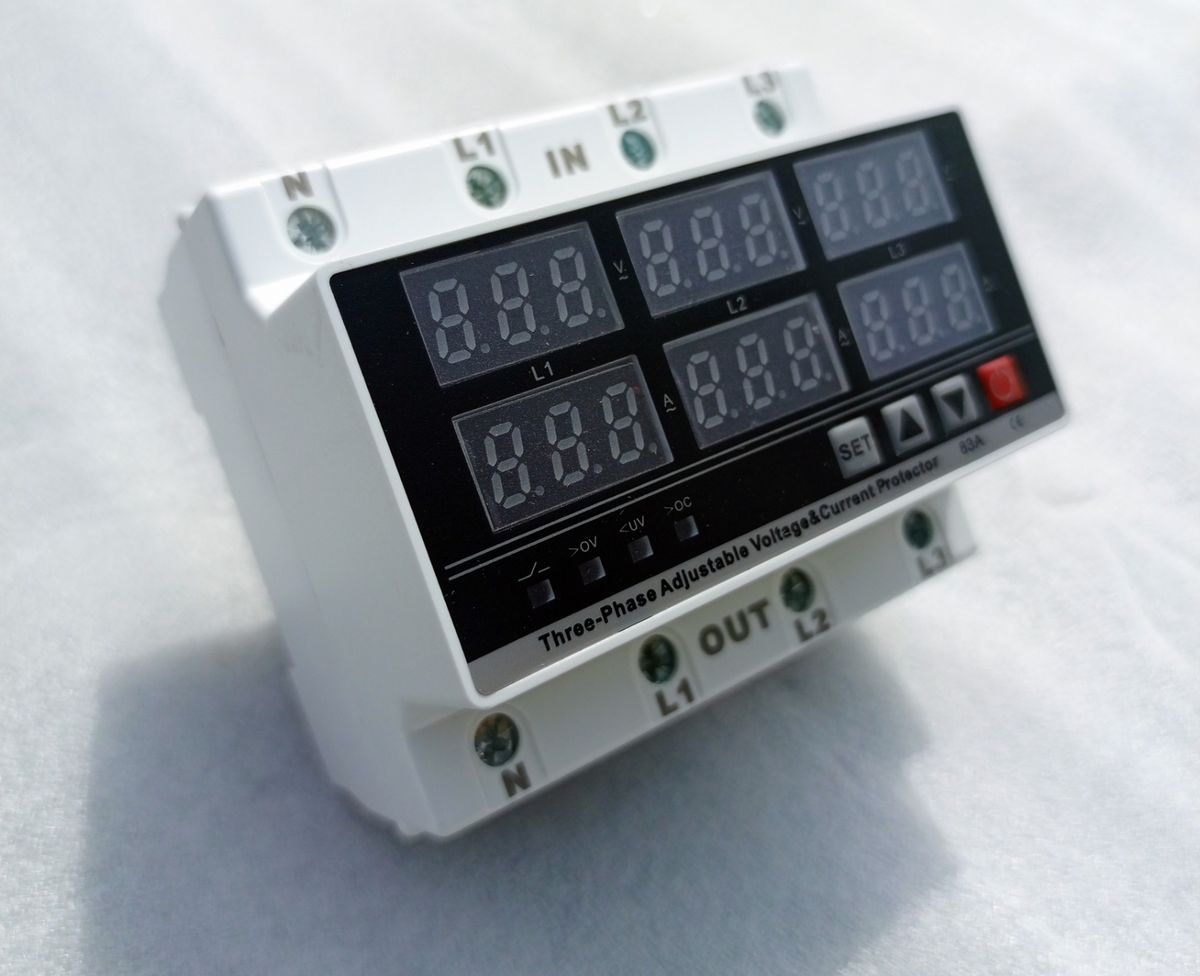

Three 3 phase Adjustable Voltage Current Protector 63A 220V 3P+N Over and Under Volt regulator with Current/load limiter Surge Protector
This device allows you set your own over voltage and low voltage cut off points. It also equipped with current/load limiter function. It is designed for all three phase appliances and homes.
Functions:
1.Over-voltage Adjustable protection
2.Under-voltage Adjustable protection
3.Over-Current Adjustable protection
4. Asymmetry protection
5.Phase sequence protect
6.Automatic time Adjustable
ParameterCode Parameter ValueP1 Power On Time 1-500SU1 Over Voltage 230-300VU2 Recovery Voltage 220-295VU3 Recovery Time 1-500SU4 Power Off delay Time 0.1-30SU5 Under Voltage 140-210VU6 Recovery Voltage 145-215VU7 Recovery Time 1-500SU8 Power Off delay Time 0.1-30SU9 Voltage Deviation _9.5 to 9.5%U10 Asymmetry 20-99VU11 Phase squence protect on/offC1 Over Current 3-63AC2 Recovery Time 1-500SC3 Power Off delay Time 0.1-30SC4 Current Deviation _9.5 to 9.5%C5 Continues Over Current Times 1-20 off
This device allows you set your own over voltage and low voltage cut off points. It also equipped with current/load limiter function.
It comes with a very detailed manual. Very easy to set up. It is built with high voltage control precision and very resistant to heat and flames
It comes with a very detailed manual. Very easy to set up. It is built with high voltage control precision and very resistant to heat and flames
What's In the Box
1 * 3phase Adjustable Voltage ProtectorManual
