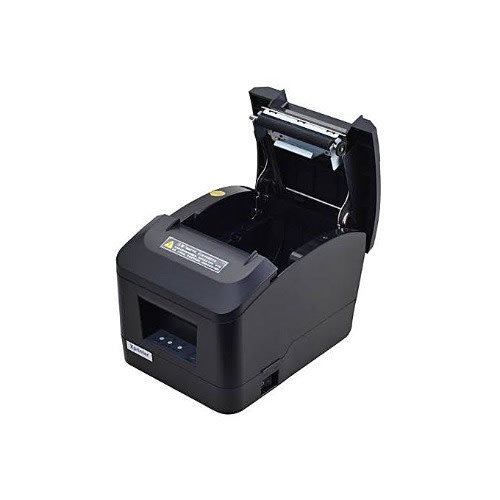

m813 thermal receipt printer, is a high-end thermal printer suitable for Banks, Bet, Logistics, Supermarkets, Pharmacy Store etc. with excellent quality.
Functional characteristics
--Supports a variety of international languages and scripts
-- Supports error alarm function
-- Provides high-speed download and print mode, supports Linux system
--Supports Ethernet port, serial port monitoring function
--download store and print Logo trademark
--Support 256K Bytes NV Logo download store and print Logo trademark
Technical parameters:
Print
Printing method: Direct thermal line
Print width: 72mm
Point density: 576 dots / line, or 512 dots / line
Printing speed: 200 mm / sec
Interface Type: USB / Ethernet port
Paper: 79.5 ± 0.5 mm × φ83 mm
Character size
ANK character, Font A: 1.5 × 3.0mm (12 × 24 points)
Font B: 1.1 × 2.1mm (9 × 17 dots)
Simplified / Traditional: 3.0 × 3.0mm (24 × 24 points)
Barcode characters
Extended character table PC347 (Standard Europe), Katakana,
PC850 (Multilingual), PC860 (Portuguese),
PC863 (Canadian-French), PC865 (Nordic),
West Europe, Greek, Hebrew, East Europe, Iran, WPC1252, PC866 (Cyrillic # 2), PC852 (Latin2), PC858, IranII, Latvian, Arabic, PT151 (1251)
Barcode Type UPC-A / UPC-E / JAN13 (EAN13) / JAN8 (EAN8) /
CODE39 / ITF / CODABAR / CODE93 / CODE128
Cutter
Full or semi-automatic cutter cut optional
Buffer: Input buffer 64k bytes
NV Flash: 256k bytes
Power supply: Power Adapter Input: AC 110V / 220V, 50 ~ 60Hz
Power Output: DC 24V / 2.5A
Cash Drawer Output DC 24V / 1A
Physical Characteristics
Weight 2.5 kg
Dimensions 183 × 143.5 × 135 mm (L × W × H)
Environmental Requirements
Working temperature: 0 ~ 45 , Humidity: 10 ~ 80%
Storage temperature: -10 ~ 60 , Humidity: 10 ~ 90% (non-condensing)
Lifetime
Cutter life one million times
100 km printhead life
