| Model |
JSQ111 |
| Production Country |
China |
| Size (L x W x H cm) |
12 x 13 x 15 |
| Weight (kg) |
0.52 |
| Color |
0615jishiqi5632 |
| Main Material |
Synthetic |

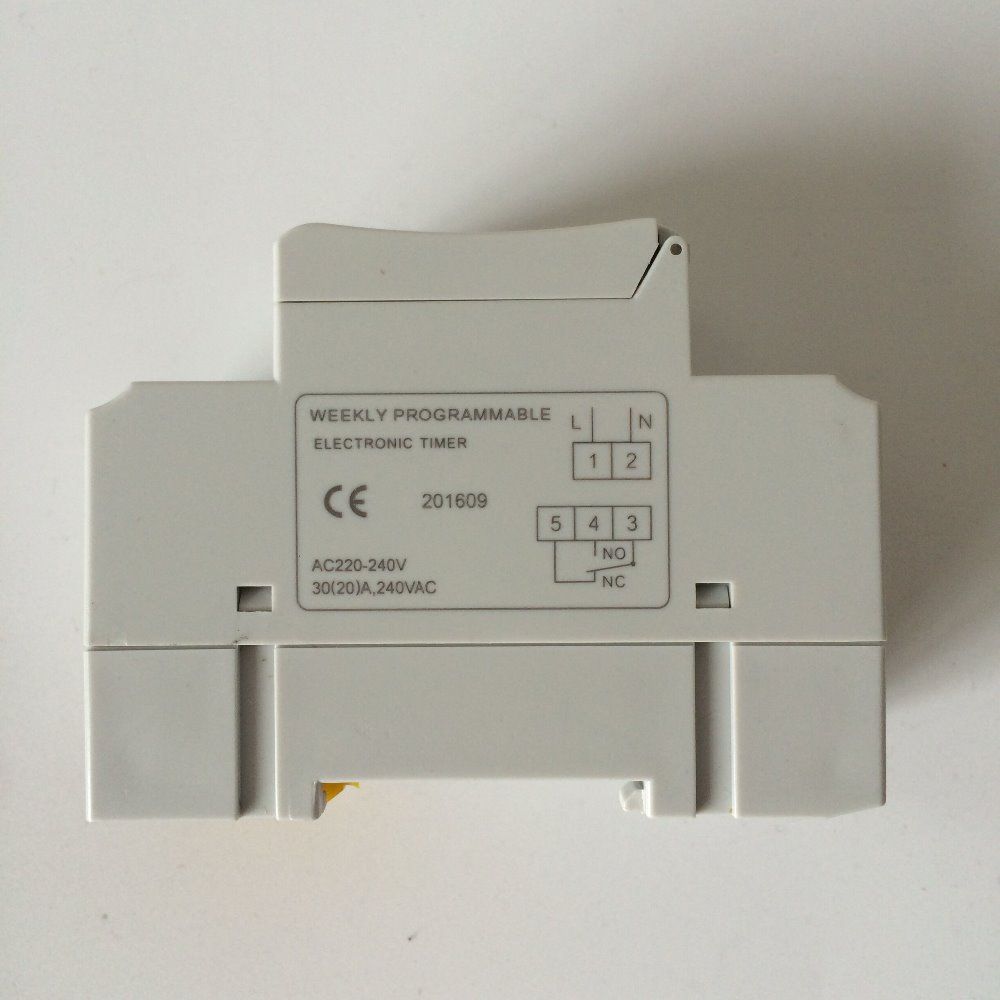

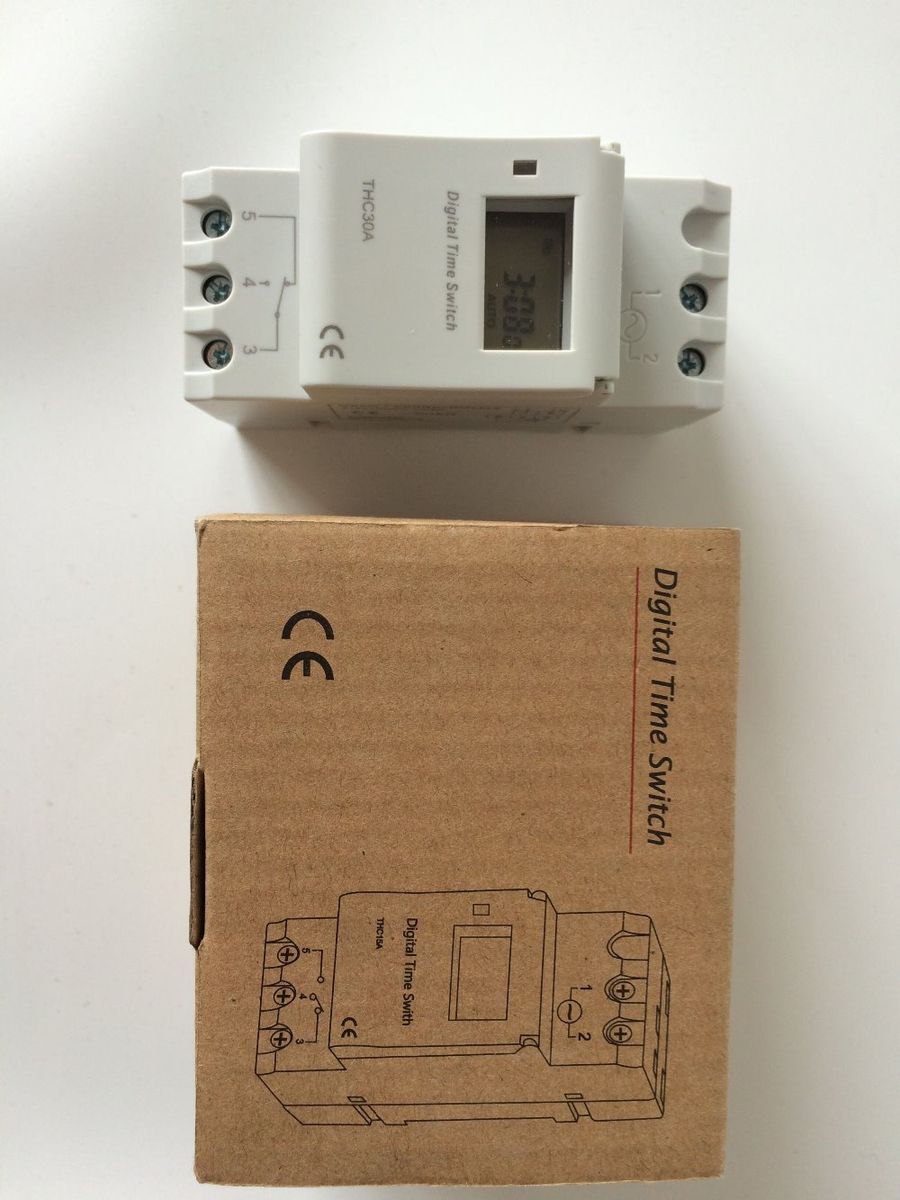

THC30A digital time switch
www.finglai.comModel number and contact rating
| Model number | Contact rating |
| THC30A | 30A@250VAC |
www.finglai.comGeneral
| Model number | THC30A |
| Supply voltage | 220, 110VAC, 50/60Hz; 12V, 24VDC |
| Power consumption | 2W max |
| Error correction | 1s/days (25°C) |
| Setting method | Touch switch |
| Indication method | LCD |
| Time range | 1min to 168h |
| Power reserve | 60 days |
| Inner | 1.2V40Ma (Rechargeable) |
| ON/OFF operation | 17 ON/OFF (day/week) |
| External dimensions | 86.5x36x65.5 mm |
| Mechanical life | 1x107 |
| Electrical life | 1x107 |
| Operating temperature | -20 to 55 °C |
| Operating humidity | 35-85% RH max, non-condensing |
| Alias name | THC30A electronic timer |
Key Features
Usage:Industrial
BrandName:GUODAN
Theory:electronic
ModelNumber:THC30A
Type:Mini
What's In the Box
1×timer
