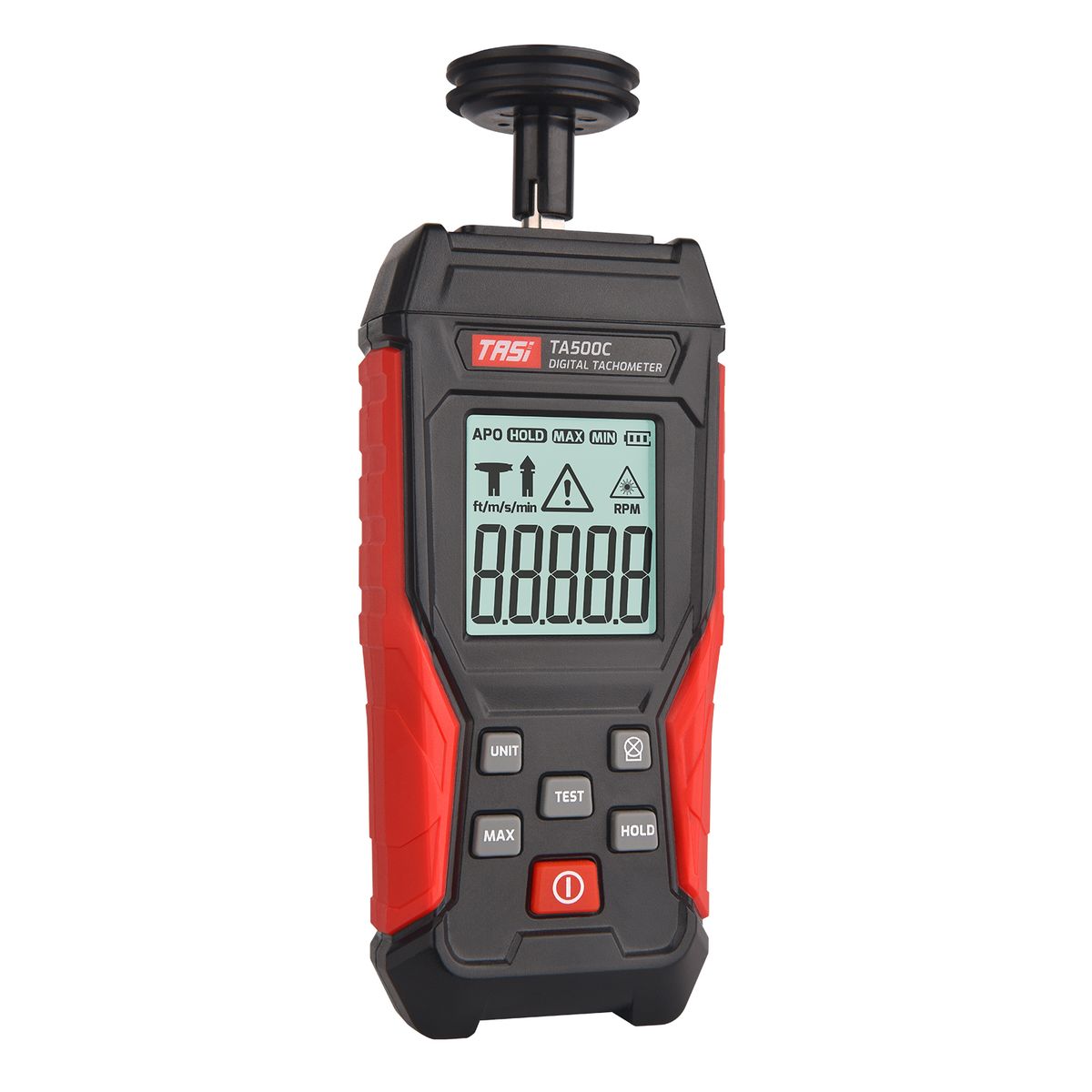

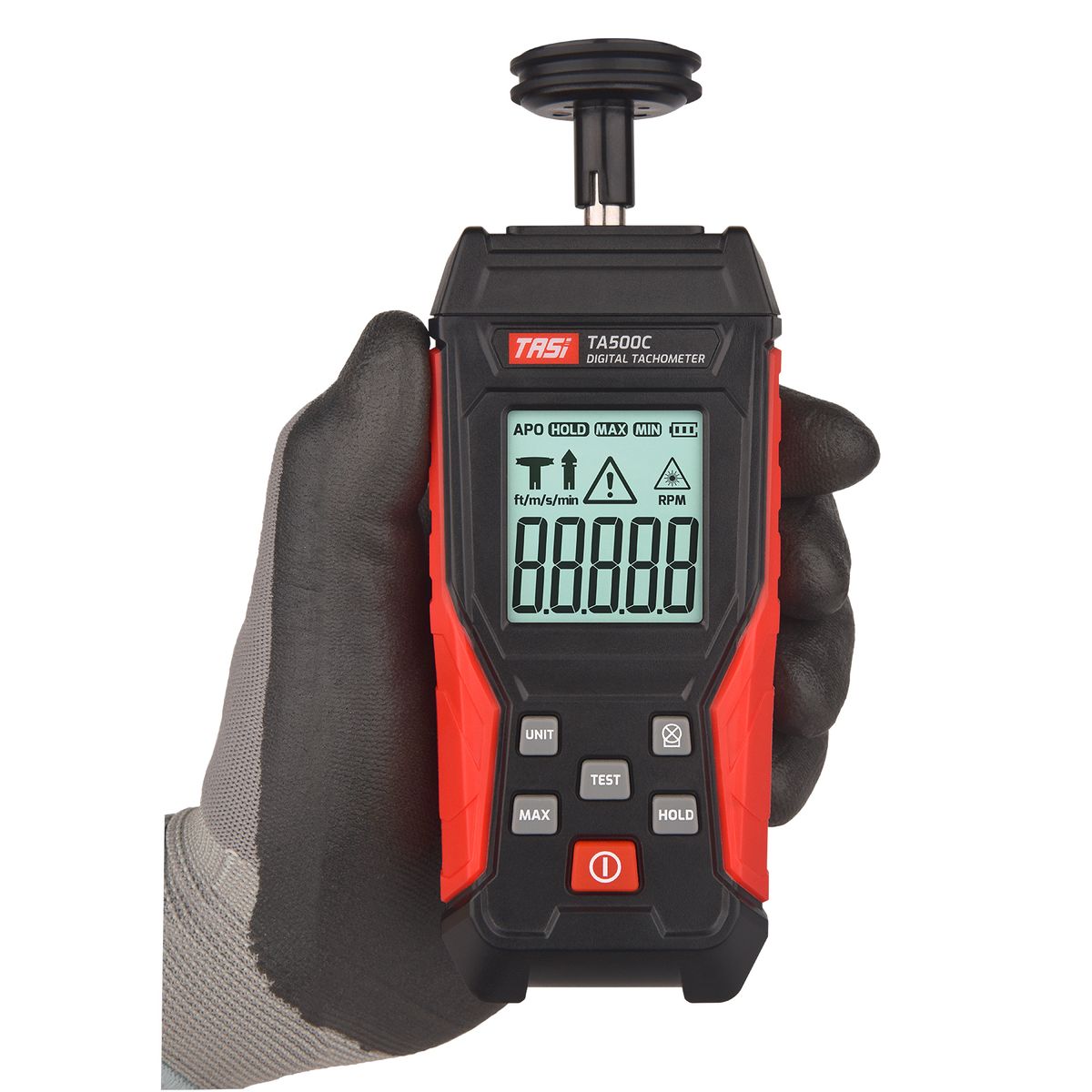

TA500 series digital tachometer that can measure the RPM or surface speed and distance. It is applicable to electric , steel, petrochemical, aviation, fan manufacturing, pipeline ventilation system, underground warehouse and other occasions.
Features:【Accurate RPM Meter】This handheld tachometer is highly accurate and noncontact. Wide measuring range from 3RPM to 100000 RPM and high resolution of 0.1RPM or 1RPM, this rpm meter gives you accurate rotational speed readings from a distance.

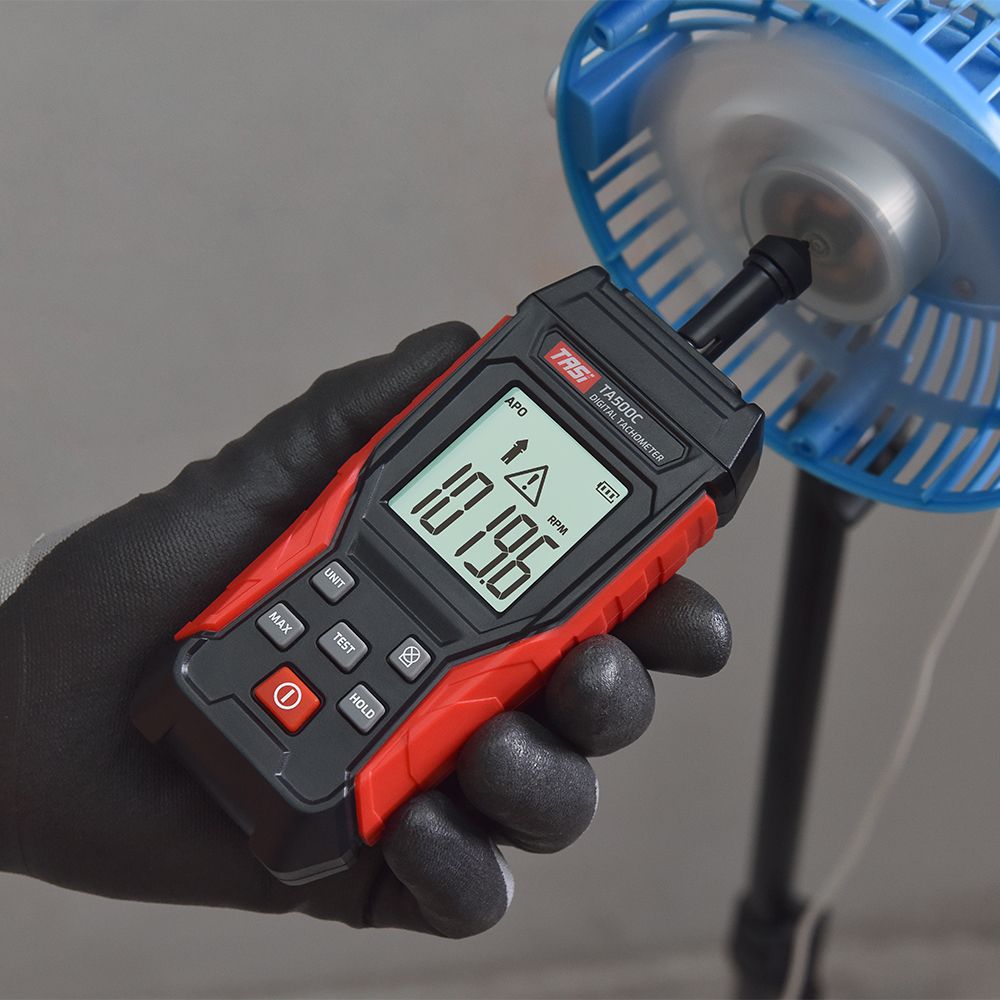

【Contact & Non-contact Tachometer】Our digital tachometer integrates 2 measurement methods, contact type and photoelectric laser non-contact type. Tachometer can perform photoelectric speed measurement, light source flicker frequency measurement, contact RPM measurement, and contact line speed measurement.
【Tachometer with Larger Speed Range】The digital non-contact tachometer displays rotation speeds from 3-100,000 RPM, contact type tachometers can measure 3-19,999 RPM, 0-99,999m, 0-1999.9m/min, 0-9999.9ft/min.
【Multi-Function Tachometer】This handheld tachometer can record the max value, and min value, In addition, the digital counter also has functions such as data hold and automatic shutdown.

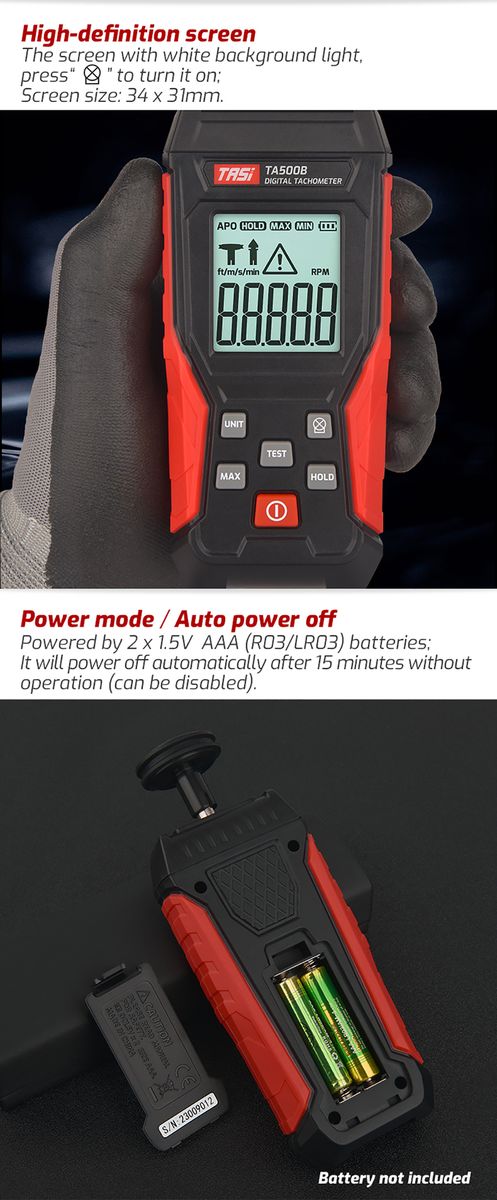

【HD Backlit Display】Tachometer has a high-definition LCD backlit display, allowing you to read clearly even in dark conditions.
【Wide Application】Tachometer can be widely used in motor, fan, paper, plastic, chemical fiber, washing machine, automobile, , ship and other manufacturing industries.

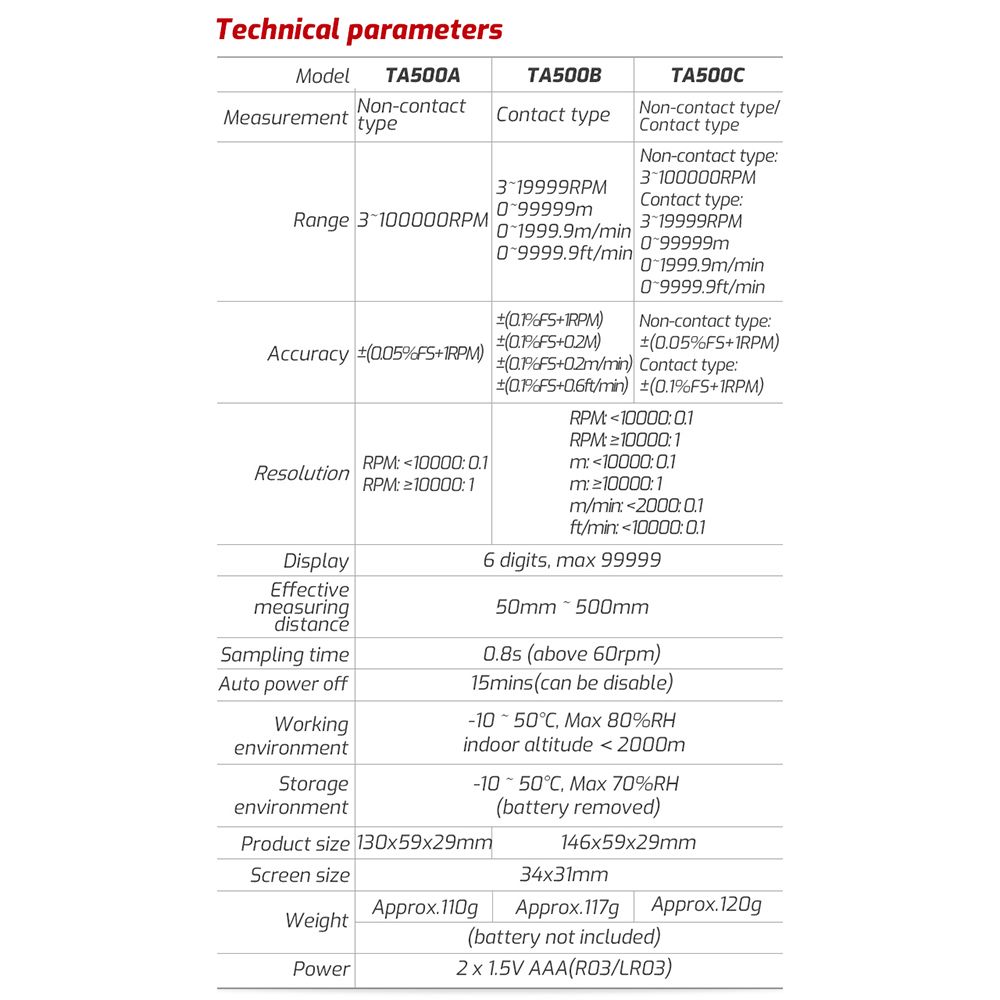

Specifications:Model: TA500A, TA500B, TA500C
(Optional)Measurement Methods: Non-contact / Contact / Non-contact and Contact
(Optional)Material: ABS
Range:
TA500A: Non-contact: 3~100000RPM
TA500B: Contact: 3~19999RPM, 0~99999m, 0~1999.9m/min, 0~9999.9ft/min
TA500C: Non-contact Type: 3~100000RPM
Contact Type: 3~19999RPM, 0~99999m, 0~1999.9m/min, 0~9999.9ft/min
Accuracy:
TA500A: ±(0.05%FS+1RPM)
TA500B: ±(0.1%FS+1RPM), ±(0.1%FS+0.2m), ±(0.1%FS+0.2m/min), ±(0.1%FS+0.6ft/min)
TA500C: Non-contact Type: ±(0.05%FS+1RPM)
Contact Type: ±(0.1%FS+1RPM)
Resolution:
TA500A: RPM: ＜10000：0.1, RPM: ≥10000:1
TA500B and TA500C: RPM: ＜10000：0.1, RPM: ≥10000:1, m: ＜10000 : 0.1, m: ≥10000 : 1, m/min: ＜200 : 0.1, ft/min: ＜1000 : 0.1
Display: 6 digits, max 99999
Effective Measuring Distance: 50mm~500mm
Sampling Time: 0.8s (above 60 rpm)
Working Enviroment: -10~50℃,max 80%RH, indoor altitude＜2000m
Storage Enviroment: -10~50℃,max 70%RH (battery removed)
: 2 x 1.5V AAA (R03 / LR03)
(Not included)Item Size: 146 * 59 * 29mm / 5.75 * 2.32 * 1.14in
Item Weight: 120g / 4.23oz
Package Weight: 188g / 6.63oz
Package Size: 20 * 7.5 * 4cm / 7.87 * 2.95 * 1.57in
Package List:1 * Digital Tachometer
2 * Reflective Tape
4 * Accessories
1 * User Manual (English)
Key Features
【Accurate RPM Meter】This handheld tachometer is highly accurate and noncontact. Wide measuring range from 3RPM to 100000 RPM and high resolution of 0.1RPM or 1RPM, this rpm meter gives you accurate rotational speed readings from a distance.
【Contact & Non-contact Tachometer】Our digital tachometer integrates 2 measurement methods, contact type and photoelectric laser non-contact type. Tachometer can perform photoelectric speed measurement, light source flicker frequency measurement, contact RPM measurement, and contact line speed measurement.
【Tachometer with Larger Speed Range】The digital non-contact tachometer displays rotation speeds from 3-100,000 RPM, contact type tachometers can measure 3-19,999 RPM, 0-99,999m, 0-1999.9m/min, 0-9999.9ft/min.
【Multi-Function Tachometer】This handheld tachometer can record the max value, and min value, In addition, the digital counter also has functions such as data hold and automatic shutdown.
【HD Backlit Display】Tachometer has a high-definition LCD backlit display, allowing you to read clearly even in dark conditions.
【Wide Application】Tachometer can be widely used in motor, fan, paper, plastic, chemical fiber, washing machine, automobile, , ship and other manufacturing industries.
What's In the Box
1 x Digital Tachometer,2 x Reflective Tape,4 x Accessories,1 x User Manual (English),
