| Model |
MT-HR001 |
| Production Country |
UK |
| Weight (kg) |
29 |
| Color |
Red |
| Main Material |
Plastic & Steel |

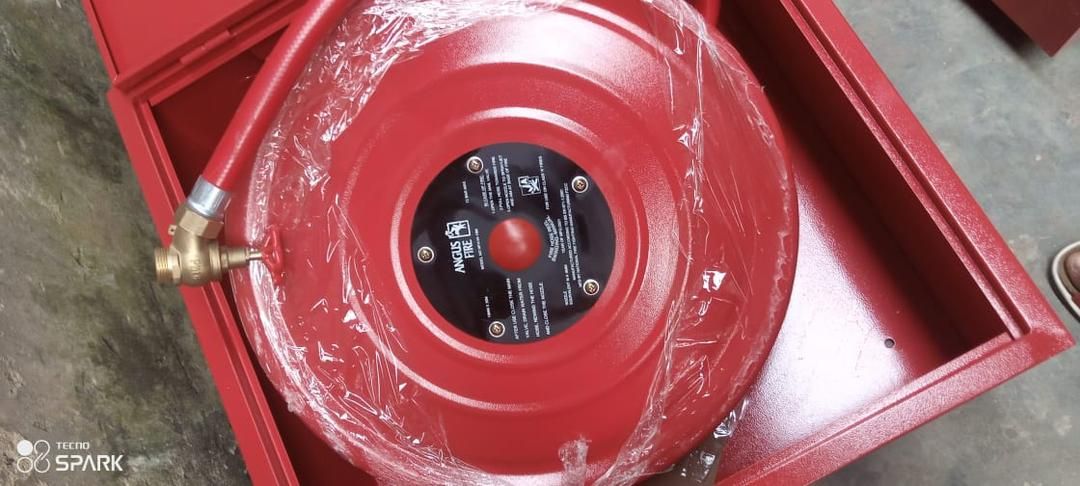

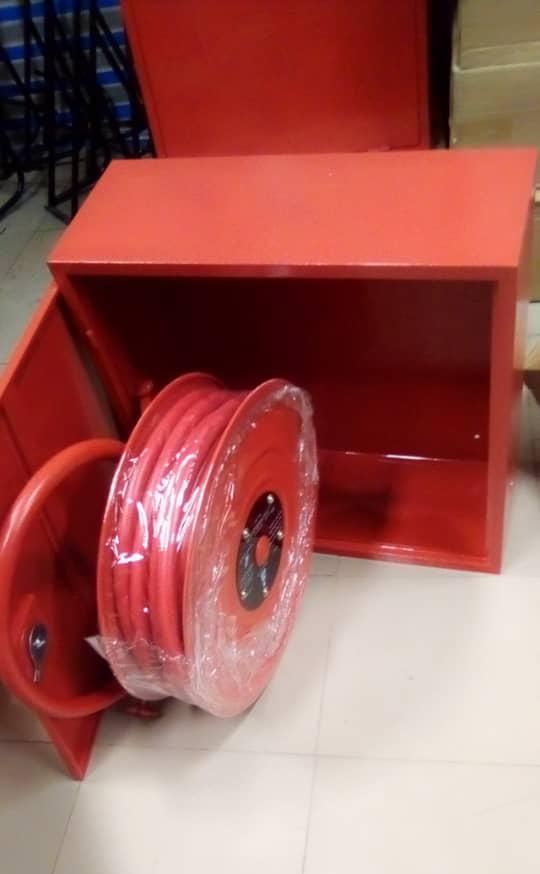

Swinging arm fire hose reel (Manual) is normally installed in a building for the occupants to extinguish a small fire. It could swing over 170°. Manual type, it is controlled by an external manual valve to release water into the hose.
- Available both in manual and automatic versions
- Designed to carry 30 metres of 25mm bore, PVC hose tubing
- CE Certificate to EN671-1 (approved by LPCB)
- Suitable for surface, recess or cabinet mounting, (minimum depth of cabinet 245mm)
- Red plastic coated twist operated brass shut/jet/spray nozzle, hose clip in stainless steel
- Unwind hose without need for hose guide, force ≤70N D
- Red hose tubing approved to EN694
- Swinging arm allows for left or right hand mounting
- Side plates manufactured in 1mm cold rolled mild steel
- Polyester powder coated Red RAL3000 finish
- Maximum working pressure 12 bar
- Test pressure 18 bar
- Auto valve/centre parts material, brass
- Red plastic coated twist operated brass shut/jet/spray nozzle, hose clip in stainless steel
- Unwind hose without need for hose guide, force ≤70N D
- Red hose tubing approved to EN694
- Swinging arm allows for left or right hand mounting
Key Features
Available both in manual and automatic versions
Designed to carry 30 metres of 25mm bore, PVC hose tubing
CE Certificate to EN671-1 (approved by LPCB)
Suitable for surface, recess or cabinet mounting, (minimum depth of cabinet 245mm)
Red plastic coated twist operated brass shut/jet/spray nozzle, hose clip in stainless steel
Unwind hose without need for hose guide, force ≤70N D
Red hose tubing approved to EN694
Swinging arm allows for left or right hand mounting
Side plates manufactured in 1mm cold rolled mild steel
Polyester powder coated Red RAL3000 finish
Maximum working pressure 12 bar
Test pressure 18 bar
Auto valve/centre parts material, brass
What's In the Box
