Note:
- This machine is a precision instrument. It is forbidden to fall, fall, impact and violent movements.
- Do not face up to laser light.
Specification:
Name: Strong Green Light 5 Line Laser Level 360 Rotary Laser Line
Model: C35384
Light :Green
Laser lines: 5 Line
Input:100- 240v 50Hz/60Hz
Ba ttery:1x 3.7V 2280mAh Ba ttery
Material:Plastic+Aluminium alloy
Wavelength green light:635nm

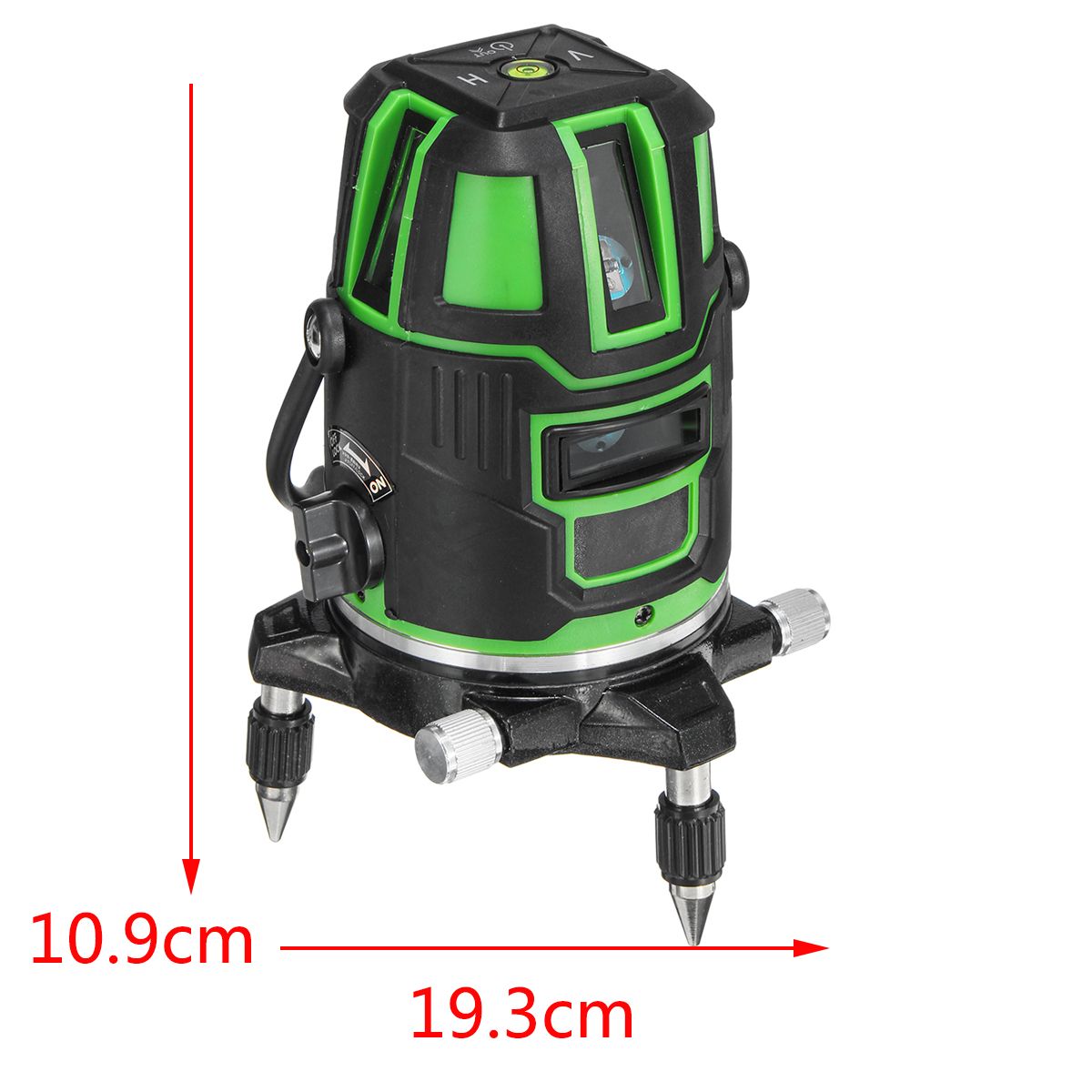

Size:approx.19.3cm*10.9cm
Application:
Auxiliary tiles fixing, wall decoration, floor tiles fixing, stair handrails,furred ceiling,floor tile,plastering.
Product description:
Vertical and Horizontal Precision: ±1mm /7m
Right Angle Precision:±1mm /7m
Down To Point Precision:±1mm /1m
Orthogonal Precision: ±1mm /3meters
Laser Rays Width:2mm/5m
Working distance: 30 m
Automatic Leveling Range:±3°
Projection Angle: ≥120°
Rotation Degree: 360°
Working hours: 10H
5Line:Four vertical lines, one horizontal line, five reinforcement points and one lead hammer point.
How to use:
1.Set the instrument on the tripod or a stable surface, adjust the instrument. If the instrument is too tilted, out of range (3 degrees), the laser tube will automatically turn off (or if audible alarm)
2.Switch knob clockwise to open the instrument, the instrument top green indicator light, while emitting a laser beam
3.Turn the instrument, the laser beam toward goals
4.Gently adjust knob, find work orientation
5.When work is over, turn the switch knob counterclockwise, turn off the instrument

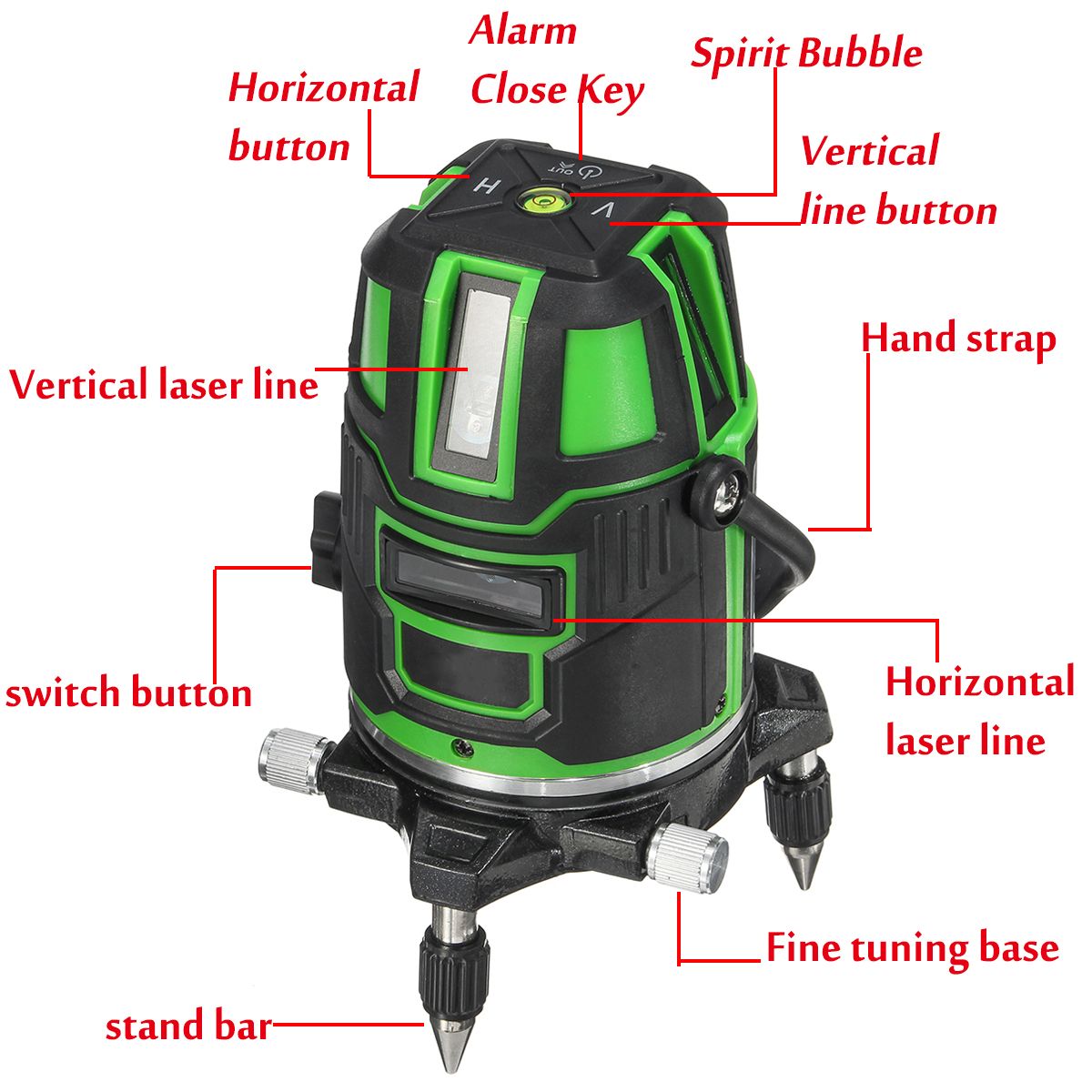

Features :
- Rechargeable batteries that last 3-4 hours.
- High brightness green, indoor and outdoor clearly.
- ±3°Automatic self leveling function. Sound warning when beyond auto leveling range.

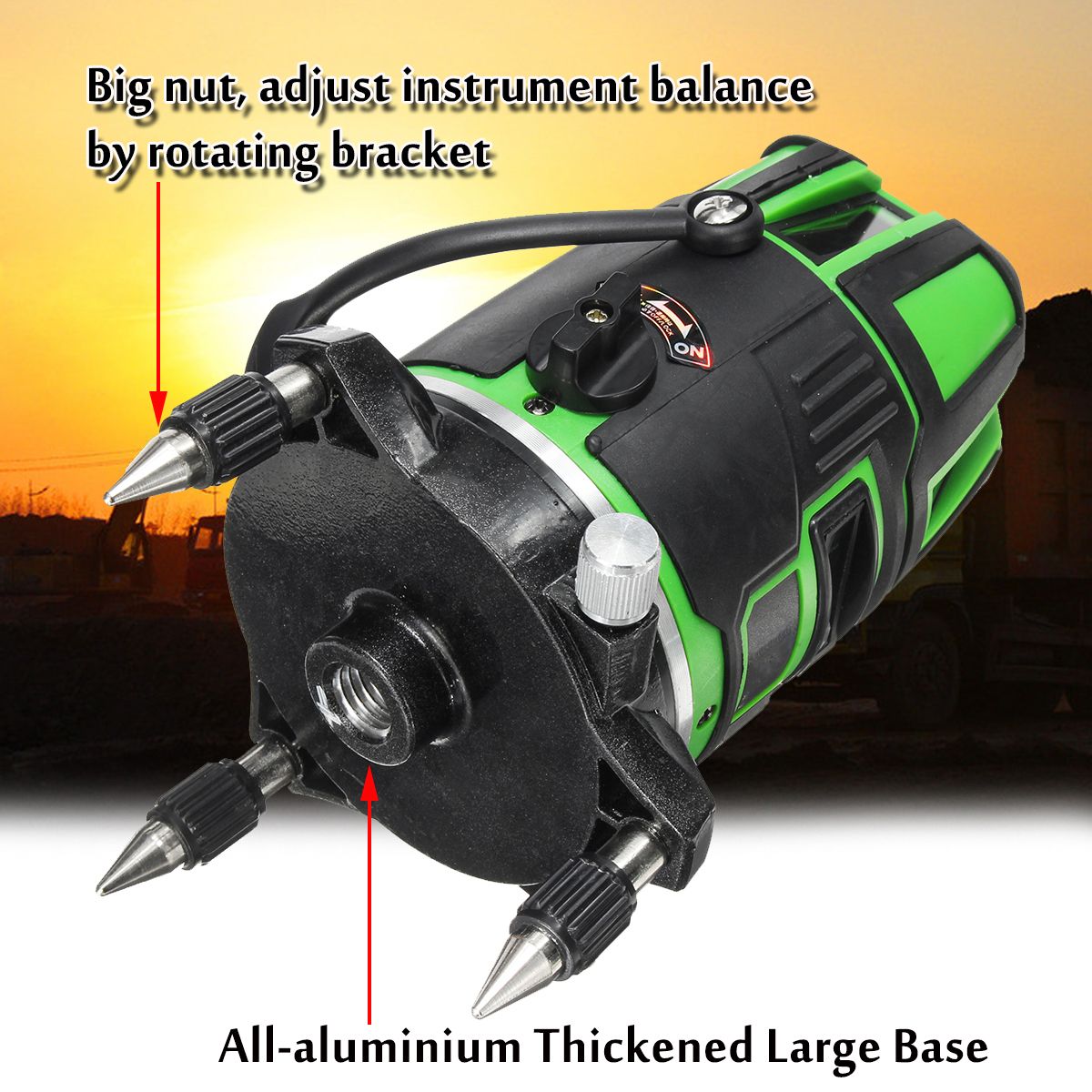

- 360° rotating base with fine tuning knob, quickly identify the target.Thickened metal base provides stable and it is shockproof.
- High quality and long service life.
- With tripods, diagonal lines can be struck.
- Precise measurement and more convenient to use.
- Waterproof,dustproof and high precision.
- With light point designed outdoor environments, provide convenience for the construction.
- With aluminium alloy tripod,can adjusta the height,more convenient to use.
- Slash can be played,more efficient.

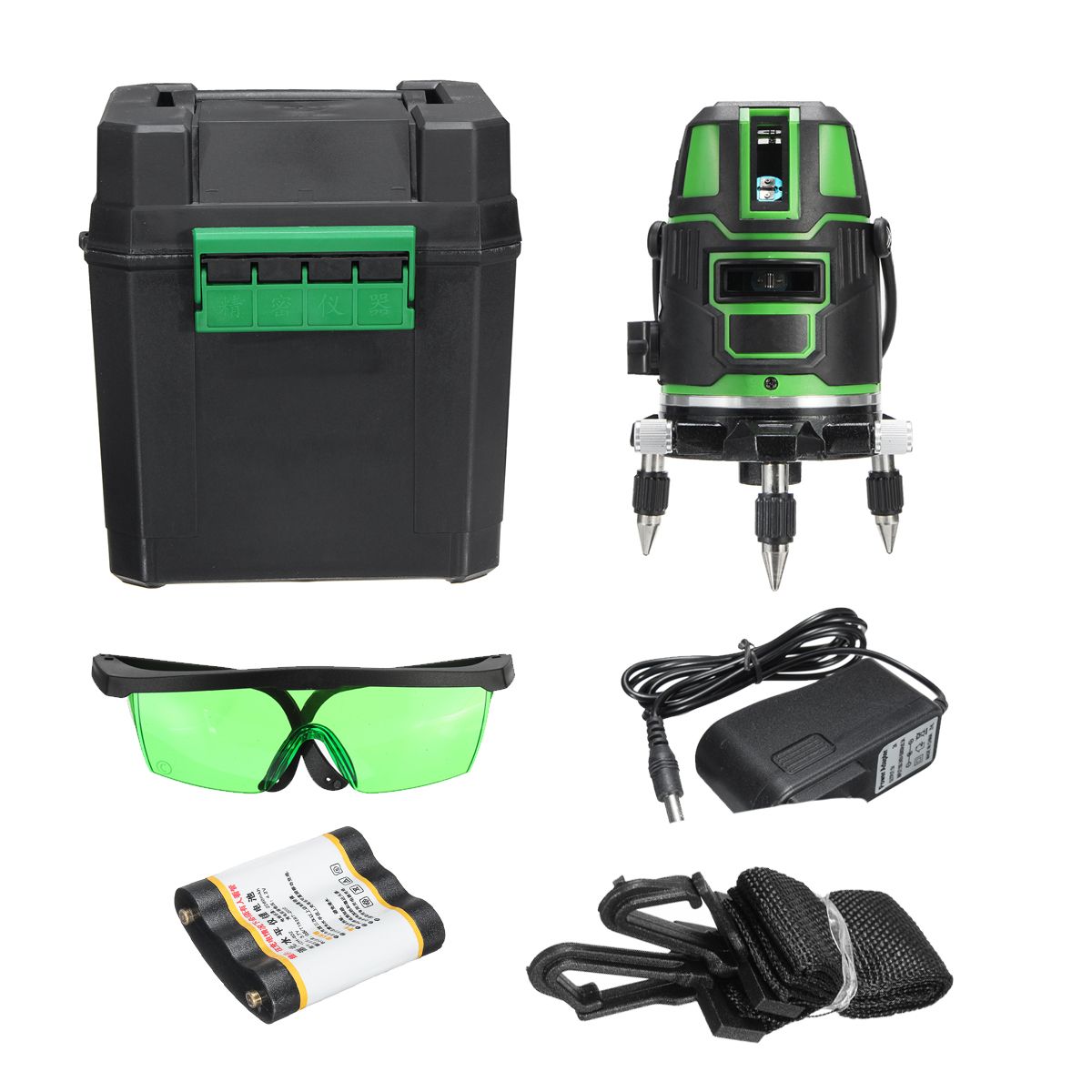

Package Included:
1x Main machine
1x Ba-ttery
1x Base
1x Protective
1x adapter
1x Thickened aluminum box
1x Belt
Note:
-Please allow a slight error due to manual measurements, thank you!
-Due to the different display and different light, the picture may not reflect the actual of the item.
a a a a a
Key Features
Reasonable price
Durable and practical
Top Sales Item
Light :Green
Laser lines: 5 Line
Input:100- 240v 50Hz/60Hz
Easy to use
Exquisite Workmanship
Well Made
Best Choice and best discounts
Customer Care is Our Top Priority
Offer is Subject to Availability
Big Sale
What's In the Box
1x Main machine 1x Ba-ttery 1x Base 1x Protective 1x adapter 1x Thickened aluminum box 1x Belt
