Lightweight design, easy to install and use, easy to remove and store, comfortable control handle, high-efficiency heating end, simple control interface. It is a favorite tool for electronic engineers and electronic maintenance enthusiasts.
Features:
*Mini Soldering Iron Controller: SQ-001 is based on 304 stainless steel nested ABS + PC shell, Integrated special power interface, Safety circuit design, Antistatic structure.

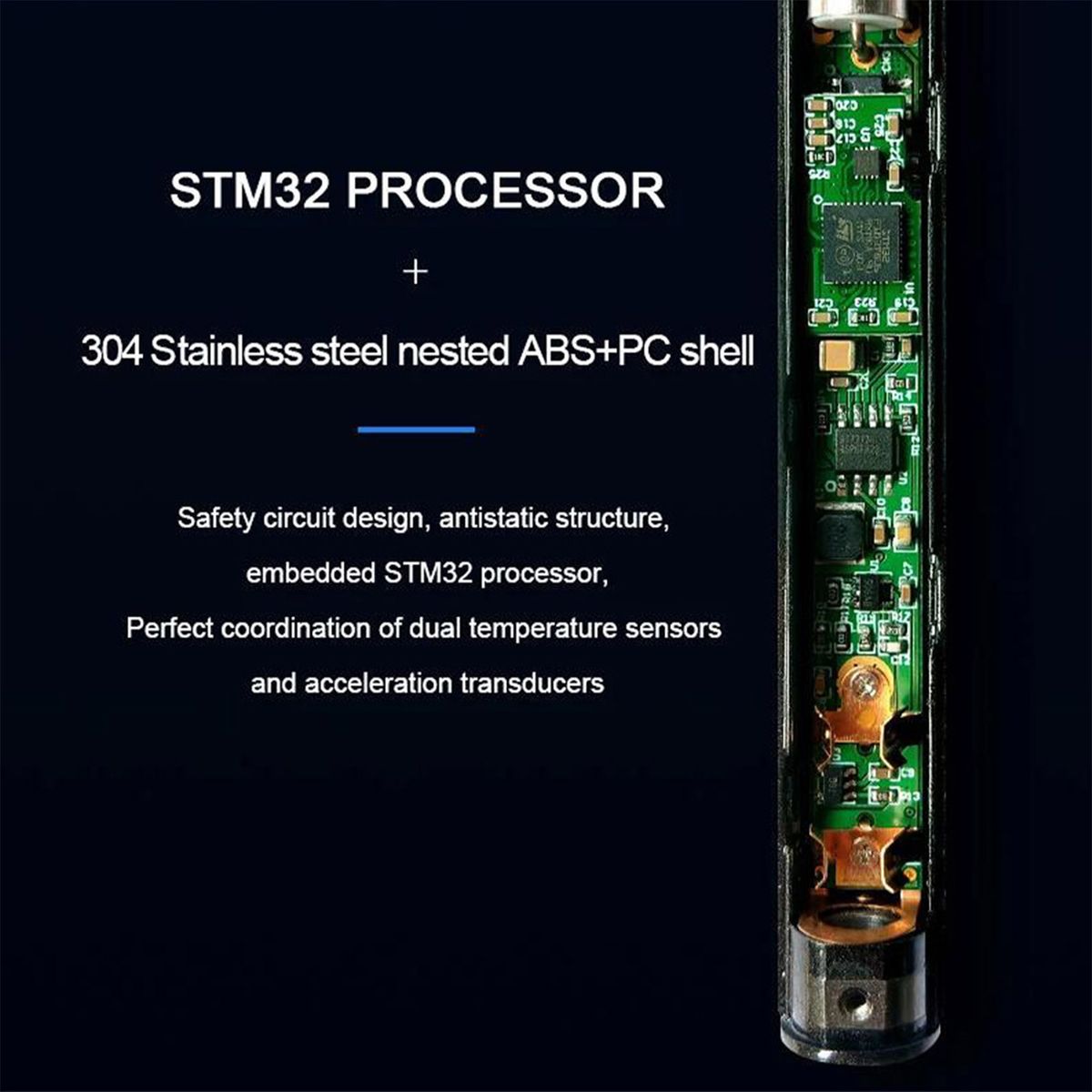

*The perfect combination of embedded STM32 processor, dual temperature sensor, and acceleration transmitter.
*Make SQ-001 realize intelligent temperature control between 100-400 degrees, more stable temperature, instantaneous temperature rise, automatic sleep, over-temperature alarm, and other functions.
*Mini Soldering Iron Heating end: The heating end adopts internal heating core, factory preset temperature: 300 ℃, temperature stability range: plusmn; 2%.
*Warranty: If there are any problems, please contact our store in time. We will give you a satisfactory solution.
Specification:
Brand name: SEQURE
Model name: SQ-001
: Digital Soldering Iron
Color optional: Black, blue
Operation voltage: 12-24V
Power output: 17-65W
Screen: OLED
Power port: DC5525
USB port: Micro USB
Temperature range: 100-400 deg;C / 212-752 deg;F
Factory default temperature: 300 deg;C / 572 deg;F
Power port: XT60

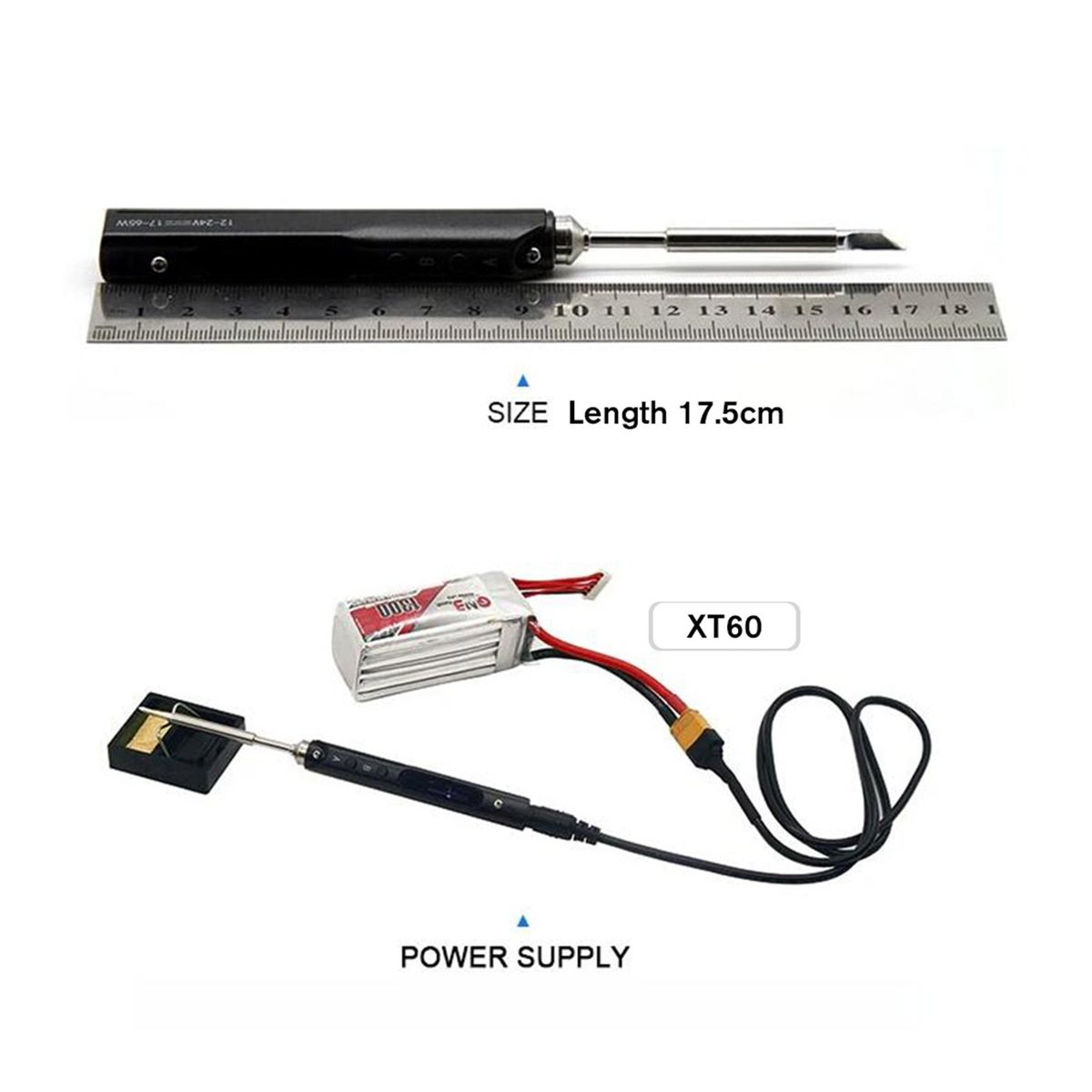

Size: Operation unit: length: 97mm, diameter: 16.5mm; heating unit: length: 76+33mm, diameter: 5.5mm
Safety Instructions
1. Please use a ground clamp, proper power supply, and other accessories to ensure safe use.
2. When SQ-001 is used for the first time, it may slightly smoke due to the heating of the electric heating element, which is a normal Phenomenon.
3. If SQ-001 is used continuously for more than 350 deg; C for 40 minutes, the handle temperature of soldering iron will reach 50 deg;C~60 deg;C.
4. When SQ-001 temperature rises, do not contact the iron head to avoid scalding.
5. When SQ-001 is powered on, the iron head cannot be replaced.
Package Information:
Package size: 14.5*9.5*3.5cm
Package Weight: 131g
Gift Box Package

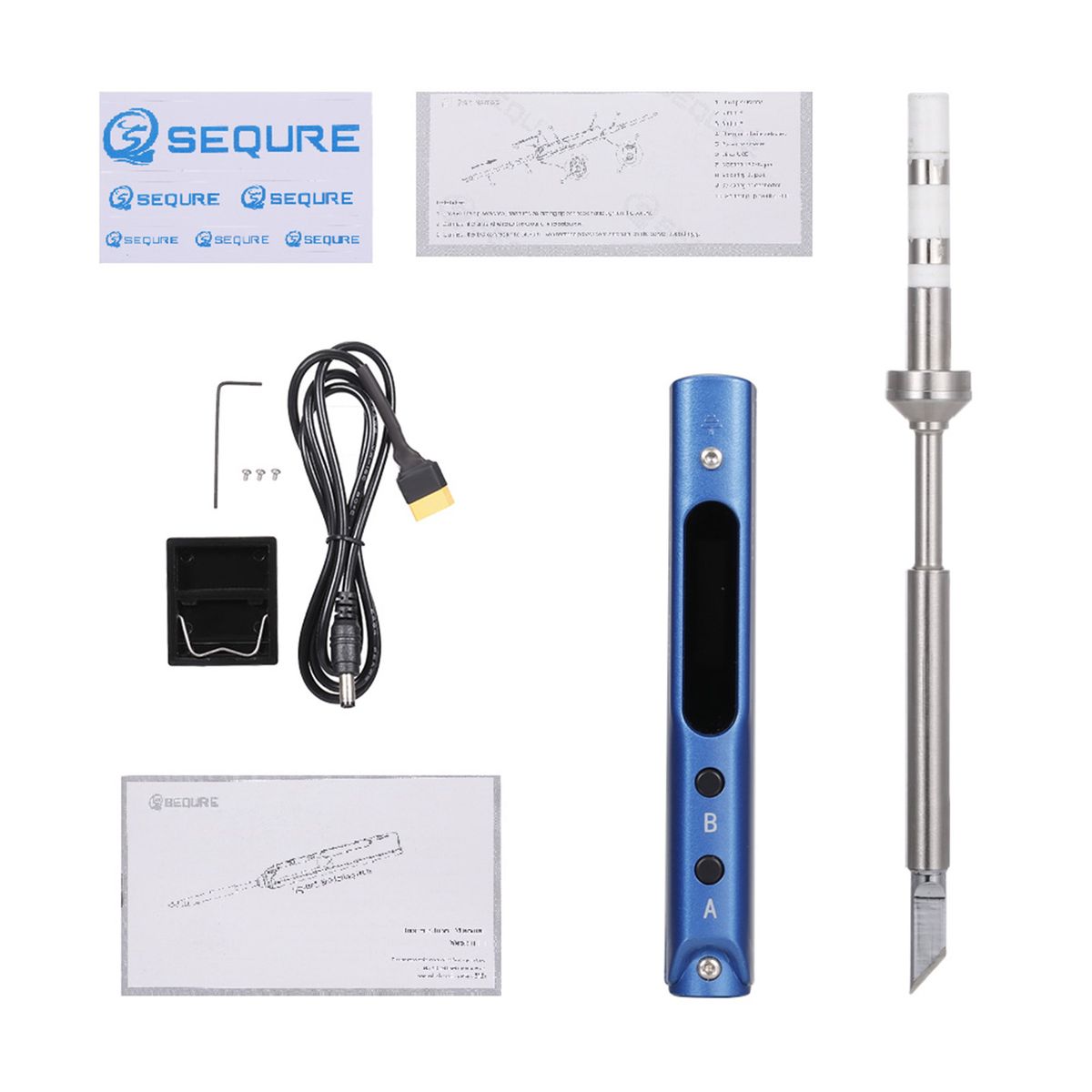

Packing List:
1* SQ-001 Controller
1* Solder Tip (Default TS-K tip)
1* Safety Instructions
1* Hex Key
1* User Manual
1* XT60 Power Cable
1* Mini-bakelite Stand Holder
We confidently assure you'll be satisfied with what you get.However, If there's a chance that you are not satisfied with our goods or something else, please let us know before leaving us a Negative feedback. We will try our best for 100% customer satisfaction. Your 5-Star Positive Feedback is much appreciated to us, and your satisfaction is our greatest motivation to move forward.Welcome to Shop Here! Want more Items? Please come visit our SHOP.
*Shipping and Packaging All it will be double checked and well packed before sending.It will be dispatched within 5 business days after buyers pay for the order. It usually takes about 14 to 18 working days for delivering the package to the destination(for remote areas,it may take a little longer).Your satisfaction is our first priority.
*If you receive the order and it is in good condition,we would be grateful if you would leave us 5 star Positive Feedback for the transaction.
Key Features
Lightweight design, easy to install and use, easy to remove and store, comfortable control handle, high-efficiency heating end, simple control interface. It is a favorite tool for electronic engineers and electronic maintenance enthusiasts.
*Mini Soldering Iron Controller: SQ-001 is based on 304 stainless steel nested ABS + PC shell, Integrated special power interface, Safety circuit design, Antistatic structure.
*The perfect combination of embedded STM32 processor, dual temperature sensor, and acceleration transmitter.
*Make SQ-001 realize intelligent temperature control between 100-400 degrees, more stable temperature, instantaneous temperature rise, automatic sleep, over-temperature alarm, and other functions.
*Mini Soldering Iron Heating end: The heating end adopts internal heating core, factory preset temperature: 300 ℃, temperature stability range: plusmn; 2%.
