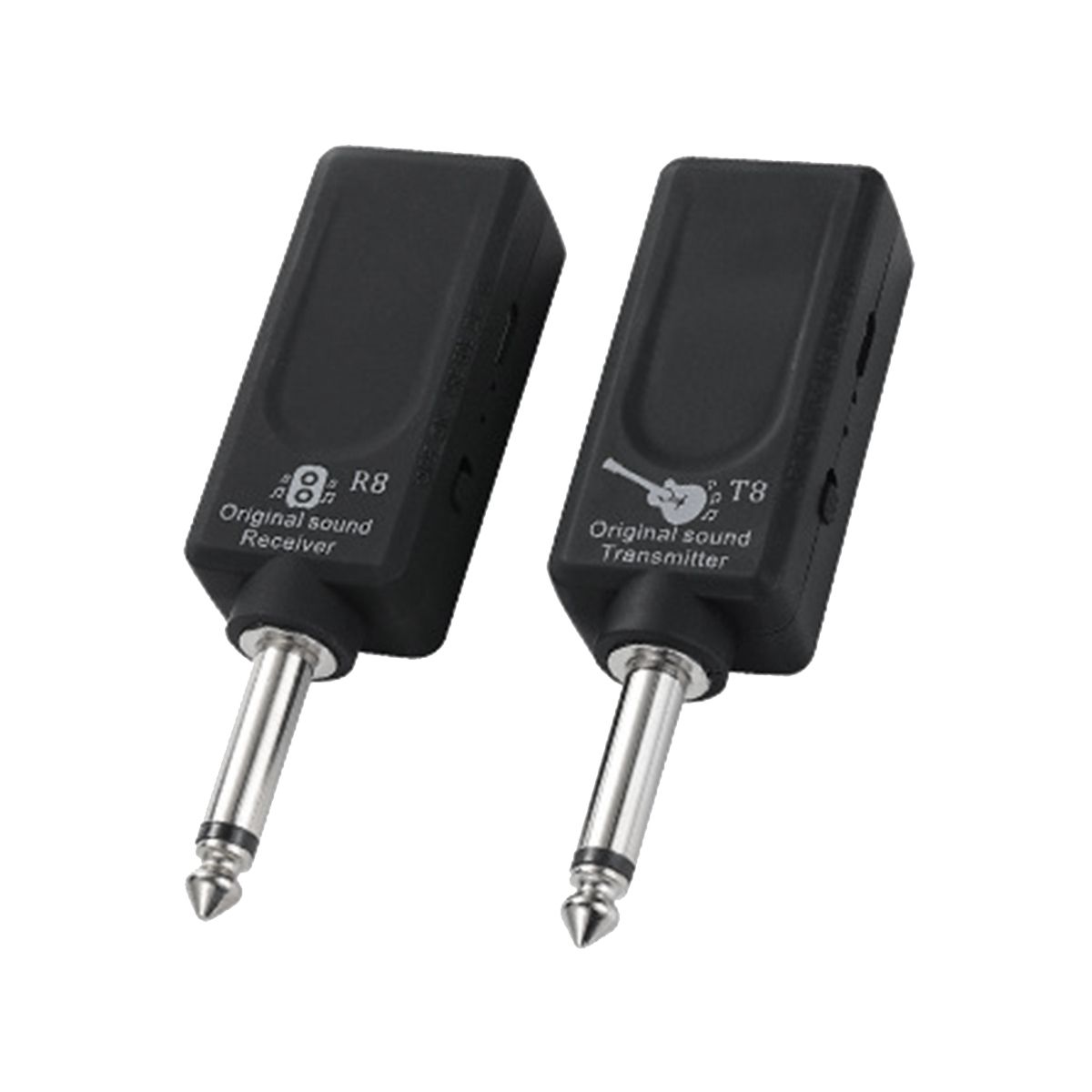

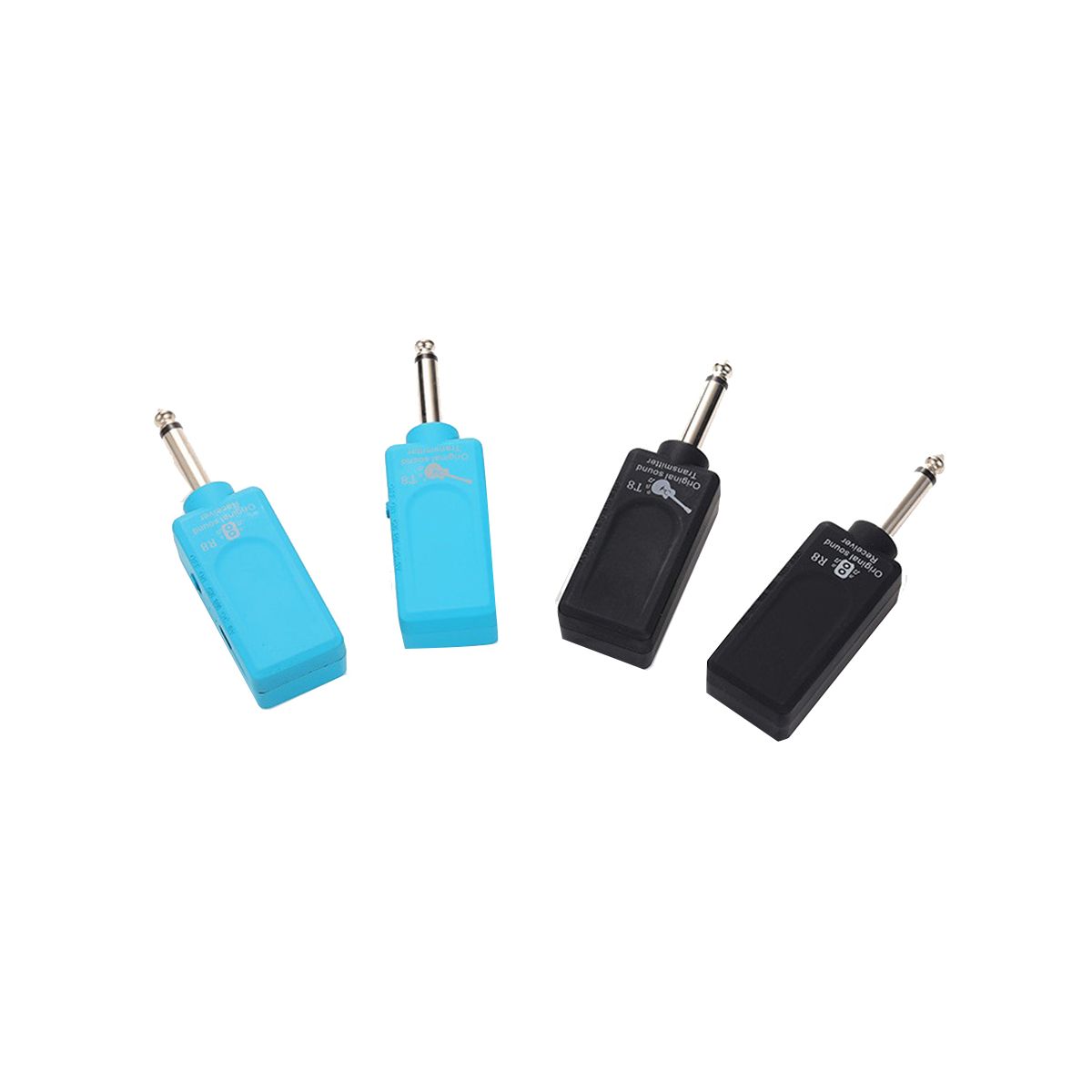

Musical Instrument Wireless Audio Transceiver, Strong Anti-Interference / Strong Penetration / Wide Compatibility

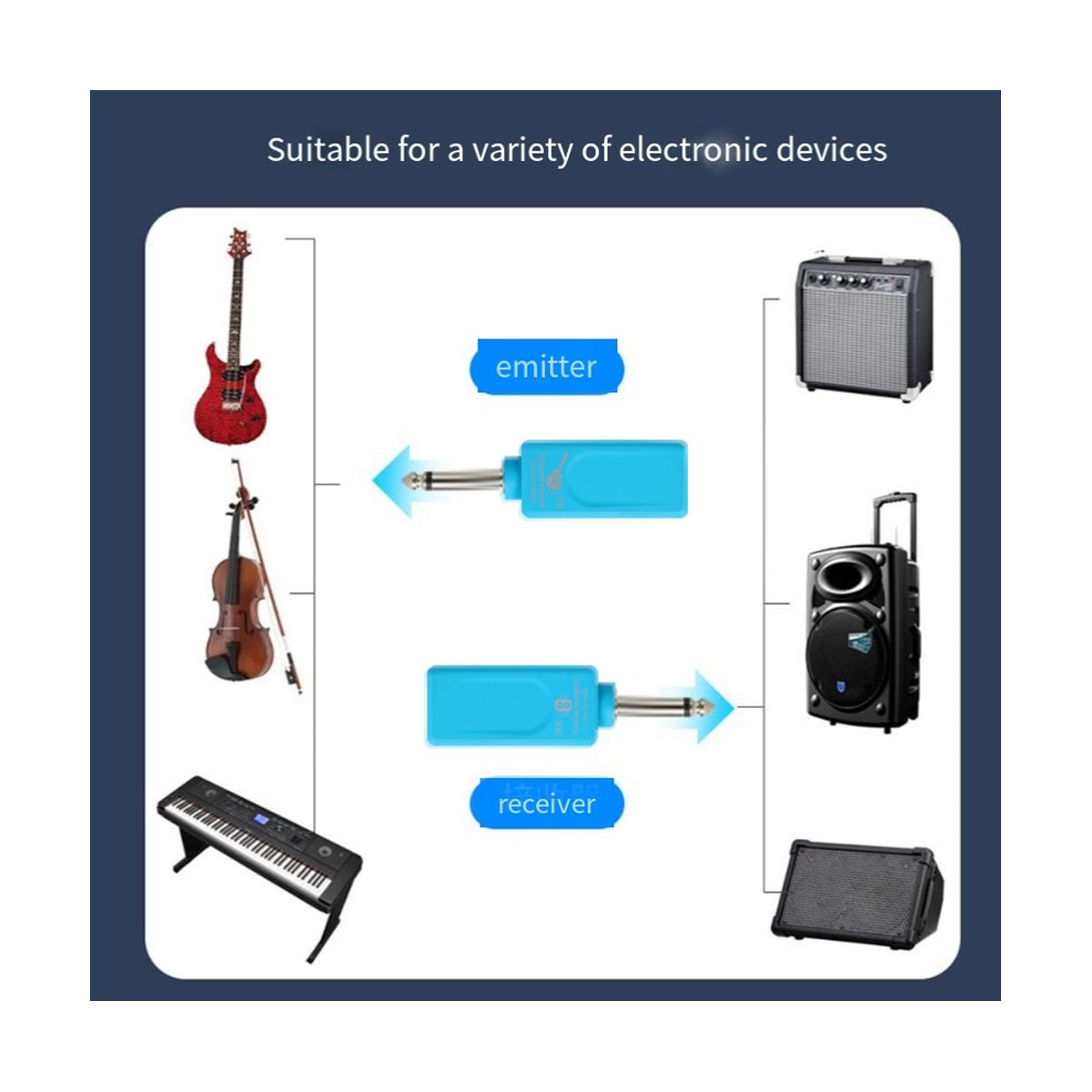

Wired To Wireless, Portable, Get Rid Of The Shackles Of Wired, More Convenient To Play

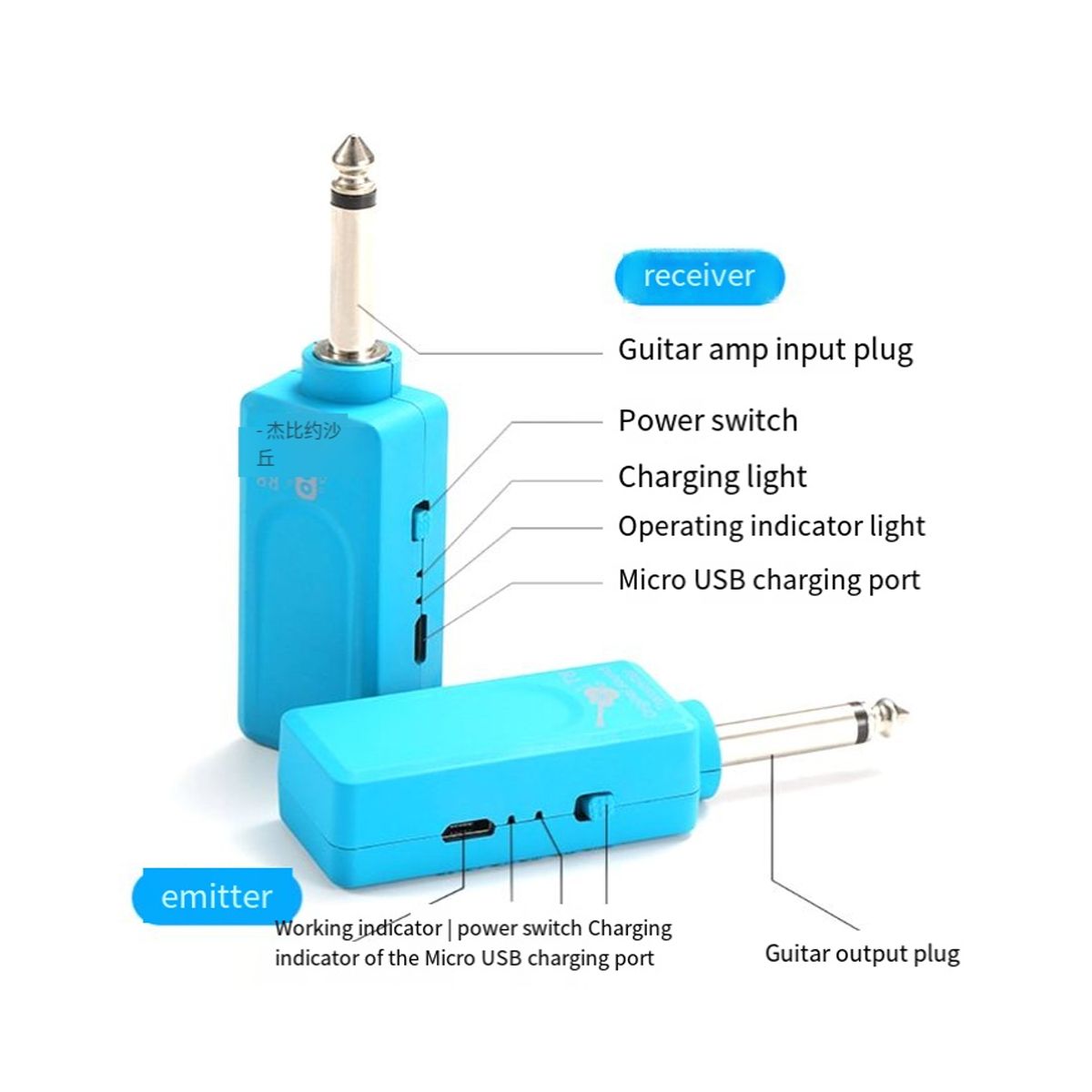

One-Button Switch, Automatic Pairing, Switch On And Automatic Pairing Connection, Plug And Play
High-Quality Audio, Low-Latency Output, Equipped With Advanced Chip Technology, Anti-Interference Continuous And Stable Output
30 Meters Long-Distance Transmission, Up To Half A Football Field, High-Quality Transmission Anti-Interference Signal Stability

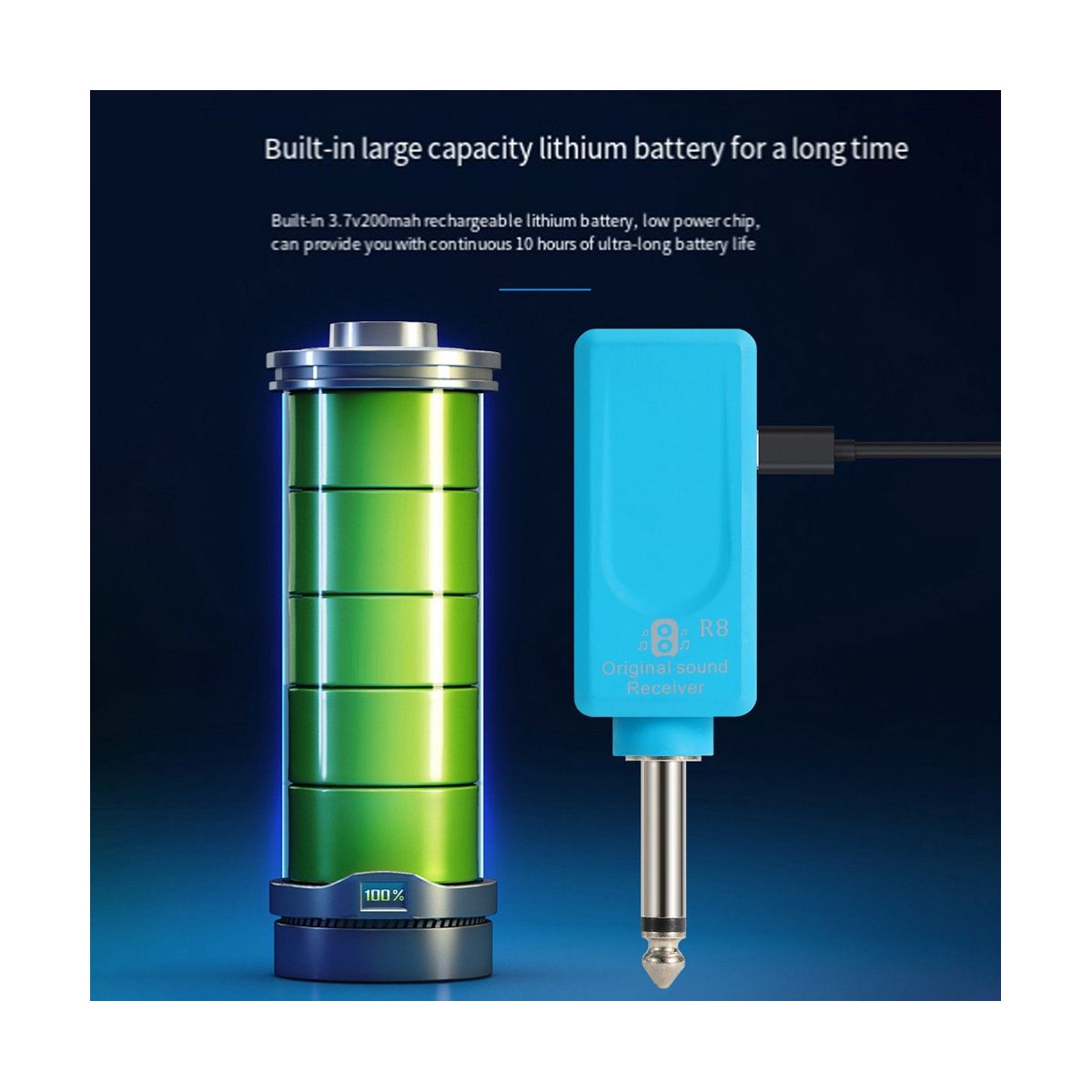

Input Voltage: Transmitter: 3.7V (Battery Management); Receiver: 3.7V (Battery Management)
Pairing Current: Transmitter: 11mA; Receiver: 8~12mA
Working Current: Transmitter: 20mA; Receiver: 20mA
Frequency Range: Transmitter: 2402MH2-2480MHz; Receiver: 2402MH2-2480MH2
Modulation Method: Transmitter: Gfsk; Receiver: Gfsk
Transmission Rate: Transmitter: 1m/S; Receiver: 1m/S
Pairing Method: Transmitter: Automatic Pairing; Receiver: Automatic Pairing
Channel Bandwidth: Transmitter: 192K; Receiver: 192K
Transmitter Sending Power: 6-8dbm
Receiver Receiving Sensitivity: -94dbm
Transmitter Input Level: 125mv (Adjustable Gain)
Transmitter Input Impedance: About 5k
Receiver Output Level: 693mv (Adjustable Gain)
Receiver Output Impedance: 1 ohm
Input To Output Gain Ratio: 5.53
Frequency Response Range: 20-20K Hz
Delay Time: 20ms
Sampling Rate: 44.1K
Signal-To-Noise Ratio: 86.4db (Input 125mv, 1k A-Wt)
Distortion: 0.05% (Input 125mv, 1k A-Wt)
Dynamic Range: 87.278db
Barrier-Free Distance: Greater than 30m
Colour:black
Material:plastic
Size:8.95 x 2.63 x 1.7cm

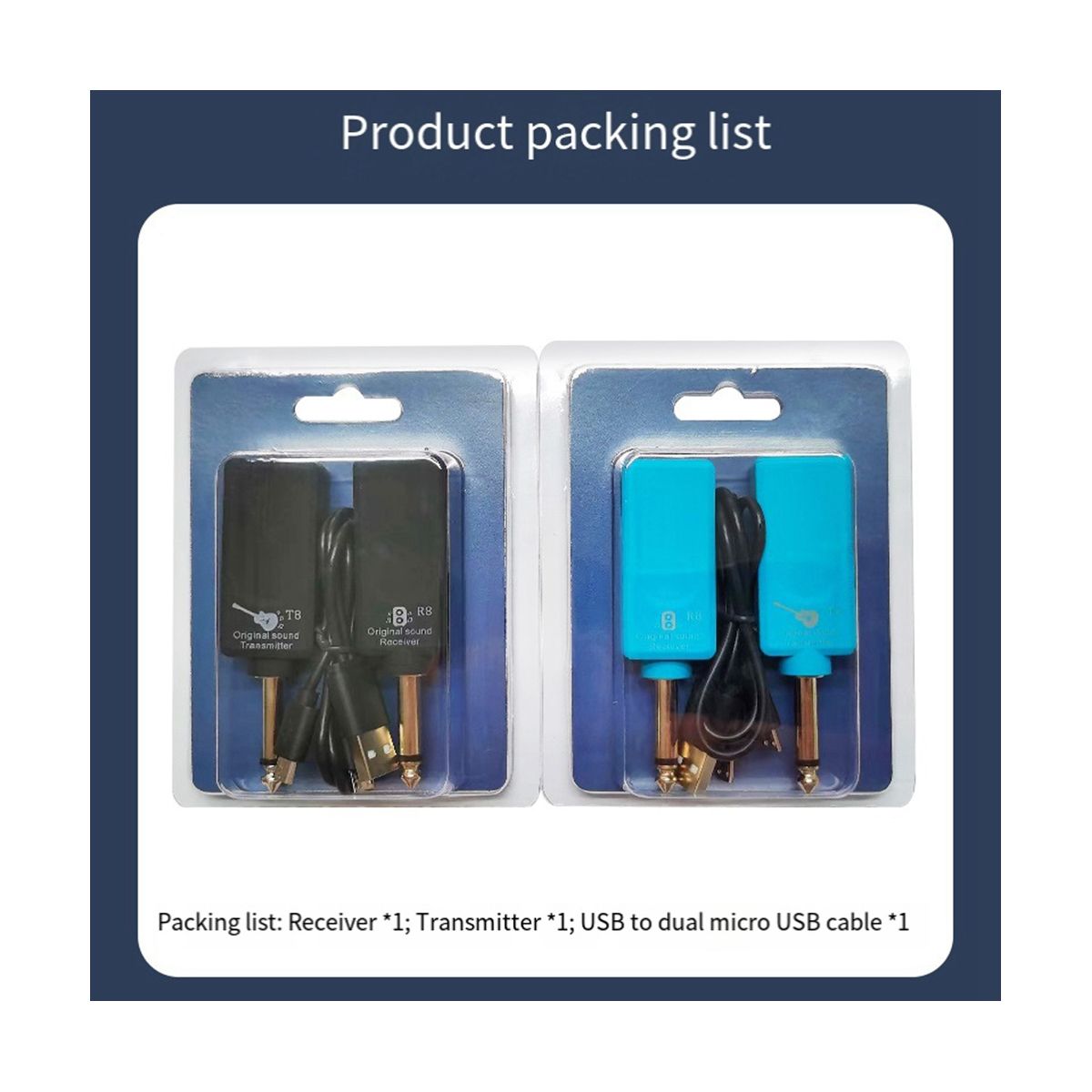

Package Contents:
1 x Receiver
1 x Transmitter
1 x Usb To Dual Micro-Usb Cable
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
Key Features
Durable and good quality
Speaker Transceiver
Wireless Transceiver
Audio Transceiver
Instrument Transceiver
Transceiver
The details are as described above
What's In the Box
1 x Receiver
1 x Transmitter
1 x Usb To Dual Micro-Usb Cable
