Temperature-controlled Soldering Iron, is widely used for home DIY, soldering projects, welding circuit board, electric repairing, crafts/jewelry making.ON/OFF Switch - you can turn the soldering iron on or off, more safer and convenient.Temperature Knob - to set the optimal temperature based on the solder alloy composition that you use.Four Ventilation Holes - for quick heat dissipation.Heat Resistant Grip - for safety when holding the soldering iron.Upgrade Wire Cutter - you can cut and strip different size cable easily.
Question: From which degrees should I start to heat up the soldering iron?Answer: We recommend that you start heating from the lowest temperature 200℃ / 392℉ and then heat up gradually when necessary. Do not heat up on highest temperature at the beginning as it may cause the tip to burn out.Question: How do I choose the right tip for different operations?Answer: B-tip (round heads) for general welding. I-tip (pointed head) for fine soldering or for modifying solder bridge when soldering chips. D-tip (flat head) and C-tip (cutter head) for large area welding. K-tip for SOJ/PLCC/SOP/QFD electronic components and for solder bridge.This soldering kit is intended for basic home repairs or sparking interest in your teenage child with electronics, and it's worth every penny with pretty darn good quality.How to solder
1).Determine the right temperature for your project. Which temperature to use depends on the materials you're joining and the kind of solder you're using.
2).Once your iron is heated to the appropriate temperature, pick up the iron by the handle in one hand and hold a piece of solder in the other hand. Hold the hot iron to the place where the two metal components will meet for about a second to heat them up. You want to heat the metal parts, not the solder itself.
3).Touch the solder to the heated components. As the solder melts, it will flow into the gaps it needs to fill. Continue to feed in solder until a sufficient amount is melted. While you need enough to form a solid connection, you don't want to have too much solder either.
4).Allow the solder to cool on its own without any action.
5).Check the soldering joint for quality. A good connection will appear smooth, uniform and shiny. Make sure that aren't any problematic gaps between the components or globs of excess solder.
Warm Tips
1.Please be really careful when you are using the tools, and you'd better keep it somewhere kids can't reach.2.Please switch to the 200℃ model, when not using the pencil iron. And please do not keep the soldering iron working under high temperature. 3.When welding, do not use too much pressure. As long as the iron tip fully contact the solder joint, heat can be transferred.4.To avoid oxidation, please clean soldering iron tip and "tin" all faces of tip with a coating of solder after using. If there is black oxide on the iron tip, please clean it by WET sponge firstly.

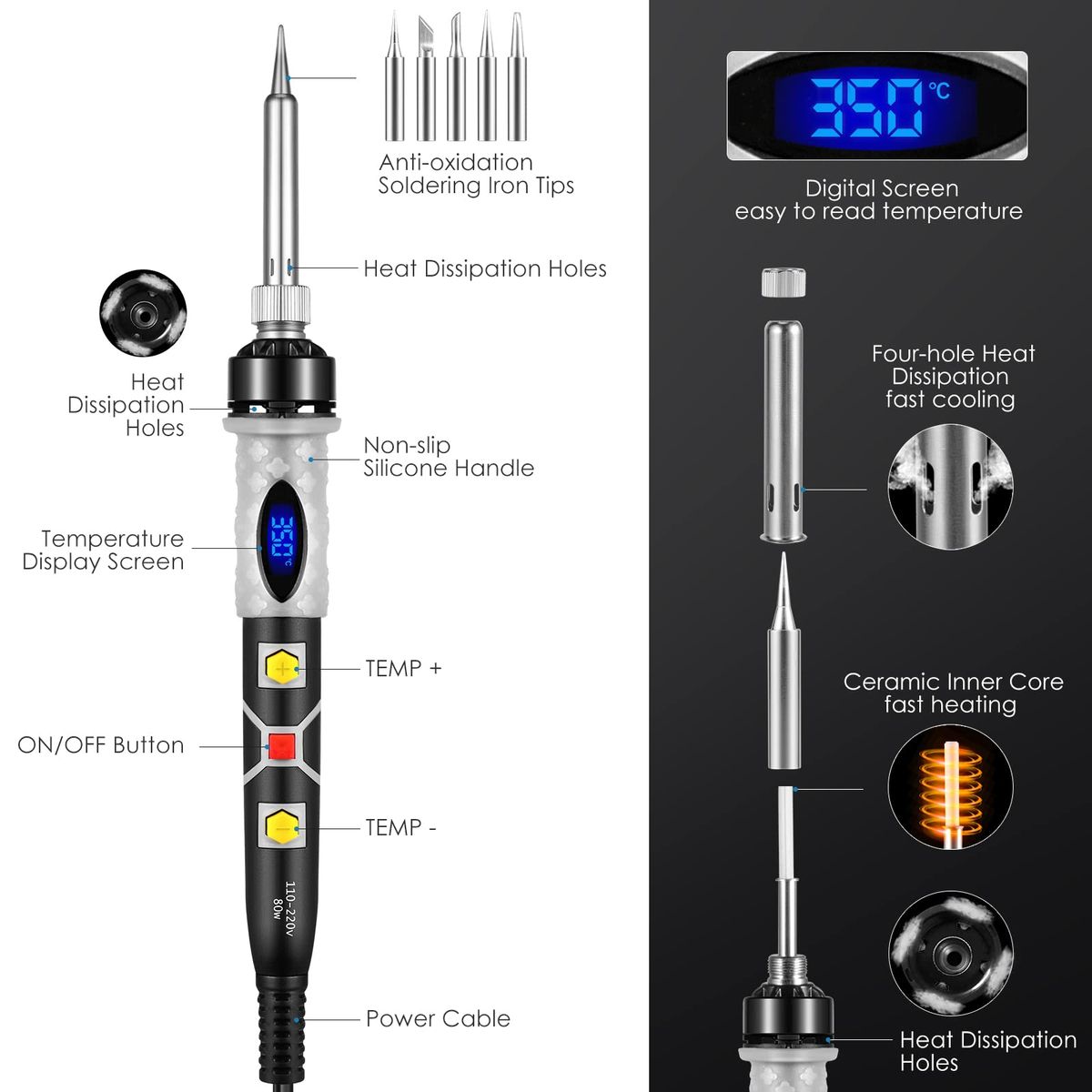

Key Features

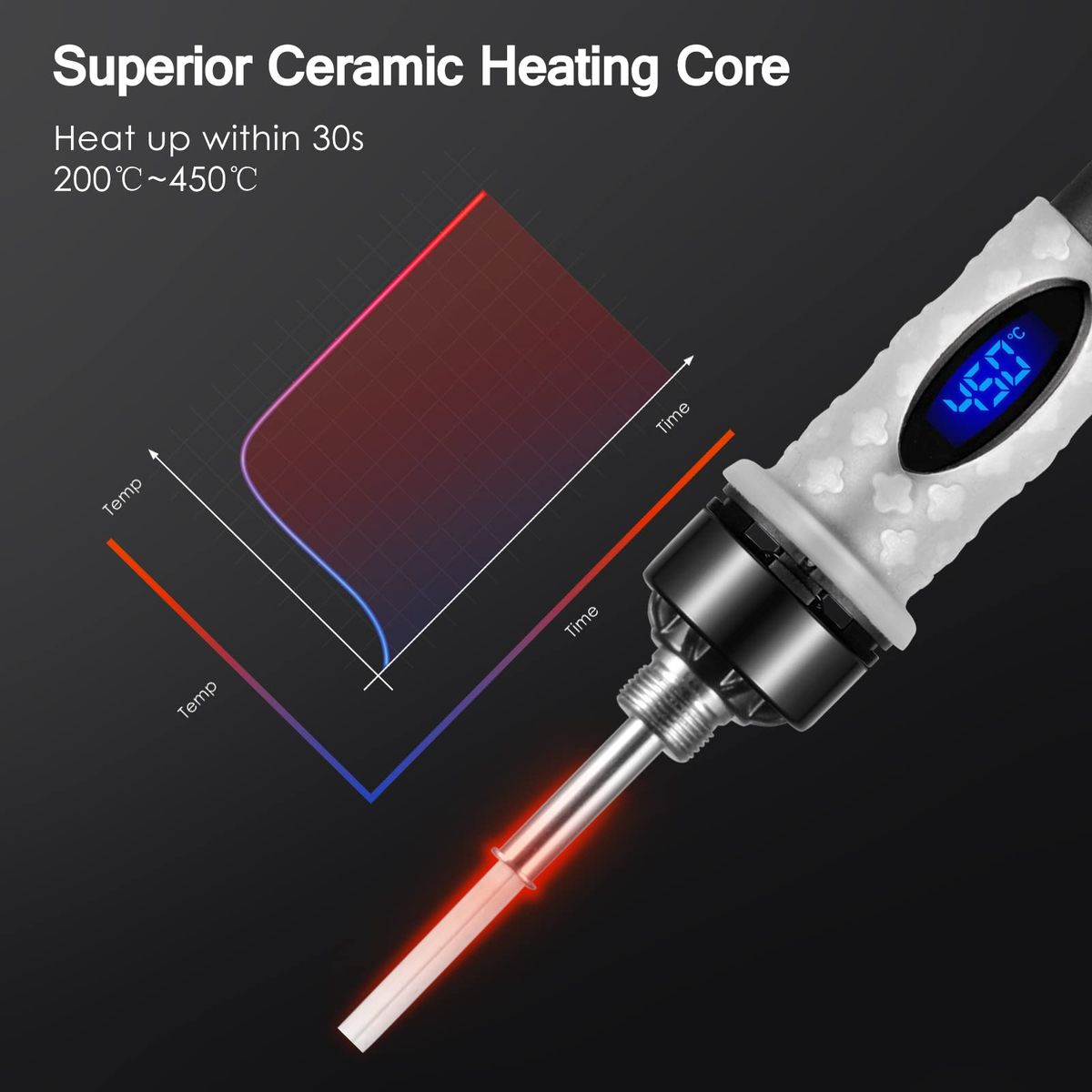

【Fast Heating Thermostatic Design】: With ceramic induction technology, internal heating, KLARYTYMA soldering iron is high heating efficiency and low energy consumption. Fast heating within 30 seconds, say goodbye to the long pre-heating time. Soldering iron uses a chip with constant temperature, automatically stops heating to a certain temperature. After the temperature drops down, the chip is heated again after induction.
【Excellent Soldering Iron with LCD Screen】: With temperature control buttons and LCD temperature display, you can adjust the temperature from 200℃ to 450℃, read the temperature clearly, so it is less likely to over heat a circuit board. LCD display and temperature control switch makes job even easier and and professional.
【Soldering Iron with ON/OFF Switch】: No need soldering station, just plug and use. With the on/off switch, it is convenient to turn the iron off when you need a break, no more having to turn off the unit by unplugging the iron from the wall socket all the time. At the same time, it can avoid long-time working, saving energy and ensuring safe welding.

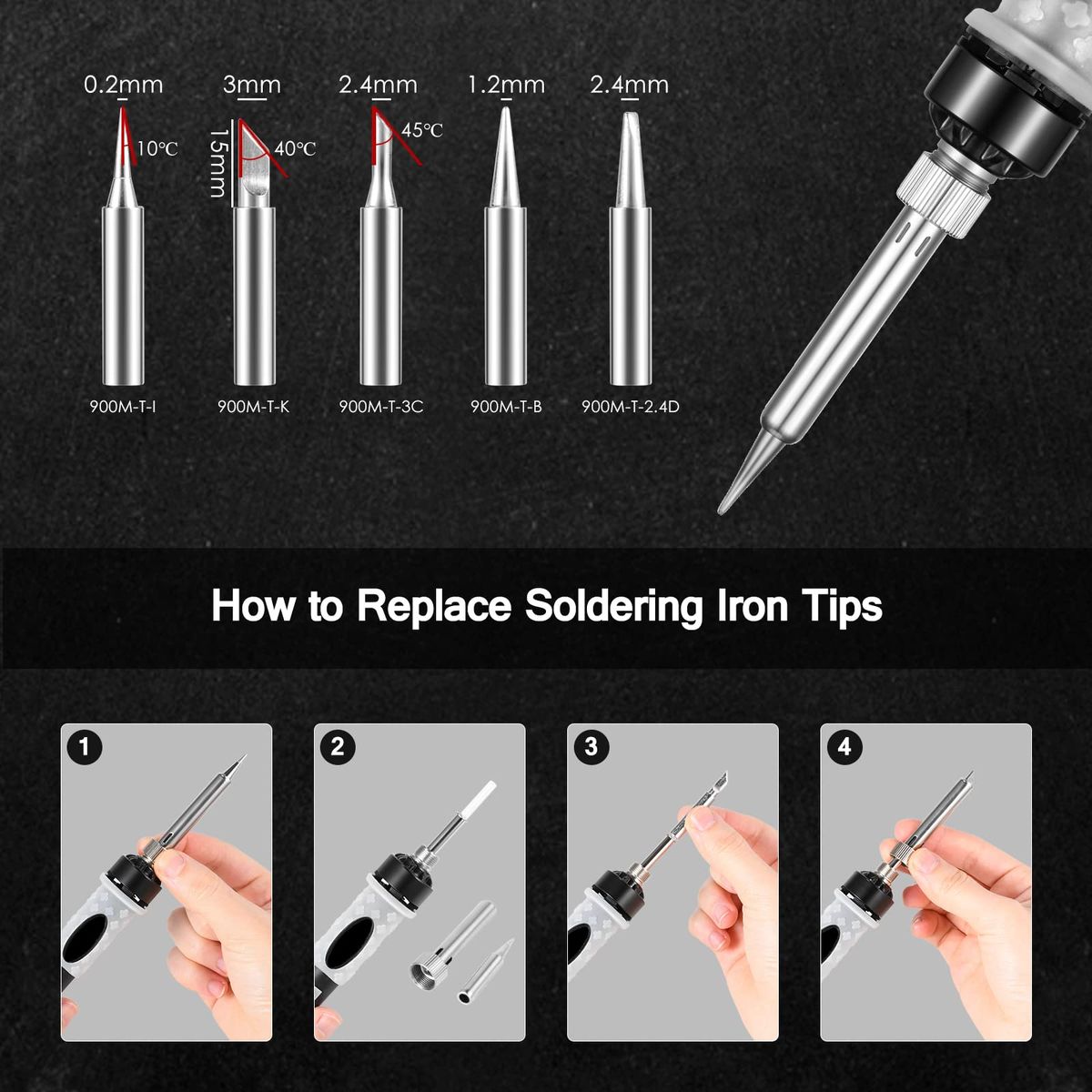

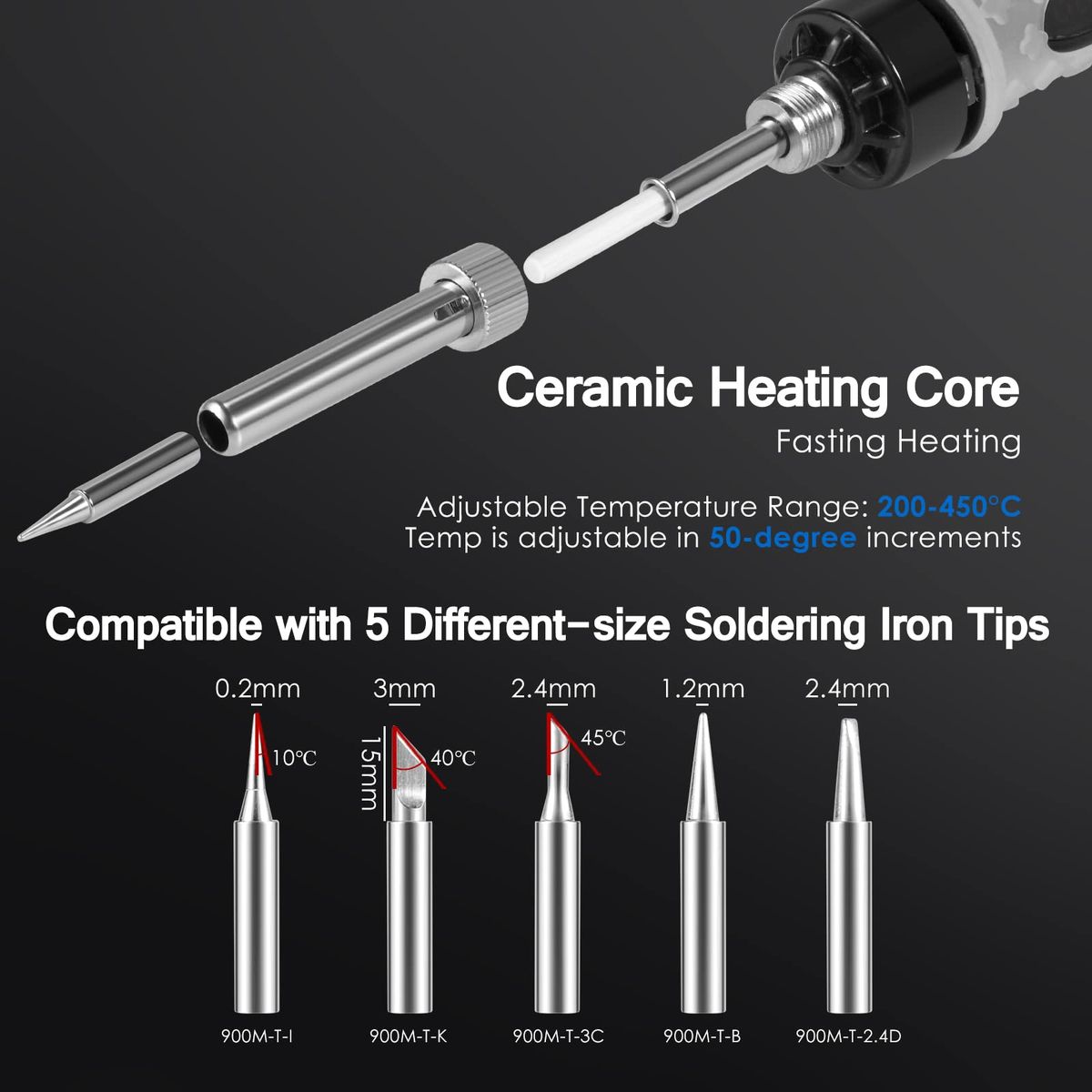

【5 PCS Interchangeable Soldering Tips】: Soldering iron tips vary in size and shape, are designed for different soldering scenarios, such as repairing guitar, watch, computer, hardware, TV, etc. How to replacing the tip? Loosen the metal sheath, take off the old tip, slid the new tip over the ceramic core and tightened down.
【What You Get】: Package comes with 1 soldering iron, 5 extra soldering iron tips, 10 grams solder and soldering iron stand. Our soldering iron offers a 12-month warranty and lifetime technical support. We are dedicated to ensuring your 100% satisfaction, if you have any question, please feel free to contact us.
What's In the Box
Package comes with 1 soldering iron, 5 extra soldering iron tips, 10 grams solder and soldering iron stand
