Here comes an alternative power source to charge your lighting and fanning product's that come with a solar port or DC port .
It's ideal for charging products that specify 12volts or 15 volts input such as standing and table fans produced by brands such as LONTOR , LONEN, ANDRAKK, HARRIS, QASA etc

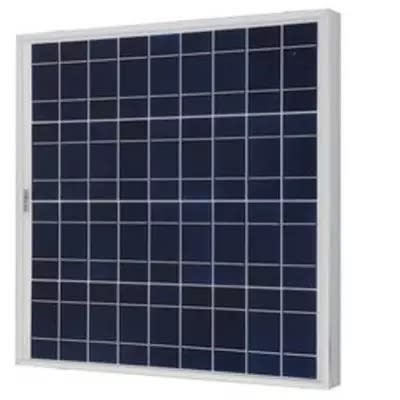

olar Panel With Clip To Charge Battery
Power : 20'watts
Current max: 1.2 amps
Output voltage : 15 to 18 volts
Type : polycrystalline
Cable length : 5metres
Warranty : 25 years
Best charging time : between 9am and 5pm . For best results, place directly under the sun.
Made in Germany
Warranty Period
6 Months
FEATURES:
1. High quality guarantee using 156 mm high conversion efficiency crystalline silicon solar cells.
2. High performance bypass diodes minimize the power drop caused by shade
3. High transmittance, low iron tempered glass; High performance EVA; A weatherproof back sheet and sandblast electrophorus is aluminum frame extend the application of modules greatly
4. 25-year limited warranty on power output and performance
5. Sealed, waterproof, multi-functional junction box gives high level of safety.
APPLICATIONS:
1. Solar power stations;
2. Rural electrification, Small home power systems;
3. Power supply for traffic, security, gas industry;
4. 12V and 24V battery charging systems;
5. Other industrial and commercial applications.
ELECTRICAL PERFORMANCE
Electrical parameters at Standard Test Conditions (STC)
Module Name 100W Solar Panel
Module Type TK100P-17b
Power output Pmax W 100
Power output tolerances Pmax % & plusmn;5
Module efficiency & eta;m % 12.9
Voltage at Pmax Vmpp V 17.1
Current at Pmax Impp A 5.86
Open-circuit voltage Voc V 21.5
Short-circuit current Isc A 6.17
STC: 1000W/m2 irradiance, 25 centigrade cell temperature,AM1.5g spectrum according to EN 60904-3.Average relative efficiency reduction of 5% at 200W/m2 according to EN 60904-1.
Electrical parameters at Nominal Operating Cell Temperature (NOCT)
Power output Pmax W 100
Voltage at Pmax Vmpp V 18
Current at Pmax Impp A 5.49
Open-circuit Voltage Voc V 22.75
Short-circuit current Isc A 5.99
This 10W solar panel compose of multi-crystal solar cell with an efficiency of over 17%. All Talkers Energy rigid solar panels are constructed using a tempered glass front and a PVF backing to provide maximum protection from the most severe environmental conditions. The entire laminate is framed in a heavy duty anodized aluminum frame to provide structural strength and ease of installation. This translates to both more wattage per square foot and lower mounting structure cost.
Here comes an alternative power source to charge your lighting and fanning product's that come with a solar port or DC port .
It's ideal for charging products that specify 12volts or 15 volts input such as standing and table fans produced by brands such as LONTOR , LONEN, ANDRAKK, HARRIS, QASA etc.
SPECs
Power : 20'watts
Current max: 1.2 amps
Output voltage : 15 to 18 volts
Type : polycrystalline
Cable length : 5metres
Warranty : 25 years
Best charging time : between 9am and 5pm . For best results, place directly under the sun.
Made in CHINA
Here comes an alternative power source to charge your lighting and fanning product's that come with a solar port or DC port .
It's ideal for charging products that specify 12volts or 15 volts input such as standing and table fans produced by brands such as LONTOR , LONEN, ANDRAKK, HARRIS, QASA etc.
SPECs
Power : 20'watts
Current max: 1.2 amps
Output voltage : 15 to 18 volts
Type : polycrystalline
Cable length : 5metres
Warranty : 25 years
Best charging time : between 9am and 5pm . For best results, place directly under the sun.
Made in CHINA
350W polycrystalline Solar Panel is High in power but sleek in size, this polycrystalline solar panel is the perfect item for off-grid application. Constructed with heavy anodized frames and high transparent low iron glass, it will withstand heavy and high wind pressure. It also comes with competitive warranty & mdash; a 25-year limited power warranty
High Quality 350W Monocrystalline solar panel
& bull; Perfect for 12-volt battery charging or multiple panels can be wired in series for 24/48-volt battery charging or for grid-tied or off-grid solar applications.
& bull; Diodes are pre-installed in junction box and a pair of 28 inches cables with MC4 connectors comes with the panel automatically.
& bull; Withstand high wind (2400Pa) and snow loads (5400Pa); resistant aluminum frame which allows the panels last for decades.
& bull; High modules conversion efficiency. Ideal output: 500 watt hours per day (depends on sunlight availability).
& bull; 25-year transferable power output warranty; 10-year material and workmanship warranty
350W polycrystalline Solar Panel is High in power but sleek in size, this polycrystalline solar panel is the perfect item for off-grid application. Constructed with heavy anodized frames and high transparent low iron glass, it will withstand heavy and high wind pressure. It also comes with competitive warranty & mdash; a 25-year limited power warranty
High Quality 350W polycrystalline solar panel
& bull; Perfect for 12-volt battery charging or multiple panels can be wired in series for 24/48-volt battery charging or for grid-tied or off-grid solar applications.
& bull; Diodes are pre-installed in junction box and a pair of 28 inches cables with MC4 connectors comes with the panel automatically.
& bull; Withstand high wind (2400Pa) and snow loads (5400Pa); resistant aluminum frame which allows the panels last for decades.
& bull; High modules conversion efficiency. Ideal output: 500 watt hours per day (depends on sunlight availability).
& bull; 25-year transferable power output warranty; 10-year material and workmanship warranty
350W polycrystalline Solar Panel is High in power but sleek in size, this polycrystalline solar panel is the perfect item for off-grid application. Constructed with heavy anodized frames and high transparent low iron glass, it will withstand heavy and high wind pressure. It also comes with competitive warranty & mdash; a 25-year limited power warranty
High Quality 350W polycrystalline solar panel
& bull; Perfect for 12-volt battery charging or multiple panels can be wired in series for 24/48-volt battery charging or for grid-tied or off-grid solar applications.
& bull; Diodes are pre-installed in junction box and a pair of 28 inches cables with MC4 connectors comes with the panel automatically.
& bull; Withstand high wind (2400Pa) and snow loads (5400Pa); resistant aluminum frame which allows the panels last for decades.
& bull; High modules conversion efficiency. Ideal output: 500 watt hours per day (depends on sunlight availability).
& bull; 25-year transferable power output warranty; 10-year material and workmanship warranty
New to solar? This polycrystalline solar panel is the perfect kit for someone who wants to begin utilizing solar energy for their off-grid adventures. Talkers 60W Polycrystalline Solar Panel with which is designed to work in Tropics. MC4 Adaptor Kit is included in this specialized kit. This kit is the perfect introduction to solar!
Industry-leading in-house manufacturing of polysilicon, ingots, wafers, cells, and modules ensures tight control of our material and production quality.Robust, corrosion resistant aluminum frame independently tested to withstand wind loads of 2.4 kPa and snow loads of 5.4 kPa ensuring a stable mechanical life for your modules.This type of module is commonly used for the small off-grid system.
ELECTRICAL PERFORMANCEElectrical parameters at Standard Test Conditions (STC)Module name:TK -P60-18Module type TK60P-17bPower output Pmax W 60Power output tolerances & Delta;Pmax % +/- 3 +/- 3Module efficiency & eta;m % 13.2 12.0Voltage at Pmax Vmpp V 17.5 17.2Current at Pmax Impp A 334 Open-circuit voltage Voc V 22.0 21.5Short-circuit current Isc A 3.53
STC: 1000W/m2 irradiance, 25 & deg;C Tmodule, AM 1.5g spectrum according to EN 60904-3.Ave. efficiency reduction of 5% at 200W/m2 according to EN 60904-1.NOCT: open-circuit module operation temperature at 800W/m2 irradiance, 20 & deg;C Tambient, 1m/s wind speed.
New to solar? This polycrystalline solar panel is the perfect kit for someone who wants to begin utilizing solar energy for their off-grid adventures. Talkers 30W Polycrystalline Solar Panel with which is designed to work in Tropics. MC4 Adaptor Kit is included in this specialized kit. This kit is the perfect introduction to solar!
Industry-leading in-house manufacturing of polysilicon, ingots, wafers, cells, and modules ensures tight control of our material production quality.Robust, corrosion resistant aluminum frame independently tested to withstand wind loads of 2.4 kPa and snow loads of 5.4 kPa ensuring a stable mechanical life for your modules.This type of module is commonly use for the small off-grid system.
ELECTRICAL PERFORMANCEElectrical parameters at Standard Test Conditions (STC)Module name: SZYL-P30-18Power output Pmax 30WPower output tolerances & Delta;Pmax % +/- 3 +/- 3Module efficiency & eta;m 17.2%Voltage at Pmax Vmpp 17.5VCurrent at Pmax Impp 1.71A Open-circuit voltage Voc V 22.05Short-circuit current Isc 1.92
STC: 1000W/m2 irradiance, 25 & deg;C Tmodule, AM 1.5g spectrum according to EN 60904-3.Ave. efficiency reduction of 5% at 200W/m2 according to EN 60904-1.NOCT: open-circuit module operation temperature at 800W/m2 irradiance, 20 & deg;C Tambient, 1m/s wind speed.
FEATURES:
1. High quality guarantee using 156 mm high conversion efficiency crystalline silicon solar cells.
2. High performance bypass diodes minimize the power drop caused by shade
3. High transmittance, low iron tempered glass; High performance EVA; A weatherproof back sheet and sandblast electrophorus is aluminum frame extend the application of modules greatly
4. 25-year limited warranty on power output and performance
5. Sealed, waterproof, multi-functional junction box gives high level of safety.
APPLICATIONS:
1. Solar power stations;
2. Rural electrification, Small home power systems;
3. Power supply for traffic, security, gas industry;
4. 12V and 24V battery charging systems;
5. Other industrial and commercial applications.
ELECTRICAL PERFORMANCE
Electrical parameters at Standard Test Conditions (STC)
Module Name 100W Solar Panel
Module Type TK100P-17b
Power output Pmax W 100
Power output tolerances Pmax % & plusmn;5
Module efficiency & eta;m % 12.9
Voltage at Pmax Vmpp V 17.1
Current at Pmax Impp A 5.86
Open-circuit voltage Voc V 21.5
Short-circuit current Isc A 6.17
STC: 1000W/m2 irradiance, 25 centigrade cell temperature,AM1.5g spectrum according to EN 60904-3.Average relative efficiency reduction of 5% at 200W/m2 according to EN 60904-1.
Electrical parameters at Nominal Operating Cell Temperature (NOCT)
Power output Pmax W 100
Voltage at Pmax Vmpp V 18
Current at Pmax Impp A 5.49
Open-circuit Voltage Voc V 22.75
Short-circuit current Isc A 5.99
12 Volt Powerful Poly-crystalline Photovoltaic Solar Panel - 130w
The Solar Enertech SE series 130W polycrystalline solar panels are manufactured using high quality silicon solar cells. These solar modules suit a wide variety of stand alone power system applications, including remote homes, caravans, yachts, communication sites, military and industrial projects, water pumping, etc.
Features include:
High quality 155mm high conversion efficiency polycrystalline silicon solar cells
SE solar modules incorporate high performance bypass diodes to minimise the power drop caused by shading
High transmittance, low-iron tempered glass
High performance EVA resin to prevent module delamination and 'browning'
Weatherproof back sheet
Sandblasted electrophoresis aluminium frame
Multi-contact style output leads with waterproof connectors
