Model |
Connector |
Production Country |
China |
Weight (kg) |
0.1 |
Color |
Black |
Main Material |
Plastic, Electronic Components |
2 way y connector is a High quality UV resistant Protection.Easy to install,convenient disassembly.Using excellent raw materials, the power consumption is lower.IP 67 protection when mated.Snap fit locking arrangement for closure.
Material: PPO, CopperSize: 340x35x20mm/13.38x1.37x0.79inchMax working voltage: 1000V DCMax Current Rate: 20A(4mm ), 30A(6mm )Contact Resistance: 0.5mInsertion force: 50NWithdrawal force: 50NClass: UL94-V0Degree of protection: IP67Ambient temperature range: -40C~+Rated voltage tuv 1000v dc / ul 600v dcrating current 20a-30a suitable cable cross sections 2.5mm2-6.0mm2 / 14awg-10awg pin dimension:4.0mm proof voltage:dc 8kv(1min) pollution degree: 2 protection class: class ii contact material: copper, tin-plated contact resistance: 5mw connector material: ppo degree of protection: ip ip67(iec 60529) withdrawal force: 50n insertion force: 50n temperature :-40-+85c
- High quality UV resistant Protection.
- Easy to install,convenient disassembly.
- Using excellent materials, the power consumption is lower.
- IP 67 protection when mated.
Key Features
High quality UV resistant Protection.
Easy to install,convenient disassembly.
Using excellent materials, the power consumption is lower.
IP 67 protection when mated.
What's In the Box

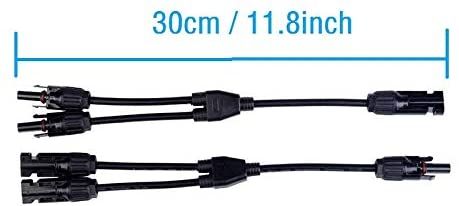

1 pair - Y solar connector cable
