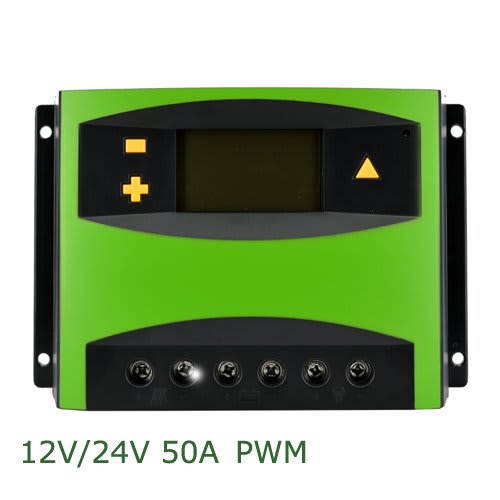

TK50D 12V/24V 50A PWM solar charge controller is a one in a kind of intelligent, multi-purpose solar controllers. It has a Fixed LCD display with a very friendly user interface. It PMW smart charging capabilities are one of industry latest innovation which complements it Temperature compensation sensor(extends battery life in most systems by at least 20% in Tropical Zones e.g Nigeria, Brazil). This solar charge controller various control parameters can be flexibly set to fully meet your various application requirements.
Benefits
•Data such as voltage, current, and state of charge can also be displayed digitally as figures on the display.
•Comes with Temperature sensor for smarter battery charging
•Aluminium framing for efficient cooling and neat installation
•Large surface area of connection ports for wire gauge 4mm-16mm
1. Overload protection
2. Short circuit protection
3. Converse discharge protection
4. Reverse polarity connection protection
5. Thunder protection
6. Low voltage protection
7. Overcharge protection
8. Batteries stop and charge voltage HVD sets up
9. Charge and low voltage LCD set up
10. Display the capability of the battery SOC
11. Loads and comeback setups.
12. Intellectualized temperature compensation
13. Record, calculate and display the charged AH on the LCD screen.
14. CPU control and LCD display
Model
Max Load current
Rated voltage
Input voltage range
No load loss
Max wire area
Ambient temperature
Weight
Dimension
Working Humidity
TK50D
50A
12V/24V auto switch
≤22V /≤50V
≤14mA
25mm²
-20-+55
564g
188*125*48.5(mm)
10%-90%
Talkers Energy undertakes strict quality control system, insist on perfect workmanship and the use of top quality materials.
And our products have been certified. Our pursuit of first-rate quality, competitive prices, and considerate after-sales services offers both potential and long-standing client confidence in our company.
