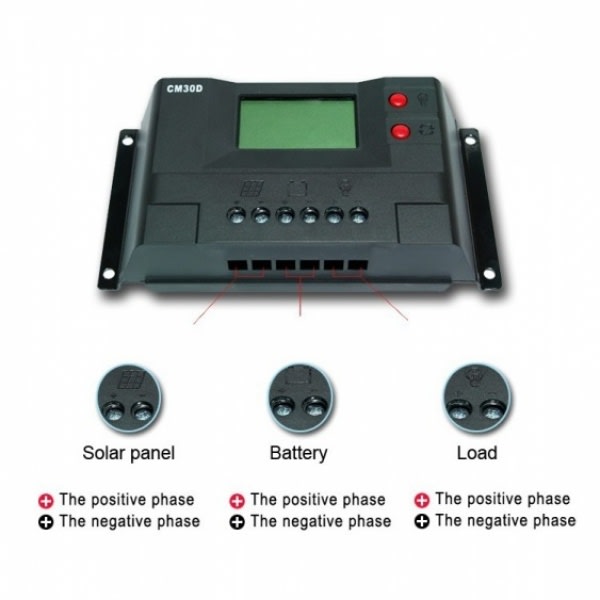

CM30D controller is a kind of intelligent, multi-purpose solar charge and discharge controller. A fixed LCD display with a very friendly interface is used in this product; various control parameters can be flexibly set, fully meet your various application requirements.
CM20D series controller has the following features:
| Type Parameters | CM30D | Type Parameters | CM30D |
| Rated current | 10A24V | 20A24V | 30A24V | Charge and discharge voltage drop | ?0.2V|?0.1V |
| Rated voltage | 12V/24V Automatic Identification | Charging mode | PWM mode |
| Voltage of solar panel | ≤50V | Temperaturecompensation | -4mV/Cell/to be customized? |
| Floating charge | 13.8V/27.6V | Specification of the cables | ≤5# AWG (6mm2) |
| Under-voltage protection | 10.7V/21.4V | Working temperature | -20?~60? |
| Under-voltage recovery | 12.6V/25.2V | Storage temperature | -30?~70? |
| Boost | sealed 14.4V/28.8V | (Duration?2hours) | Temperature requested | ≤90?, No condensation |
| Gel14.2V/28.4V | Dimension | 88 mm×160 mm×37 mm |
| Flooded 14.6V/29.2V | the diameter of the mounting hole | 64 mm×150 mm --Φ5 |
TALKERS Energy undertakes a strict quality control system and insists on perfect workmanship and the use of top quality materials.
And our products have been certified. Our pursuit of first-rate quality, competitive prices, and considerate after-sales services offer both potential and long-standing client confidence in our company.
