Description:
Test Leads:
This test cable use tips, so it can test very small SMD component 0402, 0603, etc

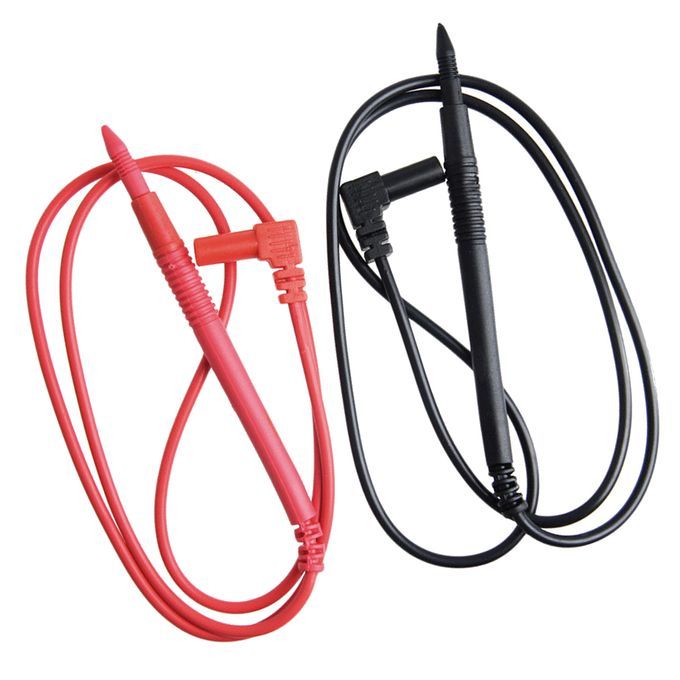

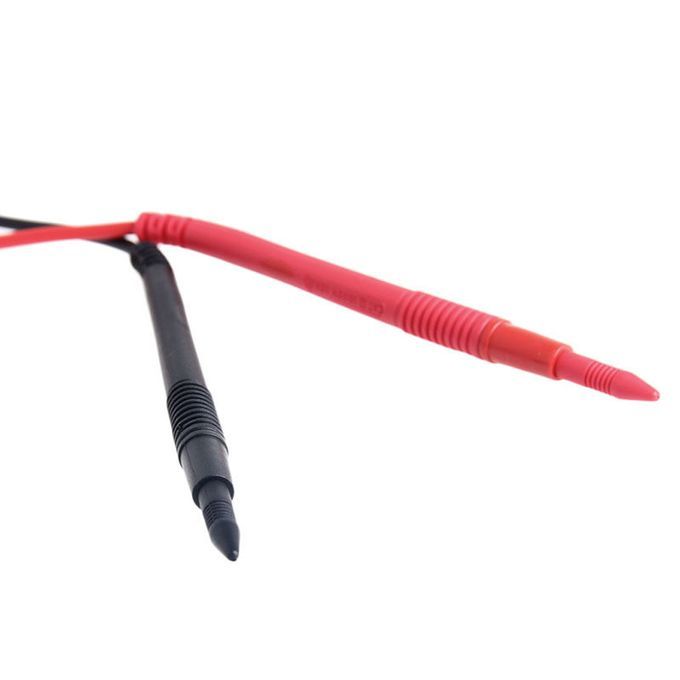

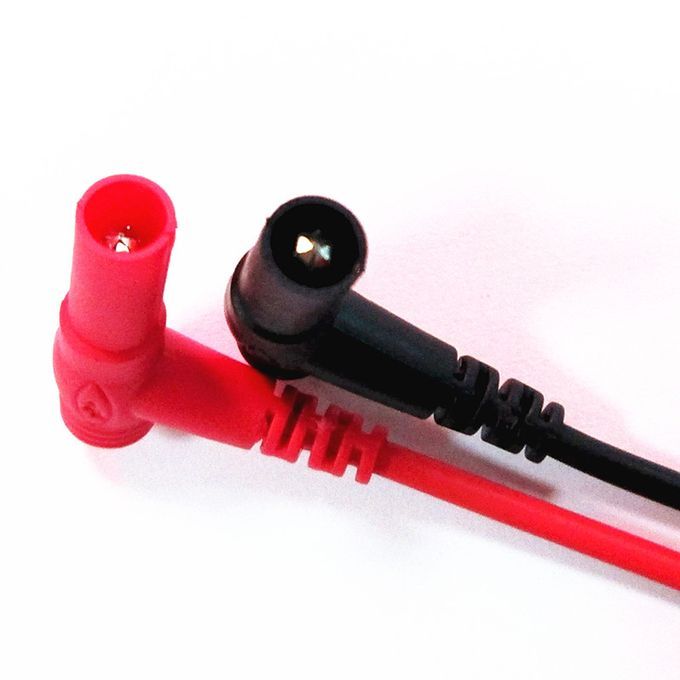

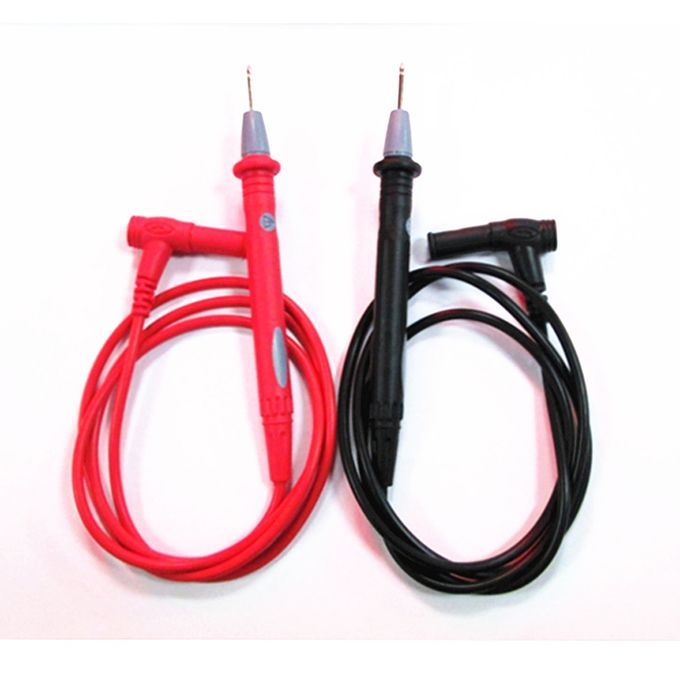

SMD SMT Contact Probe Meter Test Lead Cable for DMM TL71 TL75
High quality soft PVC silicone wires, anti-broken soft rubber handle, copper probe

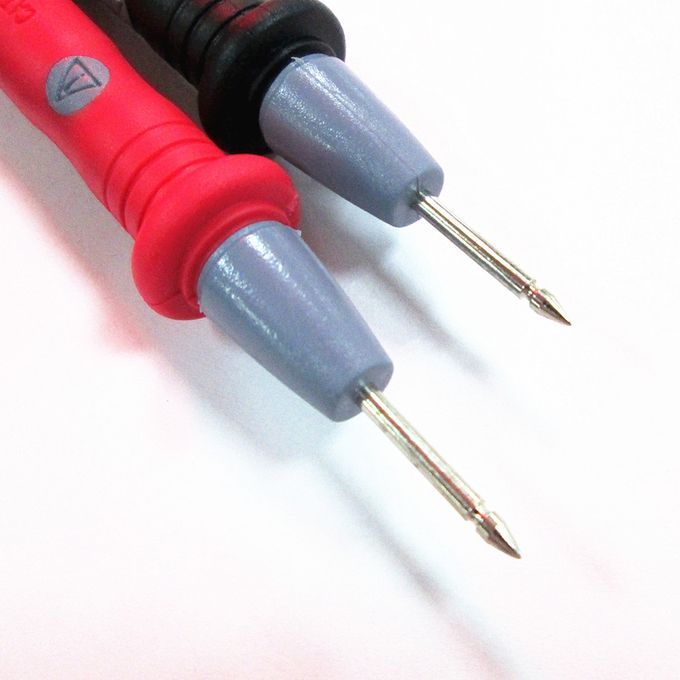

Probe tip suit for measuring very small IC pins, LED lights and small components
SMD SMT Component Welding Practice Board Kit Set:
There are 3 column of each side (left and right), and each column has its test point.
The circular Light circuit of the middle was consisted by 4017, NE555 and light-emitting diodes; it can work after welding successfully.
There are graduation and PCB lead example for measuring components and designing PCB more convenient.
Specification:
Test Leads:
Material: Copper, Plastic
Cable total length: Approx. 90cm/35.43inch
Probe Rod Length: Approx. 13cm/5.12inch
Max. Voltage& Current: 1000V 10A
Weight: 70g
SMD SMT Component Welding Practice Board Kit Set:
Operating voltage:3-12V
Material: Pcb board
Size: Approx. 85.6mm× 54mm ×1.6mm(L×W×H)/ 3.37''×2.13''×0.06''
Portable design: the size is as same as of the identity card which can be set into pocket
All the components showed on the pictures are included in the kit
Welding operating diagram and circuit of the light diagram are included
Package Includes:
1 Set Test Leads
1 Set SMD Component Welding Practice Board Kit
Note:
Please allow 1-3mm differs due to manual measurement
Due to the different display and different light, the picture may not reflect the actual color of the item. Thanks for your understanding
SMD SMT Components; Test Leads;SMD SMT Tip;SMD SMT Component Welding Practice;Digital Probe Cable; Practice DIY Kit ;Electrical Test Practice Equipment
a a a a a
Key Features
Test Leads:
This test cable use tips, so it can test very small SMD component 0402, 0603, etc
SMD SMT Contact Probe Meter Test Lead Cable for DMM TL71 TL75
High quality soft PVC silicone wires, anti-broken soft rubber handle, copper probe
Probe tip suit for measuring very small IC pins, LED lights and small components
Easy to use
Exquisite Workmanship
Well Made
Best Choice and best discounts
Customer Care is Our Top Priority
Offer is Subject to Availability
Big Sale
What's In the Box
1 Set Test Leads 1 Set SMD Component Welding Practice Board Kit
