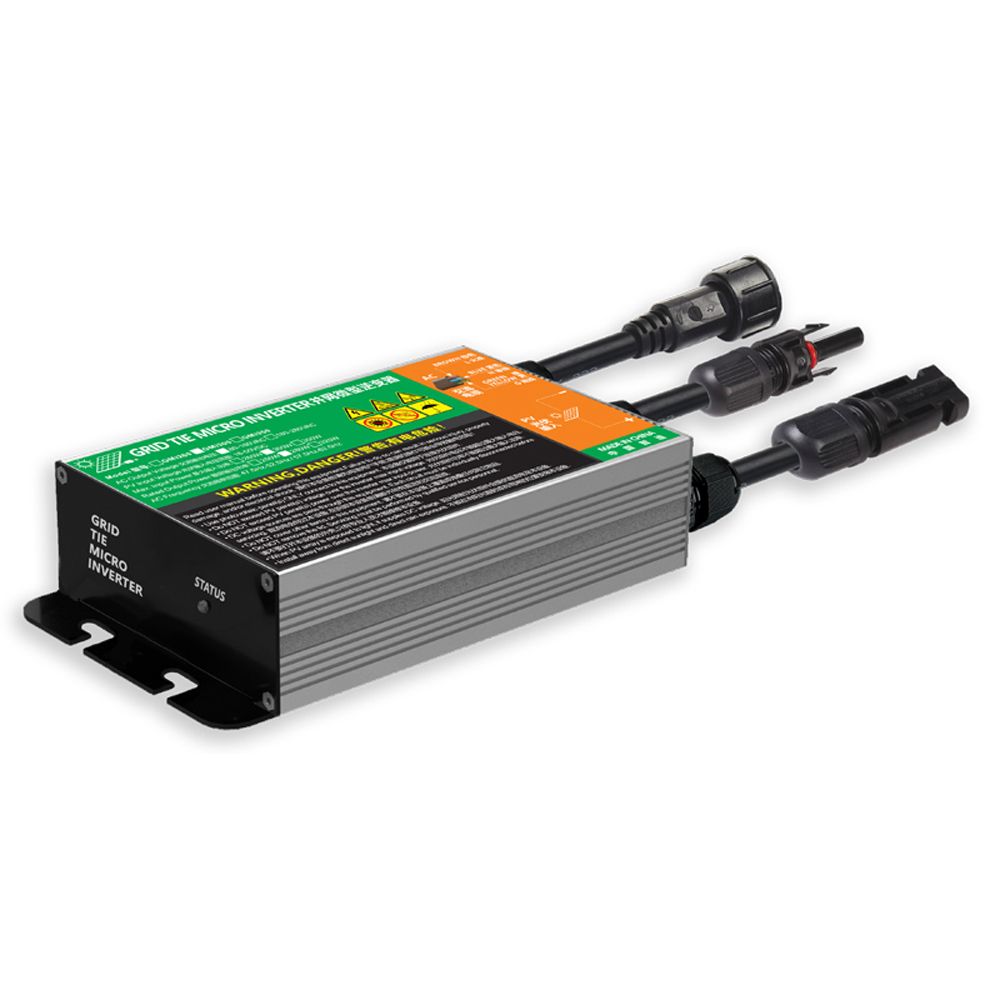

A solar micro-inverter is a device that converts solar panels from direct current to alternating current with a small size and is commonly used in small solar systems. A microinverter connected to a solar module can achieve a maximum output of 260W/300W/350W (according to your selection). High efficient conversion, with an integrated efficiency of up to 95%.
Features.
Safety use: Traditional central or string inverters often have direct current voltages of hundreds or thousands of volts, which can easily catch fire and cannot be easily extinguished after a fire. The micro-inverters are only a few tens of volts of direct current and are all connected in parallel, minimizing safety hazards.
Maximum Point Tracking Design: The module-level design, without bucket effects, reduces the effect of shading on generation; Low-light effect, as the starting voltage is low, only 20V, it works even when the light is low.
Convenience & Aesthetics: There is no need to build a special distribution room, the microinverters can be installed directly behind the module or on a stand, and due to the parallel structure, later size increases can be installed directly without changing the previous configuration.
High : A microinverter connected to a solar module can achieve a maximum output of 260W/300W/350W (according to your selection).
High Efficient Conversion: It captures the maximum point in real-time, with an integrated efficiency of up to 95%.
Multiple Protections: Support islanding protections, voltage protections, frequency protections, temperature protections, current protections, etc.
Eco-friendly Materials: IP65 waterproof and dustproof, recyclable materials, cleaning energy, saving electricity costs.
Intelligent Parallel Connection: The inverter AC output can be connected to a socket, plug and plays.
Easy to Install: No wiring, low cost, and easy to install.

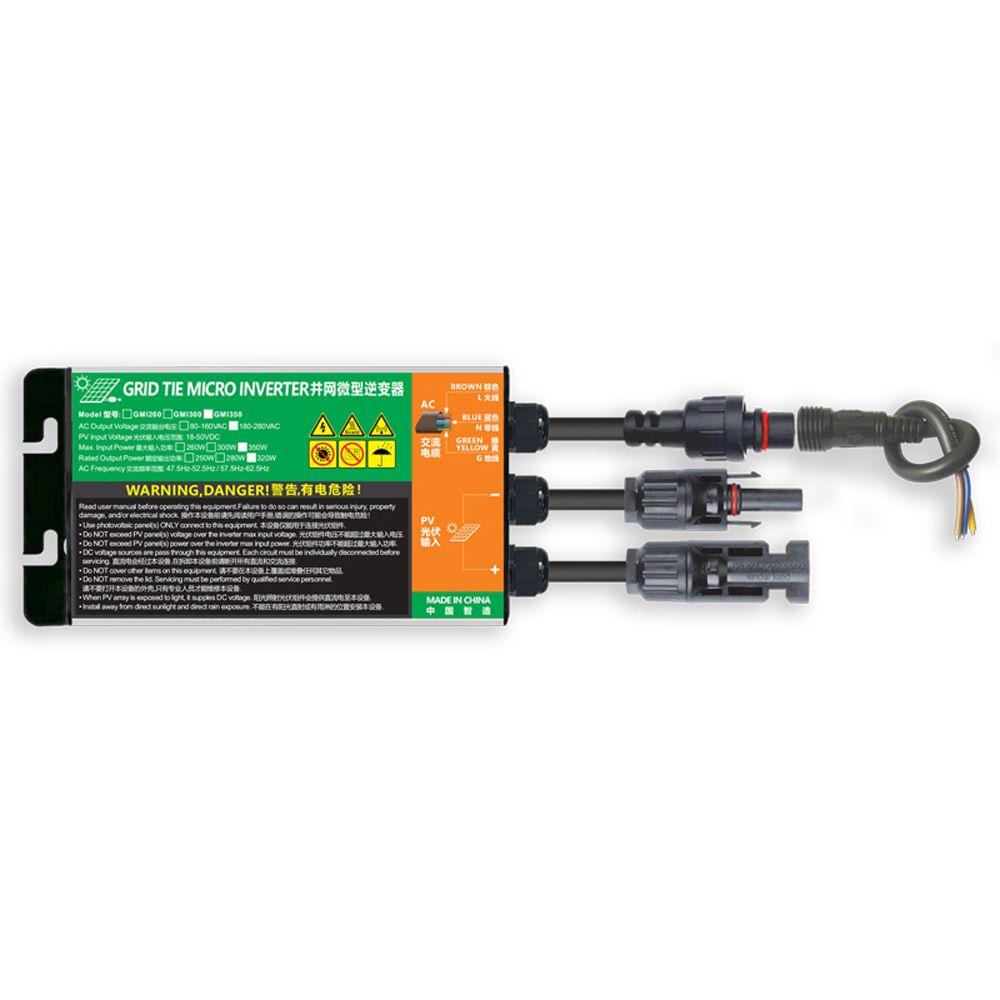

Specifications:Name: Sinewave Parallel Inverter
Material: plastics
Model: GMI260-120 V, GMI260-230V, GMI300-120 V, GMI300-230V, GMI350-120 V, GMI350-230V
(optional)Number of Input Connector: 1 set
Maximum Point Tracking Voltage Ranges: 24V-40V
Operation Voltage Ranges: 18V-50V
Maximum Input Voltage: 50V
Startup Voltage: 18V
Maximum Input : 260W(GMI260); 300W(GMI300); 350W(GMI350)
Maximum Input Current: 10.4A(GMI260); 12A(GMI300); 14A(GMI350)
Output Data (AC):
Single-Phase Parallel Type: 120 V, 230V
(accodring to your selection)Rated Output : 250W(GMI260); 280W(GMI300); 320W(GMI350)
Maximum Output : 260W(GMI260); 300W(GMI300); 350W(GMI350)
Nominal Output Current:
GMI260-120 V: 2.08A
GMI260-230V: 1.08A
GMI300-120 V: 2.33A
GMI300-230V: 1.21A
GMI350-120 V: 2.66A
GMI350-230V: 1.39A
Nominal Output Voltage: 120 VAC, 230VAC
Default Output Voltage Ranges: 120 VAC: 80-160V, 230VAC: 180-280V
Nominal Output Frequency: 50/60Hz
Default Output Frequency Ranges: 50Hz:47.5Hz-52.5Hz; 60Hz: 57.5Hz-62.5Hz
Factor: >0.99
Total Harmonic Distortion: THD
Key Features
.
Safety use: Traditional central or string inverters often have direct current voltages of hundreds or thousands of volts, which can easily catch fire and cannot be easily extinguished after a fire. The micro-inverters are only a few tens of volts of direct current and are all connected in parallel, minimizing safety hazards.
.
Safety use: Traditional central or string inverters often have direct current voltages of hundreds or thousands of volts, which can easily catch fire and cannot be easily extinguished after a fire. The micro-inverters are only a few tens of volts of direct current and are all connected in parallel, minimizing safety hazards.
.
Safety use: Traditional central or string inverters often have direct current voltages of hundreds or thousands of volts, which can easily catch fire and cannot be easily extinguished after a fire. The micro-inverters are only a few tens of volts of direct current and are all connected in parallel, minimizing safety hazards.
What's In the Box

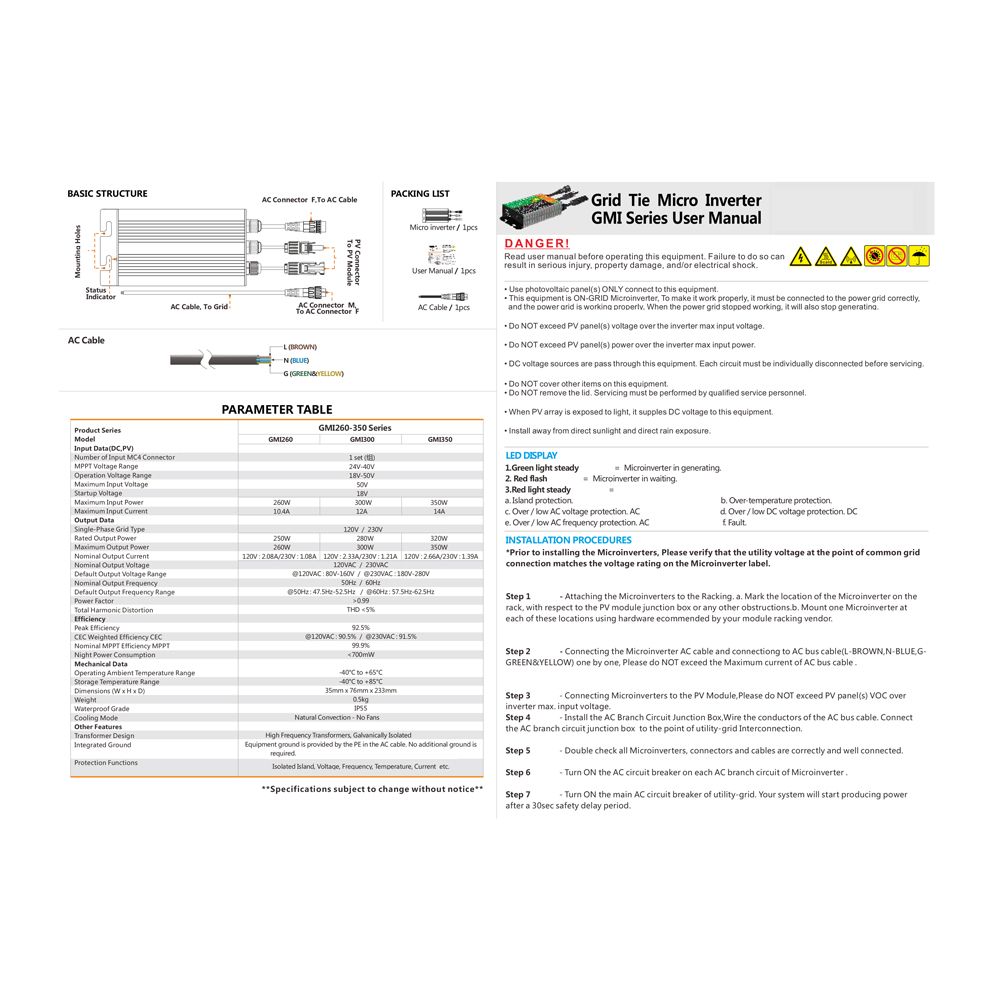

1 x Sinewave Parallel Inverter,1 x AC Cable,1 x User Manual
