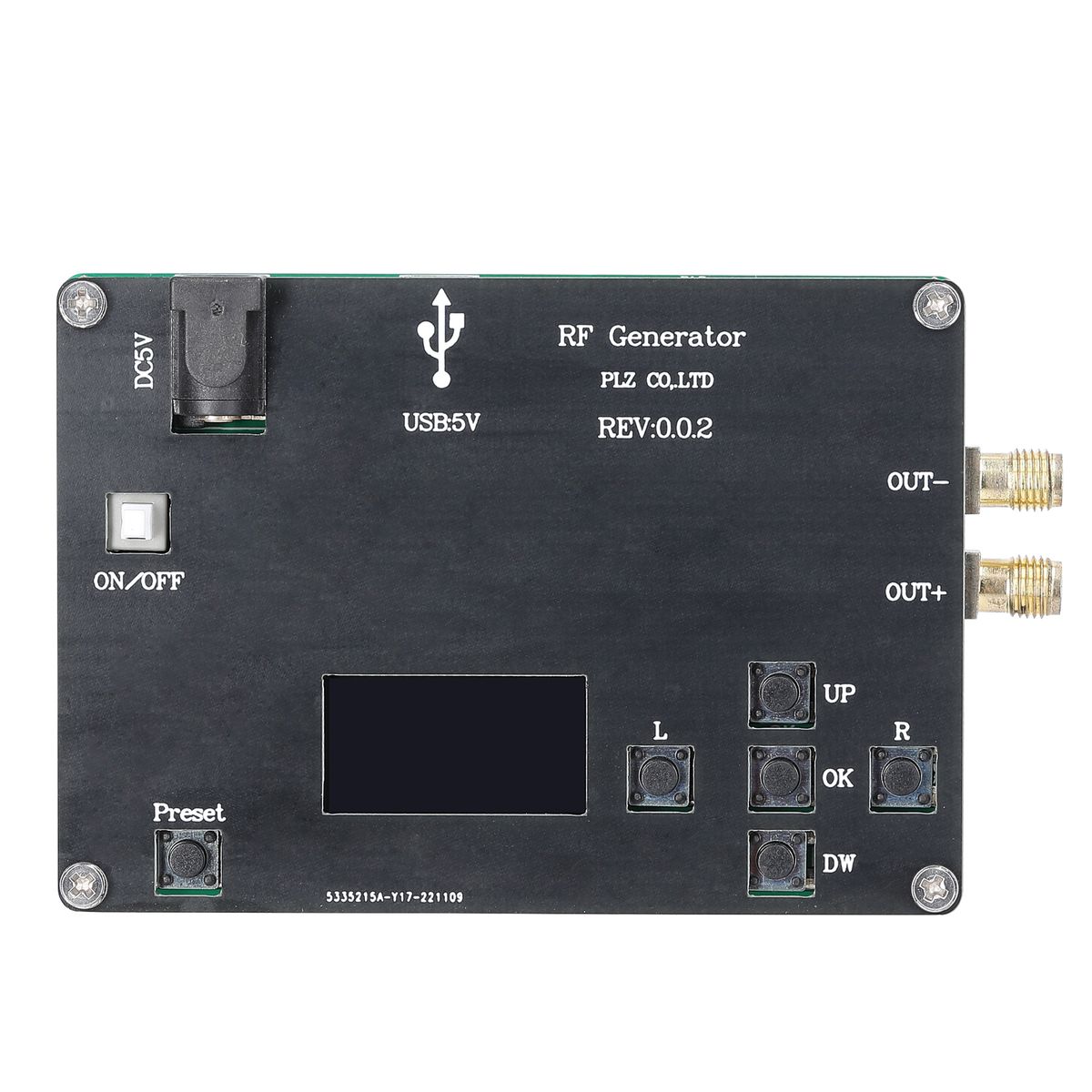

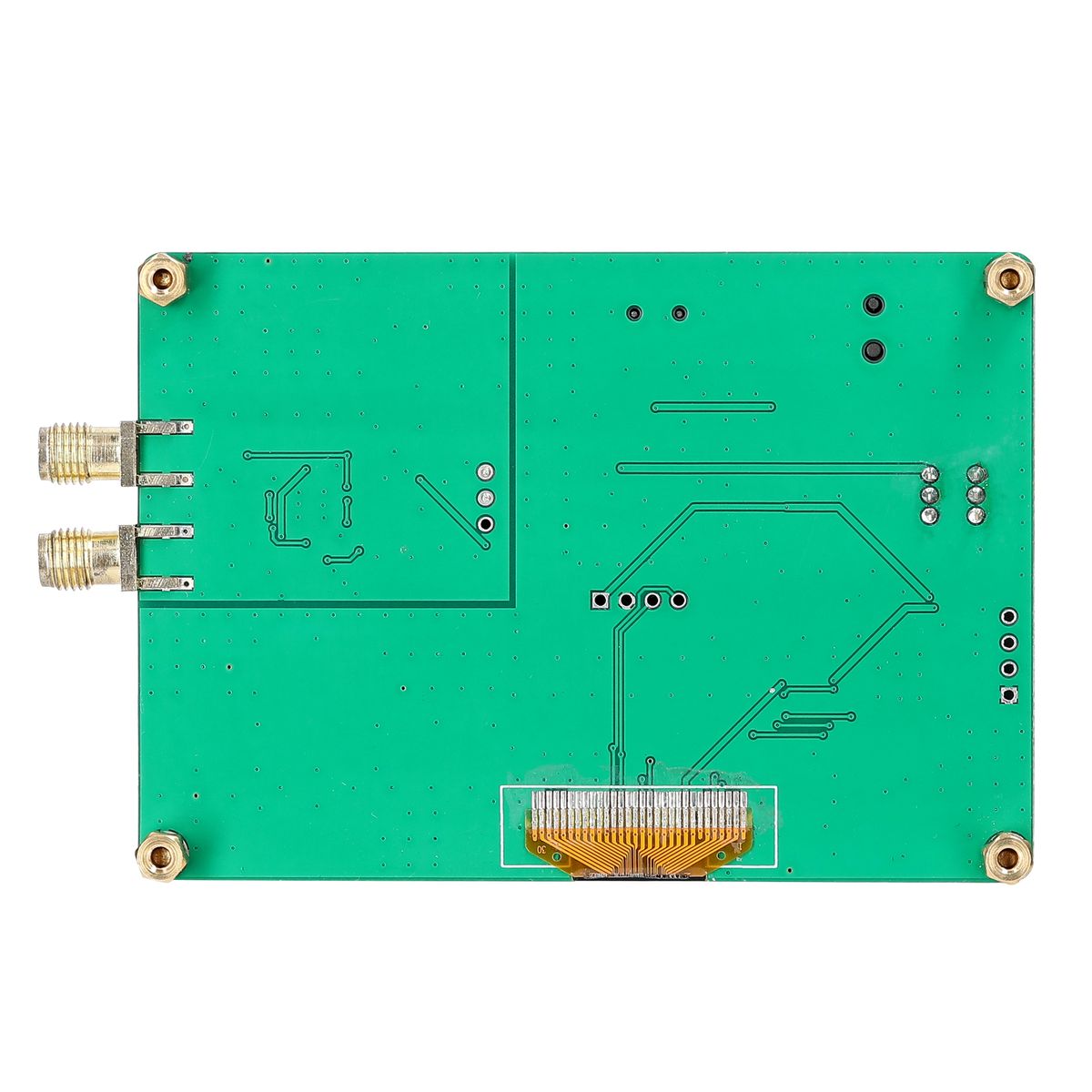

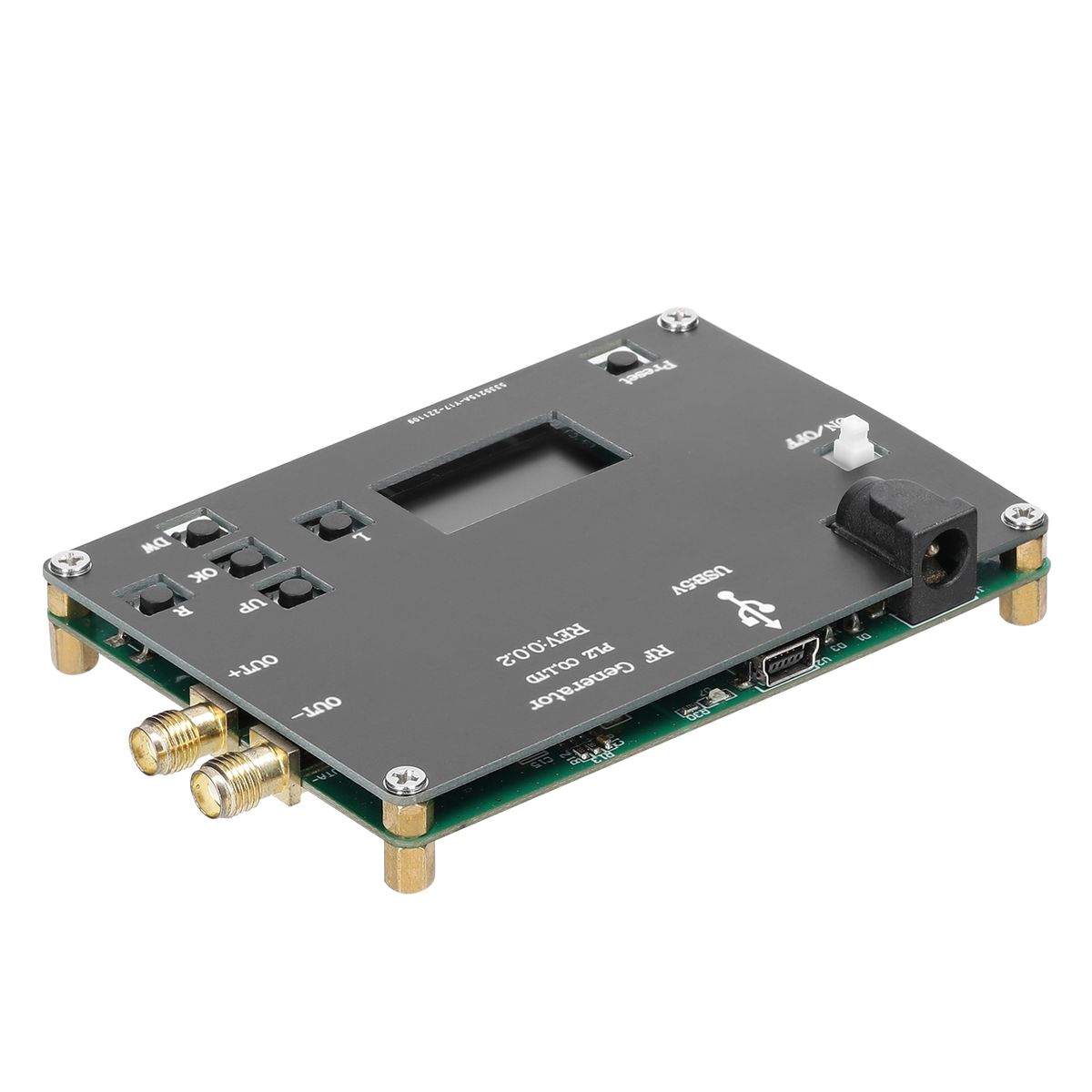

Phase-locked loop module with OLED display, USB communication port for upper computer, integrated button operation, wide voltage supply, nice human-machine interaction interface, etc. The module can reach 23.5MHz-6GHz frequency output, point frequency, frequency sweeping, frequency hopping and other basic functions.
Features:The MAX2870-OLED is used in conjunction with an external loop filter and external reference frequency to implement an integer N frequency-locked loop (PLL) frequency synthesizer.
Phase-locked loop module with OLED display, USB communication port for upper computer, integrated button operation, wide voltage supply, nice human-machine interaction interface, etc.
The MAX2870 features an integrated voltage-controlled oscillator (VCO) with a basic output frequency ranges of 3000 MHz to 6000 MHz.
In addition, a 1/2/4/8/16/32/64 crossover circuit allows users to generate radios frequency output frequencies down to 23.5 MHz.
For applications requiring isolation, the radios frequency output stage can be muted. The mute function can be controlled via pins or software.
An auxiliary radios frequency output is also available and can be switched off when not in use.

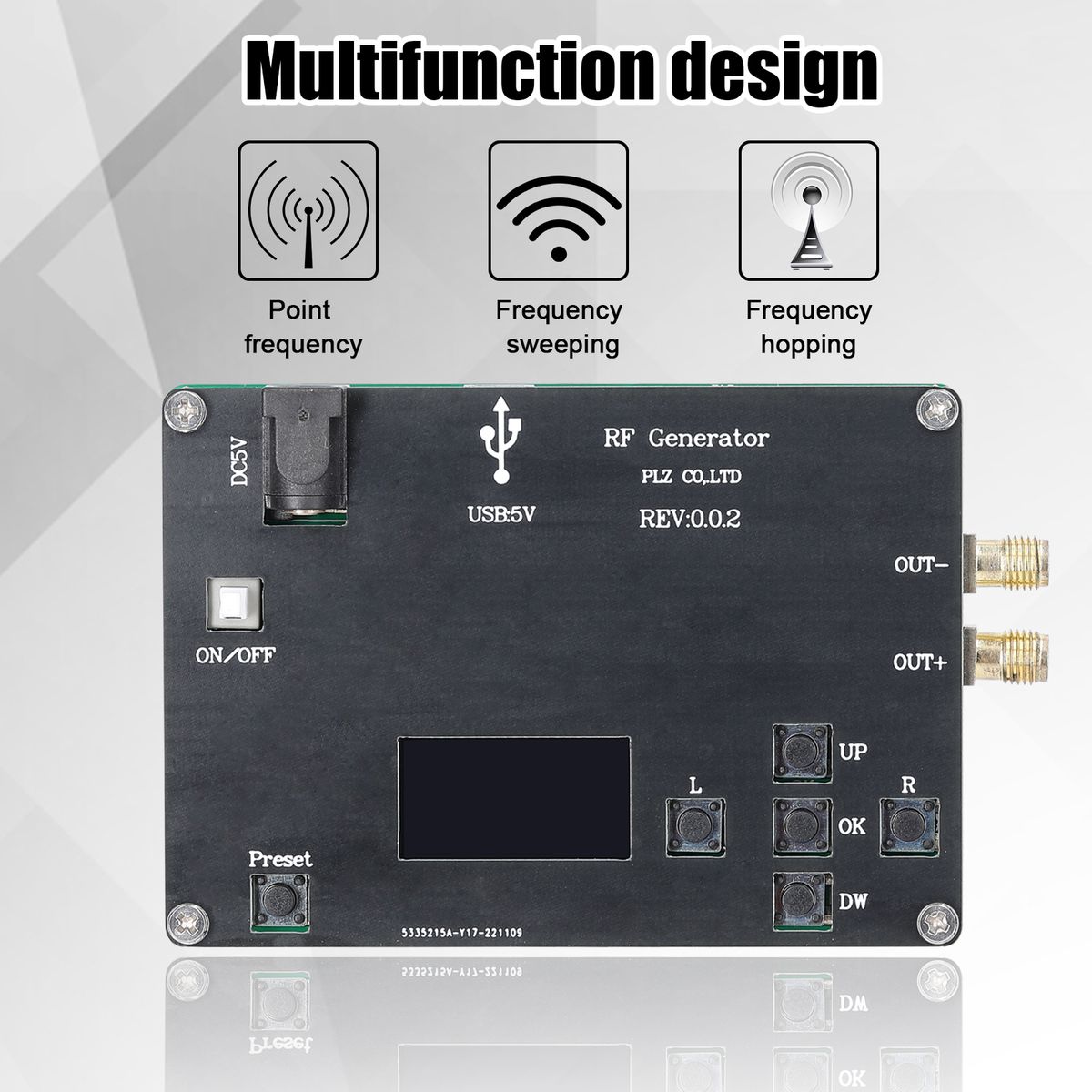

Multifunction design, it has point frequency, frequency sweeping, frequency hopping and other basic functions.
Module applications: radios frequency signal frequency generator, sensors excitation source, line loss attenuation detection, scanning clock signal generator.

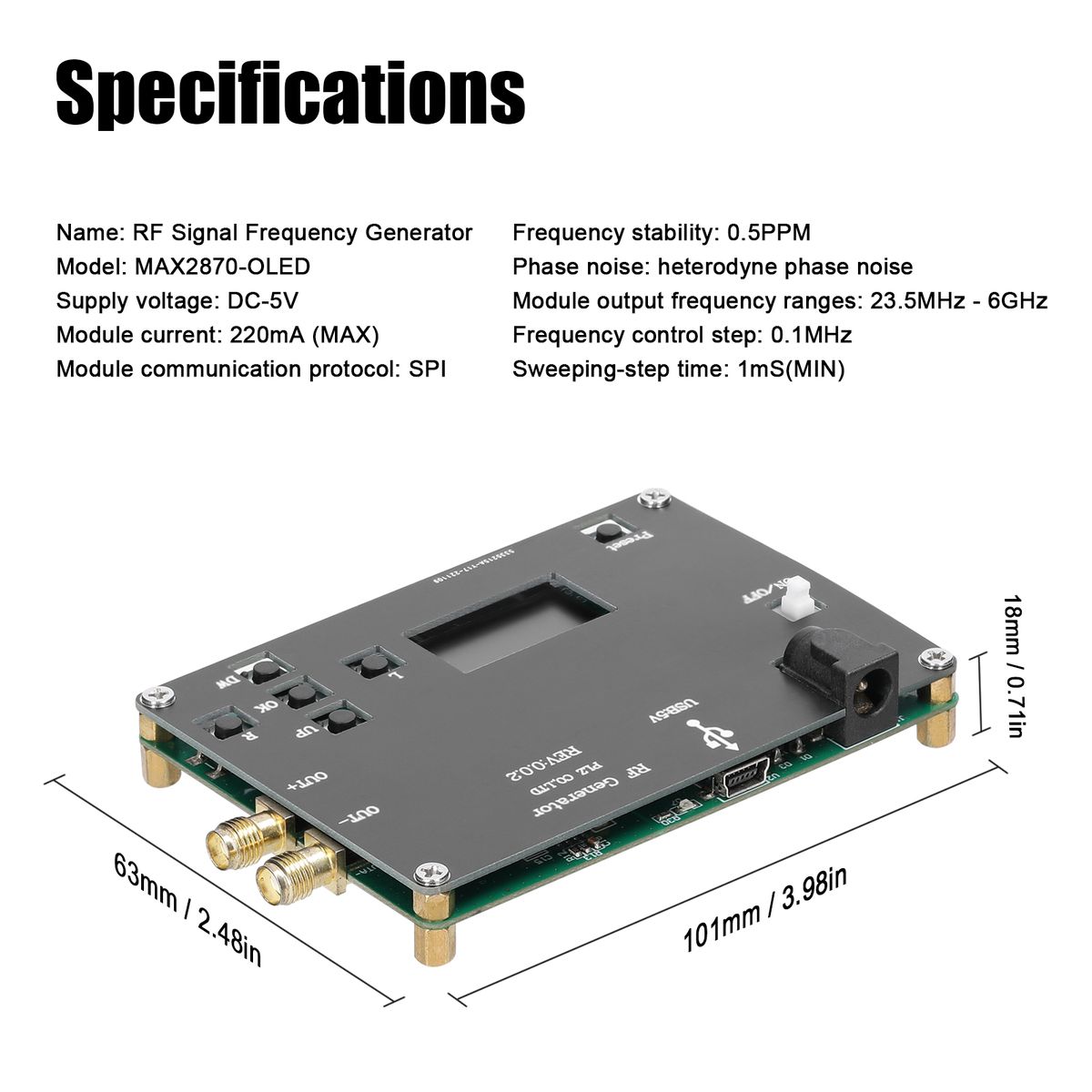

Specifications:Name: Radios Frequency Signal Frequency Generator
Model: MAX2870-OLED
Supply voltage: -5V
Module current: 220mA (MAX)
Module communication protocol:
Module provides routines: STM32F103C8T6; point frequency, sweeping frequency
Routine platform: STM32F103X-M3.
Module reference frequency: 26MHz-TCXO; clock can be input externally
Reference frequency signal amplitude: 700mVpp (MIN)
Frequency stability: 0.5PPM
Phase noise: heterodyne phase noise
Module output frequency ranges: 23.5MHz - 6GHz
Frequency control step: 0.1MHz
Sweeping-step time: 1mS(MIN)
Module output : 5dBm (MAX); output varies by frequency
Module output interface: SMA; 24 hours salt spraying resistance
Module output signal: sine or square waves
Module output channels: 2 differential channels
Module output impedance: 50 ohms matched
Module signal characteristics: 23.5MHZ - 3GHz square waves (fundamental frequency) 3GHZ - 6GHz sinewaves (fundamental)
Module operating temperature: 0-75°C; civil grade
Item size: 101 * 63 * 18mm / 3.98 * 2.48 * 0.71in
Item weight: 37g / 1.31ounce
Package size: 105 * 100 * 25mm / 4.13 * 3.94 * 0.98in
Package weight: 41g / 1.45ounce
Packing List:1 * Radios Frequency Signal Frequency Generator
Key Features
The MAX2870-OLED is used in conjunction with an external loop filter and external reference frequency to implement an integer N frequency-locked loop (PLL) frequency synthesizer.
Phase-locked loop module with OLED display, USB communication port for upper computer, integrated button operation, wide voltage supply, nice human-machine interaction interface, etc.
The MAX2870 features an integrated voltage-controlled oscillator (VCO) with a basic output frequency ranges of 3000 MHz to 6000 MHz.
In addition, a 1/2/4/8/16/32/64 crossover circuit allows users to generate radios frequency output frequencies down to 23.5 MHz.
For applications requiring isolation, the radios frequency output stage can be muted. The mute function can be controlled via pins or software.
An auxiliary radios frequency output is also available and can be switched off when not in use.
What's In the Box
1 x Radios Frequency Signal Frequency Generator
