Technical Specifications
General
Width
90 cm
Colour
Stainless steel

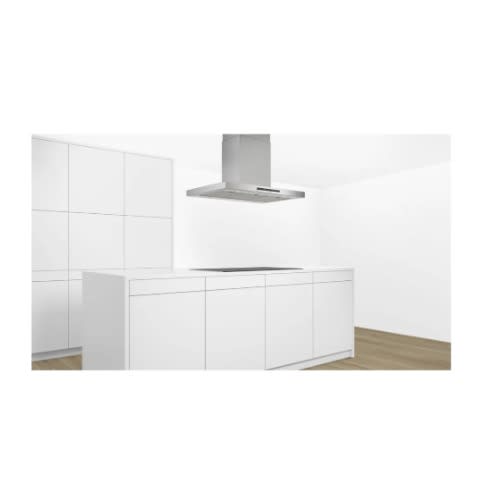

Installation type
Island
Total power of the motors
250 W
Type of control setting and signalling devices
LED, touch control
Max. air extraction
438 m³/h
Boost position air extraction
754 m³/h
Sound power at max. speed (recirculation)
67 dB
Sound power boost (recirculation)
73 dB

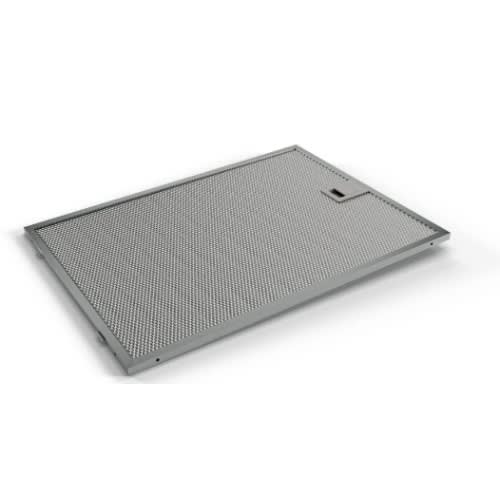

Grease filter material
Washable aluminium
Energy efficiency rating
B
Total annual energy consumption
74.3 kWh/annum
Height of the appliance
53 mm
Width of the appliance
898 mm
Depth of the product
600 mm
Height of the chimney
691-871/691-991 mm
Minimum distance above an electric hob
550 mm
Minimum distance above a gas hob
650 mm
Diameter of air outlet
120 / 150 mm
No-return airflow flap
Yes
Net weight
29.2 kg
PerfectAir
No
EcoSilence Drive - efficient and extra silent
No
Extremely quiet
Yes
Boost position
Yes
Remote control
No
Type of lamps used
LED
Color temperature
Neutral (3.500 K)
Connectivity
Home Connect
No
Hob-based hood control
No
Technical Specifications
Variant:
Design:
Island chimney
90 cm wide
Appliance colour: stainless steel
Ceiling
Comfort:
Ducted/Recirculating operation
Recirc. kit or clean air kit

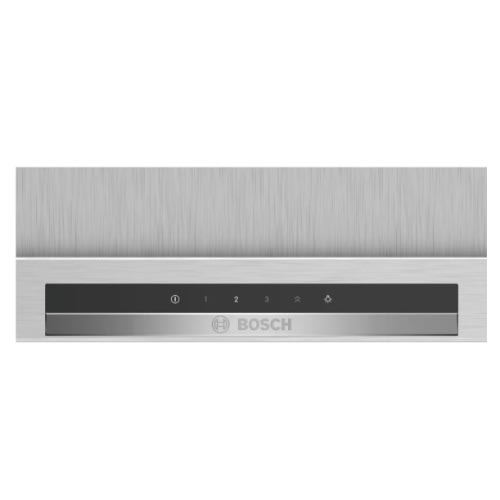

touch control for extractor speeds and light
Electronic
touch control with LED
3-stage + intensive via touch control
Electronic via touch control with LED
touch control (3-stage + intensive) with LED
3-stage + intensive
6 min.
Capacitor energy efficient
Metal grease filter, dishwasher safe
Yes
Yes
Environment and safety:
Energy Efficiency Class: B
Average Energy Consumption: 74.3 kWh/year
Blower Efficiency Class: B*
Lighting Efficiency Class: A
Grease Filtering Efficiency Class: B
Technical information:
Operating and power:
Extraction rate according to EN 61591 ø 15 cm:
max. Normal use438m³/h
Intensive754 m³/h
Extraction rate according to EN 61591 max. 438 m³/h
Maximum extraction rate exhaust air 438 m³/h according to EN 61591
Extraction rate exhaust air according to EN 61591:
max. normal use438 m³/h, intensive 754 m³/h
Noise level according to EN 60704-3 und EN 60704-2-13 at max. normal use exhaust air: 57 dB(A) re 1 pW (45 dB(A) re 20 µPa sound pressure)
Noise level according to EN 60704-3 und EN 60704-2-13 exhaust air:
Max. normal use:57 dB(A) re 1 pW sound pressure:45dB(A)
Intensive:68 dB(A) re 1 pW (56 dB(A) re 20 µPa sound pressure)
Max. extraction rate: 754 m3/h
Extraction rate in recirculation mode:
Max. normal use:403m³/h
Intensive:546 m³/h
Noise levels in recirculation mode:
Max. normal use:68dB(A) re 1 pW
Intensive:75 dB(A) re 1 pW
Noise min./max. Normal Level: 45/57 dB
4 x 1,5 W LED
Light Intensity: 425 lux
Colour Temperature: 3500 K
Power:
Power rating: 256 W
Voltage: 220 - 240 V
Measures:
Diameter pipe Ø 150 mm (Ø 120 mm enclosed)
Dimensions recirculating with CleanAir Plus recirculation kit (HxWxD): 812-1044 x 898 x 600 mm
Dimensions exhaust air (HxWxD): 744-924 x 898 x 600 mm
Dimensions recirculating (HxWxD): 744-1044 x 898 x 600 mm
Electrical cable lenght 1.3 m
