| Production Country |
USA |
| Weight (kg) |
0.5 |
| Specifications |
| Capacity | 220g |
| Readability | 0.01g |
| Repeatability | 0.01g |
| Linearity | 0.01g |
| Stabilisation Time | 1s |
| Weighing Units | g, kg, N, oz, lb, lb:oz |
| Application Modes | Weighing, density determination, mole weighing |
| Display Type | Liquid crystal display (LCD) with backlight - 20mm high digits |
| Construction | ABS housing & stainless steel pan |
| Pan Size | 120mm |
| Battery Life | ~120 hours |
| Power | AC adapter (included) or 4 AA batteries (not included) |
| Calibration | External masses (span weight included) |
| Data Interface | Optional - RS232, USB Host, USB Device or Ethernet |
| Weigh Below | Yes |
| Draftshield | No |
| Washdown | No |

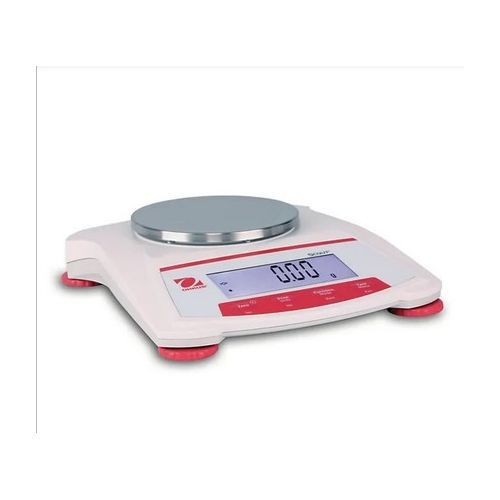

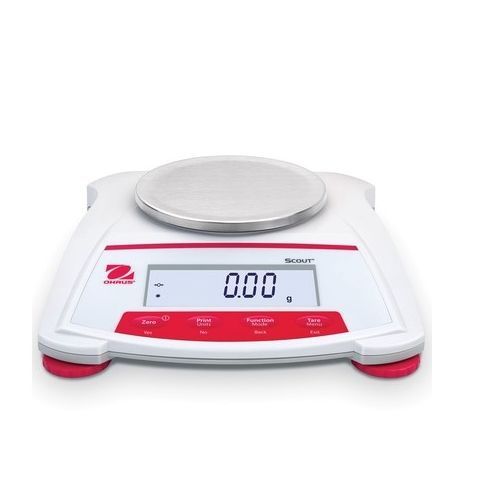

OHAUS Scout SKX222 - 220g x 0.01g precision scale
Designed specifically for laboratory and educational environments.
- Integrated superior overload protection system rated at 10x capacity
- Space saving design allows for stackable storage
- Simplified four button operation
- Large backlit display increases readability in dim lighting conditions
- Weigh below hook for density determination or specific gravity calculations
- Fast weighing speed and high resolution delivers repeatable and reliable results

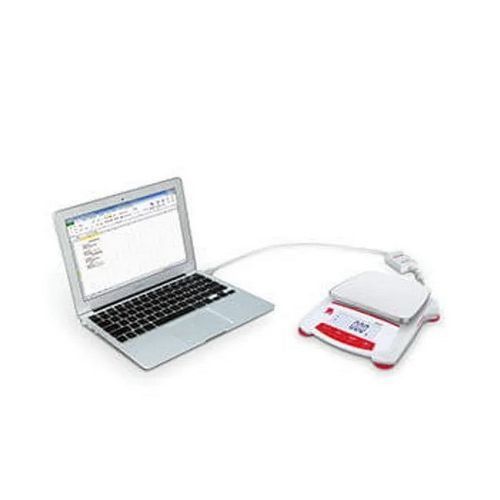

Superior overload protection and practical stackable design for convenient storage. Bright backlit LCD and 4 button operation make the new scout easy to see and use. Multiple connectivity options are available for data logging and communication. Fast weighing speed and high resolution delivers repeatable and reliable results. Application: Weighing. density determination. mole weighing. Display: Backlit LCD: 6-digit 7-segment with white LED backlight. Operation: AC adapter (included). batteries (not included). Communication: Optional RS232. USB host. USB device. Bluetooth or Ethernet. Construction: ABS housing. stainless steel pan. replaceable in-use cover. Design Features: Fast stabilization time. menu lock switch. stackable design. security slot. integral weigh below hook for below balance weighing applications. transportation lock. removable stainless steel weighing platform. stability indicator. overload and underload indicators. low battery indicator. auto shut-off.

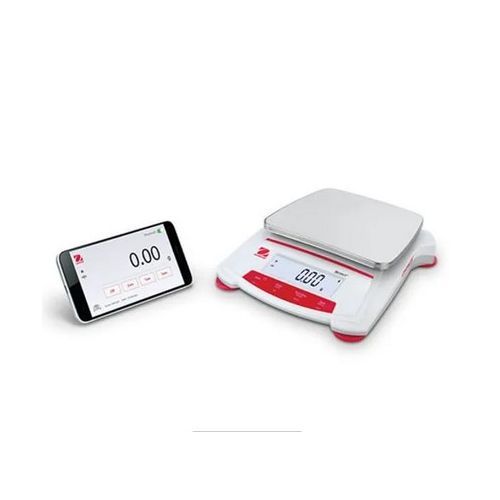

Overview Designed for education applications, the OHAUS Scout with large backlit LCD backed by education software is the ideal balance for your classroom. It is built to endure demanding classroom applications with superior overload protection. Features including, faster stabilization time, increased capacity, multiple connectivity options and stackable design make Scout the best weighing experience for the next generation classroom. Applications Weighing, Density Determination, Mole Weighing Display Liquid crystal display (LCD) with backlight Operation AC Adapter (Included) or 4 AA Batteries (Not included) Communication RS232, USB Host, USB Device, Ethernet or Bluetooth™ (available as an accessory) Construction ABS housing, stainless steel pan, ABS draftshield (1mg model only), weigh below hook, transportation lock, manual calibration lock switch, security slot Design Features Stability indicator, stackable design with included storage cover (excluding 1mg model), mechanical and software overload/underload protection, low battery indicator, auto shut-off, auto tare, span calibration mass included on models up to 620g capacity Specifications
| Maximum Capacity | 220 g |
| Readability | 0.01 g |
| Pan Size | 4.7 in (120 mm) |
| Battery Life | 120 Hours with Disposable Batteries |
| Communication | Ethernet (Available as an Accessory); RS232 (Available as an Accessory); USB Host (Available as an Accessory); USB Device (Available as an Accessory) |
| Dimensions | 8.8 in x 2.1 in x 8 in (224 mm x 54 mm x 202 mm) (LxHxW) |
| Display | Large backlit LCD |
| Inuse cover | Available as an Accessory |
| Legal for Trade | Not Applicable |
| Linearity ± | 0.01 g |
| Net Weight | 2.2 lb (1 kg) |
| Pan Construction | Stainless Steel |
| Power | 4 AA (LR6) Batteries (Not Included); AC Adapter (Included) |
| Repeatability, typical | 0.01 g |
| Stabilization Time | 1 s |
| Tare Range | To capacity by subtraction |
| Transportation Case | Available as an Accessory |
| Units of Measurement | Newton; Gram; Ounce |
| Working Environment | 50°F - 104°F, 80%RH, non-condensing (10°C - 40°C, 80%RH, non-condensing) |
| Auxiliary Display Model | Available as an Accessory
|
Key Features
Ships within 24 hours
Integrated superior overload protection system rated at 10x capacity
Space saving design allows for stackable storage
Simplified four button operation
Large backlit display increases readability in dim lighting conditions
Weigh below hook for density determination or specific gravity calculations
Fast weighing speed and high resolution delivers repeatable and reliable results
