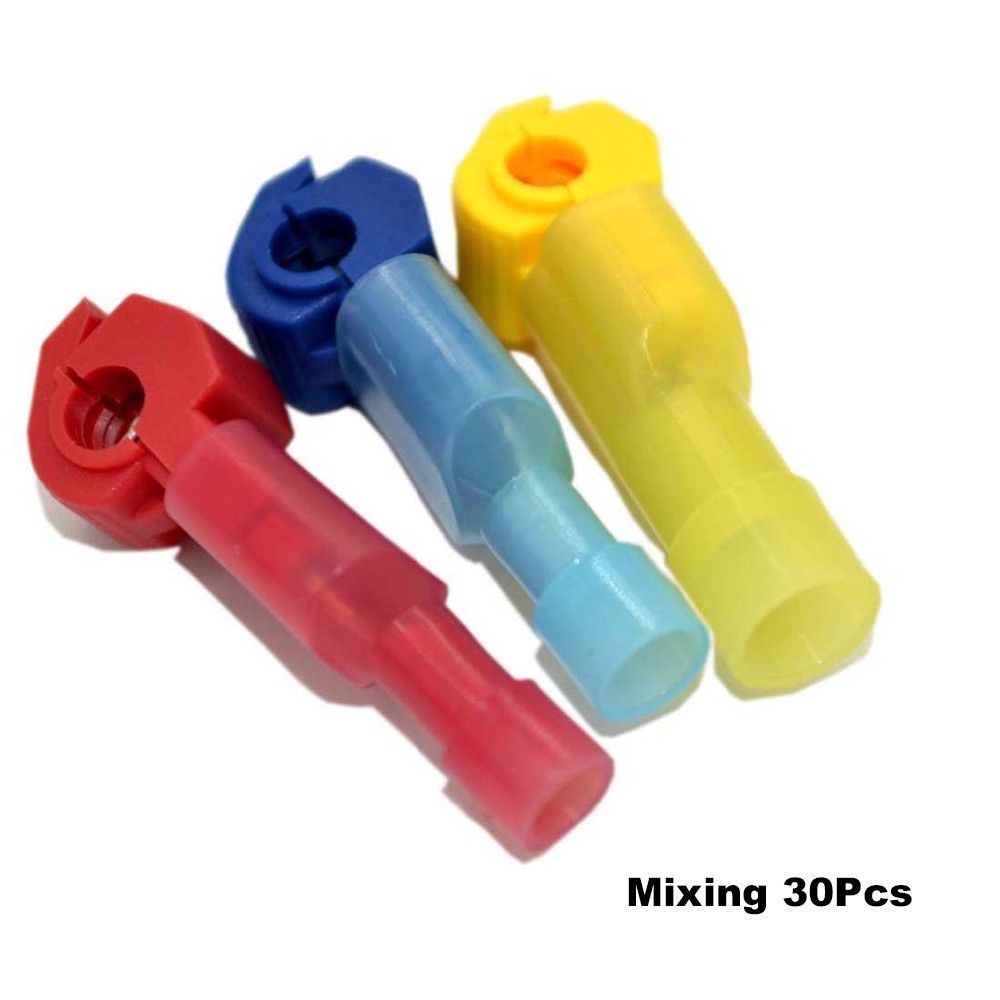

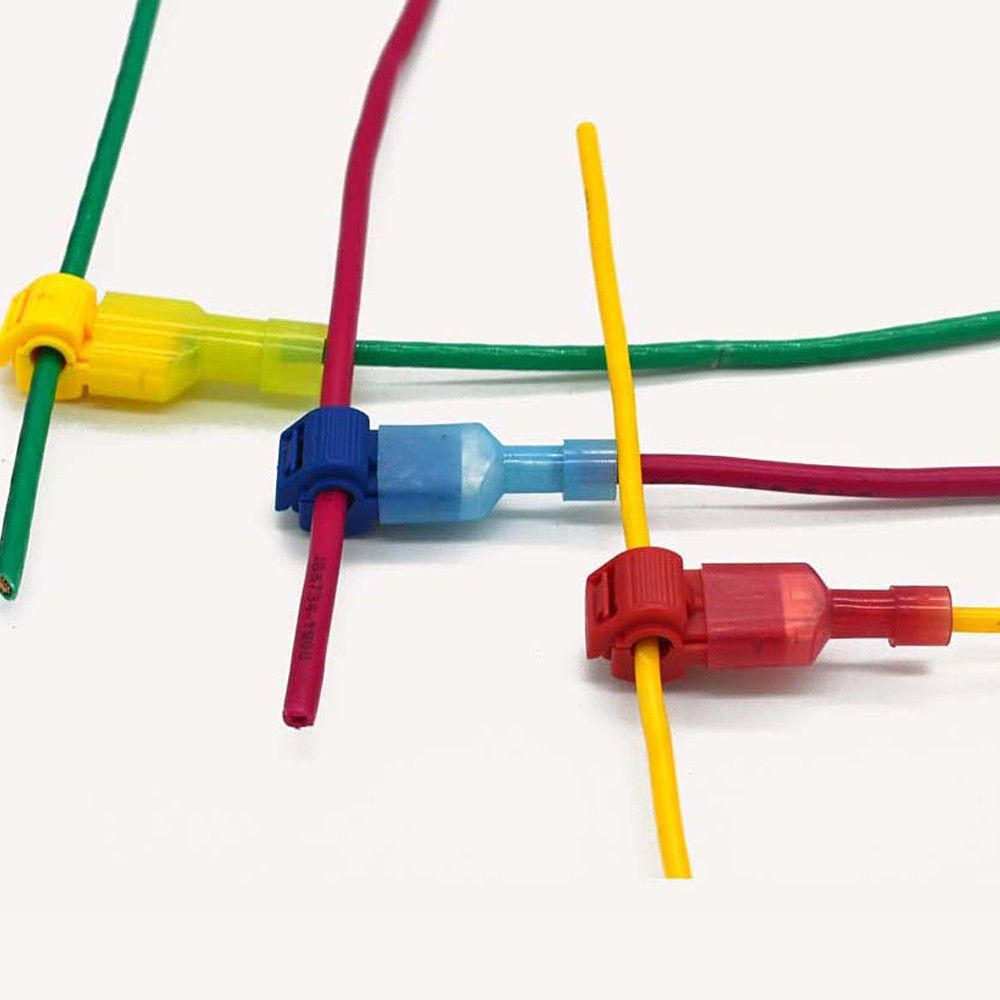

The quick splice wire connectors set can be widely used in the wire connection to prevent the wire from shorting out. It is great for tapping into wires to test.
Features:
Use with the male quick disconnect for easy safe splicing into wires.
Quick installation without striping wire job.
Make quick connections without stripping.
Easy crimping with normal tool, squeeze down the metal insert with.
Pliers and snap the cover in place.
With insulating safety cover.
Specifications:
Material: PE
Color:
T1/801: Red
T2/802: Blue
T5/805: Yellow
T6: Green
T8: Orange
Model: T1, T2, T5, T6, T8, 801, 802, 805 (optional)
Quantity:
Mixing: 30Pcs, 50Pcs, 100Pcs
Single: 20Pcs, 50Pcs (optional)
Wire Range:
T1: 0.5-1.0mm2 / 18-22awg (soft wire)
T2: 0.75-2.5mm2 / 14-18awg (soft wire)
T5: 4mm2 / 12awg (soft wire)
T6: 0.5-1.0mm2 / 18-22awg (hard wire)
T8: 0.75-2.5mm2 / 14-18awg (hard wire)
801: 0.5-1.0mm2 / 18-22awg
802: 0.75-2.5mm2 / 14-18awg
805: 4-6mm2 / 10-12awg
Max. Current:
T1/T6/801: 10A
T2/T8/802: 15A
T5/805: 24A
Size:
T1/T6: 34.7 * 11.3mm / 1.37 * 0.44in
T2/T8: 35 * 11.7mm / 1.38 * 0.46in
T5: 35.5 * 12mm / 1.4 * 0.47in
801/802: 27 * 20mm / 1.06 * 0.79in
805: 34.5 * 20.5mm / 1.36 * 0.81in
Package Weight:
Mixing:
30Pcs: 37g / 1.31ounces
50Pcs: 59g / 2.08ounces
100Pcs: 103g / 3.63ounces
Single:
20Pcs:
T1/T2/T6/T8: 18g / 0.63ounces
T5: 21g / 0.74ounces
801/802: 28g / 0.99ounces
805: 50g / 1.76ounces
50Pcs:
T1/T2/T6/T8: 45g / 1.59ounces
T5: 53g / 1.87ounces
801/802: 70g / 2.47ounces
805: 125g / 4.41ounces
Package Size:
Mixing:
30Pcs: 80 * 60 * 20mm / 3.15 * 2.36 * 0.79in
50Pcs: 80 * 80 * 25mm / 3.15 * 3.15 * 0.98in
100Pcs: 130 * 80 * 30mm / 5.12 * 3.15 * 1.18in
Single:
20Pcs:
T1/T2/T5/T6/T8/801/802: 80 * 30 * 10mm / 3.15 * 1.18 * 0.39in
805: 80 * 40 * 10mm / 3.15 * 1.57 * 0.39in
50Pcs:
T1/T2/T5/T6/T8/801/802/805: 80 * 30 * 20mm / 3.15 * 1.18 * 0.79in
Package List:
1 * Set of Wire Connectors
