Model |
4.1 |
Weight (kg) |
0.1 |
Color |
silver |
Main Material |
metal |

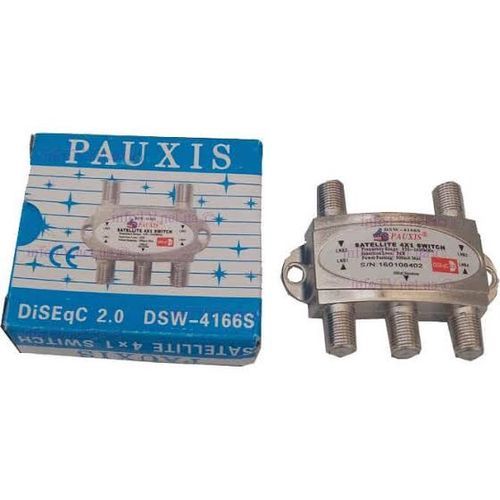

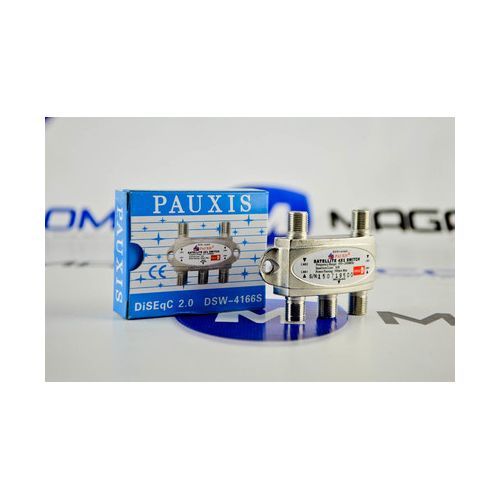

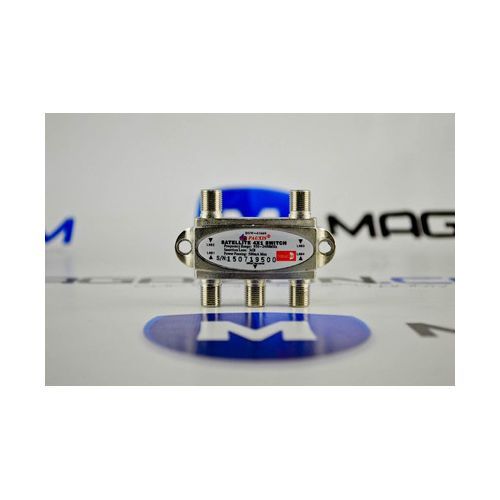

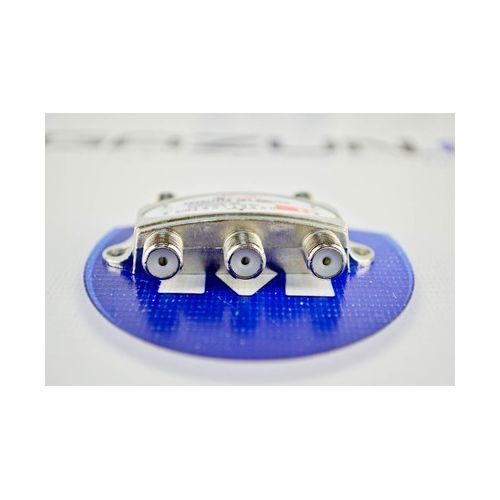

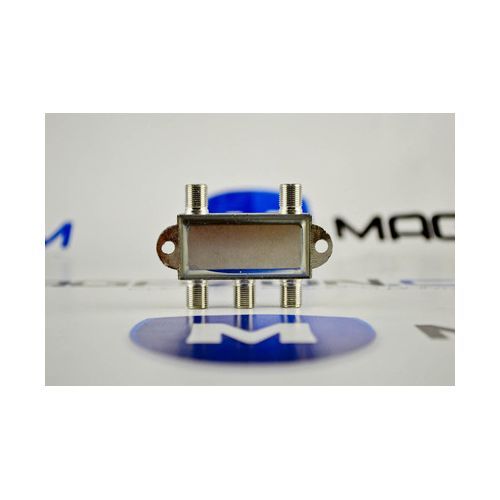

This is a Satelites Combination Diseqc 4X1 2.0 Switch For Free To Air And All Satelites.
It can be used to Combine, Split Up to 4 Satelite Frequencies On one Decoder.
- 4X1 DiSEqC 2.0 Switch
- Inputs: 4
- Output: 1
- Input Frequency Range: 900MHz ~ 2300MHz
- Insertion Loss: 3dB (Max.)
- Isolation: 16dB (Min.)
- Return Loss : 8dB
- Power Voltage: DC 12 ~ 20V, 30mA
Key Features
4X1 DiSEqC 2.0 Switch
Inputs: 4
Output: 1
Input Frequency Range: 900MHz ~ 2300MHz
Insertion Loss: 3dB (Max.)
Isolation: 16dB (Min.)
Return Loss : 8dB
Power Voltage: DC 12 ~ 20V, 30mA
Max. Current to LNB Port: 1A
What's In the Box
- 1 x Diseq 4X1 2.0 Switch
