Model |
AX-S101A |
Weight (kg) |
1 |
Color |
BLACK |
Main Material |
N/A |
From the Manufacturer |
NOT AVAILABLE |
Care Label |
NOT AVAILABLE |
Alxum IDE SATA to USB adapter, hard drive connector for Universal 2.5 & 3.5 IDE SATA HDD SSD, 5.25 DVD optical drive, support 3 drives connection with 12V power adapter, 4pin cable, and USB A cable. Alxum SATA IDE adapter is the perfect data access and transfer tool, plug and play.
USB 3.0 SATA IDE Adapter Features:

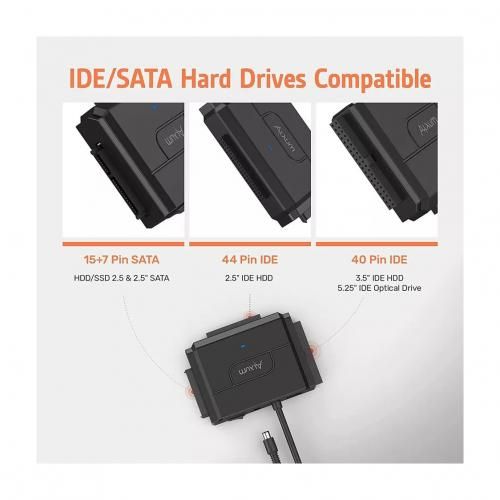

- 3-in-1 Universal Hard Drive Converter - Alxum SATA IDE to USB adapter with 2 x IDE connectors (40pin and 44pin) which for 2.5 & 3.5 inch IDE HDD or SSD, 5.25 inch DVD-ROM, CD-ROM, CD-RW, DVD-RW, DVD+RW Optical, Blu-ray Drive, Plus 1 x SATA II 22pin connector for 2.5 & 3.5 inch SATA SSD HDD.

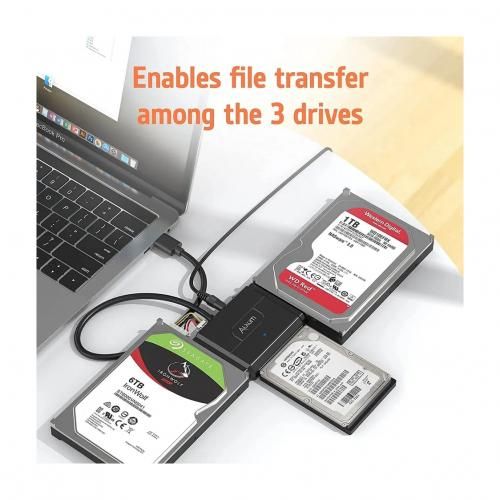

- Support 3 Disks Simultaneous Connections - High-performance chips are used to give data transmission a strong capacity and endurance and guarantee the simultaneous three drives connection is still stable and efficient.
- High-Speed Transfer - USB3.0 data transfer rate is up to 5 Gbps which is ten times faster than USB2.0. Backward compatible with USB 2.0/1.1. Transfer 1GB files within seconds. (The actual transfer speed depends on the connected hard drives.)

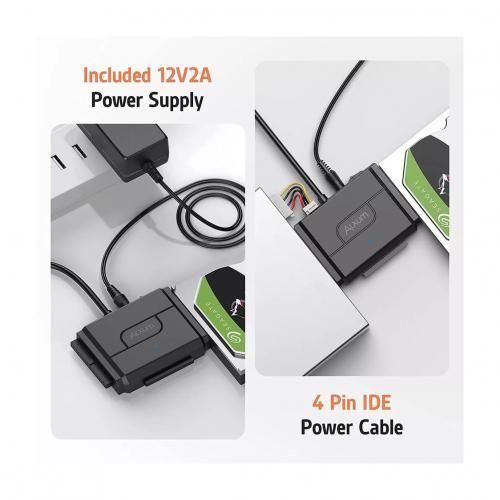

- Stable Power Supply - Equipped with 12V power adapter to provide a stable environment for data transmission; A 4pin IDE Power Cable for IDE HDD or DVD Optical drive.
Specifications:
- Hard Drive Interface: One 3.5 inch IDE connector & One 2.5 inch IDE connector & One 2.5/3.5 inch SATA II connector
- Operating System: Windows XP/Vista/7/8/10, Mac OS and Linux
- Compatible Hard Drives: IDE (40pin and 44pin): 2.5 & 3.5 inch IDE HDD or SSD, 5.25 inch DVD-ROM, CD-ROM, CD-RW, DVD-RW, DVD+RW Optical, Blu-ray Drive
- SATA (22pin): 2.5 & 3.5 inch SATA SSD HDD.
- Micro USB to USB A Cable Length: 2.62ft /31.5inch /80cm
- Product Size: 3.8*2.7*0.7 in / 97*70*17mm
Notes:
- Please power the product with the provided 12V power adapter to ensure stable operation. When using the 3.5” IDE HDD, please also plug in the 4Pin Power Cable.
- When using two IDE hard drives, please set the 3.5'' IDE to be the slave drive based on the instruction on the label of the IDE hard drive.
- A brand-new hard drive should be formatted and partitioned in Disk Management or Disk Utility before use.
Package Contents:
1x USB 3.0 to IDE/SATA Adapter
1x USB-A Cable
1x 12V Power Adapter
1x 4pin Power Cable
1x User Manual
Key Features
Hard Drive Interface: One 3.5 inch IDE connector & One 2.5 inch IDE connector & One 2.5/3.5 inch SATA II connector
Operating System: Windows XP/Vista/7/8/10, Mac OS and Linux
Compatible Hard Drives: IDE (40pin and 44pin): 2.5 & 3.5 inch IDE HDD or SSD, 5.25 inch DVD-ROM, CD-ROM, CD-RW, DVD-RW, DVD+RW Optical, Blu-ray Drive
SATA (22pin): 2.5 & 3.5 inch SATA SSD HDD.
Micro USB to USB A Cable Length: 2.62ft /31.5inch /80cm
Product Size: 3.8*2.7*0.7 in / 97*70*17mm
What's In the Box
Package Contents:
1x USB 3.0 to IDE/SATA Adapter
1x USB-A Cable
1x 12V Power Adapter
1x 4pin Power Cable
1x User Manual
