Main Features
- Brightness of 4000 Lumens
- SVGA (800 x 600) Native Resolution
- 1.94 to 2.16:1 Throw Ratio
- HDMI & VGA Inputs
- Analog Audio Input and Output
- Integrated 10-Watt Speaker
- IR Remote Control Included

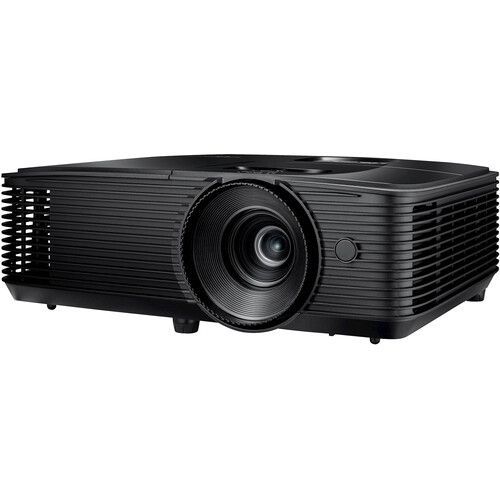

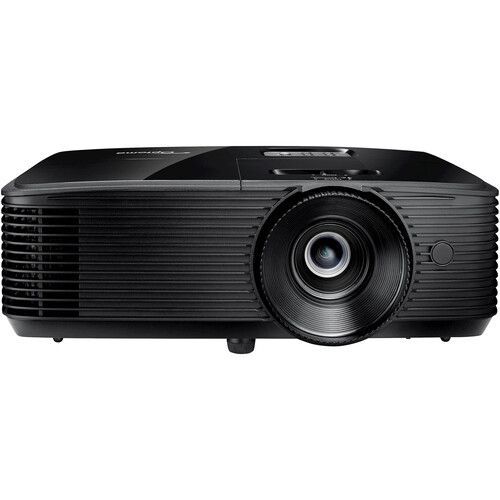

Enjoy bright images at various distances with the Optoma S336 4000-Lumen SVGA Education & Corporate DLP Projector. Its native 800 x 600 resolution displays data and images clearly at various viewing distances, while its 25,000:1 dynamic contrast ratio helps enhance detail in dark images. Its 1.94 to 2.16:1 throw ratio allows you to place the projector at various distances for flexible installations in classrooms or corporate meeting rooms.
The S336 features an HDMI and a VGA input for connectivity to both analog and digital source types, like a cable/satellite box, DVD player, computer, and more. The built-in 10W speaker lets you set up the projector without additional speakers. A USB port provides power for compatible HDMI streaming media players. An IR remote is included as an added convenience.
Designed for Vibrant Color
Give powerful presentations and educational lessons with stunning colors. Optoma projectors provide reliable color performance suitable for any content and environment. From accurate sRGB colors for lifelike images to vibrant, punchy presentations, the S336 has a display mode to meet your specific needs. Perfect for a range of graphic and video presentations.
Superior Contrast
Add more depth to your image with a high-contrast projector. Compared to competing technology, Optoma DLP projectors provide you with brighter whites and ultra-rich blacks. Images come alive and text appears crisp and clear - ideal for business and education applications.
Full 3D
Optoma projectors can display true 3D content from almost any 3D source, including 3D Blu-ray Disc players, 3D broadcasting, and the latest generation game consoles.
Integrated Speaker
A powerful built-in speaker provides exceptional sound quality and an easy setup without the need for costly external speakers.
Eco+
Eco+ technology brings together high contrast, improved lamp life, and energy saving features that are easy to use while reducing power consumption.
Energy Saving
Using the specially designed lamp modes, you can reduce power consumption by up to 70%. Each mode also has a positive effect on the lamp life, while lowering the total cost of ownership and reducing maintenance.
Quick Resume
This feature allows the projector to be instantly powered on again if it is accidentally switched off.
Eco AV Mute
Stay in control of your presentation with Eco AV mute. Direct your audience's attention away from the screen by blanking the image when it's no longer needed. This also reduces the power consumption by up to 70%, further prolonging the life of your lamp.
Direct Power On
The projector will start up instantly when power is supplied to the unit. This eliminates the need to manually turn on the projector via the remote control or the keypad, ideal for use in rooms with a master power switch.
Direct Power Off
Power off your projector immediately or directly at the outlet. This means you don't have to wait for the projector to cool down before turning it off.
Auto Power Off
There may be instances when the projector is left running when not in use. To help save energy, the auto power off feature automatically turns off the projector after a set period of time if it is not being used.
Suitable for 24/7 Operation
Optoma projectors have been designed to operate 24 hours a day (with 30-minute per day breaks) in standard orientation. Perfect for applications where prolonged periods of use is required.
Wireless-Compatible with Optional Hardware
The HDCast Pro, QuickCast Bundle, and WHD200 optional wireless modules available separately.
RoHS Compliance
The S336 is RoHS compliant.
Key Features
Display System: 0.55" DMD DLP
Native Chip Resolution: 800 x 600 (SVGA)
Supported Resolutions: Maximum: Full HD 1080p - 1920 x 1080 @ 24/50/60 Hz
Max Brightness: 4000 Lumens
Uniformity: 75%
Offset: 115% ± 5%
Aspect Ratio: Native: 4:3
Supported: 16:9
Dynamic Contrast Ratio 25,000:1
DLP Link 3D: Yes
Supported 3D Formats: Frame Packing (up to 1080p)
Side by Side: (up to 1080i)
Top Bottom: (up to 1080p)
Color Depth: 10-Bit (1.07 Billion Colors)
Scan: Horizontal: 15.375 to 91.146 kHz
Vertical: 50 to 85 Hz or 120 Hz

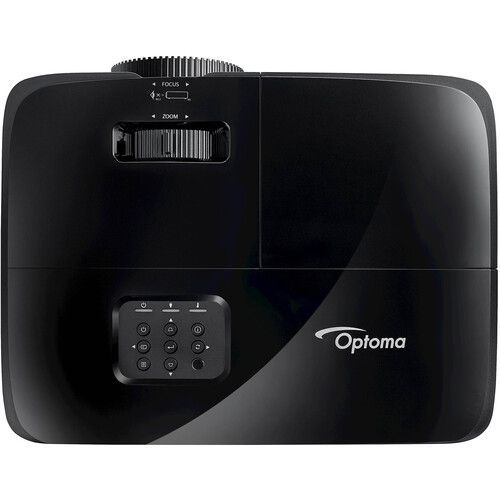

Focus: Manual
Lens: f = 21.85 - 24 mm
Optical Zoom: Manual: 1.1x
Throw Distance 39.37 - 472.44" / 1 - 12 m
Throw Ratio: 1.94 to 2.16:1
Projection Size: 27.7 - 304.4" / 70.4 - 773.2 cm
Keystone Correction: Vertical: ± 40°
Supported HDR Input Formats: None
Multi-Input Support (PIP/PBP): Not Specified by Manufacturer
Ceiling Mountable: Yes
Built-In Speaker : Yes (Mono)
Speaker Power: 10W

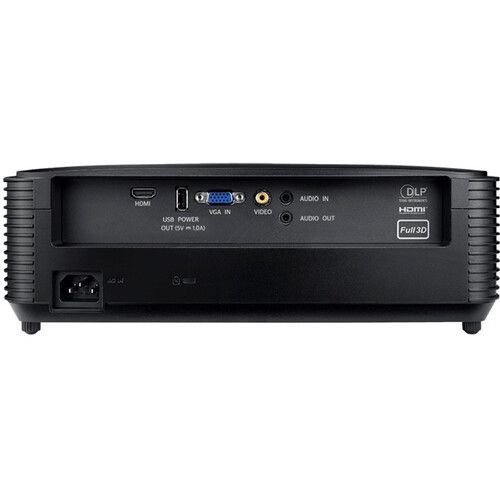

Inputs/Outputs 1 x HDMI 1.4a (HDMI Type-A) Audio, Video Input
1 x VGA (DE-15/DB-15) Video Input
1 x Composite (RCA) Video Input
1 x 1/8" / 3.5 mm Mini Audio Input
1 x 1/8" / 3.5 mm Mini Audio Output
1 x USB 2.0 (USB Type-A) Power Output
Wireless LAN / Wi-Fi: No, Optional Adapter Available
Light Source: Lamp
Lamp Power: 203 W
Expected Lamp Life: Full Brightness: 6000 Hours
Medium Brightness: 10,000 Hours
Low Brightness: 15,000 Hours
Fan Noise: Full Brightness: 29 dB
Medium Brightness: 27 dB
Security : Cable Lock Slot
Password Protection: Security Bar
Arabic
Czech
Danish
Dutch
English
Farsi
Finnish
French
German
Greek
Hungarian
Indonesian
Italian
Japanese
Norwegian
Polish
Portuguese
Romanian
Russian
Simplified Chinese
Spanish
Swedish
Traditional Chinese
Turkish
Vietnamese
AC Input Power: 100 to 240 VAC, 50 / 60 Hz
Power Consumption: Full Brightness: 225 W
Medium Brightness: 187 W
Low Brightness: 58 W
Standby Mode (Lamp Off): 0.5 W
Operating Altitude: 9842' / 3000 m
Operating Temperature: 41 to 104°F / 5 to 40°C
Operating Humidity: 0 to 85%
Dimensions (W x H x D) 12.4 x 4.3 x 9.6" / 31.5 x 10.9 x 24.4 cm Including Feet
Weight: 6.66 lb / 3.02 kg
