Size (L x W x H cm) |
15x12x5 |
Weight (kg) |
0.3 |
Color |
Photo Color |

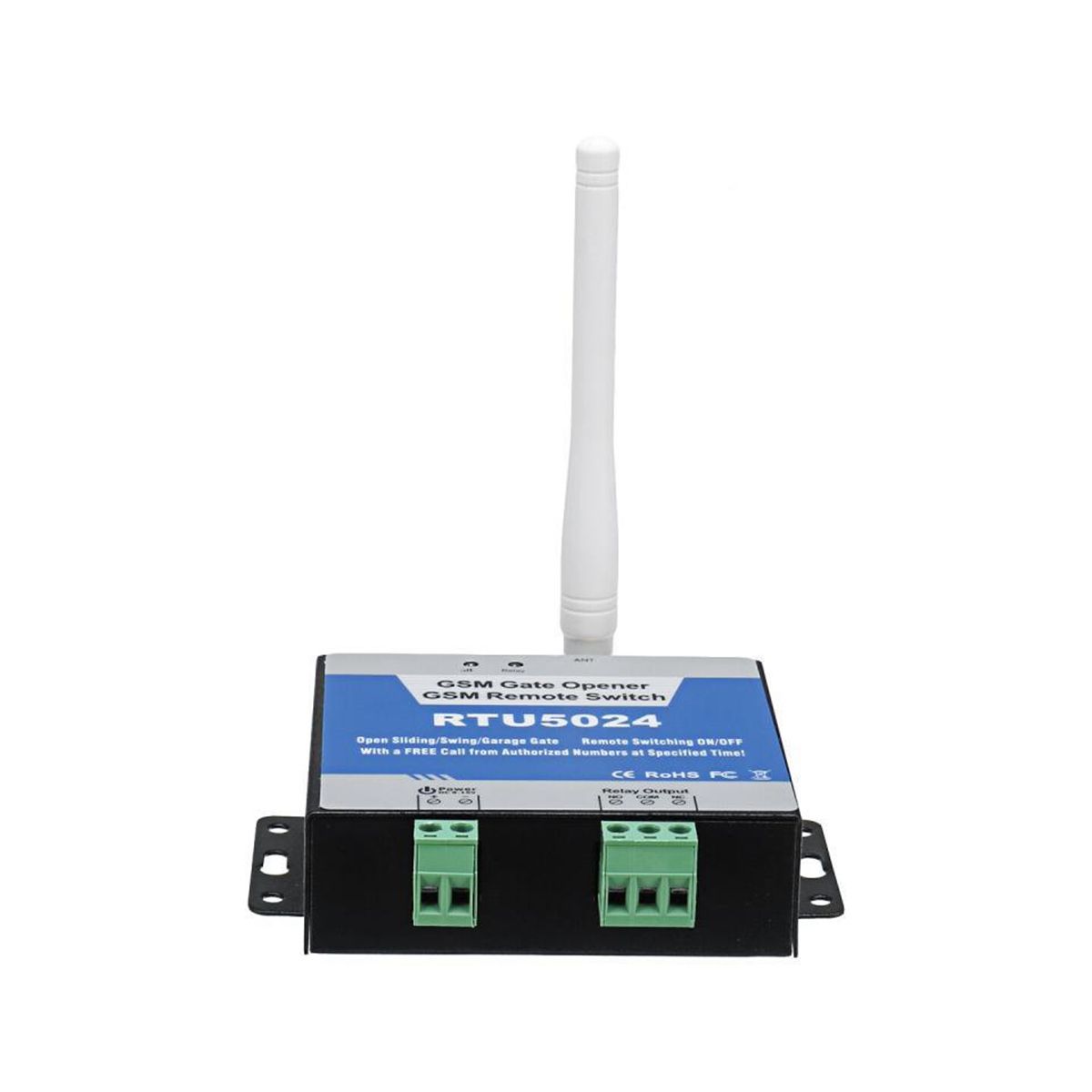

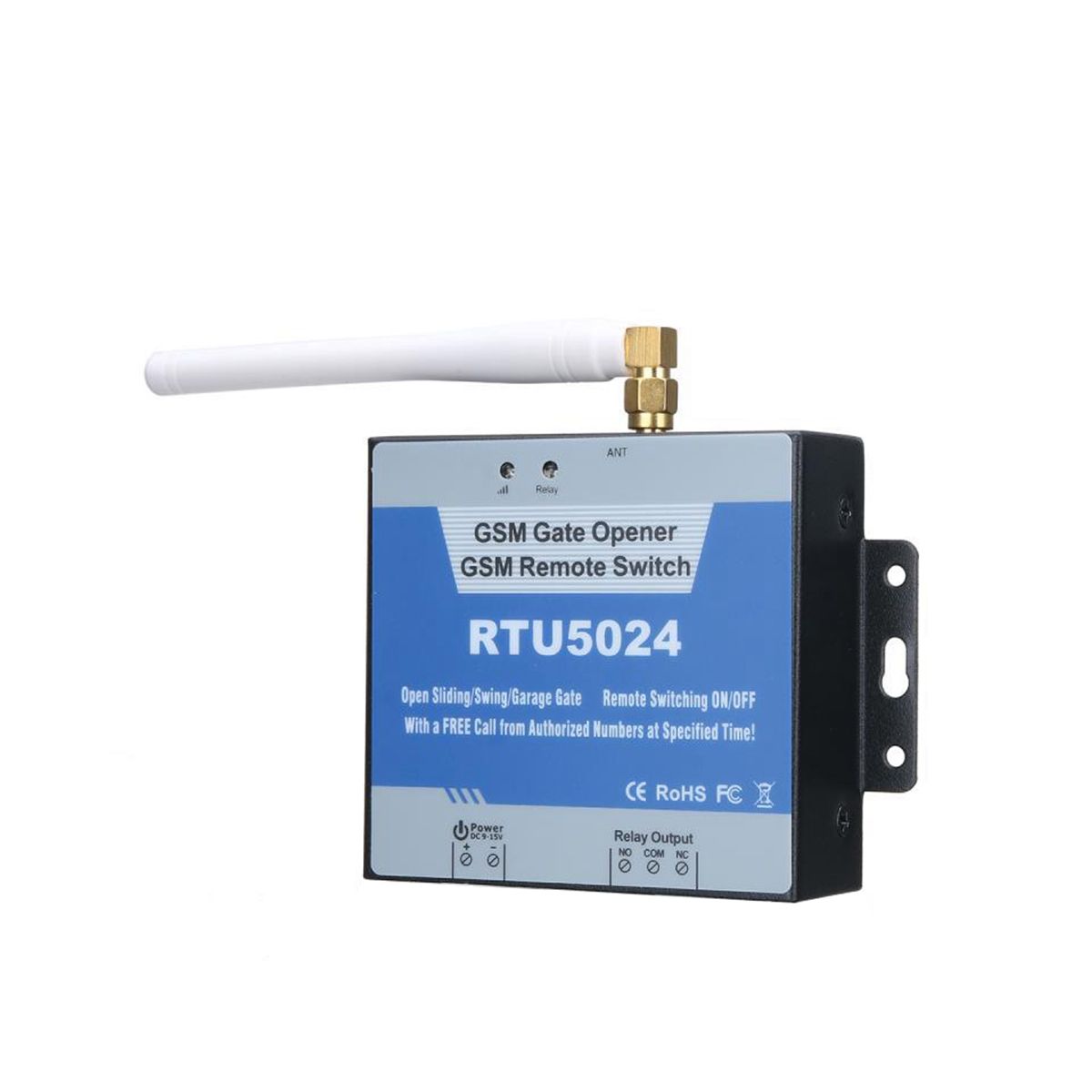

The RTU5024 GSM Gate Opener is a powerful GSM relay that can be used for authorized door access, controlling gates, switching of remote equipment, and car parking . Additionally, it can also be used in which require you to turn on/off your system, machines, or equipment remotely with a free call from your mobile phone.
Add or remove users by SMS .
The relay or open time is programmable.
Can be operated from anywhere, no distance limit.
-band, can work in the worldwide GSM Networks.
No need to a remote control or keys for different users.
- Using caller-ID for identification, unknown callers are ignored.
Up to 200 authorized phone numbers can be configured at the specified time.
One output with relay rating 3A/240VAC for connecting the switch of the door or machines.

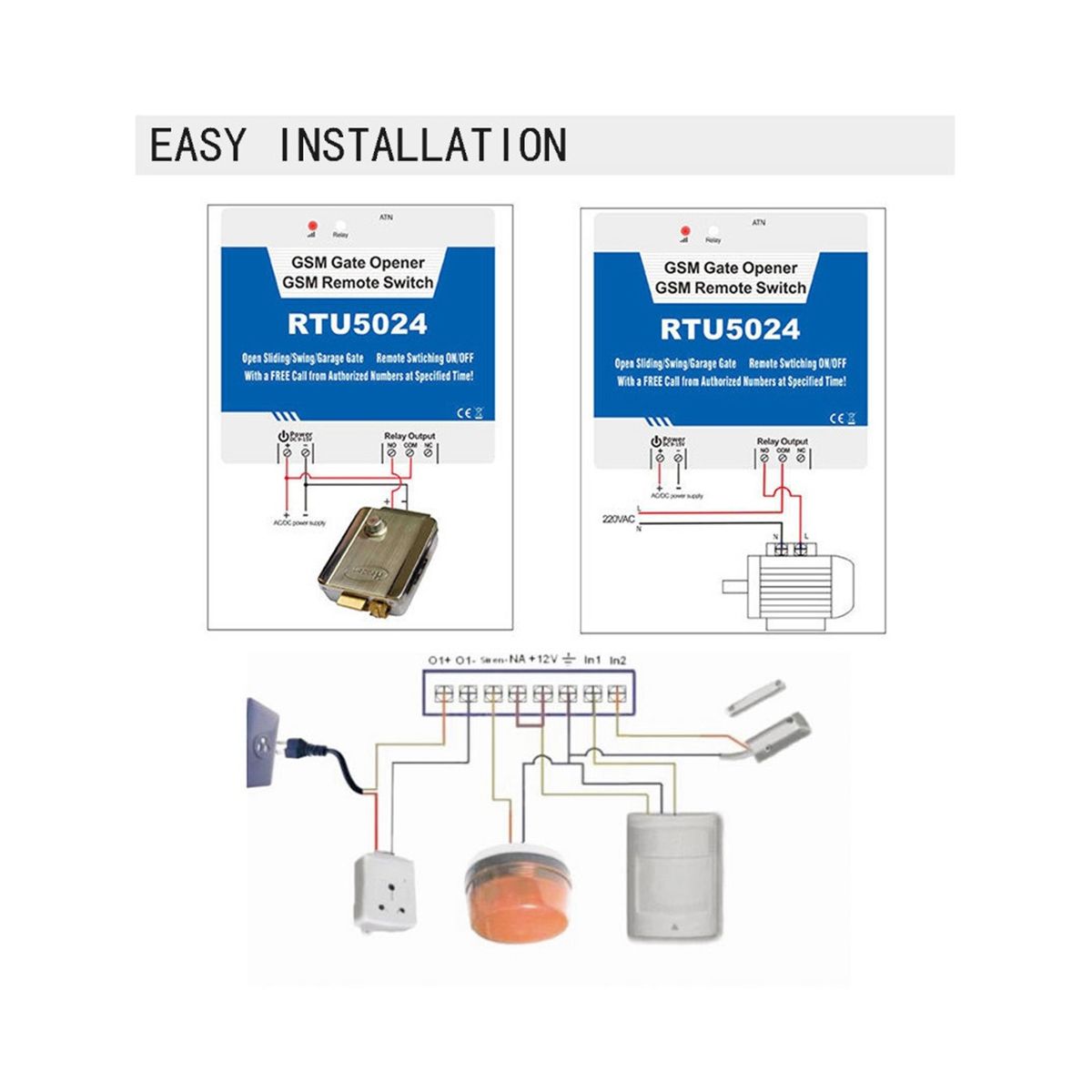

Multiple applications. (gates, bollards, barriers, garage doors, shutters and access doors or machines).
The relay action will return a SMS confirmation to the or authorized call in number, this function is editable by .
No call charges. the GSM GPRS Relay Switch rejects the call from authorized number then carries out the turn ON/OFF action on the first 'ring'.
GSM Frequency: -band 850/900/1800/1900MHz
Network: 2G
Gigital Output: NC/NO dry contact, 3A/240V AC
DC Power Supply: 9-24V DC/2A
Power Consumption: 12V Input Max. 50mA/ Average 25mA
: Support 3V
Antenna: 50ohm SMA Antenna Interface
Temperature Range: -20~+60℃
Humidity Range: Ralative Humidity 90%
Plug Type :EU Plug,it applies to Indonesia, , , , and so on.
Colour:Photo Color
Material:plastic

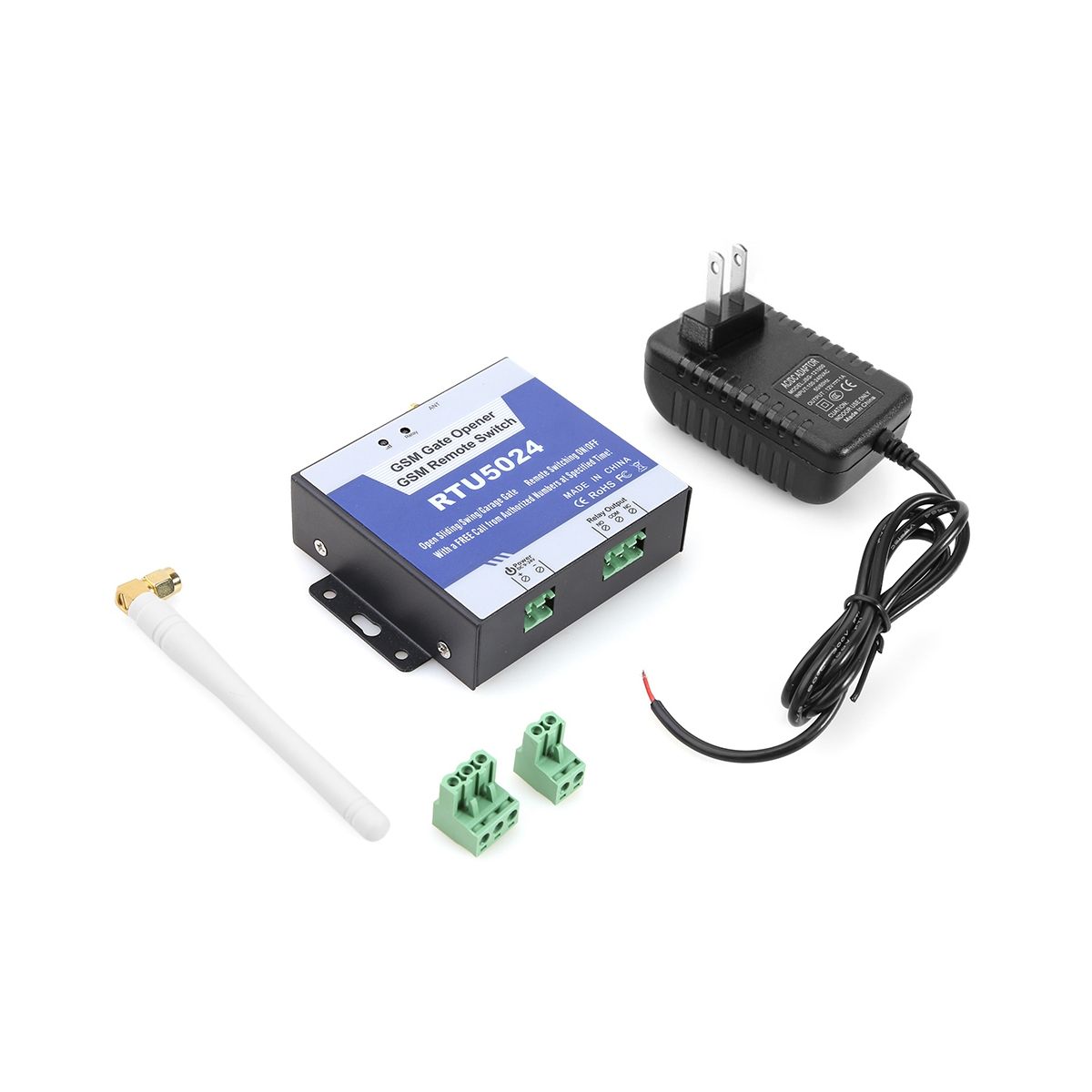

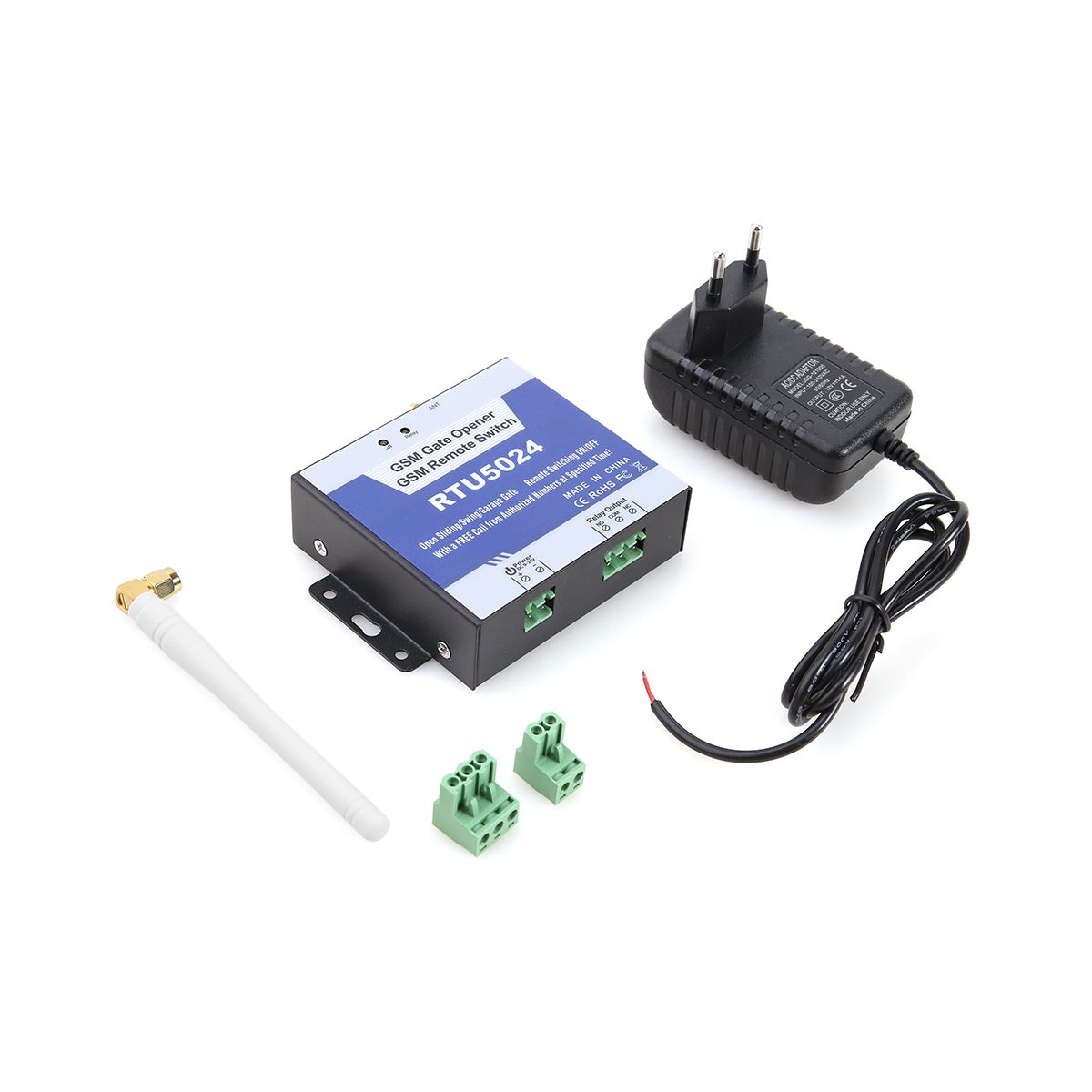

Package Contents:
1 X GSM Gate Opener
1 X Antenna
1 X 12V Power Adapter(The appearance and style of the poweradapter will be sent randomly, 't accept the specified)
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the a little different from the real thing. The measurement allowed error is +/- 1-3cm.
