Product Model: SKU448110
Description:

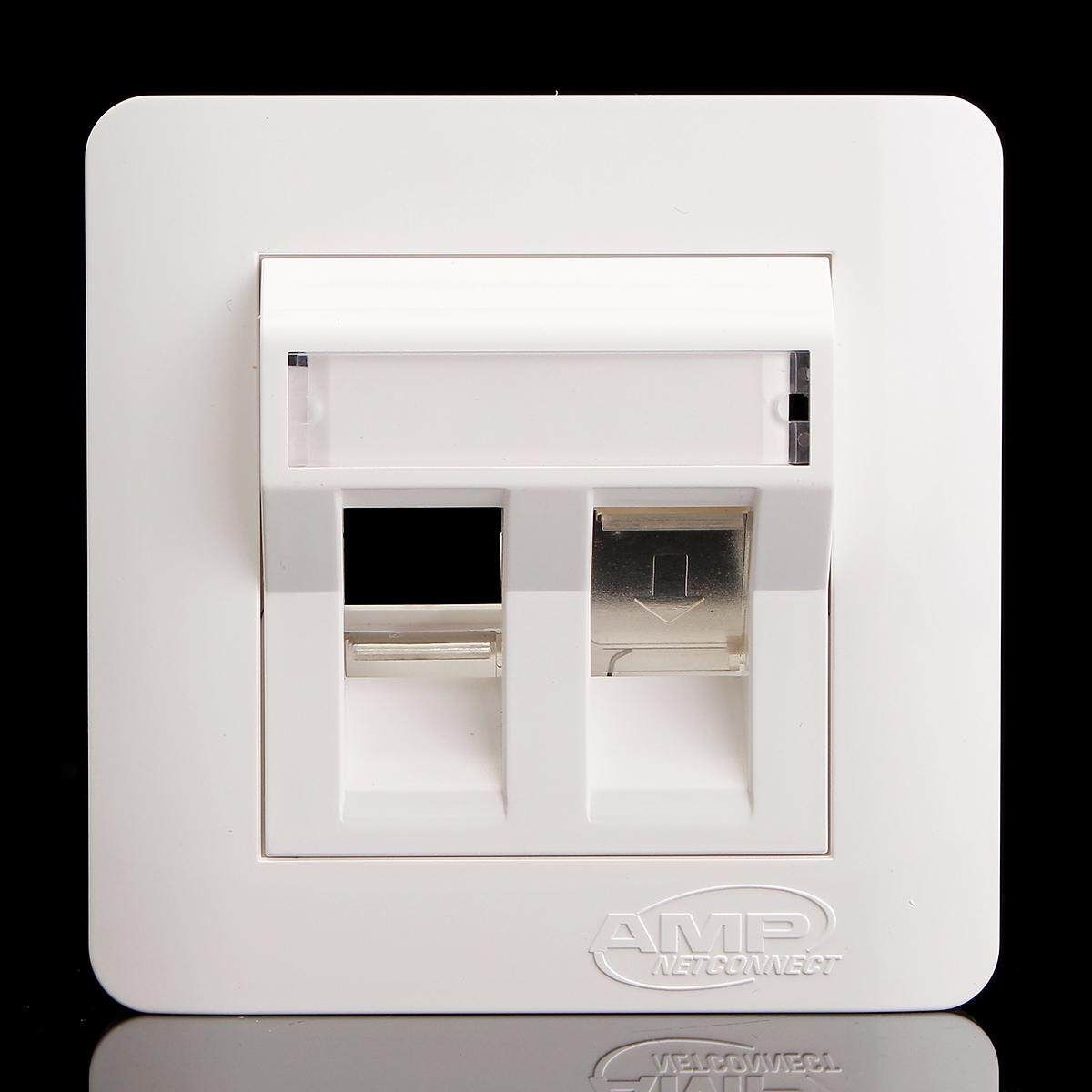

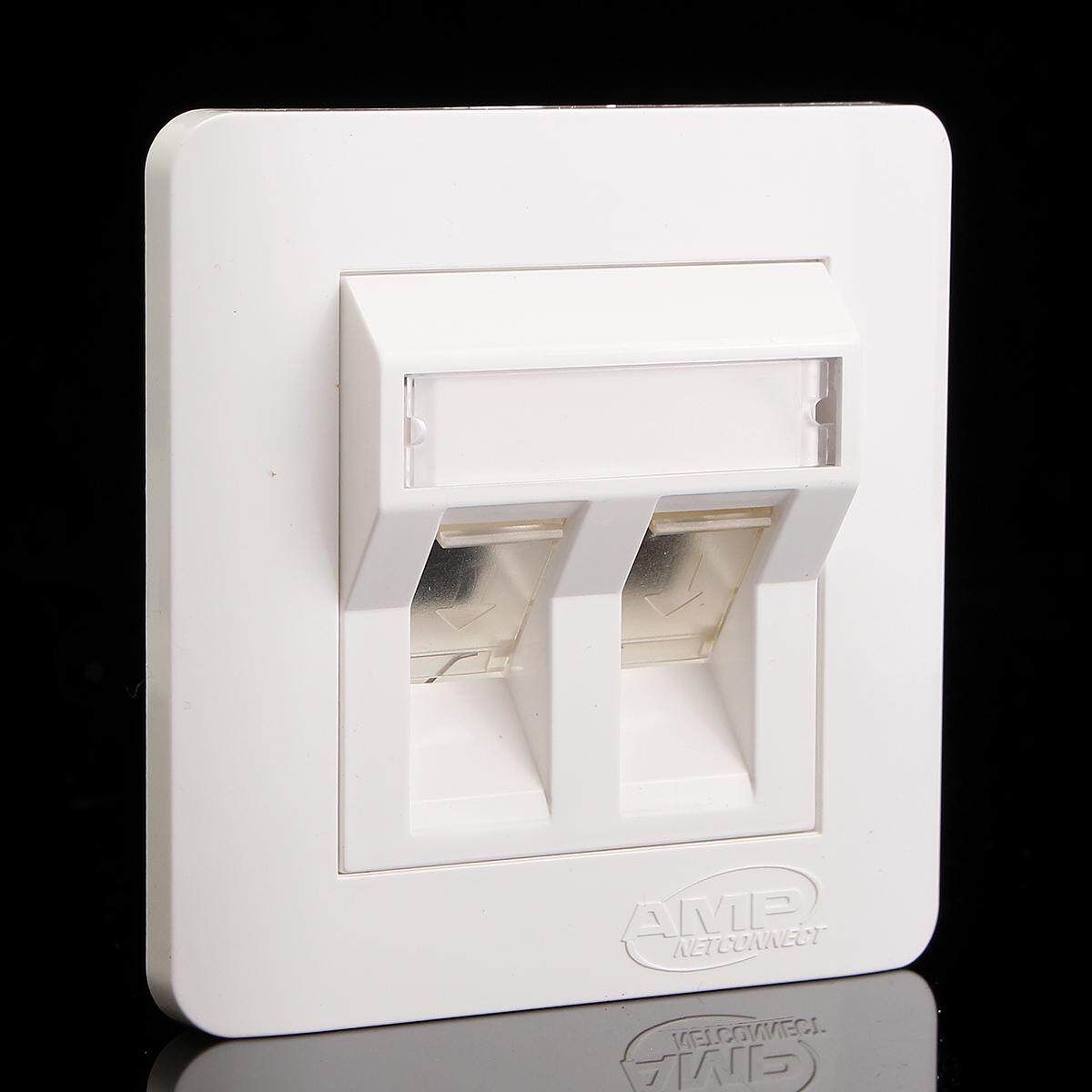

Double RJ45 CAT6 Wall Socket

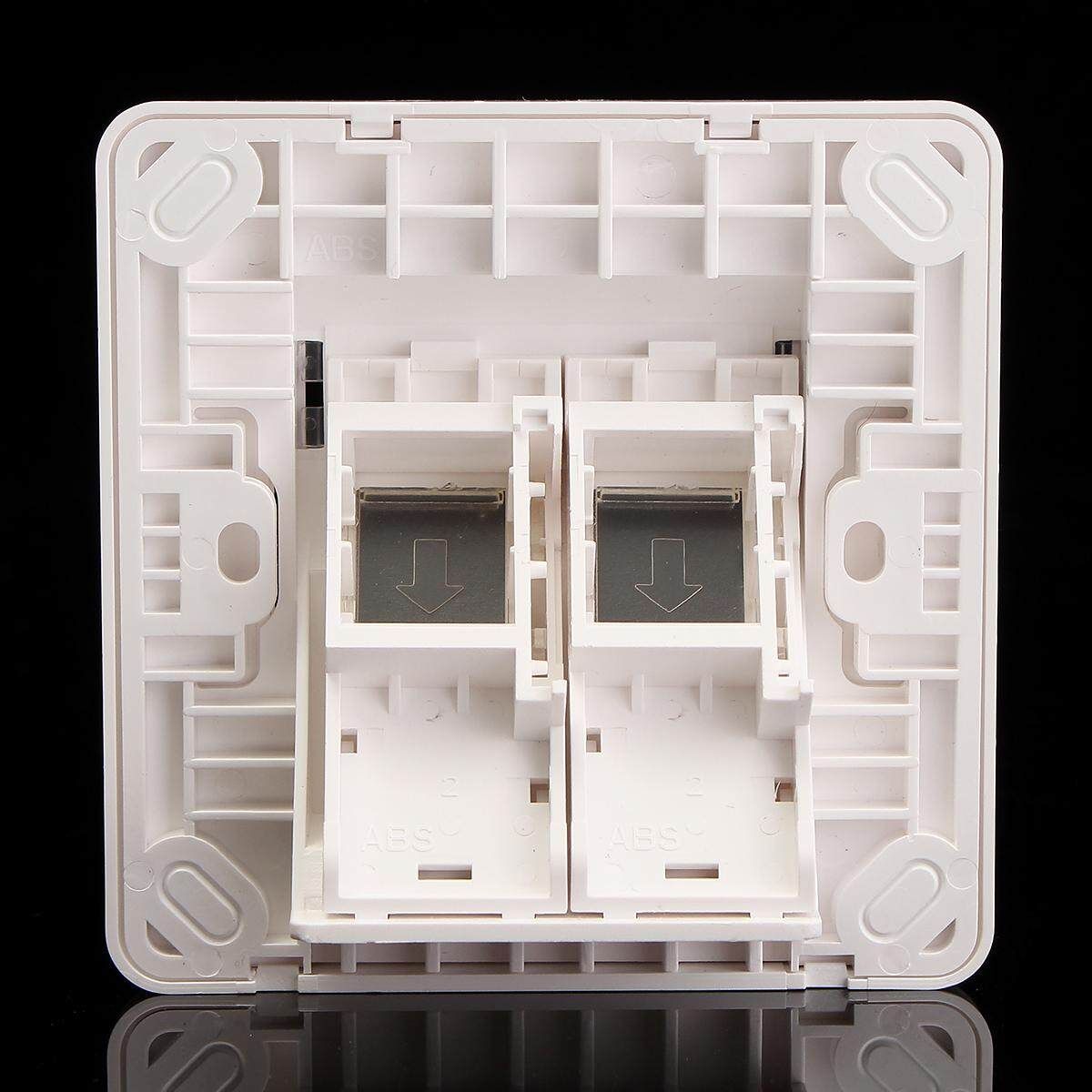

Used for - These network outlet faceplates are a perfect fitting for cables that have been run between rooms beneath floors and behind walls. The faceplate is fitted to a standard single back box using the included fixing screws, just like an socket or outlet. The wires can be attached to the keystone jacks at the back of the sockets in just a few minutes, using an IDC termination tool which is a small scale technician's tool for guiding wires into small sockets.
The use of IDC connectors on the keystone jack, means the connector itself actually pierces the wire's plastic insulation as it is pushed in, thus making installation as easy as possible. The colour coding on the back of each keystone jack is an easy alternative to complex wiring diagrams.
Installation - After running a CAT6 cable between the two points on your wall, strip off a short section of the outer cable insulation and follow the colour coded labels on the socket (see picture) to push each internal wire into the corresponding connection using an IDC tool. The colour coded wiring on the back of the keystone jacks is TIA/EIA-568-B, if you wish to wire in TIA/EIA-568-A then a wiring diagram can be obtained easily online.
Wiring - Depending on the application in which you hope to use it, the socket can be wired in both the ‘straight through' or ‘cross-over' configurations.
'Cross over' cables are usually used for connecting 2 computers directly to one another, without the use of a Hub or . They use TIA/EIA-568-A wiring at one end, and TIA/EIA-568-B at the .
'Straight through' cables can be used for connecting a PC or games console to a Hub/, or, in conjunction with AV extender devices, for audio and video distribution throughout a home or commercial project. To create a 'Straight through' cable, it should be wired using the same wiring variant at both ends. Either ‘TIA/EIA-568-A to TIA/EIA-568-A' or ‘TIA/EIA-568-B to TIA/EIA-568-B'
High quality retardant ABS material.
Elegant fashion white .
Plug and play design, easy to install.
Build you own wall faceplates with our selection of faceplates and modules.
Perfect choice for your home decoration and wiring works.
Our module: CAT6 RJ45 Socket Faceplate 86x86mm

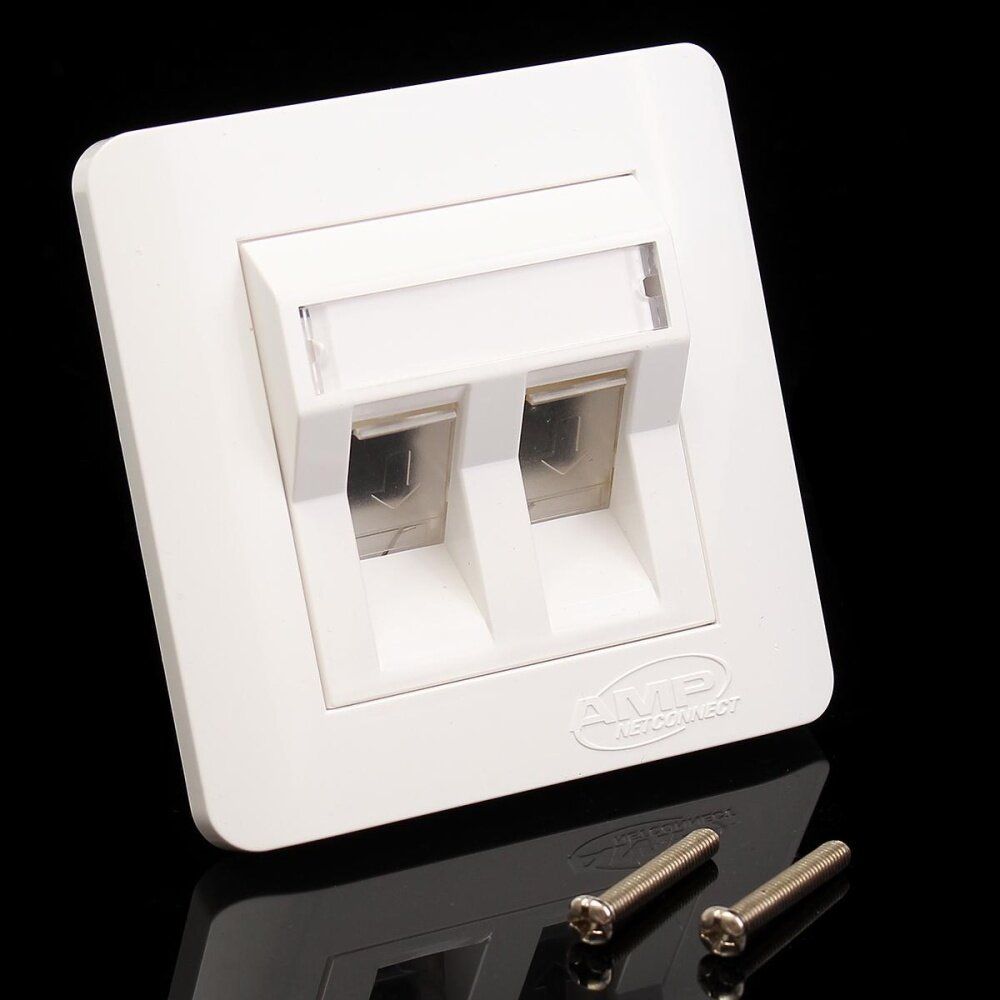

Fixing screws supplied
Package Included:
1x Set of CAT6 RJ45 Socket Faceplate
2 x Screws
a a a a a
Key Features
High quality retardant ABS material.
Elegant fashion white .
Plug and play design, easy to install.
Build you own wall faceplates with our selection of faceplates and modules
Perfect choice for your home decoration and wiring works
Our module: CAT6 RJ45 Socket Faceplate 86x86mm
Fixing screws supplied
Easy to use
Exquisite Workmanship
Well Made
Best Choice and best discounts
Customer Care is Our Top Priority
Offer is Subject to Availability
Big Sale
What's In the Box
- 1x Set of CAT6 RJ45 Socket Faceplate
- 2 x Screws
