Features:

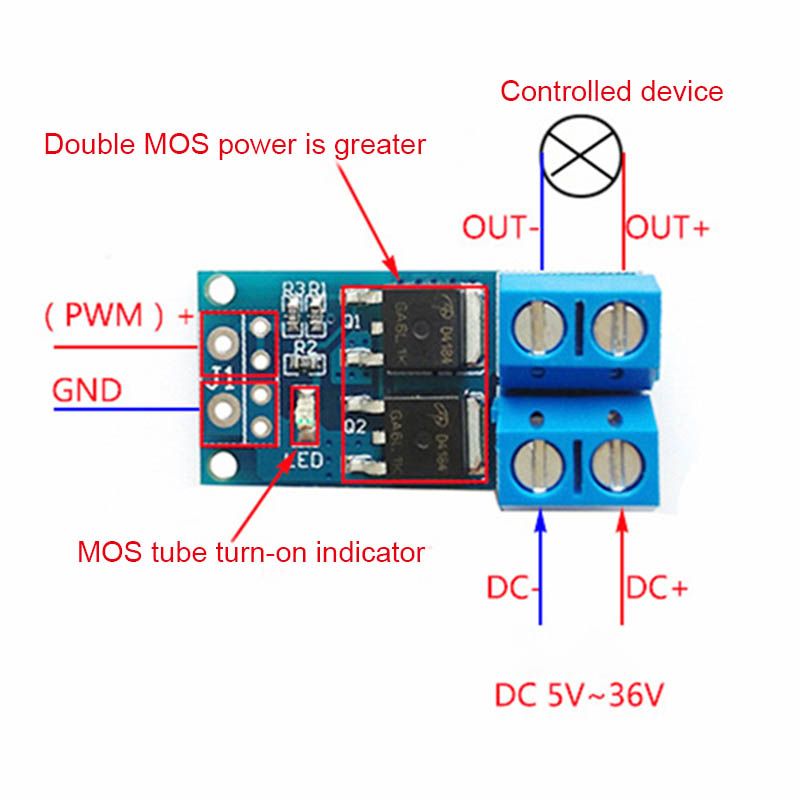

1.Working voltage:DC 5V-6V
2.Trigger signal source:Digital high/low level (DC 3.3-20V),can be connected to MCU IO port, PLC interface, DC power supply, etc.can connect PWM signal; support signal frequency 0--20KHz
3.Output capacity: DC 5-36V/15A/400W
4.Operating temperature: -40 ~ 85 degrees Celsius
5.Size: 3.4x1.7x1.2 cm
6.Use: Motor, light bulb,LED light bar,micro pump, etc.
7.Imported dual MOS parallel active output,low resistance, large current, strong room temperature, 15A, 400W
8.Trigger source:Digital high and low (DC3.3V - 20V),can be connected to the microcontroller IO port, PLC interface,
DC power supply,can access PWM signal, signal frequency 0--20KHZ perfect support.
9.Output capacity: DC DC 5V - 36V,room temperature,continuous current 15A,power 400W.Auxiliary cooling conditions are low,the maximum current can reach 30A.
10.Dual MOS parallel active output
11.Wide voltage: support PWM
12.Can achieve high power equipment control
We confidently assure you'll be satisfied with what you get.However, If there's a chance that you are not satisfied with our goods or something else, please let us know before leaving us a Negative feedback. We will try our best for 100% customer satisfaction. Your 5-Star Positive Feedback is much appreciated to us, and your satisfaction is our greatest motivation to move forward.Welcome to Shop Here! Want more Items? Please come visit our SHOP.
*Shipping and Packaging All it will be double checked and well packed before sending.It will be dispatched within 5 business days after buyers pay for the order. It usually takes about 14 to 18 working days for delivering the package to the destination(for remote areas,it may take a little longer).Your satisfaction is our first priority.
*If you receive the order and it is in good condition,we would be grateful if you would leave us 5 star Positive Feedback for the transaction.
Key Features
1.Working voltage:DC 5V-6V
2.Trigger signal source:Digital high/low level (DC 3.3-20V),can be connected to MCU IO port, PLC interface, DC power supply, etc.can connect PWM signal; support signal frequency 0--20KHz
3.Output capacity: DC 5-36V/15A/400W
4.Operating temperature: -40 ~ 85 degrees Celsius
5.Size: 3.4x1.7x1.2 cm
What's In the Box
1x Control Panel
