Model |
PTZ1270 |
Size (L x W x H cm) |
5.9 x 6.6 x 5.9" / 15 x 16.75 x 15 cm |
Weight (kg) |
3.08 |
Color |
Black |

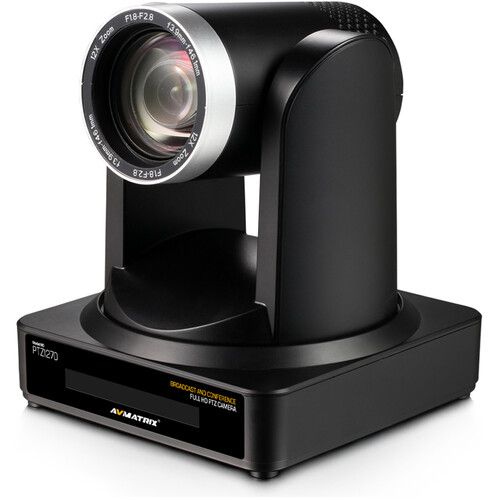

Add a powerful PTZ with HD video capture to your production with this PTZ1270 Full HD PTZ Camera with PoE/NDI-HX & 20x Optical Zoom from AVMatrix. The PTZ1270 offers precision control and multiple output ports offering up to 1080p60 video, and it also supports PoE (Power-over-Ethernet) and streaming over an NDI network using the highly compressed, high-quality NDI-HX protocol. Designed for broadcast, security, and teleconferencing needs, the PTZ1270 also supports VISCA, PELCO-D, and PELCO-P control protocols. The integrated f/1.6-3.5 lens offers 20x optical and 10x digital zoom functions. This camera supports up to 1080p60 video output via HDMI and 3G-SDI and has a LAN port for streaming via RTMP, RTSP, or ONVIF as well as via NDI.
Power this PTZ camera using the the included 12 VDC adapter or via PoE (Power-over-Ethernet). Quick pan and tilt speeds and picture controls like brightness, color, saturation, contrast, sharpness, and gamma provide precision control of your images.
The PTZ1270 camera supports up to 255 presets with up to 10 selectable using the included IR remote control. A 1/4"-20 thread on the camera bottom can be used for mounting. The PTZ1270 also comes with an RS232 control cable.
Key Features

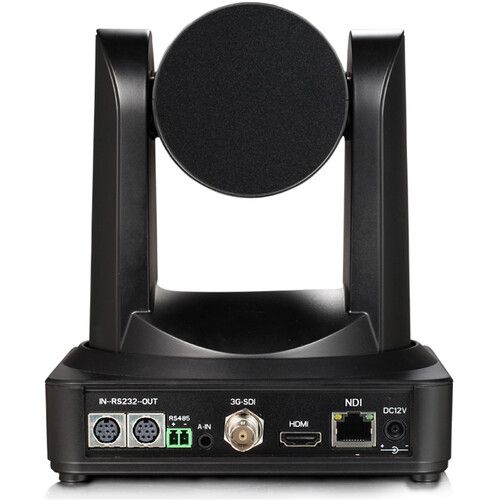

Up to 1080p60 Video via HDMI & 3G-SDI
NDI-HX & Power-over-Ethernet Support
LAN Port for RTMP/RTSP/ONVIF Streams
VISCA, PELCO-D, PELCO-P Control
20x Optical/10x Digital f/1.6-3.5 Zoom
3.5mm Stereo Audio Line-Level In
Autofocus, up to 255 Presets
12 VDC Adapter Included
What's In the Box
- AVMATRIX PTZ1270 Full HD PTZ Camera with PoE/NDI-HX & 20x Optical Zoom
- 12V Power Supply
- RS-232 Control Cable
- Remote Control
