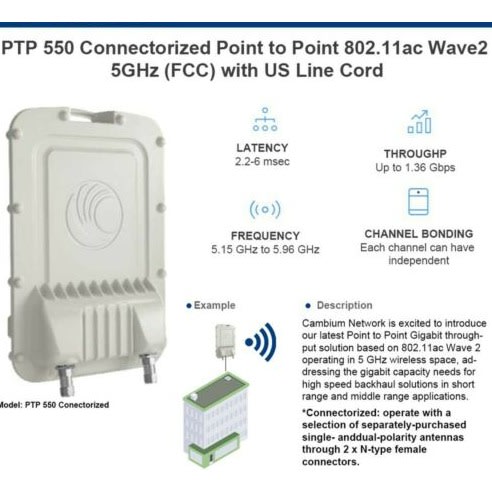

The PTP 550, with its unmatched 1.36 Gbps performance, provides highest throughput in a point-to-point configuration. The PTP 550 radio is ideal for quickly establishing high-capacity backhaul for any application ranging from video surveillance to ISP backhaul network traffic. Cambium's PTP 550 is a Point to Point Gigabit throughput solution based on 802.11ac Wave2 operating in the 5GHz wireless space. It addresses the gigabit capacity need for high speed backhaul solutions for mid range and long range applications up to 122 miles. The PTP 550 comes with IP66/67 Metal enclosure, which protects the radio from extreme condition and solar radiation. The PTP 550 provides an accurate and reliable way to install the radio using GUI e-alignment on the radio. Using efficient channel bonding, each channel can have independent channel bandwidth that provides for flexibility in channel selection, band selection and address throughput requirements. Using two 80 MHz channel the PTP 550 achieves 1.36 Gbps. Dynamic Spectrum Optimization (DSO) enables to continually scan the band for low interference channels. With DSO, Cambium PTP 550 systems are constantly optimizing the channel of operation to maximize link reliability and performance. Based on environment the PTP 550 can be set to move or search better spectrum. As a result, customers can get more throughput with limited spectrum, even the most challenging environments. iOFDM (intelligent Orthogonal Frequency Division Multiplexing) transmits over 256 sub-carrier and results in high resilience to multi-path interference. Product Features 5.150 GHz to 5.850 GHz Targeted for 1.36 Gb/s with Channel Bonding Spectrum Analyzer SFP Port ARQ Protocol Adaptive Modulation: QPSK to 256 QAM Dynamic Spectrum Optimization (DSO) hardware ready Power Output & Antenna Gain: Up to 27 dBm @ BPSK, 23 dBm at 256 QAM; 23 dBi integrated flat panel TDD Sync capability cnMaestro support FIPS-197 128 bit AES encryption Product.
PTP 550: 1.4 Gbit CAPACITY Cambium Network is excited to introduce our latest Point to Point Gigabit throughput solution based on 802.11 ac Wave 2 operating in 5 GHz wireless space, addressing the gigabit capacity needs for high speed backhaul solutions in mid range and long range applications. The PTP 550 solution draws its attributes from Cambium Networks’ Point to Point products such as PTP 650/670 and PTP 450i METAL HOUSING Each PTP 550 radio is enclosed in a rugged IP66/67 rated metal enclosure, which protects the radio from extreme conditions and solar radiation ANTENNA ALIGNMENT The “e-alignment” GUI provides the installer with an accurate and reliable way of installing PTP 550 CHANNEL BONDING Each channel can have independent channel bandwidth that provides for flexibility in channel selection, band selection and address throughput requirements. Using two 80 MHz channel the PTP 550 achieves 1.4 Gbps. Dynamic Channel Selection (DCS) With Dynamic Channel Selection, PTP 550 systems constantly optimize the channel of operation to maximize link reliability and performance. Responding to the radio interference environment, PTP 550 will search for the clearest spectrum and move to it seamlessly. The customer benefits from best available throughput with limited spectrum in the most challenging environments OTHER KEY FEATURES • 5.17 to 5.9 GHz • Up to 1.4 Gbps • Built in Live Spectrum analyzer • IPv6/IPv4 dual-stack management support • AES 128 Encryption • LINKPlanner Support • cnMaestro Support • ARQ Support.
