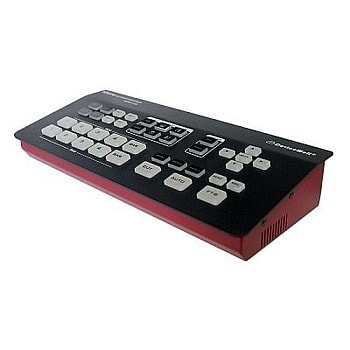

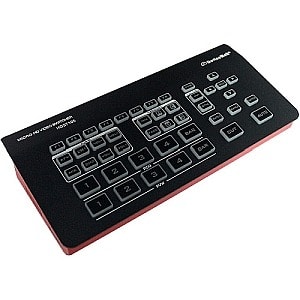

The HDS7105 switcher supports PIP and STILL and has four HDMI inputs and one DP input. It supports the Type-C interface feature. It's even possible to install it on a bracket. It is compact and simple to carry due to its metal body, high strength, and lightweight. It also has a wireless tally system. Its sleek architecture makes it ideal for video conferencing, live events, and online training, among other things.
FEATURES
- 4* HDMI+1* DP Signal
- Supports PIP and still function
- Type-C Control
- Supports fixing with bracket
- Supports Tally Indicator
- DCB Bus Control
- Supports special effects switching
- Portable integrated design
- Metal body, high strength and lightweight
- Supports PC remote control
- Comes with a bar-output screen
- Suitable for video conferencing, live events, online training, sport events
Specification
MODEL | HDS-7105P |
INPUT | 4-Channel HDMI + 1-channel DP |
PGM OUTPUT | 1-channel HDMI |
UVC INTERFACE | Type-C |
MULTIVIEW OUTPUT | 1-channel HDMI |
AUDIO INPUT | 2-channel MIC + 1-channel LINE IN |
AUDIO OUTPUT | 1-channel LINE OUT |
External Control | Network + DCB |
DCB Control | Equipment cascading, external keyboard, wireless tally |
Wireless Tally | DCB option |
PIP | Optimize PIP, can overlay PGM background |
STILL | YES |
MUTE | YES |
Vertical mode | USE with PM1005/PM1007 |
Frequency conversion Output | YES |
| |
