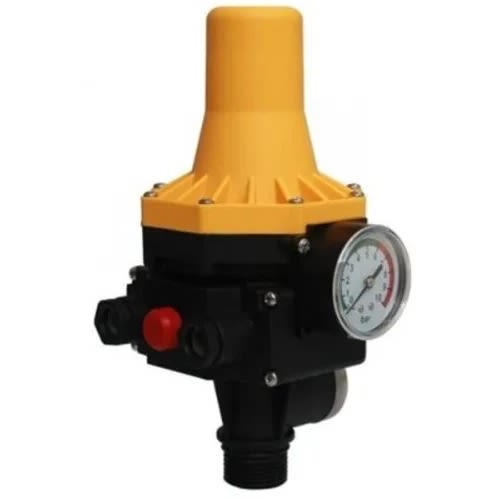

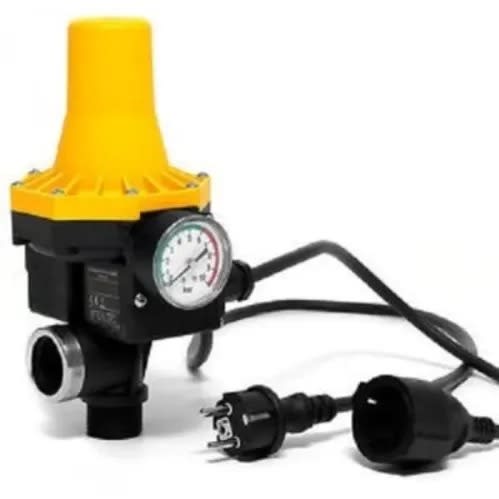

The electric pressure control switch is used in surface water pump systems, it examines the water automatically, stop the pump in the case of water shortage, protect the pump from damage caused by dry- running. Completely replaced traditional pump control system composed of pressure switch, pressure tank and check valve etc. We do not recommend this controller to be used with submersible pump.
Its major use is to boost pressure maximium water output in surface water pumping systems
Maintains Flow
Easy To Operate
Lights Indication for Operations
Automatic Cut Off
Automatic Turns On
Frequency : 60 Hz
Max Current : 10 Amp
Max. Working Bar Pressure : 10 Bar with Guage
Connection : 1 Inch Male
Input Voltage 110V / 220V
Pressure Tank Not Required
25 Mm ( 1 Inch Fitting )
Comes With 2 Black Cables For Safe Hard Wiring . Hard Wiring Is The Safest Way
Protection Grade : Highest IP65 for Outdoor Use.
Pressure Guage- YES
