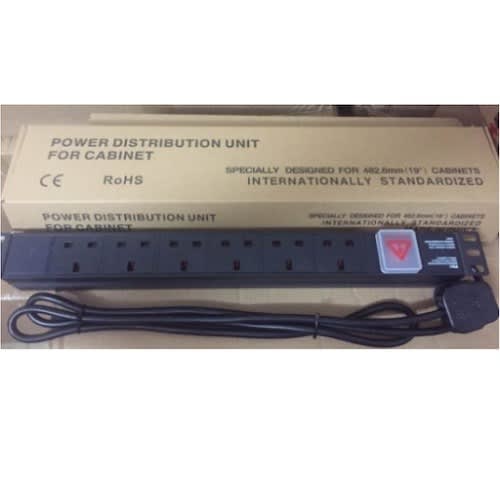

PDU shell material and color: aluminum alloy shell / black
PDU size: 19-inch standard racks occupy 1.5U of rack space
PDU outlet configuration description:
7 British standard jack 13A output with double-break switch
PDU power parameters:
Rated input voltage: 220-250VAC 50/60HZ
Maximum input current: 13A
Rated output voltage: 220-250VAC 50/60HZ
Output current: 13A
PDU power line parameters: 3*1.5mm2
Length: 2 meters
Plug: British Standard 13A
Input method: Left single input
Installation method: 19-inch positive direction installation
Looking for high performance power distribution for your heavily loaded systems? This kind of product designed for standard networking or data cabinets equipment to provide 6 UK sockets. The newly developed 13A heavy-duty horizontal PDU using the IEC-C14 plug input connector which is ideal for many device requirements including server, network and other industrial-type equipment functions such as broadcast and HVAC applications. Combining a fully certified IEC-C14 plug input combined with a compatible heavy load power flex means you can be assured this PDU can work without problems, 24/7. Furthermore, incorporated onto the horizontal form-factor are industry standard UK sockets, ideal for data, telco and broadcast equipment with the added benefit of integral electrical surge protection. Robust in design, with an integral neon illuminated rocker switch for assured functionality, the PDU is designed to deliver maximum electrical power today and tomorrow.
The hybrid power strips are suitable for both horizontal and when the rotating end brackets are re-aligned, vertical mounting within standard 19" enclosures. The units feature a combination of 13 AMP, IEC C13 and C19 sockets and are supplied with a 3Mtr lead terminated in either an IEC C13, C20 or 13 AMP plug
