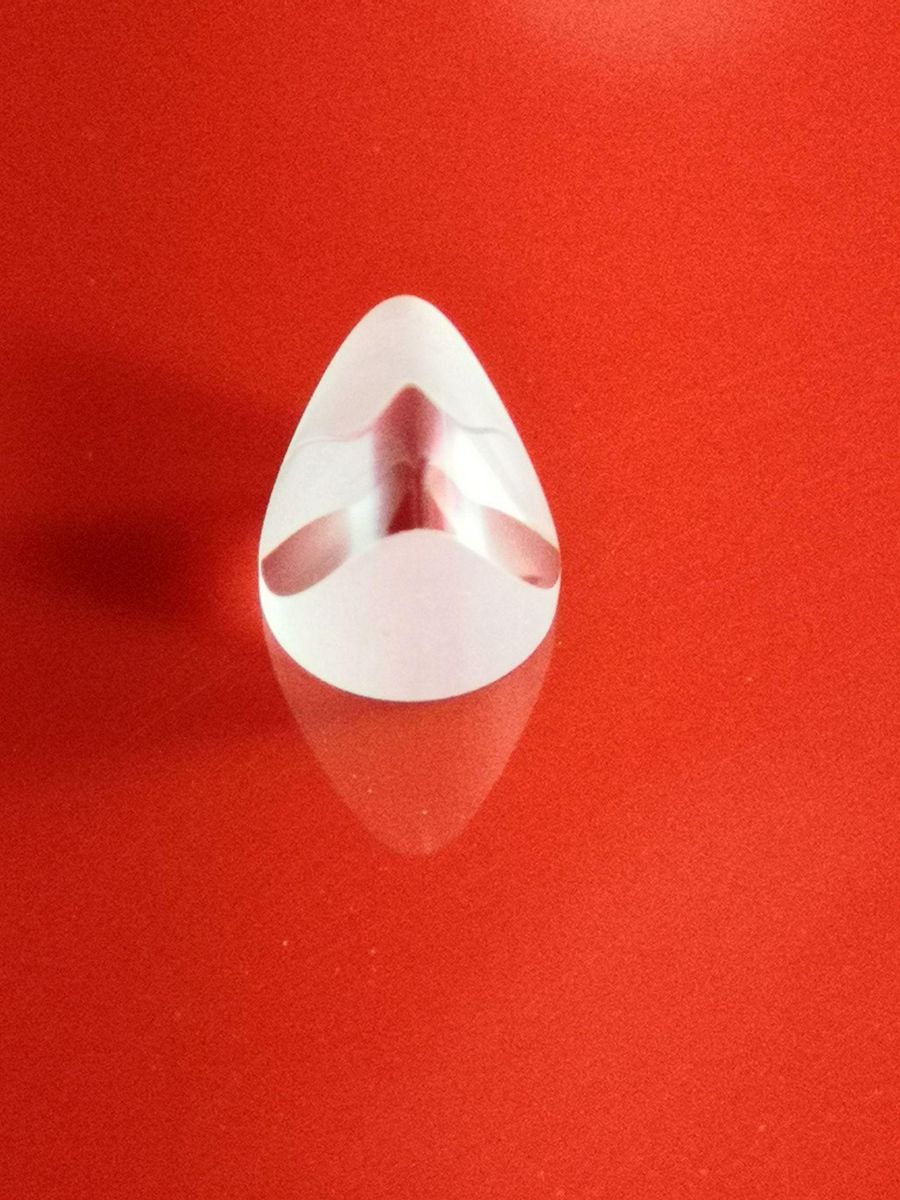

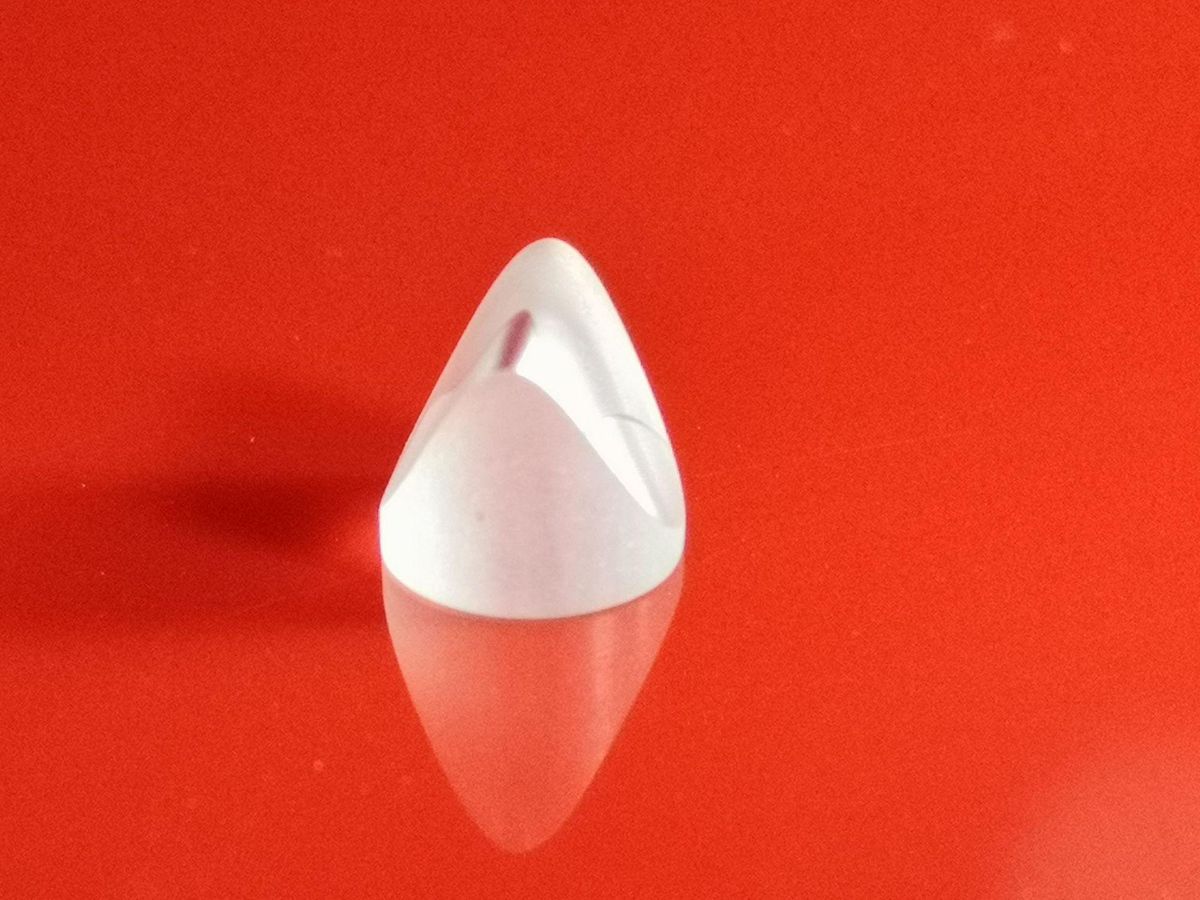

Powell Lens (Powell Lenses)
Powell Lens Is an Optical Scribing Prism, Which Enables the Laser Beam to Be Optimized to Draw a Straight Line with Uniform Optical Density, Good Stability and Good Straightness after Passing through. Powell Lens Scribing Is Better than the Scribing Mode of Cylindrical Lens, Which Can Eliminate the Central Hot Spot and Faded Edge Distribution of Gaussian Beam.
Prism Divergence Angle
The Divergence Angle of Our Processing Prism Ranges from 3 Degrees to 120 Degrees. Currently, the Processing Angles Are 3 Degrees, 4 Degrees, 5 Degrees, 7 Degrees, 10 Degrees, 15 Degrees, 20 Degrees, 22 °,30 °,35 °,45 °,55 °,60 °,70 °,72 °,75 °,80 °,82 °,90 °,100 °,110 °,112 °,115 °,118 °, 120 °. Support Customers to Customize Arbitrary Prism. The Divergence Angle Determines the Length of the Line When the Laser Is at a Certain Distance. We Use PRISM Produced by Advanced Technology to Perfectly Ensure the Consistency of Line Length of Large Quantities of Products.
Laser Incident Spot
Support Customers to Customize Prism of Various Shapes, Light Spots and Sizes. Shapes Include: round, Oval, Square, Rectangular Laser Spots. the Size Range of Prism Spot Is 0.5 Mm-18mm. It Is Very Important Whether the Laser Spot Size Matches the Prism. Perfect Matching Will Result in Uniform Lines,. We Have More than 100 Kinds of Prisms with Different Spot Shapes and Sizes, with Tens of Thousands of Pieces in Stock.
Prism Band
High-Precision Prism, the Band Cannot Be Mixed. We Support Customers to Customize Prism of Various Bands. At Present, the Prism We Produce Uses Bands: 405nm, 450Nm, 532nm,635nm,650nm,660nm, 760Nm, 808nm,850nm,950nm, Etc.
External Structure of Prism
Currently, Prime out-Form Dimensions of Our Prism Products Are: Platinum 9mm, Platinum 6mm, Platinum 40mm, Square 6 * 6mm, Square 6.35 * MM, Square 9 * 9mm. Support Customers to Customize Various Sizes and Specifications.
Uniformity of Prism Lines
the Uniformity of Laser Lines after Prism Shaping Is the Key Index to Judge the Quality of Prisms. The High-Precision Products We Produce Reach the International Level. Within 90% of the Central Area of the Line, the Uniformity Can Reach up to 80%-90%. High-Precision Linear Laser Must Adopt High-Precision Prism, Which Makes the Finishing Touch and Adds Icing on the Cake.
Straightness of Prism Lines
We Adopt Advanced Technology to Ensure the Straightness of Prism Lines, Which Can Guarantee 99.9% Straightness, and Ensure That There Are No Impurities, Dark Lines, Shadow Lines and Other Defects around the Lines.
Batch Production and Delivery Duration
Our Advanced Technology Guarantees Powell Lens Mass Production, with a Monthly Output of 8,000 Pieces. 100 Regular Small Batch Orders Are Usually Shipped Within 2 Weeks. Another Tens of Thousands of Pieces Are in Stock to Meet Customers' Urgent Needs.
Summary
High-Precision Linear Laser Requires High-Precision Powell Lens. Our Physical Production:Baoding Kaishuo Photoelectric Technology Co., Ltd.with Advanced Production Technology and Technical Engineers Engaged in Powell Lens Production for 18 Years, It Can Ensure the Uniformity and Consistency of Powell Lens Lines. and Can Realize Mass Production and the Shortest Delivery Period. I Am Looking Forward to Cooperating with You.
Key Features
Import Or Not: No
Customized Processing: No

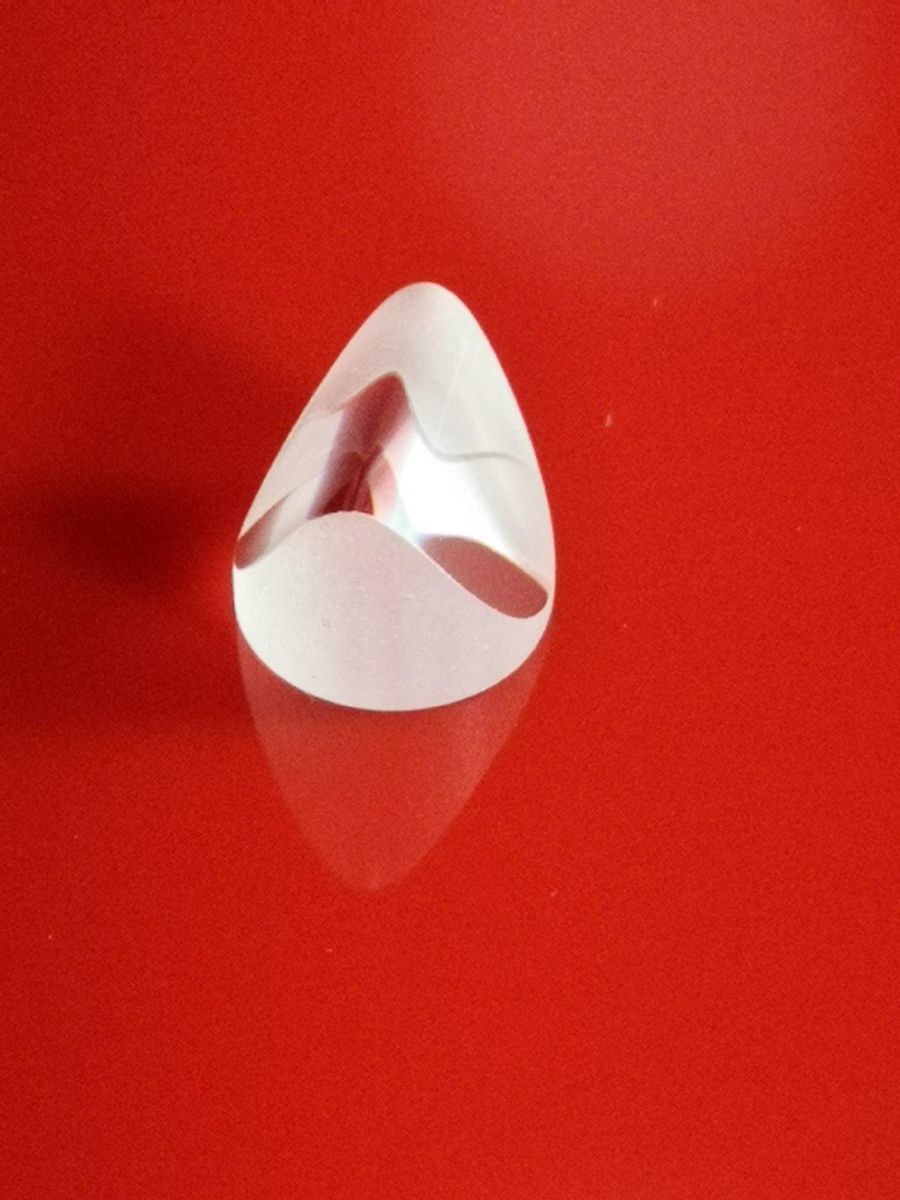

Model: Fan110 °-5mm-d9mm-660nm
Material: N-SF6 (German Schott/Chengdu Light Spot)
Overall Size: Platinum 9 * H8.5mm
Scope of Application: Robot Eye Scanning, Laser Line Scanning, Industrial Positioning Marking
Brand: Kaishuo
Specifications: Fan110 °-Inch, Fan110 °-Inch, Fan110 °-Inch, Fan110 °-Inch, Fan110 °-Inch
