This is a Mini DC solar power system. It can provide power for all kinds of low voltage electrical appliances, such as 3W 4VDC LED, Mobile phones, and digital products. With complete functions, simple operation, and no need for complex installation, it plugs and plays.
FM/SD CARD/ BLUE TOOTH MP3 Multiple functions green energy no pollution home solar system/solar power speaker with TF/USB

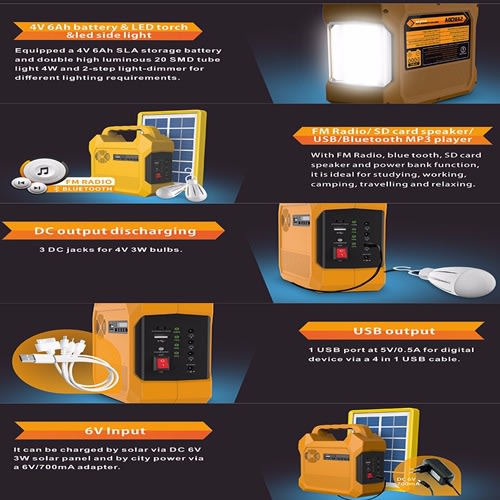

- 4 LED light Indicators showing Capacity of battery, Indicators for LVD, Charging, Float charging, and Overloading.
- Reverse Connection Protection, Overcharging Protection, Overload Protection
- It starts charging without turning on the system, so self-consumption will be low.
- Battery Low protection, no need to worry about damaging battery because of long time inactivity.
- MP3 Decoding, Bluetooth and Radio.
| Lead Acid Battery | 4V 6000mAh |
| Adapter Charging | 6V 700mA |
| DC solar input charging | 6V/3W solar panel |
| USB Output Discharge | DC5 |
| Output Discharge | DC4V/3W |
| Rated Voltage | AC 220V ~240V/50-60 Hz |
| Operation Temperature | 0-50? |
| Operating Time | Front light:18hrs(High brightness),15hrs(low) 1 bulb: 20hrs, 2 bulbs: 8hrs high brightness Front light+2bulbs: 7.5hrs |
| Charging Time | AC 110-240V 50/60Hz: 10hrs DC solar panel under available sunlight: 15hrs |

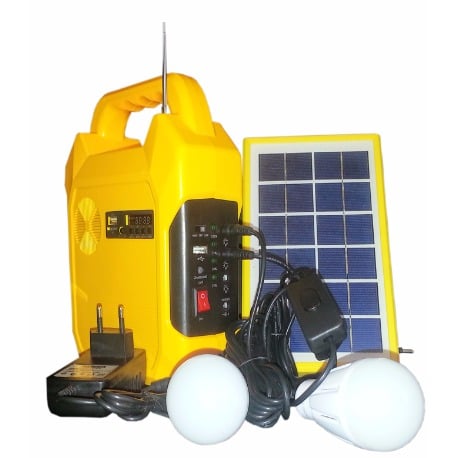

| Accessories | 6V 3W solar panel*1pcs, adaptor*1pcs, 4 in 1 USB cable*1pc, 4V/3W LED bulbs*2pcs |
-
1. maintenance and common troubleshooting
This solar system is for indoor use; please do not let the battery bank get exposed to strong sunlight and a damp environment. If accidentally the system is filled with water, please turn off the power switch and make sure the machine is dried before reusing it.
1.2 If you are not going to use it frequently, please turn off the power switch and charge the battery until it is full once a month.
1.3 The battery capacity is 6AH, in order to guarantee the service time for the battery, please try to keep the charge and discharge current within 1/5C
1.4 Please avoid keeping the battery in an under-voltage state for a long time, otherwise, the capacity and service life of the battery will be affected. Whenever the battery is in an under-voltage state, you’d better charge it for two days or more before reusing it
Talkers Energy undertakes a strict quality control system and insists on perfect workmanship and the use of top quality materials. And our products have been CE, CB and SASO certified. Our pursuit of first-rate quality, competitive prices and considerate after-sales services offer both potential and long-standing client confidence in our company.
