Colour |
Black |
Brand |
Ubiquiti |
USB |
YesYes |
Wireless Speed |
Up to 54 Mbps |

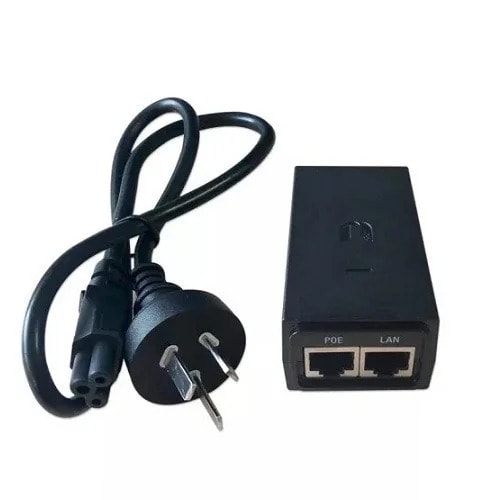

Ubiquiti POE-24-12W to power PoE devices with POE power.
Ubiquiti Networks offers Power over Ethernet (PoE) Adapters to power a variety of Ubiquiti products. The PoE Adapters are compatible with most Ubiquiti PoE devices*, including: • airFiber® • airMAX® • EdgeMAX® • mFi® • UniFi® AP • UniFi Protect / airVision.
Specific PoE Adapter models are designed to work with the airGateway. The airGateway is a compact CPE (consumer premises equipment) gateway with built-in Wi-Fi used to connect the subscriber’s local network to the WISP network. The airGateway is available in three models: • airGateway Standard model with an internal antenna • airGateway Pro Dual-Band Wi-Fi model with an internal antenna • airGateway-LR Long-range Wi-Fi model with an external antenna for extended range The airGateway plugs into any of these PoE Adapters:
Ubiquiti PoE Adapters provide a variety of features to help protect your PoE devices: • Surge protection • Clamping protection • Maximum surge discharge • Peak pulse current • AC cable with earth ground Electrostatic discharge (ESD) is the leading cause for outdoor device failures. You can effectively protect against ESD damage using a grounded Ubiquiti PoE Adapter, TOUGHCable™, and TOUGHCable Connectors.
Specifications
Model
POE-24-12W
Dimensions
85 X 44 X 29 Mm (3.35 X 1.73 X 1.14")
Weight
91.7 G (3.24 Oz)
Voltage
Output Voltage 15VDC @ 0.5A
• LAN Activity Indicator No
• Gigabit LAN Port No
• Remote Reset Capability No
• Reset Button Input Voltage No
• Input Current 90-260VAC @ 47-63 Hz
• Inrush Current <30A Peak @ 120VAC, <60A Peak @ 230VAC
Working environment
Operating Temperature 0 To 40°C (32 To 104°F)
• Storage Temperature -30 To 70°C (-22 To 158° F)
• Operating Humidity 35 To 95% Non-Condensing
Power consumption
• Clamping Protection 11V Data, 60V Power
• Max. Surge Discharge 1500A (8/20 Μs) Power
• Peak Pulse Current 36A (10/1000 Μs) Data
