This pocket hole jig can produce accurate, solid joints. It is adequate for both lots of joinery job and occasional use.

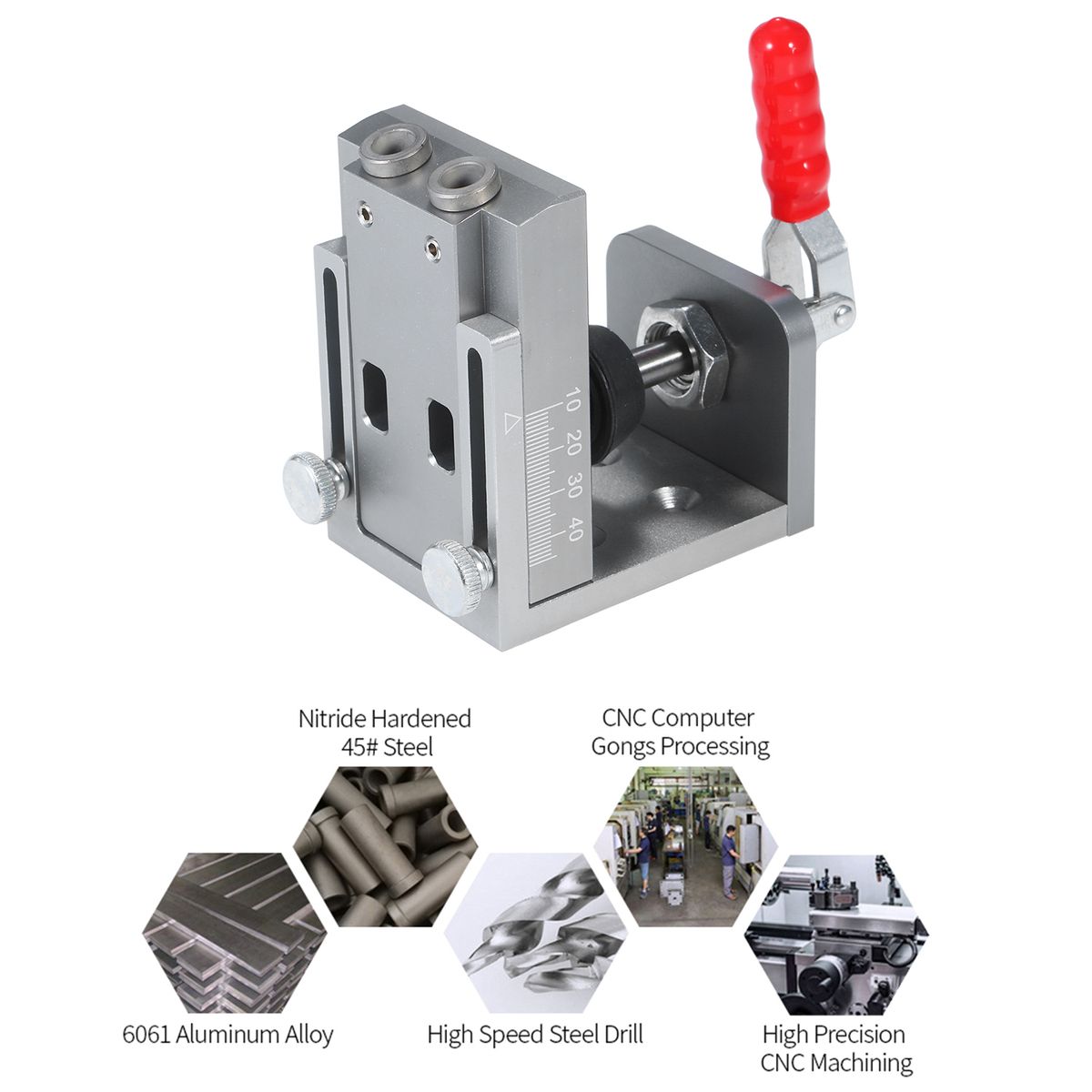

Features: Made of harden aluminum alloy, the pocket hole locator features solid, durable and well built, will not be quickly worn-out.
Steel drill allows you to drill accurate & smooth holes without burr into your timber. Make woodwork much faster and easier.
The angle of the holes (15°) gives maximum strength to the joint. Screw through these holes to join two pieces together.
Equipped with a toggle clamp & enlarged chip removal hole, it enables to quickly and securely hold your board, improve efficiency while you drill.

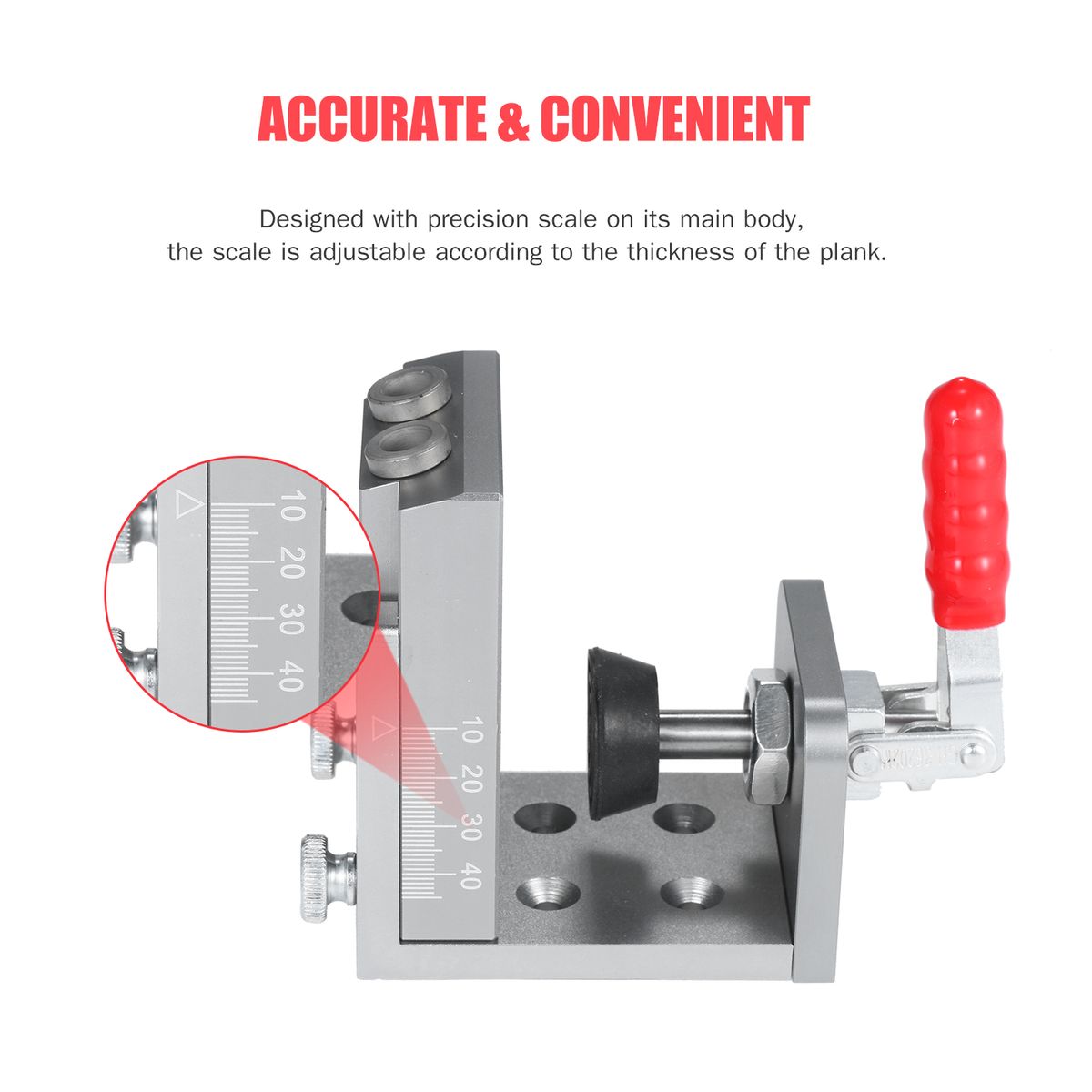

Designed with precision scale on its main body, the scale is adjustable according to the thickness of the plank.
This oblique hole positioner is effective in all timber with thicknesses ranging from 12-22mm.
Wide use in making a box, drawer, cupboard, or any other kind of rectangular frame; join pieces of wood to each other at right angles.
It comes in DIY kit, very easy to assemble and use; a suitable tool for from the home woodworking enthusiast to the professional.
Specifications: Material: Aluminum alloy
Color: Grey
Drill size: φ4*φ9*170mm
Hole angle: 15°
Suitable pocket plug diameter: 9mm
Suitable plank thickness: 12-22mm

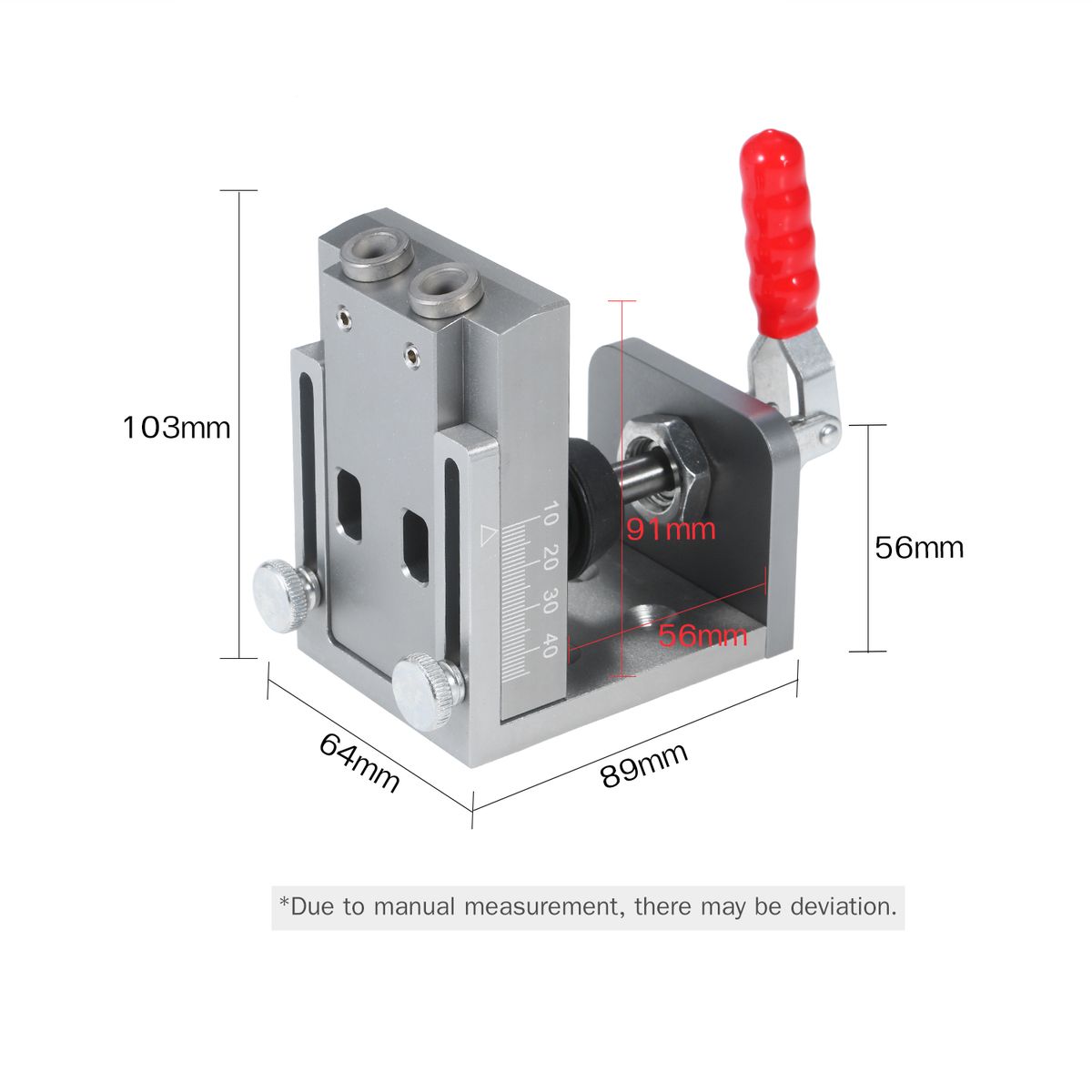

Item size: 8.9*6.4*10.3cm / 3.50*2.51*4.05in
Package weight: 953g / 33.61oz
Package size: 21.5*12*8.5cm / 8.46*4.72*3.34in
Note:This product needs to be assembled by manual operation.
Hole locator only, other accessories are not included.
Due to manual measurement, there may be deviation.
Due to lighting, the picture and material object may slightly differ in color, please in kind prevail.

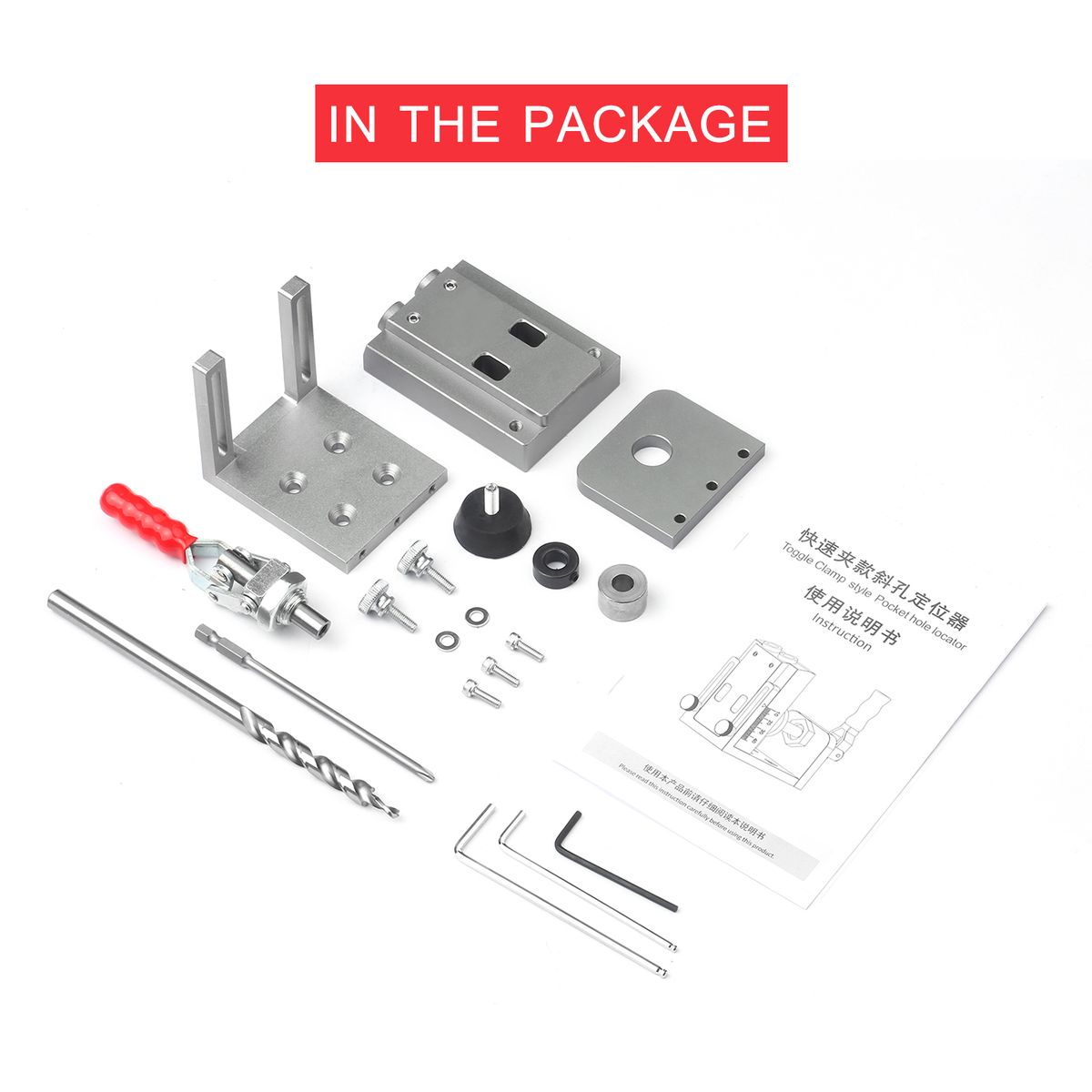

Packing List: 1 * Hole Locator Jig Kit
Key Features
Made of harden aluminum alloy, the pocket hole locator features solid, durable and well built, will not be quickly worn-out.
Steel drill allows you to drill accurate & smooth holes without burr into your timber. Make woodwork much faster and easier.
The angle of the holes (15°) gives maximum strength to the joint. Screw through these holes to join two pieces together.
Equipped with a toggle clamp & enlarged chip removal hole, it enables to quickly and securely hold your board, improve efficiency while you drill.
Designed with precision scale on its main body, the scale is adjustable according to the thickness of the plank.
This oblique hole positioner is effective in all timber with thicknesses ranging from 12-22mm.
What's In the Box
1 x Hole Locator Jig Kit
