P11-5A Digital Electronic Counter Counter Punch Punch Magnetic Induction Proximity Switch Reciprocating Rotary Counter

₦ 64,454.50 ₦ 67,846.84 -5%

0 No Reviews

Product SKU: RENG209806

Brand: Generic

Quantity

In Stock

100% Secure Payments

TrustPay

Pay Online Delivered T&C^*

Delivery Information

Shipped from overseas and normally delivered between 20-35 days

Have one to sell? Sell on rehmie

Product Specifications
Description

Model	JMVANLIN219407
Production Country	China
Size (L x W x H cm)	16 x 12 x 6
Weight (kg)	0.2
Certifications	Organic
Color	multicolor
Main Material	1
From the Manufacturer	1
Care Label	1

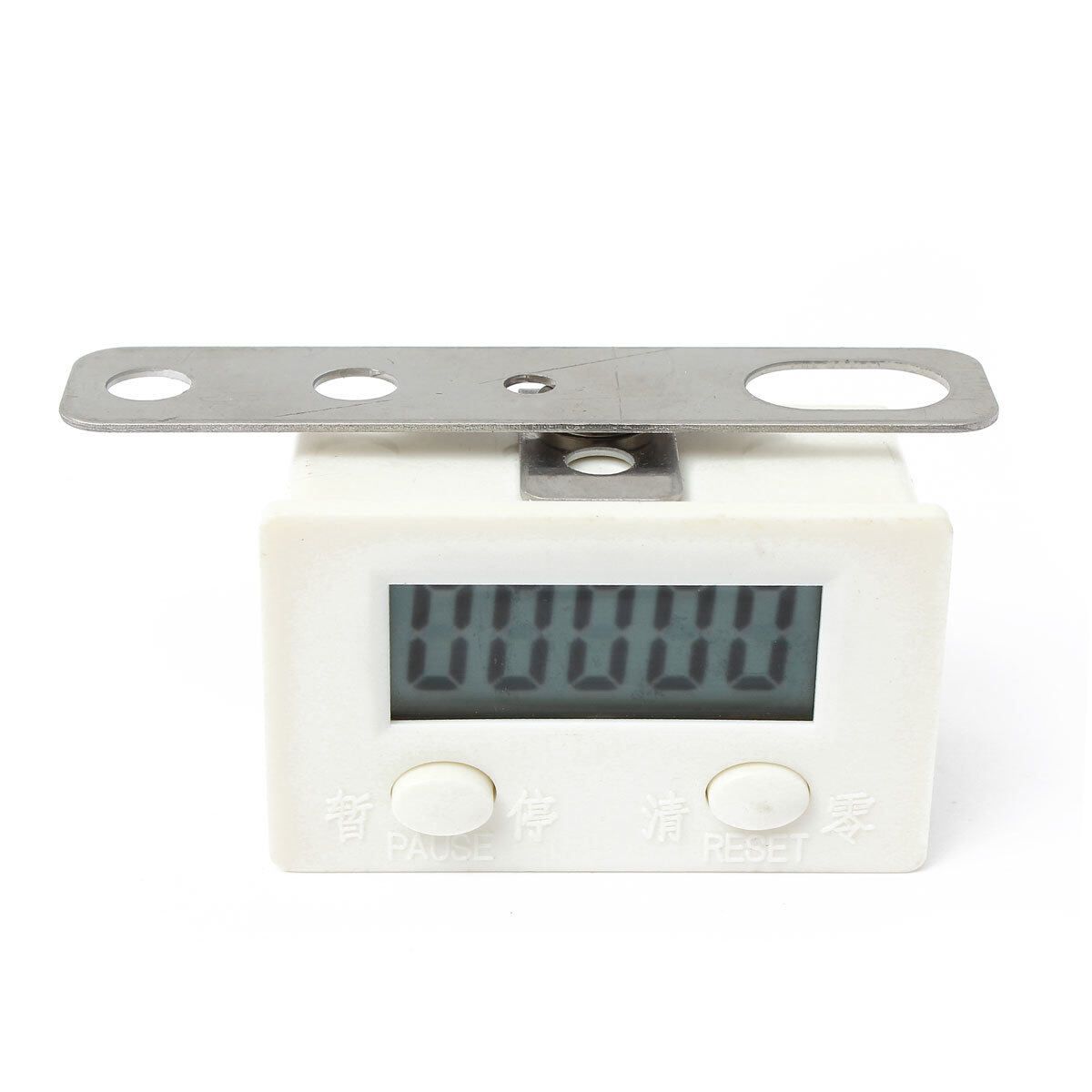

Magnetic Induction Digital Electronic Counter Instruction

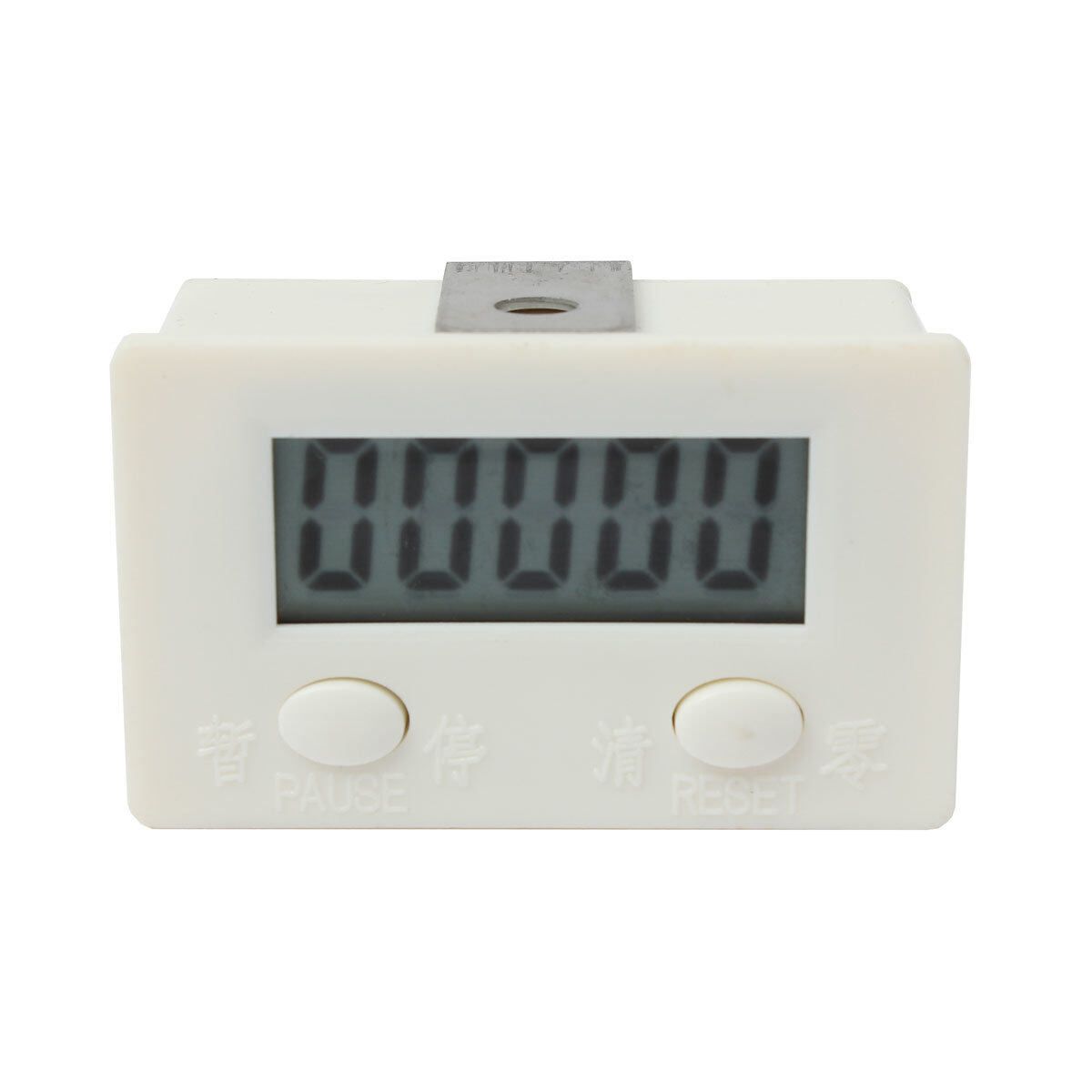

1 {}Five-digit big LCD, super low consumption, large and clear indication

2 {}Press Counting/Pause key (Pause) to stop counting, after 0-30 sec, LCD indication will be automatically off and in standby state. Press the Counting/Pause key again to turn on the indication and continue to count.

3 {}Use magnetic induction, easy to install and precise counting

4 {}Maximum counting speed: 20 times per second

5 {}Reset: through pressing the Reset buttons on board or exterior

6 {}Use the common 5th , free from external supply

7 {}Anti-vibration, efficiently ensure the stable and reliable system operation

8 {}Free from mechanical abrasion, safe work, long lifespan

Technical

: 1.5V—AA 5th

Reset modes: board/exterior

Counting range: 0---99999

Available ambient temperature: -5-40°

Minimum counting PW: 10mS

Dimension: 64*38*38*mm

Distance within the magnetic induction: about 5-10 mm

Distance out of the magnetic induction: ≥ 30mm

Hole size: 61*36 mm

Total weight: about 100g

Configuration List:

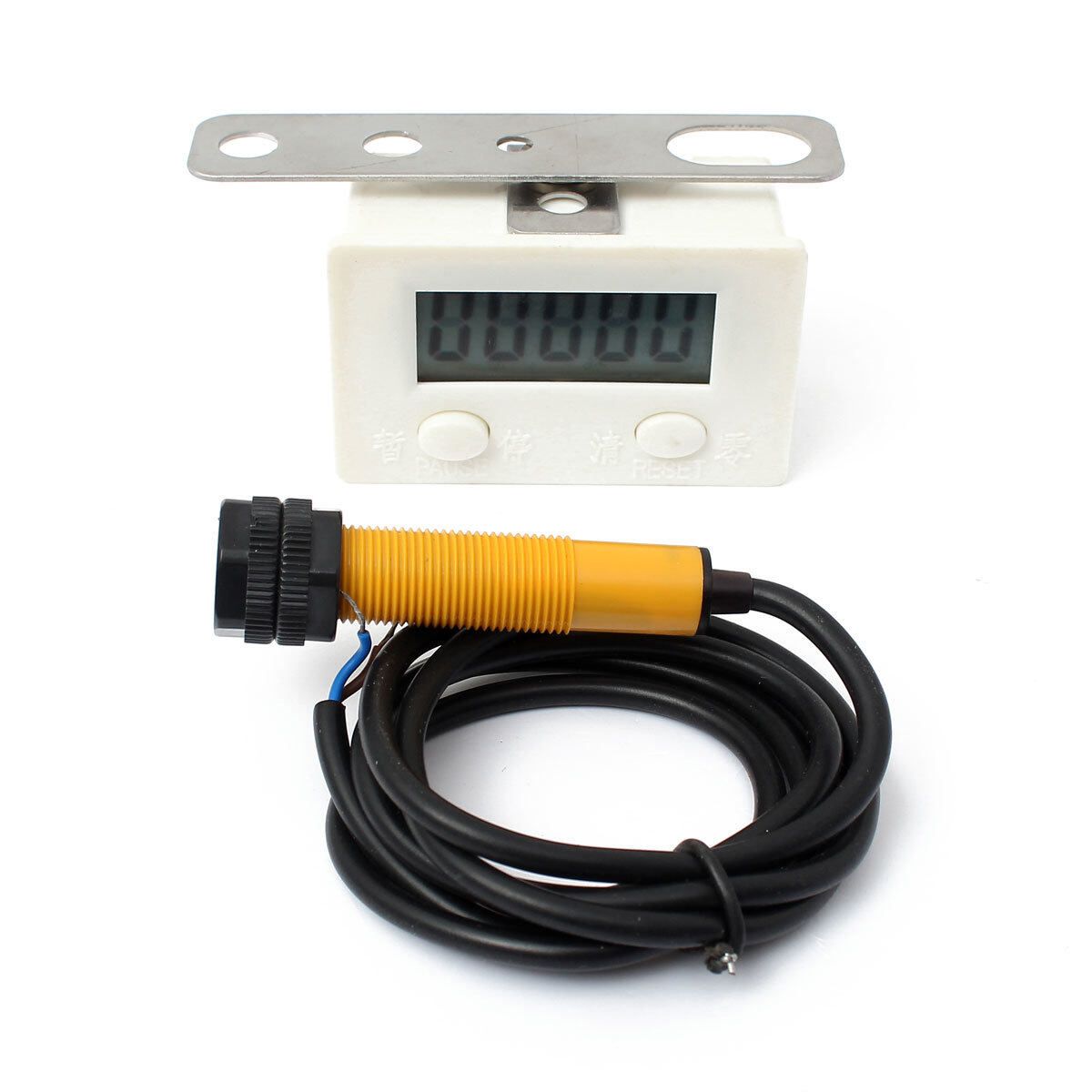

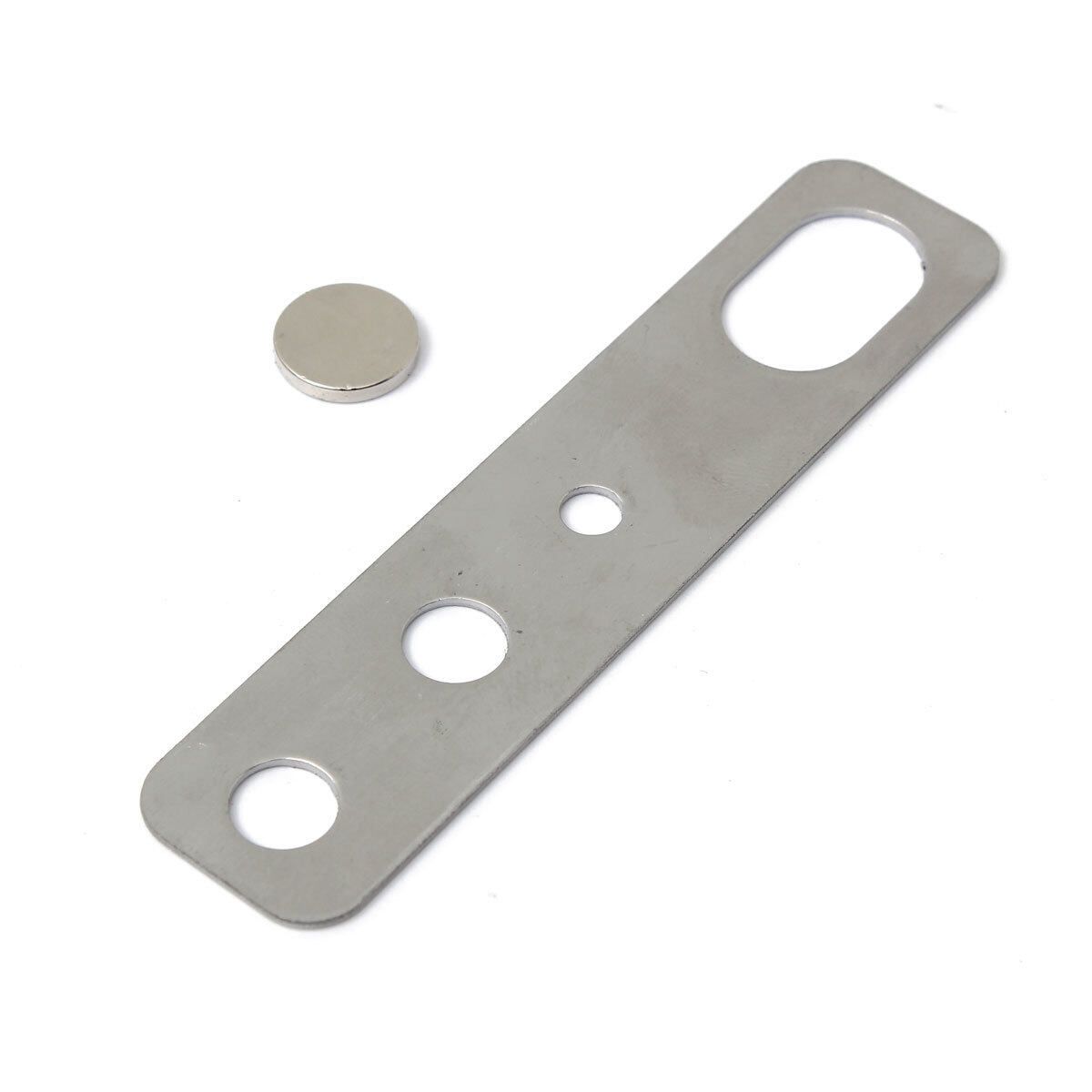

One digital counter, one magnet, one magnetic induction switch, one pair of supporters

Installation:

Make sure the is loaded before operation.

First loosen two exterior screws on the external cover, remove the back cover lightly (do not the signal line), then load one 5th (not included in this counter, customer should buy it by themselves, the lifespan of common 5th is above half year, while the with high performance, costing 2 Yuan, is more durable for more than 1 and half years), and restore the back cover and two external screws.

Application Method:

Start counting: connect the magnetic control induction switch to the counting terminal, according to the requirements of actual operation, flexibly assemble the magnetic induction switch and magnet on the appropriate positions of device, and then do counting once, meanwhile, make the magnet approach and leave the magnetic control induction switch once.

During operation, make the magnet follow device with distance from the magnetic switch within 0.5-1 cm, and then move the magnet to lengthen distance to be 3-5cm, and , start count as 1, repeat the procedures, and accumulate count, like: 0, 1, 2, 3, 4, 5, 6 ……(Note: start count when the magnet moves away). During assembly, please adjust the positions of magnet and induction switch, as well as their distance.

Pause counting: Press the Counting/Pause (Pause) key to pause counting. According to the running states of counter, the counter LCD indication will be off within 0-30 seconds and into standby state ( consumption nearly closes to 0); Press the Pause key again to turn on the LCD indicator and continue to count.

Reset: directly press the Reset button; or additionally connect one Reset button (need to buy by end user) to the reset terminal, and then press it to reset the device. Note: during reset, no matter the counter is in startup state or standby state (LCD has no indication), data will be erased and the LCD indication is 00000.

Precautions and Special Introductions

{}1 {}The signal lines of counting and reset should be as short as possible. Do not lay the signal line with strong current line or line to avoid unnecessary interference; use the shielded line if necessary, which should be connected with the reset terminal.

{}2 {}The counting signal and reset signal can be inputted with contact signal, signals are not allowed.

{}3 {}The induction distance is related with magnetism of magnet, so the induction distance can be adjusted by changing the magnet.

{}4 {}The operation temperature of magnet should be within 70 degree, over high temperature will cause magnetism lose, further to invalidate induction.

{}5 {}When the LCD indication is , please change the ; if the device will be shutdown for a long time, please press the Pause key to close LCD and auxiliary ; or take out the to prevent counter damage from leaked .

{}6 {}The consumption is very low, so no need to save through pressing Pause key to close the LCD indication

a a a a a

Key Features

Usable
Practical
Light weight
Fashion design
Durability
Convenient to carry
Easy to use
Exquisite Workmanship
Well Made
Best Choice and best discounts
Customer Care is Our Top Priority
Offer is Subject to Availability
Big Sale

What's In the Box

1 x P11-5A Digital electronic counter counter punch punch magnetic induction proximity switch reciprocating rotary counter
