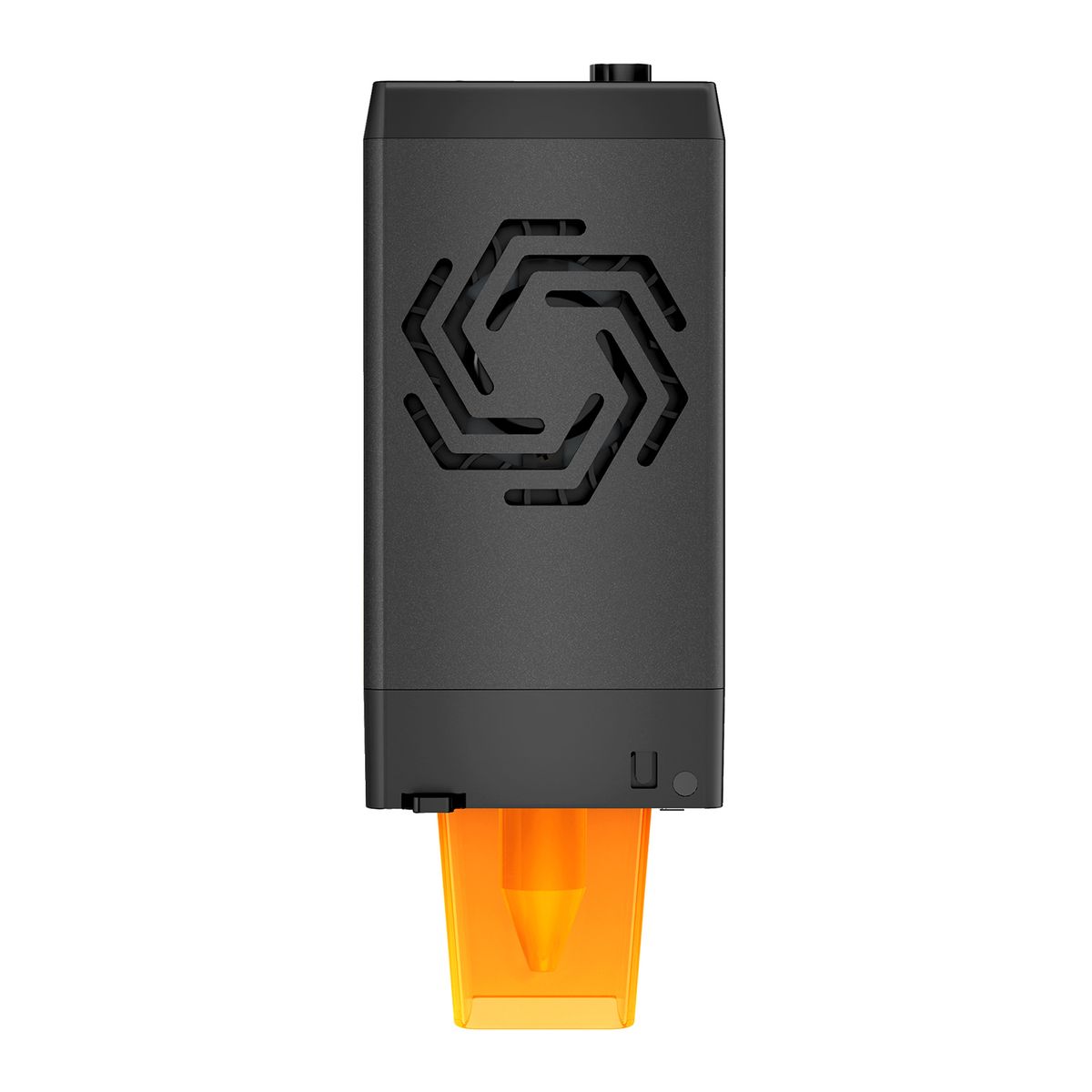

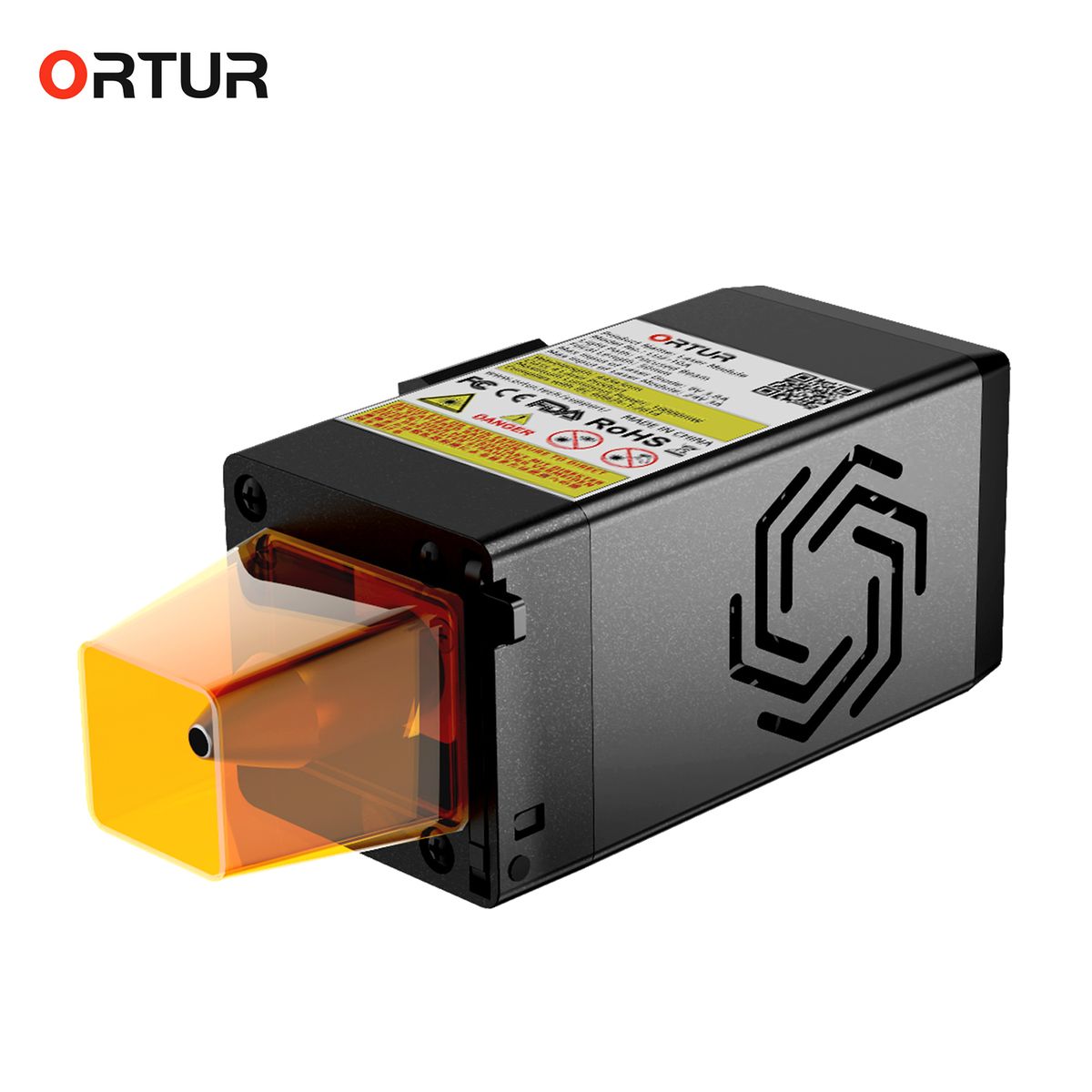

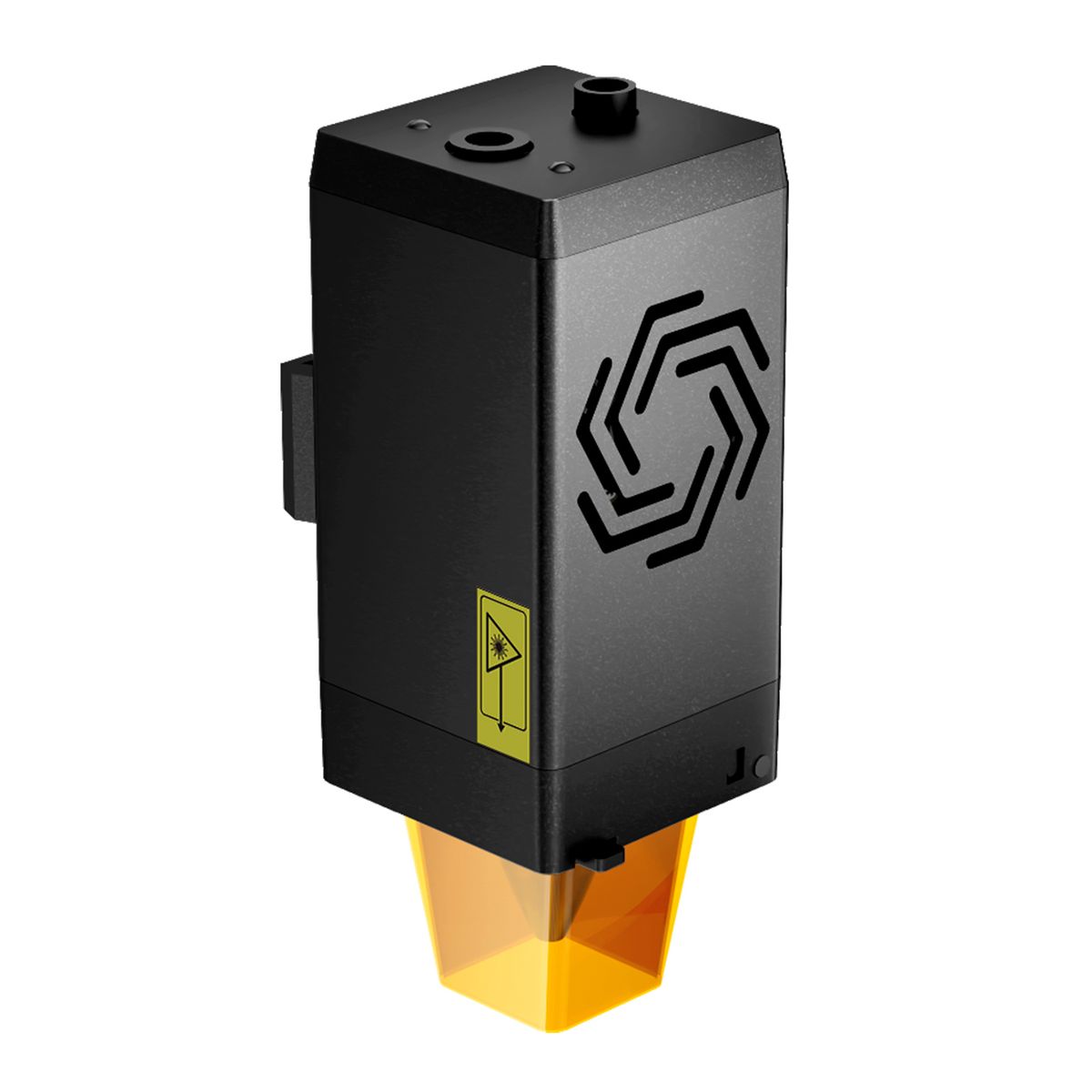

Ortur LU2-10A 10W Engraving Laser Module Ultra-Fine

₦ 905,159.05 ₦ 952,799.00 -5%

0 No Reviews

Product SKU: RENG395308

Brand: Generic

Quantity

In Stock

100% Secure Payments

TrustPay

Pay Online Delivered T&C^*

Delivery Information

Shipped from overseas and normally delivered between 20-35 days

Have one to sell? Sell on rehmie

Product Specifications
Description

Model	N/A
Production Country	China
Size (L x W x H cm)	25.00×14.00×10.00
Weight (kg)	0.88
Color	naturla

Features:

Widely Compatible Design: It can be installed on a variety of brand machines, such as ortur laser master 2 pro s2, laser master 2 S2, laser master 3.

60W Effect Spot Compressed Laser: 24V LU2-10A with real 10W laser . It has an ultra-thin square laser focus, and its cutting penetration and accuracy are twice of ordinary lasers. Even in the field of spot lasers, LU2-10A has finer engraving marks and stronger cutting and penetration capabilities. It can cut 20mm thick wood boards and engrave ceramics and acrylics, which is almost beyond the effect of 60W CO2 laser.

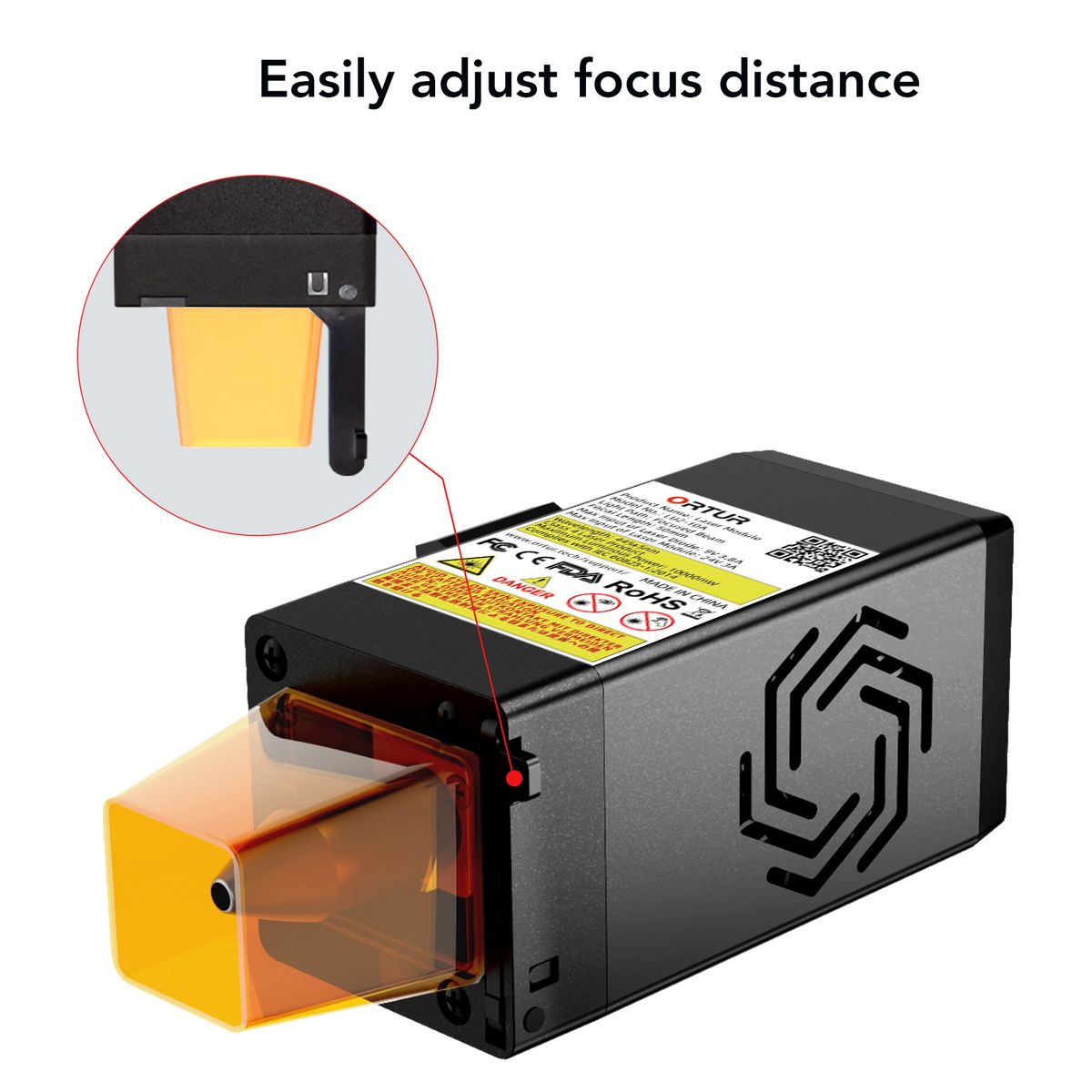

Fixed-focus Design: Combines a fixed focus lens and a sliding design. You only need to slide the laser and tighten the screws to complete focusing. This makes the use of the laser very simple. Using it on different machines does not affect its sliding fixed focusing function.

Circle Eye-protection Cover Design: The laser filter cover filters 98% of the ultraviolet light to the eyes. You and the people around you can watch laser engraving from all angles without wearing . At the same time, it can prevent animals from catching the laser spot.

General 24V/PWM Modulation Board: It is the latest 24V/PWM modulation board, which can be adapted to common GRBL or motherboards.

Specification:

Laser Class: Class 4

Optical : 9,500-10,500mW

Electric : 40W

Product Size: 44x55x121MM / 1.73"x2.17"x4.76"

Net Weight: 235g / 0.52LBS

Wave Length: 445±5nm

Lens Group: 3rd Generation Compression Lens Group

Focus: Fixed Focus

Laser Spot Size: About 0.05 x 0.1MM

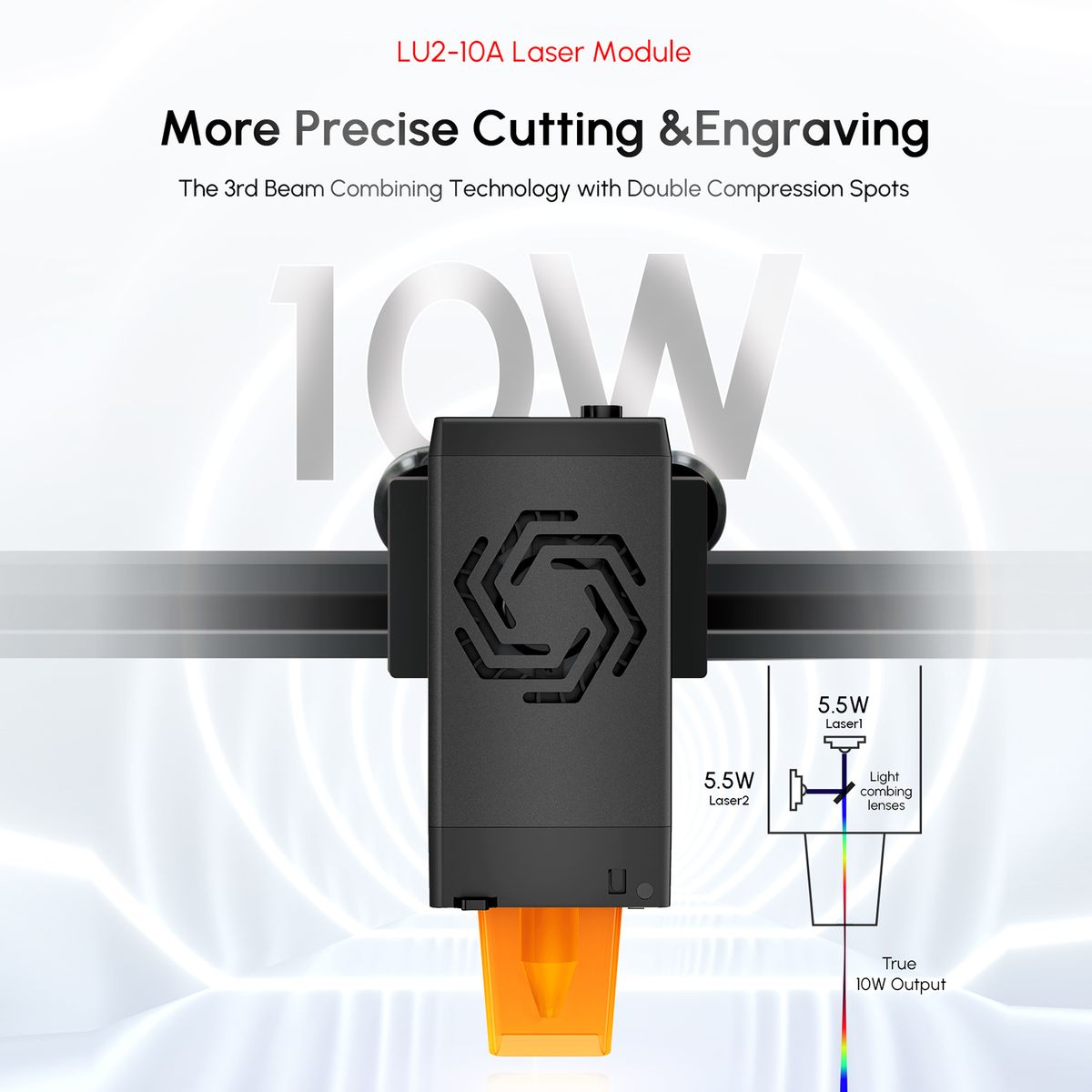

Laser Diode: 5.5W Laser Diodes x 2

Input Voltage of Laser Diode: 8.6V

Input Current of Laser Diode: 3.8A

Service Life: ≥10,000 Hours (Every 50 hours of use, please check the lens, if it's dirty, please clean the lens with a medical cotton swab and alcohol.)

Control Board: 24V/PWM Control Board

Control Mode: PWM

Rate: S0-S1,000

Support Engraving Speed: 0-20,000MM/Min

Air Assist: Built-in

Materials: Aluminum + Brass + PC

Wires: 4P 22AWG

Input Voltage of Adapter: 110V-220V (Compatible)

Output of Adapter: 24V / 2A

Package Weight: 700g/24.6oz

Package Size: 25x14x10cm/9.8x5.5x4in

Packing List:

1 x Laser Engraving Module

Key Features

Widely Compatible Design: It can be installed on a variety of brand machines, such as ortur laser master 2 pro s2, laser master 2 S2, laser master 3.
60W Effect Spot Compressed Laser: 24V LU2-10A with real 10W laser . It has an ultra-thin square laser focus, and its cutting penetration and accuracy are twice of ordinary lasers. Even in the field of spot lasers, LU2-10A has finer engraving marks and stronger cutting and penetration capabilities. It can cut 20mm thick wood boards and engrave ceramics and acrylics, which is almost beyond the effect of 60W CO2 laser.
Fixed-focus Design: Combines a fixed focus lens and a sliding design. You only need to slide the laser and tighten the screws to complete focusing. This makes the use of the laser very simple. Using it on different machines does not affect its sliding fixed focusing function.
Circle Eye-protection Cover Design: The laser filter cover filters 98% of the ultraviolet light to the eyes. You and the people around you can watch laser engraving from all angles without wearing . At the same time, it can prevent animals from catching the laser spot.
General 24V/PWM Modulation Board: It is the latest 24V/PWM modulation board, which can be adapted to common GRBL or motherboards.
Widely Compatible Design: It can be installed on a variety of brand machines, such as ortur laser master 2 pro s2, laser master 2 S2, laser master 3.

What's In the Box

1 x Laser Engraving Module
