BbpTo HV SeriesManual Turn Valve, Using the Reversing Valve Rotating Handle, Three Unit Four Passage. Small Size and Large Traffic. Simple Structure and Reliable Working Performance!
BbpToThe Appearance Is Simple and Beautiful, and It Has a Panel-Mounted Structure.
BbpToNozzle Caliber:G1/4"、G3/8"、G1/2"
BbpToEffective Cross-Sectional Area: 30mm²(CV = 1.68)
BbpToUse Pressure: 0~1.0Mpa
○Applicable tempure: -5~60 ℃

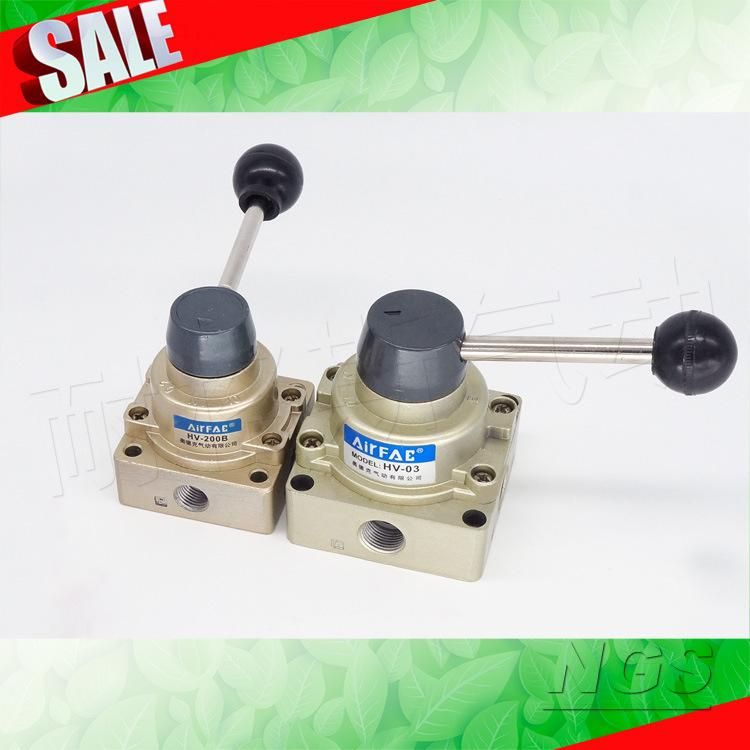

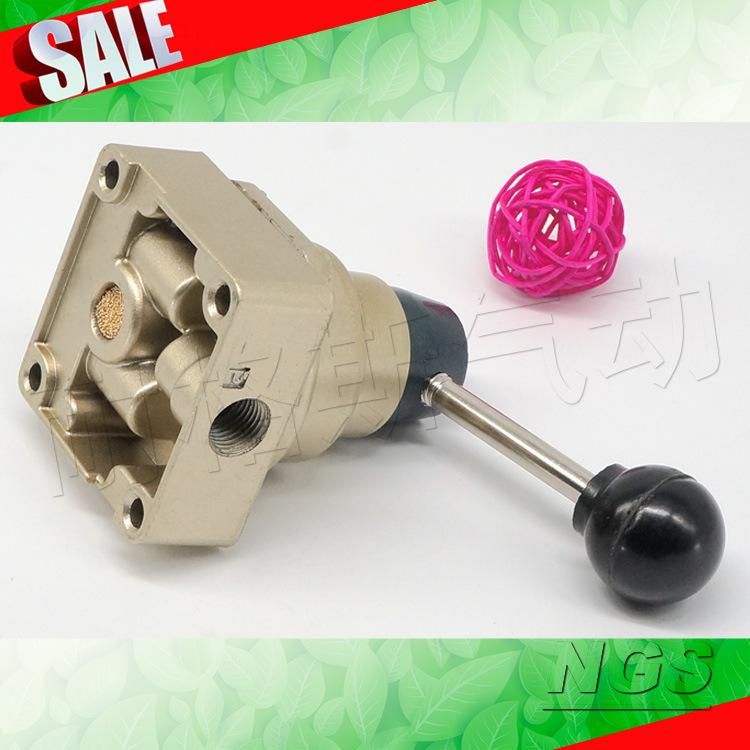

※Product Big Picture※
※Product Application※
It Is Suitable for Quick Switching between Medium and High Voltage Lines and Low Voltage Lines in Pneumatic Lines.
Key Features
Customized Processing: No
Brand: NGS
Model: HV-200
Nominal Pressure: 1mpa
Nominal Diameter: 8mm
Product Alias: Hand Valve
Scope of Application: Pneumatic Line Reversing
Material: Aluminum Alloy
Connection Form: Thread
Pressure Environment: Low Pressure
Operating Temperature: Normal Temperature
Standard: National Standard
Type: Three Unit Four Passage
Appearance: Miniature
Flow Direction: BIDIRECTIONAL
Form: Hand Valve
Parts and Accessories: Handle
Purpose: Reversing
Specification: HV-200D Side Air Outlet Bottom Exhaust, VH-200-02 Side Air Outlet Bottom Exhaust, HV-200B Four-Side Mouth Small Body
