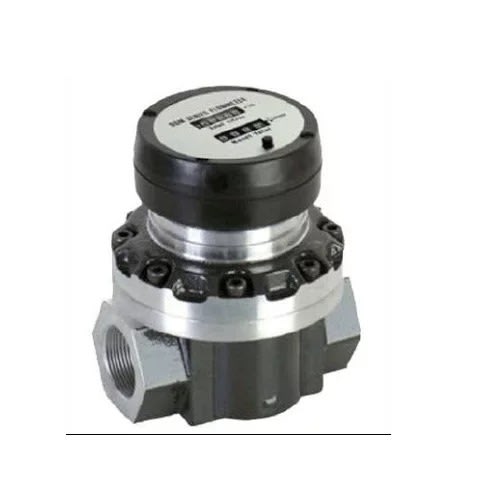

Mechanical type Oval Gear Flow Meter is a kind of positive displacement Meter to measure the liquid flow or instantaneous flow of the Pipe tube. It is a kind accumulate meter with reset option. It is used to measure flow of fuel like kerosene, diesel petrol & oil kind liquid but is forbidden to measure corrosive liquid.
OGM series Aluminum Oval Gear Meter can handle a wide range of viscous fluids with exceptional levels of repeatability and durability.It has mechanical display and electronic display for option.
Model
BMOGFM-25
SIZE
1"
Min.Flow Rate
20 L/min
Max.Flow Rate
120 L/min
Accuracy
±0.5%
Repeatability
0.03%
Max.Viscosity
1000 CPS
Max.Operating Pressure
3.4MPa
Advantage
Compact size, easy maintenance.
Easy to read and operate mechanical display
Horizontal and vertical flexibility of installation options
Low pressure drop.
Application
Widely used in Petroleum,
Chemical, Medicine,
Tranportation, food
industry etc..
