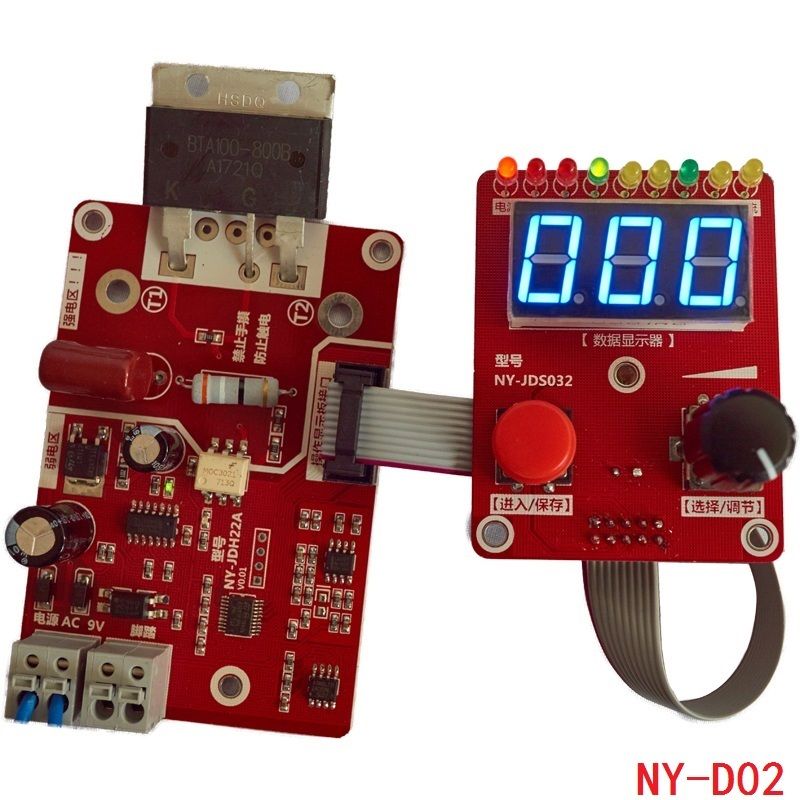

Buy NY-D02 Double Pulse Spot Welding Machine Encoder Time Digit

NY-D02 Double Pulse Spot Welding Machine Encoder Time Digit Module Control Panel Plate Adjustable Current Controller-Transformer

₦ 160,062.18 ₦ 168,486.50 -5%

0 No Reviews

Product SKU: RENG231621

Brand: Generic

Quantity

In Stock

100% Secure Payments

TrustPay

Pay Online Delivered T&C^*

Delivery Information

Shipped from overseas and normally delivered between 20-35 days

Have one to sell? Sell on rehmie

Product Specifications
Description

Model	CHAyiqipeijian2590
Production Country	China
Size (L x W x H cm)	101010
Weight (kg)	0.2
Color	Transformer
Main Material	PVC

The transformer is AC 220V to AC 9V

Operation description

3.1 Operation display panel indicating lamp

3.2 Show state description

Common control of the controller 3 Operation state, welding preparation, parameter query, parameter change

Welding preparation : Running light Always Time, current, interval, time, current indicating light out

Parameter query The operation indicates the lights, time, current, interval, time, and current relative to the light, the digital tube is always bright, and the value of the display is the corresponding parameter value.

Parameter change Operation indicator lights out, time, current, interval, time, current corresponding indicator light, digital tube flicker, and display value is corresponding parameter value change value.

3.3: welding preparation

By [selection] / Adjust the encoder counter clockwise rotation, Make the running light bright, time, The current, interval, time, and current indicate the extinction of the lamp, and the welding can be carried out at this time. The value of the digital tube is the current welds value.

3.4: voltage calibration

Because this controller has the function of net preure compensation, it is neceary to calibrate the voltage when the first time is installed, only one can be calibrated. (as long as the power transformer is not replaced, no recalibration is needed.)

Calibration operation:

In running state, the lights that are kept on a micro motion until the time, the current and the interval are all lit up. At this time, the market voltage is measured by multimeter, for example, the voltage measured at that time is 225V So, the rotary encoder makes the value of the digital tube display 225 You can then double click the fretting switch and exit the calibration.

3.4: parameter changes

When querying , by [selection] / Adjust the encoder to rotate, query, indicating the light, the digital tube shows the parameter values of the current corresponding .

For example: rotation [choice] / In order to make the interval light bright, the value of the digital tube is the interval time.

3.4: parameter changes

Take the change interval as an example

3.5 : count zero

This controller has the function of welding counting. In the proce of welding, each welding, the welding count is added automatically. 1 . Counting range 0-999.

If you want to clean up, when running, double click into / Preservation] on, count automatic clear 0.

4: Baby detail picture

About shipping
Shipping and Packaging All it will be double checked and well packed before sending.It will be dispatched within 2 business days ar buyers pay for the order. It usually takes about 14 to 18 working days for delivering the package to the destination(for remote areas,it may take a little longer).

Special Announcement:
Please fill in the correct and detailed consignee, address and phone number in the order. For fast and correct delivery.If you do not receive order within 30 working days,please feel free to contact Customer Service before leaving Negative and Neutral Feedback, we will do our best to help you resolve the problem.TaxNo, you will only pay what is quoted as total cost at checkout, no more. You are not expected to pay any additional duties ores. If you are asked by Customs or our logistic partner to pay duties, please contact our Customer Service .

Your 100% satisfaction is very ant to us
If the product is not on good condition, You can return this product within 14 working days, please contact customer service center before returning.FeedbackYour satisfaction is our first priorityIf you receive the order and it is in good condition,we would be grateful if you would leave us 5 star Positive Feedback for the transaction.

Key Features

DIY Supplies:ELECTRICAL
Origin:Mainland China
Output Type:+
Model Number:+
Color classification:100A spot without power supply 40A spot without power supply supportin

What's In the Box

1X NY-D02 Double pulse Spot welding machine encoder Time Digit Module Control Panel Plate adjustable current Controller
