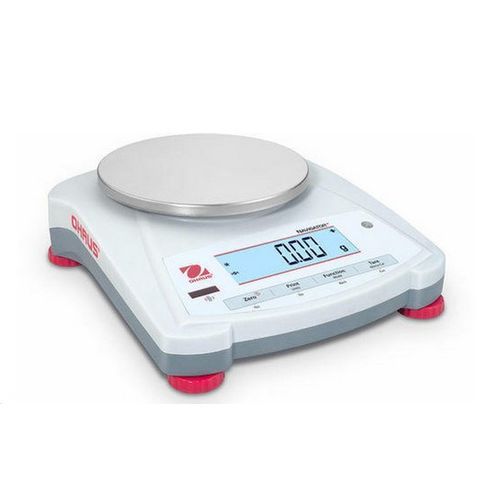

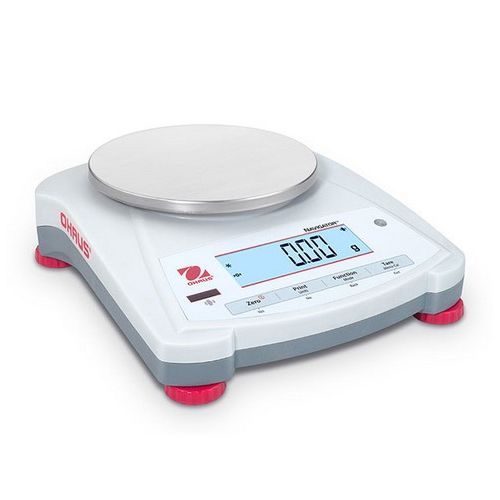

OHAUS NV422 Navigator Portable Balance
The Navigator NV series from Ohaus is a rugged balance fit for many general weighing applications. The newly redesigned model offers improved readability and accuracy while remaining at a competitive price point. The new Navigator is perfect for applications in education, industrial use, and even in the laboratory.
Operating the NV is fast and accurate with a stabilization time under one second which helps improve efficiency, productivity, and throughput. The touchless sensor makes it even easier to perform everyday tasks like zeroing or taring with a mere wave of a hand. Each NV features an overload safeguard system that can endure loads up to four times the rated capacity, ensuring the protection of your investment. Additionally, an integrated shipping lock protects the load cell during transit or storage.
The new Ohaus Navigator series features general weighing applications, parts counting, percent weighing, and checkweighing functions. A stainless steel pan makes cleaning and maintaining your balance a breeze.
Features
- Ultra-fast stabilization times in less than 1 seconds
- Mechanical and software overload protection up to 400% above rated capacity
- User-selectable communication and print settings
- Transportation lock and calibration lock switch
- Touchless infrared (IR) sensor allow hands free operation including tare
- Large highly-visible backlit LCD display
- Durable ABS plastic housing and stainless steel weighing pan
- Integrated up-front level sensor ensures proper setup
- Optional connectivity of RS232, USB or Ethernet (available as accessories)
- Multiple weighing applications and weighing units
- Includes AC adapter with optional battery operation (4 C batteries not included)
- Convenient compact and portable design
- Integral security bracket for help preventing loss or theft
- Low battery indicator
- Automatic shut-off saves power
- User selectable backlight settings
Weighing Modes
- Weighing
- Parts Counting
- Percent Weighing
- Checkweighing
Special Features: - Designed for Accuracy and Repeatability in Essential Weighing Applications Designed for a range of essential weighing applications, the Navigator offers accuracy and repeatability at a competitive price point, making it a valuable tool in laboratory, industrial and education settings.
- Improved Productivity with Fast Stabilization TimeThe Navigator series is designed to accurately stabilize in less than one second to provide fast and accurate weighing results, improving operator efficiency, productivity and throughput.
- Mechanical Overload Protection Safeguards the Balance and Increases Durability An overload protection system that can withstand loads up to four times the rated capacity safeguards the balance. An integrated shipping lock protects the weighing cell during transportation/storage.
- Touchless Sensor for Increased Convenience and Efficiency The Navigator's touchless sensor frees up your hands for handling samples. Users can zero, print, tare or change functions without touching the balance, keeping sample residue off the keypad
The Ohaus Navigator NV422 portable balance has a 420 gram capacity with a 0.01 gram readability and a 5.7 inch diameter pan size. OHAUS raises the bar in price-performance ratio with the newly-designed Navigator series which is perfect for general weighing applications in laboratory, industrial and education settings. Ruggedly constructed and multifunctional, the Navigator is a powerful balance that can handle a diverse range of weighing applications with features such as fast stabilization time, overload protection at four times its rated capacity, and easy operation.
- Designed for Accuracy and Repeatability in Essential Weighing Applications Designed for a range of essential weighing applications, the Navigator offers accuracy and repeatability at a competitive price point, making it a valuable tool in laboratory, industrial and education settings.
- Improved Productivity with Fast Stabilization TimeThe Navigator series is designed to accurately stabilize in less than one second to provide fast and accurate weighing results, improving operator efficiency, productivity and throughput.
- Mechanical Overload Protection Safeguards the Balance and Increases Durability An overload protection system that can withstand loads up to four times the rated capacity safeguards the balance. An integrated shipping lock protects the weighing cell during transportation/storage.
- Touchless Sensor for Increased Convenience and Efficiency The Navigator's touchless sensor frees up your hands for handling samples. Users can zero, print, tare or change functions without touching the balance, keeping sample residue off the keypad.
Technical Specifications: | Capacity | 420 g |
| Readability | 0.01 g |
| Pan Size | O 5.7 inches (145 mm) |
| Stabilization Time | 1.5 seconds |
| Construction | ABS housing and stainless steel pan |
| Calibration | User-selectable external span or linearity calibration / digital with external weight |
| Span Calibration Mass (not included) | 200 g |
| Tare Range | Full capacity by subtraction |
| Weighing Units | g, kg, N, oz, ozt, dwt, lb, lb:oz, ct, grain |
| Application Modes | Weighing, Parts Counting, Percent Weighing, Checkweighing |
| Power Requirements | AC adapter (included) or 4 C batteries (not included) |
| Typical Battery Life | 270 hours |
| Temperature Range | 50°F to 104°F (10°C to 40°C) at 10% to 85% relative humidity, non-condensing |
| Storage Conditions | -4° F to 131°F (-20°C to 55°C) at 10% to 90% relative humidity, non-condensing |
| Communication | RS232, USB, or Ethernet (available as accessories) |
| Display Type | Liquid crystal display (LCD) with backlight |
| Display Size | 0.78 inches (20 mm) digits |
| Balance Dimensions (W x D x H) | 8 x 9.1 x 2.8 inches (204 x 230 x 70 mm) |
| Net Weight | 2.2 lbs (1 kg) |
| Shipping Dimensions | 11.8 x 9.8 x 5.3 inches (300 x 250 x 134 mm) |
| |
|
|---|
Key Features
Ships within 24 hours
Ultra-fast stabilization times in less than 1 seconds
Mechanical and software overload protection up to 400% above rated capacity
User-selectable communication and print settings
Transportation lock and calibration lock switch
Touchless infrared (IR) sensor allow hands free operation including tare
Large highly-visible backlit LCD display
Durable ABS plastic housing and stainless steel weighing pan
Integrated up-front level sensor ensures proper setup
Optional connectivity of RS232, USB or Ethernet (available as accessories)
Multiple weighing applications and weighing units
Includes AC adapter with optional battery operation (4 C batteries not included)
Convenient compact and portable design
Integral security bracket for help preventing loss or theft
Low battery indicator
Automatic shut-off saves power
User selectable backlight settings
