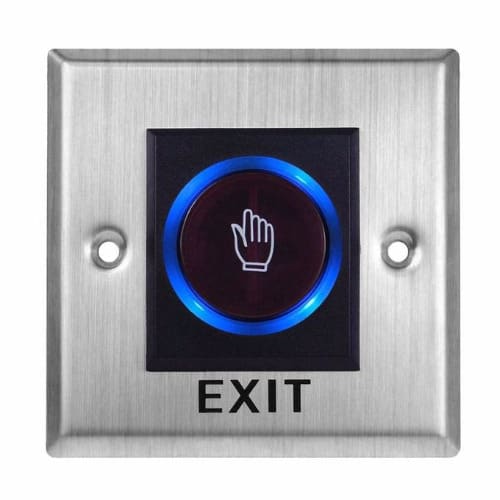

This DC 12V Infrared release button switch offers a reliable design for your access control system.

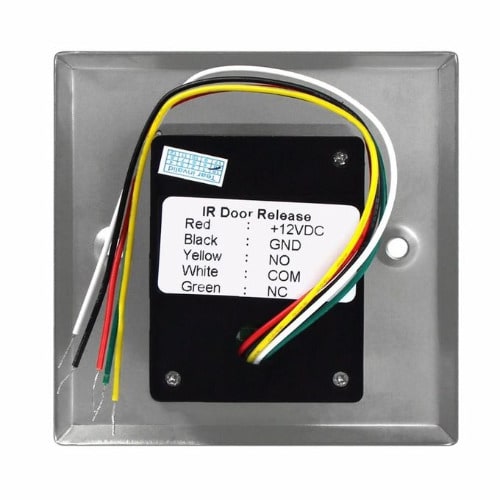

Output Contact: NO / NC / COM
LED Indicator: Blue: Standby, Green : Triggered, Applicable categories: for 120 bottom box or hollow door installation
Sensing Distance: Approx. 5-15CM. Widely used in door entry access control system.
Specification:
Material: Stainless steel
Size(LxWxH): Approx. 115x70x39mm/4.53*2.76x1.54inch
Input voltage: DCl2V
Working current: 50mA
Electrical Performance: 3A@12VDC
Output Contact: NO / NC / COM
50 million times quality test.
Operating Temperature: -20C ~ 50C
Suitable Humidity: 0~95 % (Relative humidity)
American standard installation hole: Pitch 80mm
Sensing Distance: Approx. 5-15CM
Package Includes:
1 Piece Door Exit Switch
2 Piece Screw
Key Features
- High quality
- This DC 12V Infrared release button switch offers a reliable design for your access control system.
- Output : NO / NC / COM
- LED Indicator: Blue: Standby, Green : Triggered, Applicable categories: for 120 bottom box or hollow door installation
- Sensing Distance: Approx. 5-15CM. Widely used in door entry access control system.
