Features:
Multi-Function: Phase detection (normal phase, reverse phase), live line inspection, simple electricity inspection, phase loss judgment, motor steering detection, circuit breaker search, breakpoint location, and line maintenance.
LED dynamic display, intuitive and clear. Easy to read.
The phase sequence table of the three exposed clips or test pins are connected to the exposed three fire lines.
Measure mode: Non-contact clipping method. It does not need to open the wire, and does not need to touch the high voltage exposed live wire.

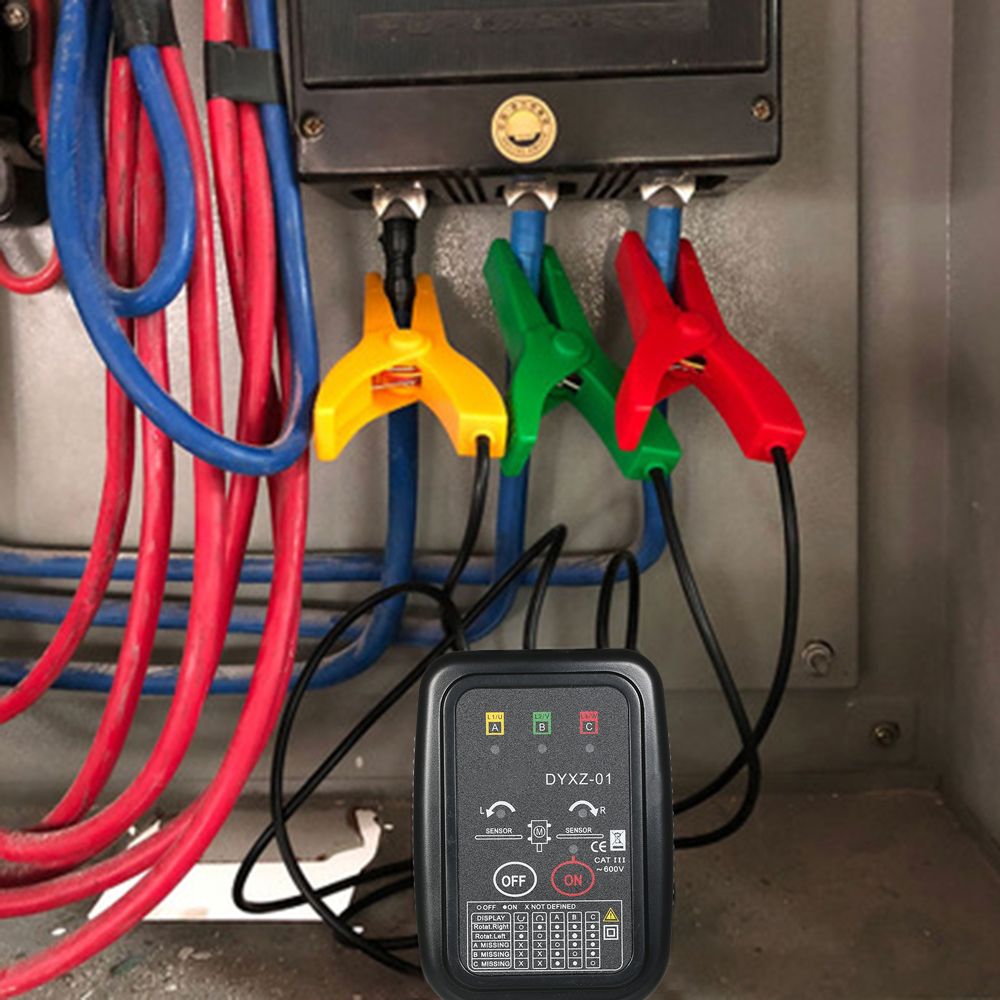

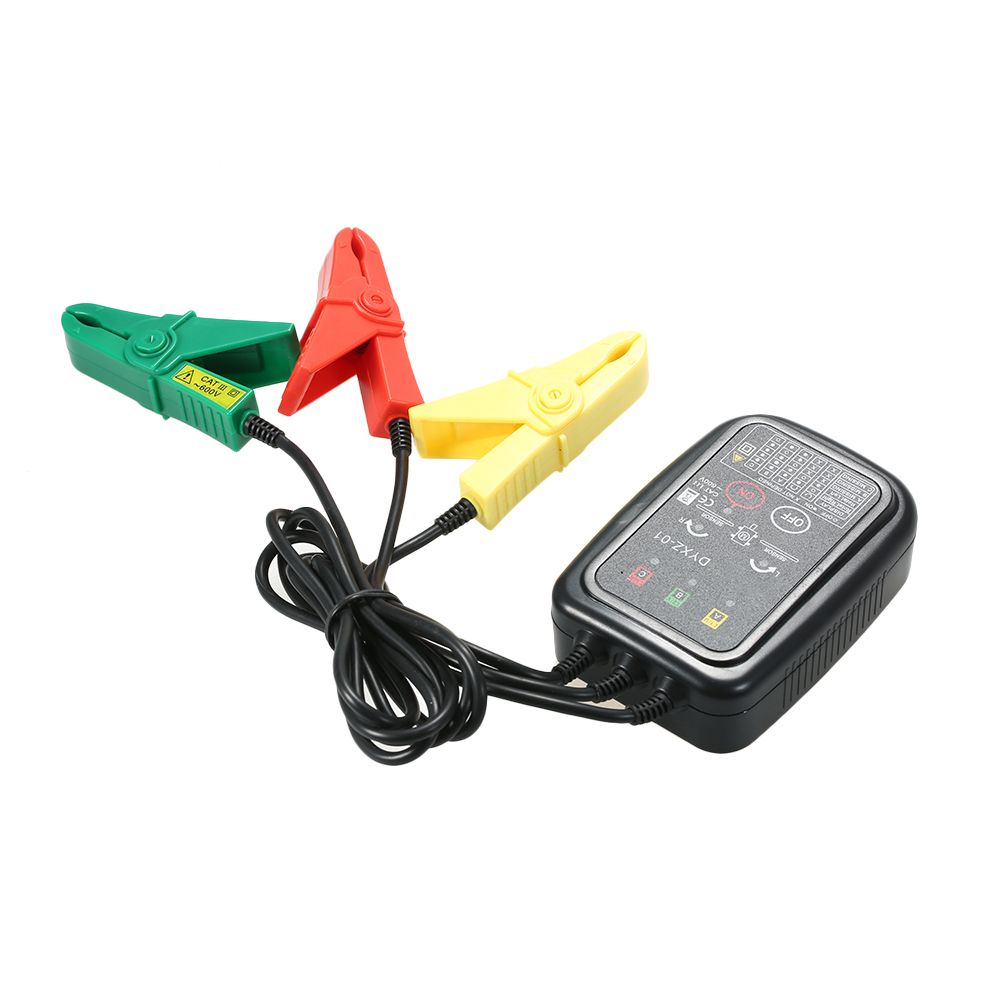

It can directly detect the phase sequence by sandwiching the three super induction high-insulation clamps to clamp the three-phase live wire insulation sheath.
Specification
Model: DYXZ-01
Measure mode: Non-contact clipping method
Frequency: 50Hz/60Hz
Live electricity range: AC70～600V，50/60Hz（Sine wave continuous input）
Measuring the highest voltage: AC600V
Clamp wire size: Outside diameter oslash;17mm

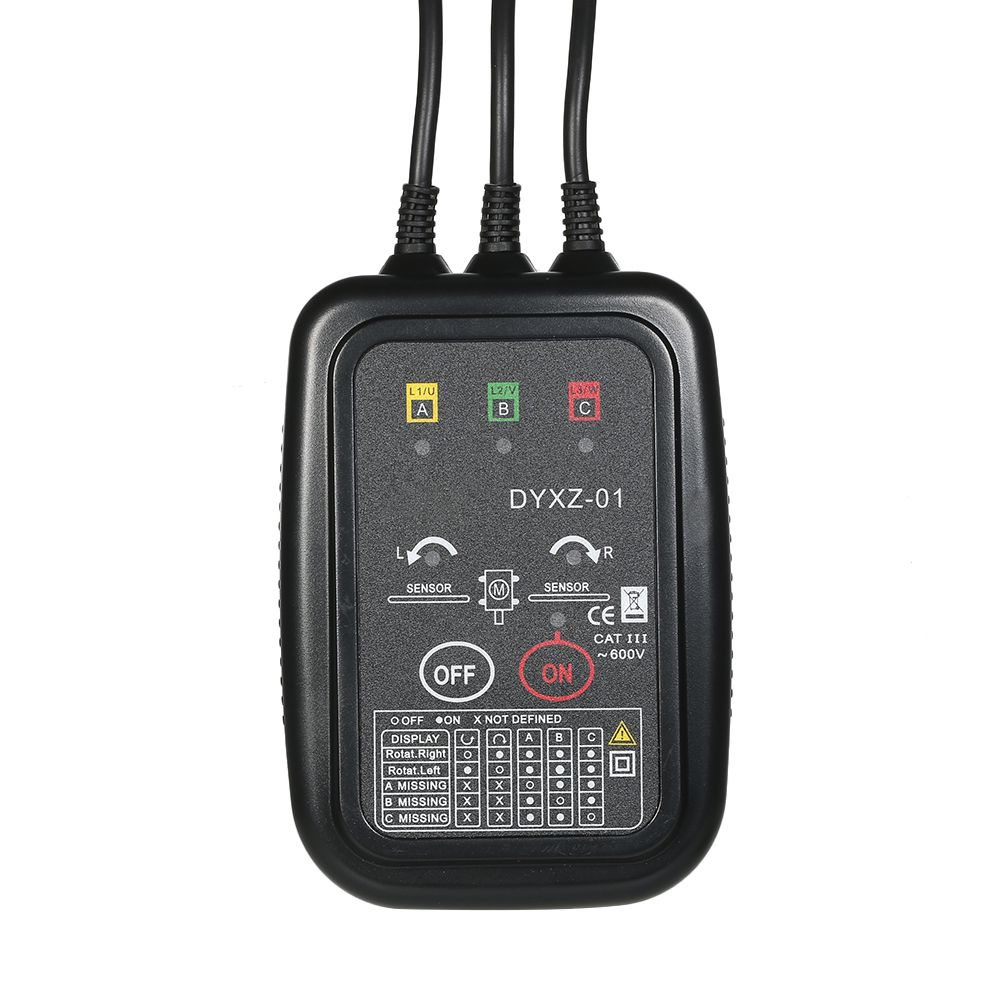

Display:
【Positive phase】R light turns on in a clockwise direction
【Reverse phase】L detection light turns on counterclockwise
【Live electricity】A, B, C lights in the voltage setting range
【Lack of phase】A or B or C lights are not lit
Motor steering:
Motor rotates clockwise: R light is on
Motor rotates anticlockwise: L light is on
Clamp lead length: 0.5m
Maximum rated power: 300mVA
Insulation strength: 5.4kVrms
Power: DC3V 2xAA 1.5V battery
Auto Power off: After 5 minutes, the meter automatically off power
Working Temperature and Humidity: -10 deg;～55 deg;; below 80%rh
Storage Temperature and Humidity: -20 deg;～60 deg;; below 90%rh
Weight: about 150g
Size: 110mm x 70mm x 30mm
Package size: 20x12x5cm
Package weight: 325g

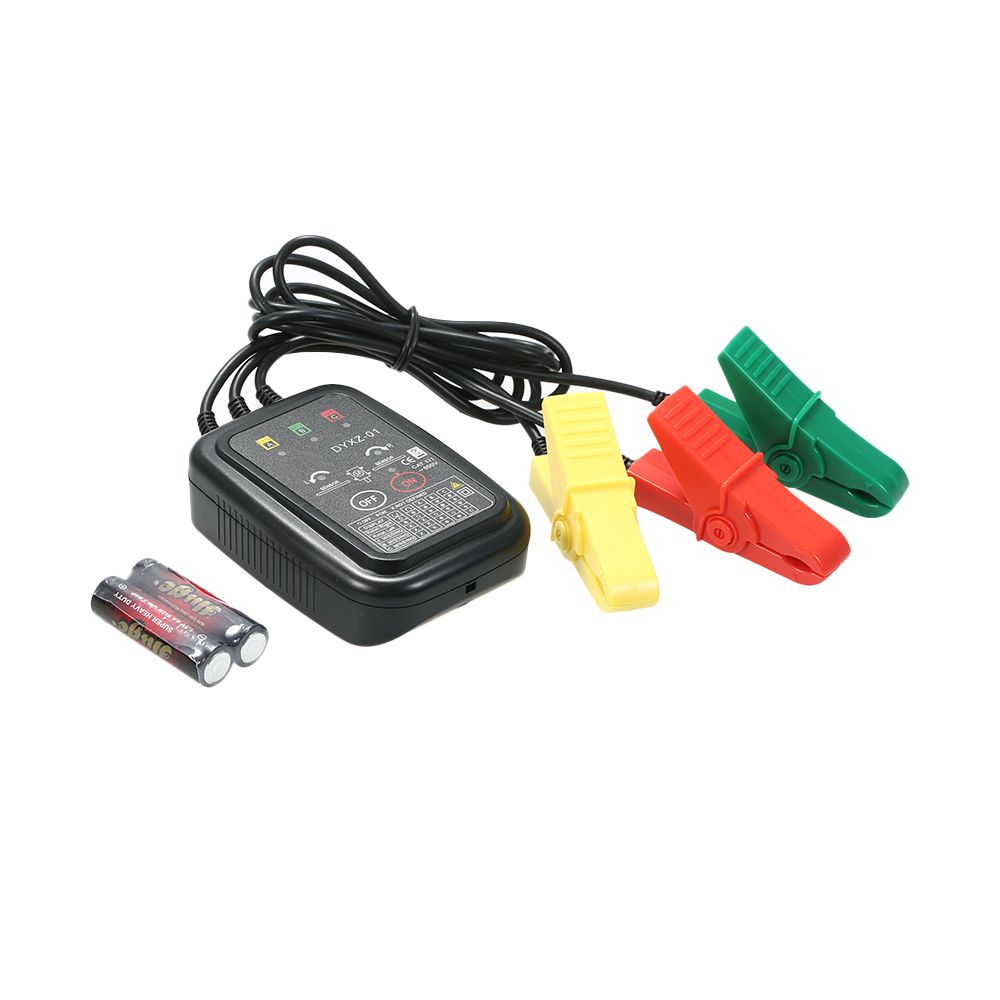

Package list:
1 x Non-contact Phase Sequence Meter
1 x User Manuel
