| Size (L x W x H cm) |
8.64 cm x 2.03 cm x 1.78 cm |
| Weight (kg) |
0.045 |

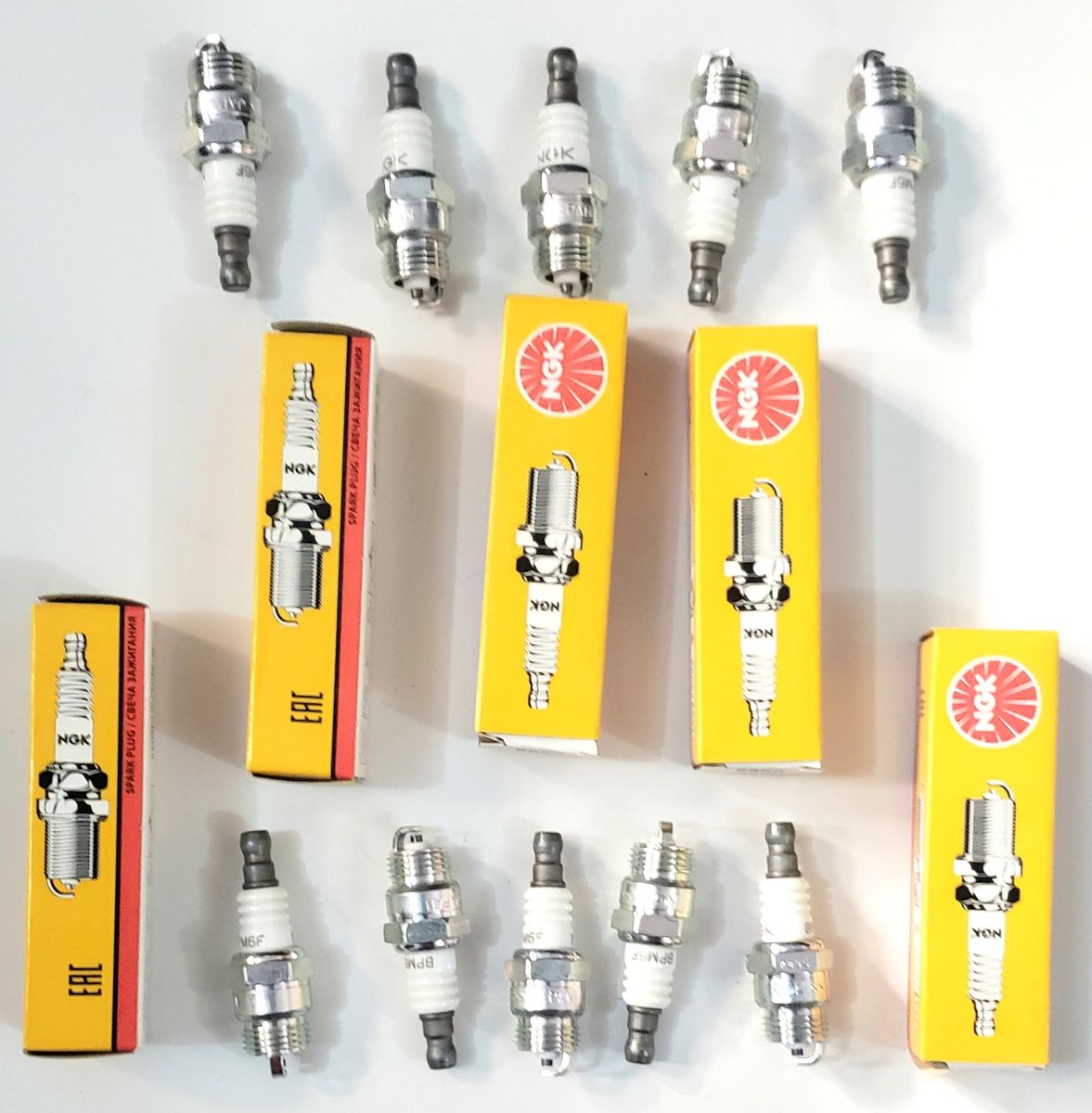

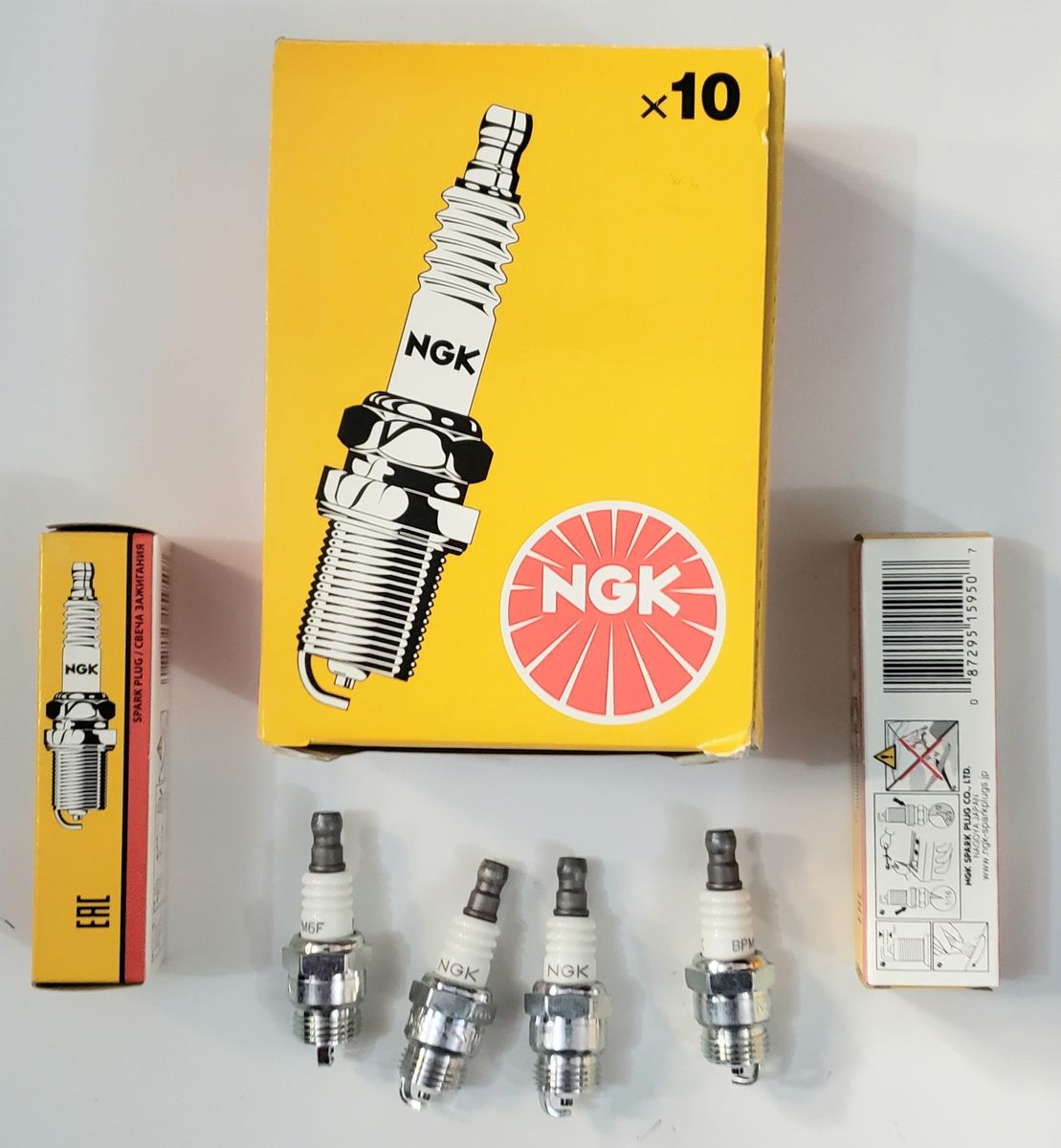

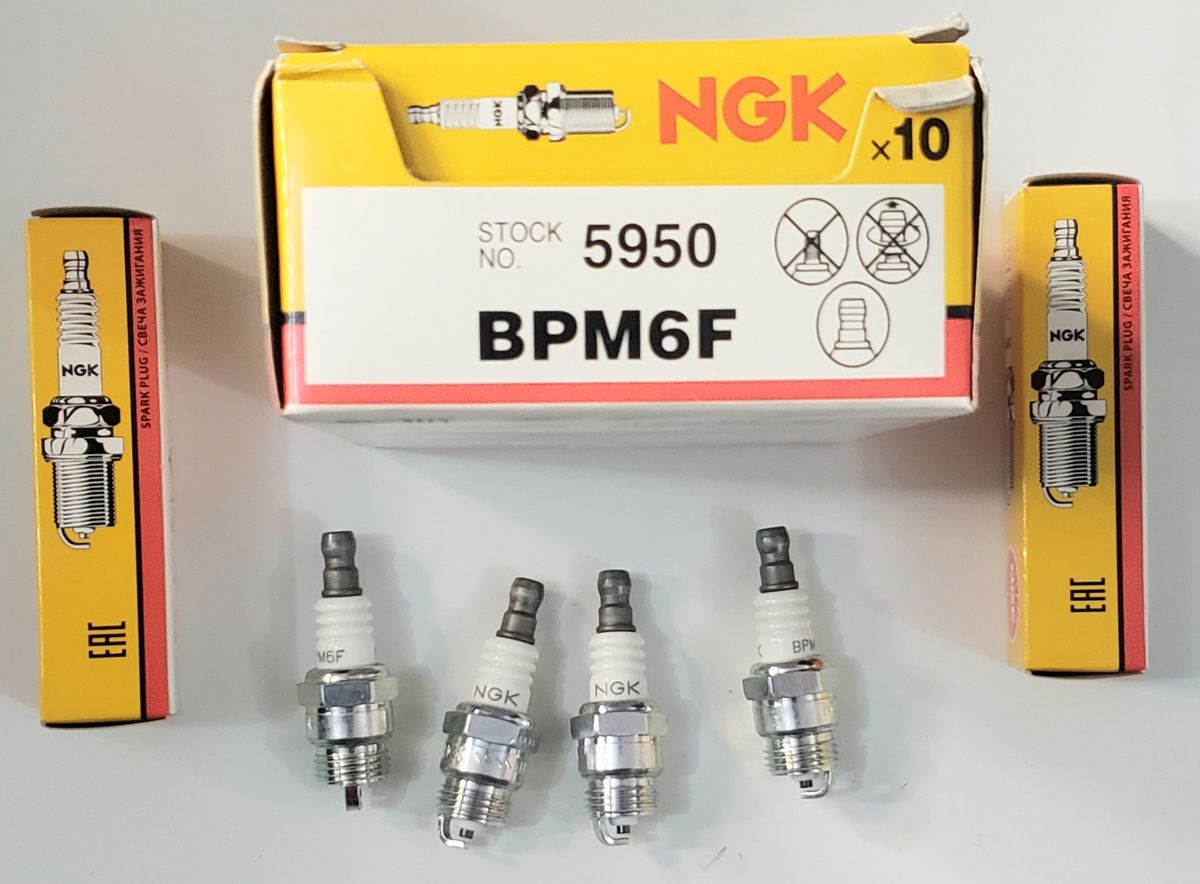

NGK 5950 BPM6F STANDARD COPPER SPARK PLUG - 1pc
NGK standard plugs are constructed for long life and optimum performance. NGK Spark Plugs are at the heart of smooth-running engines around the world.
Features & Benefits:
- Triple-Gasket Sealing Process
- Corrugated ribs to prevent flashover
- High dielectric strength
- Proper heat transfer
- Consistent Performance
FITMENT:
CHAINSAW: GREEN MACHINE, HOLEITE, JONSEREDS, MCCULLOCH, PARTNER; BLOWER: HOMELITE, TANAKA, EDGER TANAKA; SNOW THROWER: HOMELITE, STRING; TRIMMER: HOMELITE, MCCULLOCH, TANAKA; TILLER: HOMELITE
| NGK 5950 Specifications |
|---|
| Center Electrode Core Material | Copper |
| Center Electrode Tip Material | Nickel |
| Electrical Terminal Type | Non-Removable Nut |
| Gap Size (IN) | .028 |
| Ground Configuration | Standard |
| Ground Electrode Core Material | Nickel |
| Ground Electrode Quantity | 1 |
| Ground Electrode Tip Design | Standard |
| Hex Size (IN) | 5/8 |
| Insulator Height (mm) | 40.00 |
| Manufacturer Heat Range | 6 |
| Part Number | BPM6F |
| Reach (IN) | .375 |
| Resistance (ohms) | 1 |
| Seat Type | Tapered |
| Stock Number | 5950 |
| Thread Diameter (MM) | 14.00
|
This Spark plug is pre-gapped, but may require minor adjustments with a Spark Plug Gap Tool/Feeler Gauge to match your engine's specifications. For proper engine performance; gaps should be within +/-0.004" of OE Recommended value.
Key Features
Triple-Gasket Sealing Process
Corrugated ribs to prevent flashover
High dielectric strength
Proper heat transfer
What's In the Box
1. Copper Spark Plug - 1pc
