Buy Multi-functional LCD Network Cable Tester Wire Tracker PoE

Multi-functional LCD Network Cable Tester Wire Tracker PoE

₦ 308,515.59 ₦ 324,753.25 -5%

0 No Reviews

Product SKU: RENG185392

Brand: Generic

Quantity

In Stock

100% Secure Payments

TrustPay

Pay Online Delivered T&C^*

Delivery Information

Shipped from overseas and normally delivered between 20-35 days

Have one to sell? Sell on rehmie

Product Specifications
Description

Model	N/A
Production Country	China
Size (L x W x H cm)	23.00×17.00×5.00
Weight (kg)	0.46
Color	Grey
Main Material	N/A

The tester has three modes of digital mode, analog mode and PoE mode for options to track cable easily, which means it is equipped with the most powerful cable location technologies for any work environment. Besides, it includes cable length measurement, cable faults testing, PoE testing, hub and NCV function, all of these makes it a must-have tool for cabling engineers.

Features:

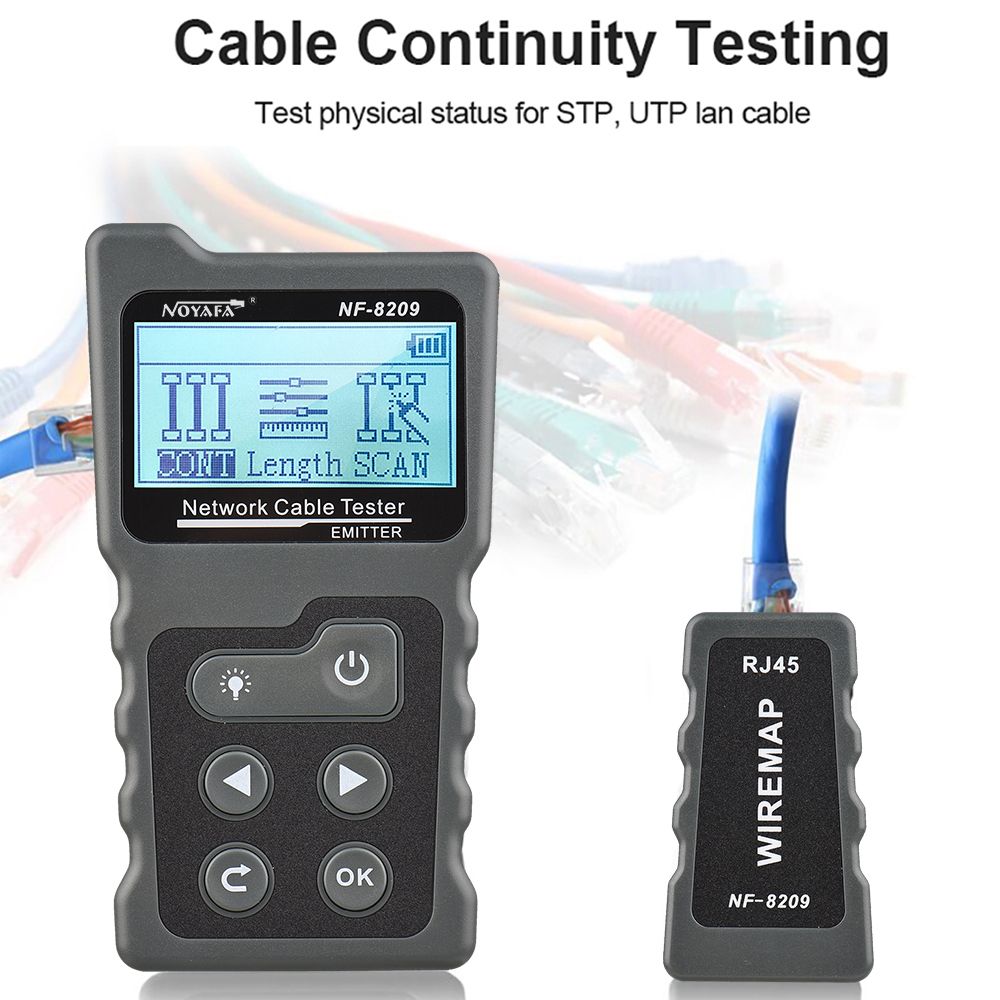

Emitter Testing Function: including cable continuity testing, cable length measurement, cable scan, and PoE test.

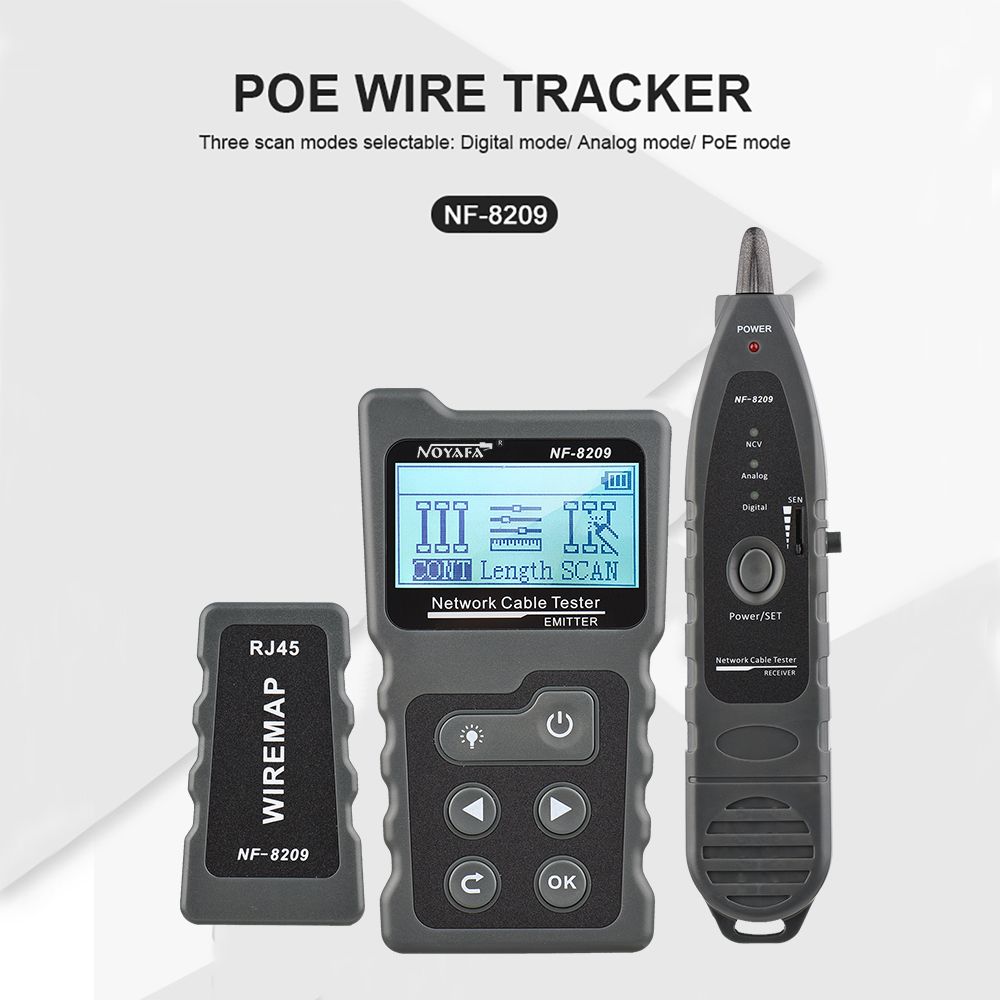

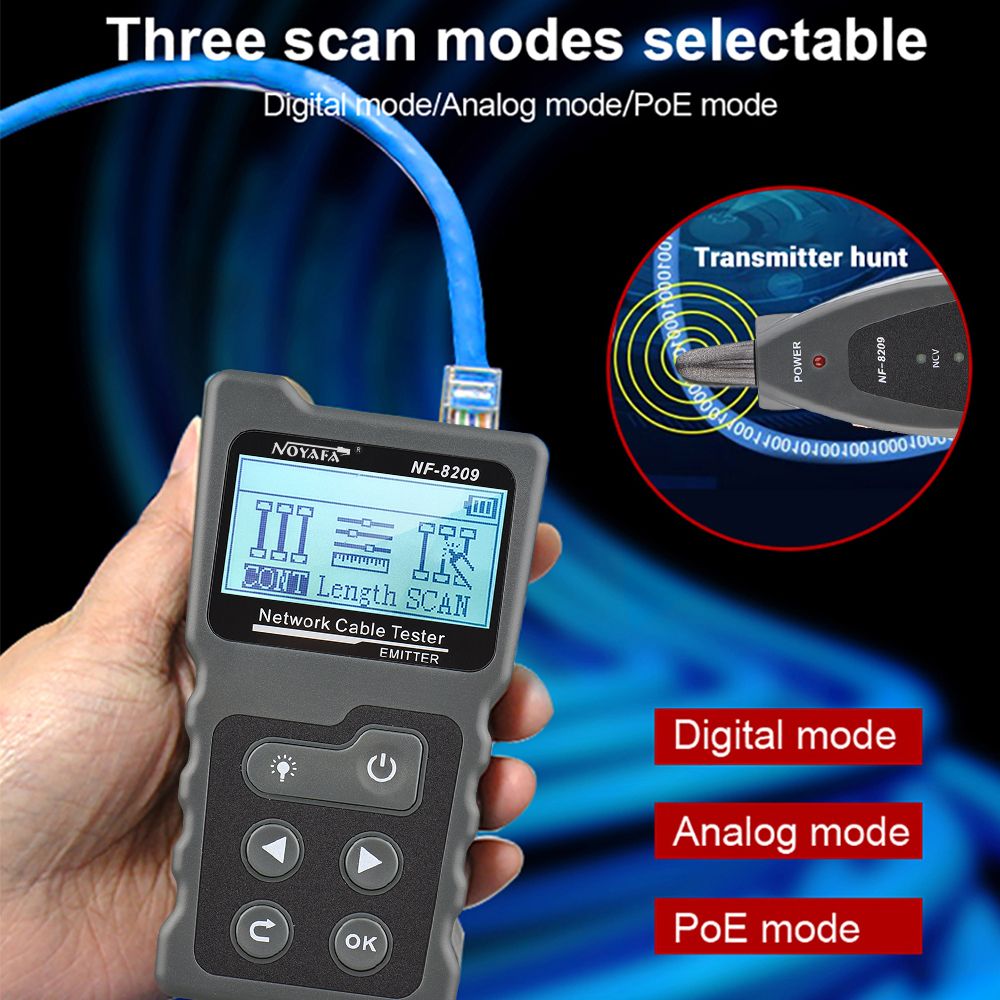

Three Scan Modes Switchable: it has digital mode, analog and PoE mode for options to track cable.

PSE Type Distinguish: identify the type of PSE, it is AF or AT standard.

POE Test Range: test the information of the DC5~60V standard / non-standard PoE device.

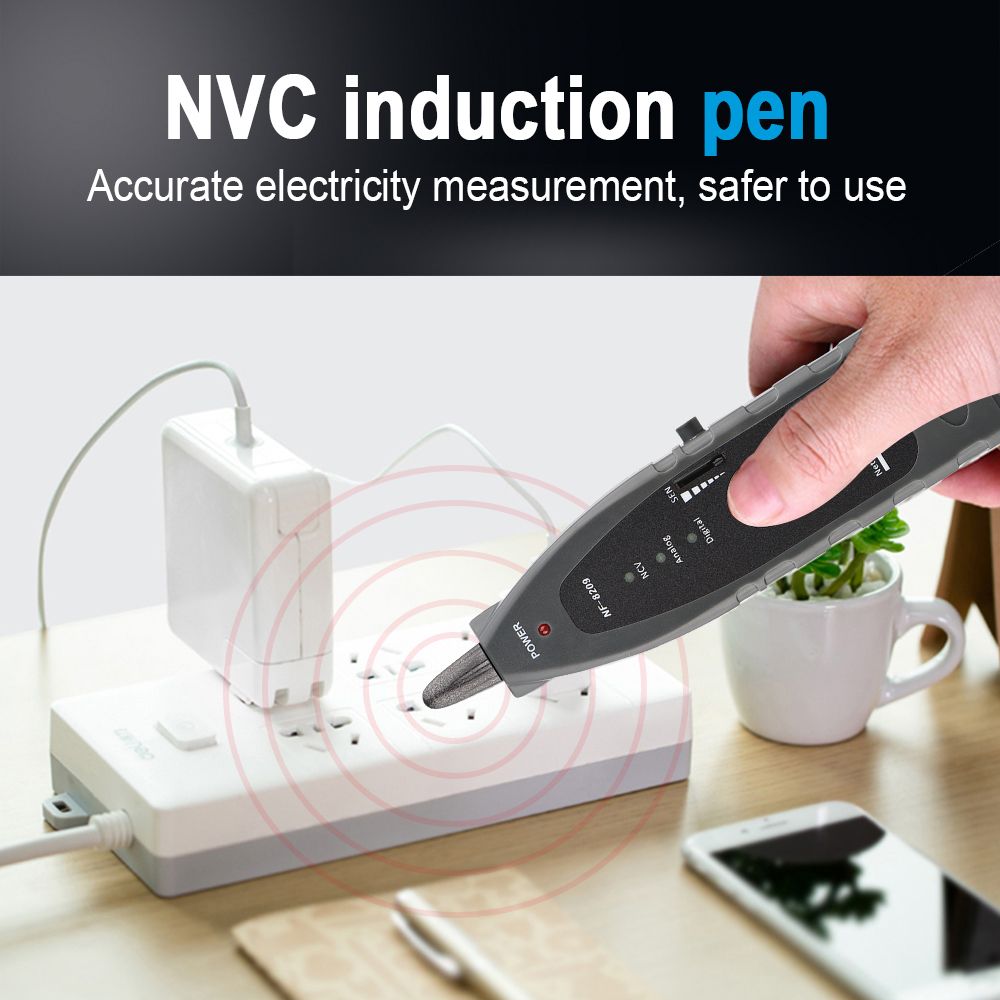

Non-contact Voltage Detecting: the receiver can be used to detect the AC voltage of household electrical wiring.

Illuminate Function: both the emitter and the receiver designed with lamp for auxiliary lighting up the working areas during operation.

Other Settings: backlight time(15s/30s/60s/on/off), auto-off time(15mins/30mins/1h/off), contrast adjustment and version checking.

Specifications:

Material: ABS

Package Weight: 500g / 17.64oz

Package Size: 23 * 17 * 5cm / 9.06 * 6.69 * 1.97in

Emitter Parameters & Functions:

LCD Display: 128*64 dot-matrix with backlight

Supply: 3 * 1.5V AAA battery (NOT included)

Low Battery Warning: 2.7V

Auto-off Time: 15min/30min/60min/OFF

Voltage Protection: DC48V, 5mA

Max. Working Current:

Key Features

Emitter Testing Function: including cable continuity testing, cable length measurement, cable scan, and PoE test.
Three Scan Modes Switchable: it has digital mode, analog and PoE mode for options to track cable.
PSE Type Distinguish: identify the type of PSE, it is AF or AT standard.
POE Test Range: test the information of the DC5~60V standard / non-standard PoE device.
Non-contact Voltage Detecting: the receiver can be used to detect the AC voltage of household electrical wiring.
Illuminate Function: both the emitter and the receiver designed with lamp for auxiliary lighting up the working areas during operation.

What's In the Box

1 x Emitter,1 x Receiver,1 x Remote,1 x Earphone,1 x Crocodile Clip Test Line,2 x Cable Lead,1 x Carry Bag,1 x Manual (English)
