Features:
Bidirectional current detection, for detecting charge and discharge users can easily detect bidirectional current properties, no need to change the direction of the connection.
Power off power memory function, after power off, the number of AH and WH before power off can be memorized, convenient for observation and measurement.
Time and AH data clearing function, do not affect the measurement later.
The percentage of AH can be set without affecting direct discharge measurement.

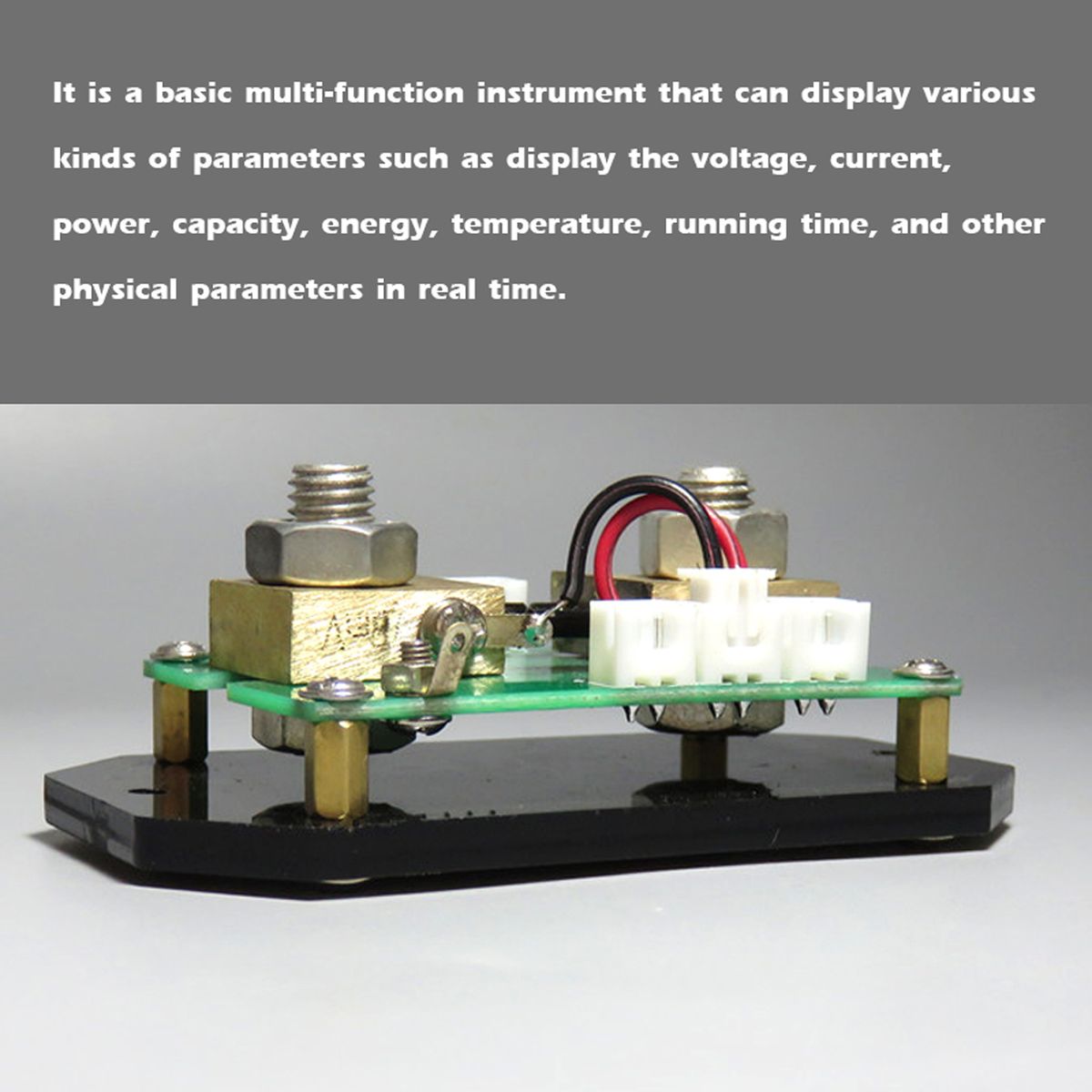

Voltage, current, AH, WH, time, power, simultaneously displayed, comprehensive and clear information display.
With output disconnect function key, flexible on or off output.
With over-voltage, over-current, over-temperature and other extended-protection functions.
It can be calibrated online, enabling customers to promptly correct the error.
In the liquid crystal display can be closed when necessary, reduce power consumption.
Function Introduction:
1. BAT quot; battery capacity value setting, this parameter is to set the battery measured total capacity.
2. quot;BPC quot; battery remaining capacity percentage, can be set according to the value of the remaining battery AH.
3. quot;OVP quot; set over-voltage protections value, if the OVP value is set, when the actual measured voltage value is greater than the set value, it will prompt over-voltage, and cut off the relay(self-provisioned).
4. quot;LVP quot; set overvoltage protections value, if you set the LVP value, when the actual measurement of voltage is less than the set value, it will prompt the undervoltage, and cut off the relay(self-provisioned).
5. quot;NCP quot; sets the charge overcurrent protections value. If the NCP value is set, when the actual measured charging-current value is greater than the set value, it will prompt overcurrent and cut off the relay(self-provisioned).
6. quot;OCP quot; sets the discharge overcurrent protections value. If the OCP value is set, when the actual measured discharge current value is greater than the set value, an overcurrent will be prompted and the relay(self-provisioned) will be cut.
7. quot;OTP quot; sets the over-temperature protections value. If the OTP value is set, when the actual measured temperature value is greater than the set value, the over temperature will be prompted and the relay(self-provisioned) will be cut off.
8. quot;ADS quot; communication address code setting.In multi-machine communication, multi-machine communication is achieved by setting the address code.
9. quot;TTL quot; instrument powers up the output state of the default relay, normally open or normally closed.
10. quot;CLR quot; no-load current correction function, if the actual load current is zero.
Specifications:
Name: Volt-ammeter
Material: ABS
Model: VA7510S, VA7520S, VA7530S, VA7550S (optional)

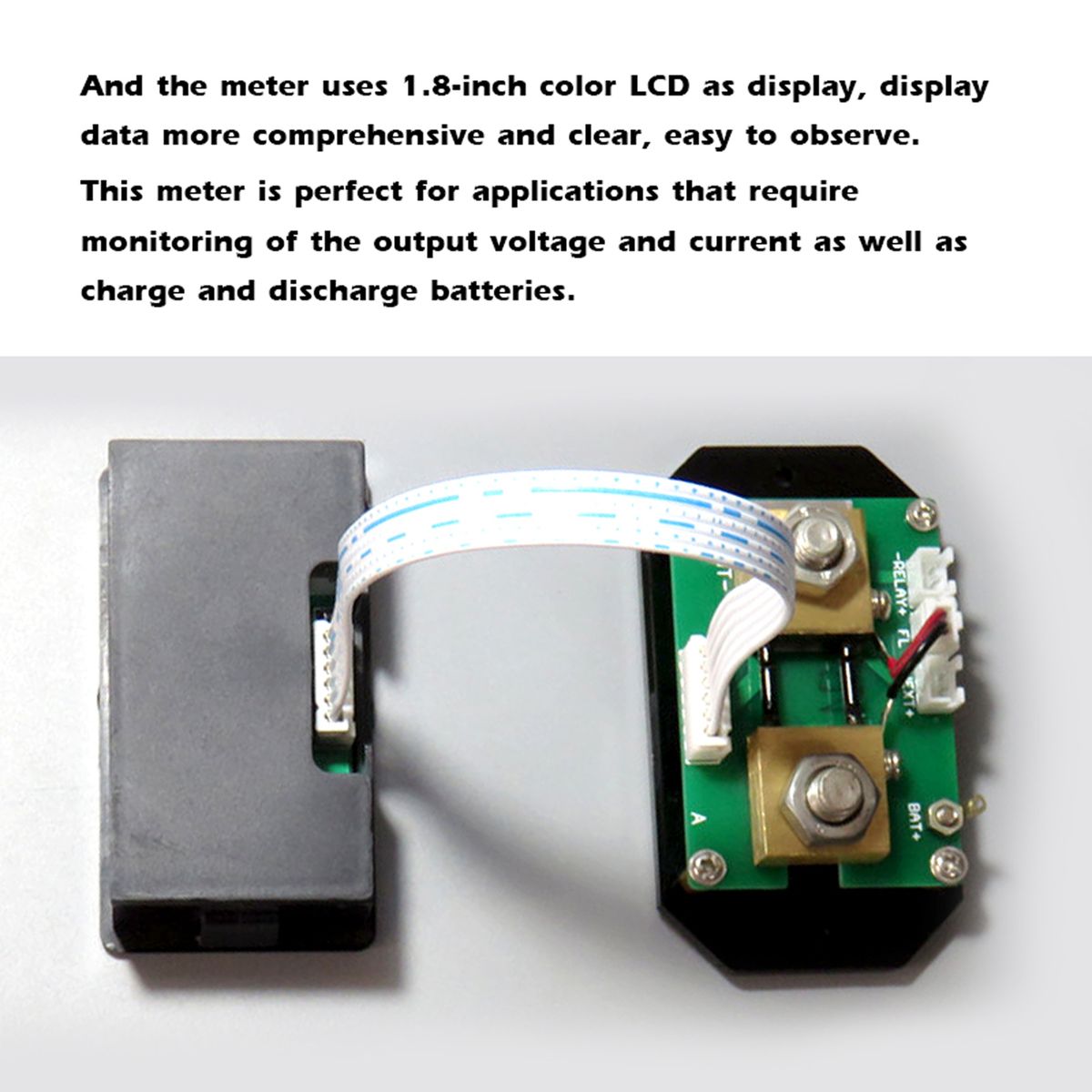

Display: 1.8inch color LCD display
Self-power measurement-range: 6V-75V
Measurement-range: 0-120V when external power supply
Input current measurement-range: 0-100A, 0-200A, 0-300A, 0-500A (optional)
External-supply voltage: 6-60V
Voltage: 0.01V-120V
Electric current: 0.1A-100A, 0.1A-200A, 0.1A-300A, 0.1A-500A (optional)
Capacity: 0.001AH-65000.00AH
Energy: 0.000KWH-99999.9KWH
Time: 0-100 hours
Power value: 99KW
Temperature: 1-100℃
Voltage: plusmn; 1% + 2 words
Current: plusmn; 2% + 5 words
Temperature: plusmn;1 ℃
Measurement rate: 5 times / second
OVP (overvoltage- protection): 0.01V-500V
LVP (undervoltage-protection): 0.01-500V
OCP (charge overcurrent-protection): 0-1000A
NCP (discharge overcurrent-protection): 0-1000A
OTP(overtemperature-protection): 0-100℃
size:
Display board size: 78 * 42 * 26mm / 3.07 * 1.65 * 1.02in

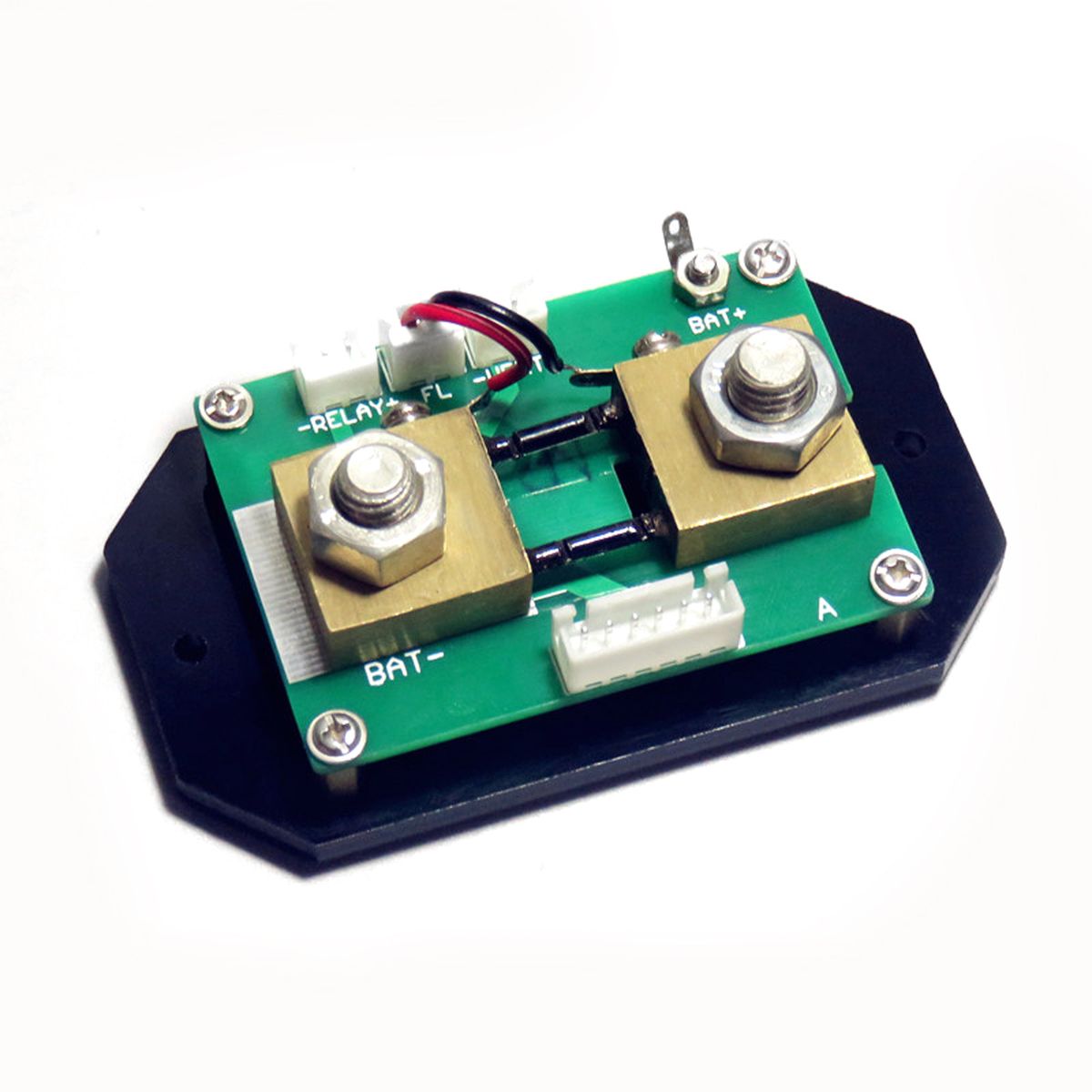

Measuring plate size: 87 * 49 * 14mm / 3.43 * 1.93 * 0.55in
Package size: 150 * 150 * 70mm / 5.91 * 5.91 * 2.76in
Package weight:
VA7510S: 230g / 8.11ounce
VA7520S: 240g / 8.47ounce
VA7530S: 300g / 10.58ounce
VA7550S: 350g / 12.35ounce
